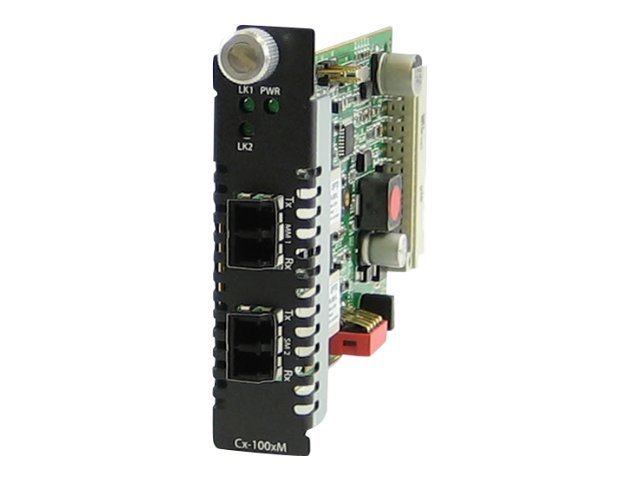

Perle C-100MM-S2LC120
MSRP$3,065.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Perle C-100MM-S2LC120
- Media converter
- 100Mb LAN
- 100Base-FX, 100Base-ZX
- LC multi-mode / LC single-mode
- up to 120 km
- 1310 nm / 1550 nm
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,065.00 |
| Mfr Part #: | 05061140 |
| SHI Part #: | 22834851 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Perle Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Perle C-100MM-S2LC120 - Media converter - 100Mb LAN - 100Base-FX, 100Base-ZX - LC multi-mode / LC single-mode - up to 120 km - 1310 nm / 1550 nm |
| Manufacturer | Perle Systems |
| MSRP | $3,065.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Weight | 150 g |
| Header / Brand | Perle |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | Fast Ethernet |
| Networking / Data Transfer Rate | 100 Mbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | Media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Weight | 150 g |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Compatible Slots | 1 x expansion slot |
| Interfaces |
|
| General | |
| Device Type | Media converter |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, EN 60950, EN 61000-3-2, EN55024, EN55022 Class A, RoHS, UL 60950-1, WEEE, FCC Part 15 A, REACH, EN 60825-1 |
| MTBF | 489,076 hours |
| Networking | |
| Cabling Type | 100Base-FX, 100Base-ZX |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3xy |
| Connectivity Technology | Wired |
| Data Link Protocol | 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Features | VLAN support, Far End Fault (FEF) |
| Max Transfer Distance | 120 km |
| Optical Wave Length | 1310 nm / 1550 nm |
| Status Indicators | Power, receive, link/activity |
