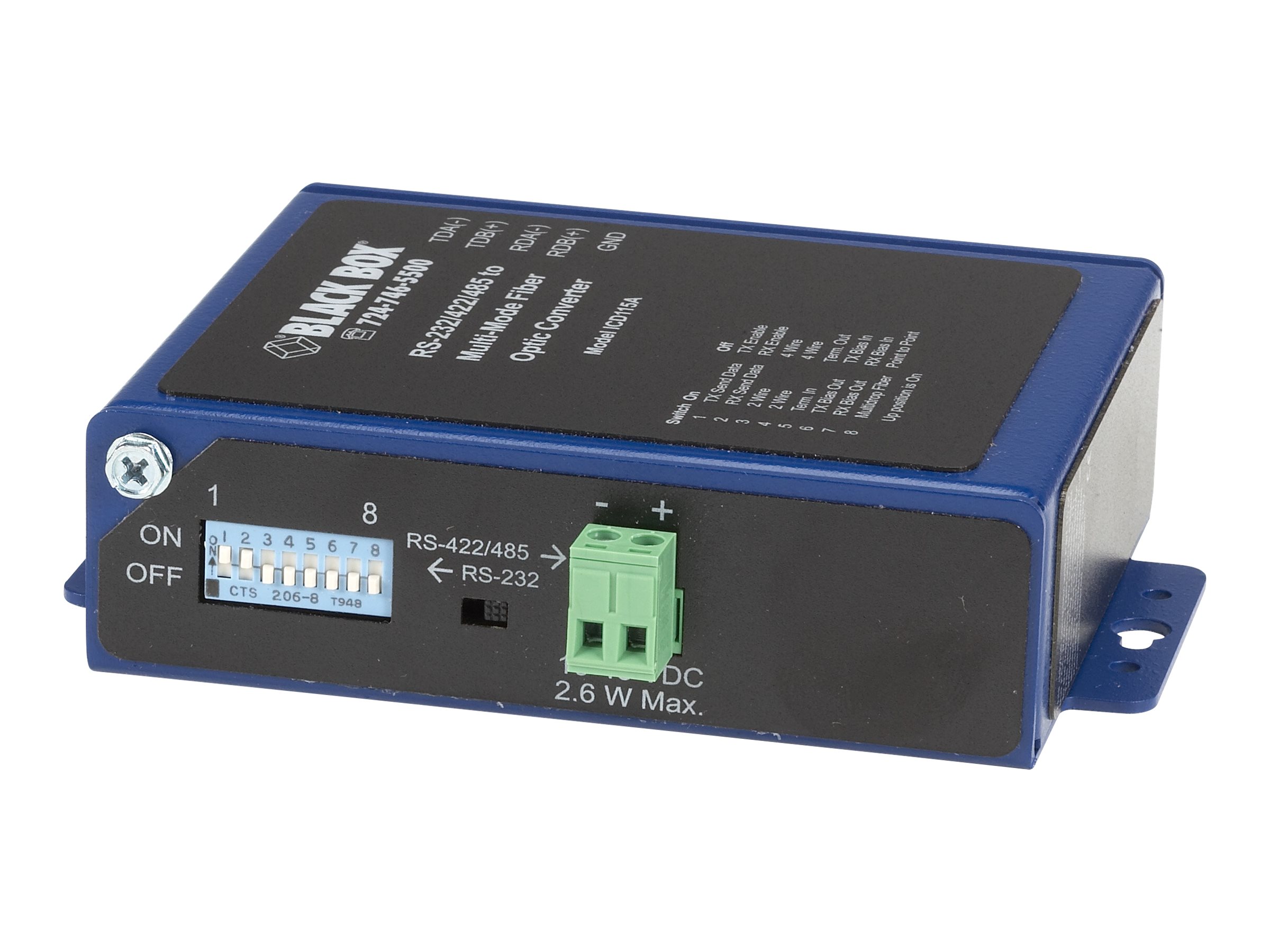

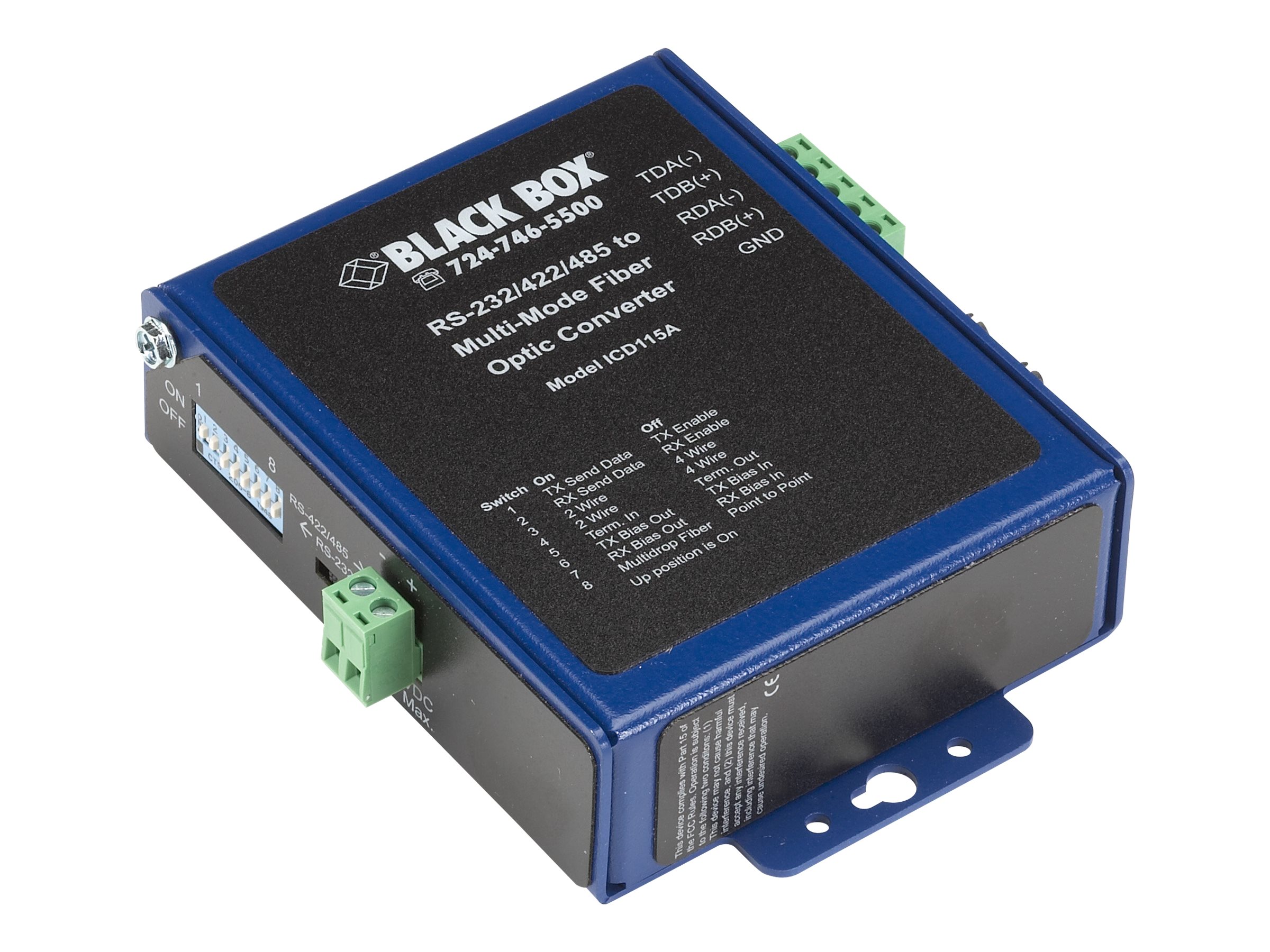

Black Box Industrial Opto-Isolated Serial to Fiber
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Black Box Industrial Opto-Isolated Serial to Fiber
- Short-haul modem
- ASCII, serial, Modbus
- serial RS-232, serial RS-422, serial RS-485
- terminal block / ST multi-mode
- up to 2 km
- 1310 nm
| Additional Details | |
|---|---|
| Mfr Part #: | ICD115A |
| SHI Part #: | 22668040 |
| Category: | Modems |
| UNSPSC: | 43222628 |
| Manufacturer: | Black Box |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Modems |
| Description | Black Box Industrial Opto-Isolated Serial to Fiber - Short-haul modem - ASCII, serial, Modbus - serial RS-232, serial RS-422, serial RS-485 - terminal block / ST multi-mode - up to 2 km - 1310 nm |
| Manufacturer | Black Box |
| UNSPSC | 43222628 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13.2 cm |
| Dimensions & Weight / Height | 3.3 cm |
| Dimensions & Weight / Weight | 200 g |
| Dimensions & Weight / Width | 9.4 cm |
| Header / Brand | Black Box |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 115.2 Kbps |
| Networking / Form Factor | External |
| Networking / Type | Short-haul modem |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 13.2 cm |
| Height | 3.3 cm |
| Weight | 200 g |
| Width | 9.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -34 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Short-haul modem |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | RoHS, IEC 60529 IP30 |
| Networking | |
| Cabling Type | Serial RS-232, serial RS-422, serial RS-485 |
| Connectivity Technology | Wired |
| Data Link Protocol | ASCII, serial, Modbus |
| Data Transfer Rate | 115.2 Kbps |
| Features | Surge protection, 2 KV Optical Isolation Protection |
| Max Transfer Distance | 2 km |
| Optical Wave Length | 1310 nm |
| Status Indicators | Power, transmit, receive |
| Power | |
| Power Consumption Operational | 2.6 Watt |
| Power Device | External |
