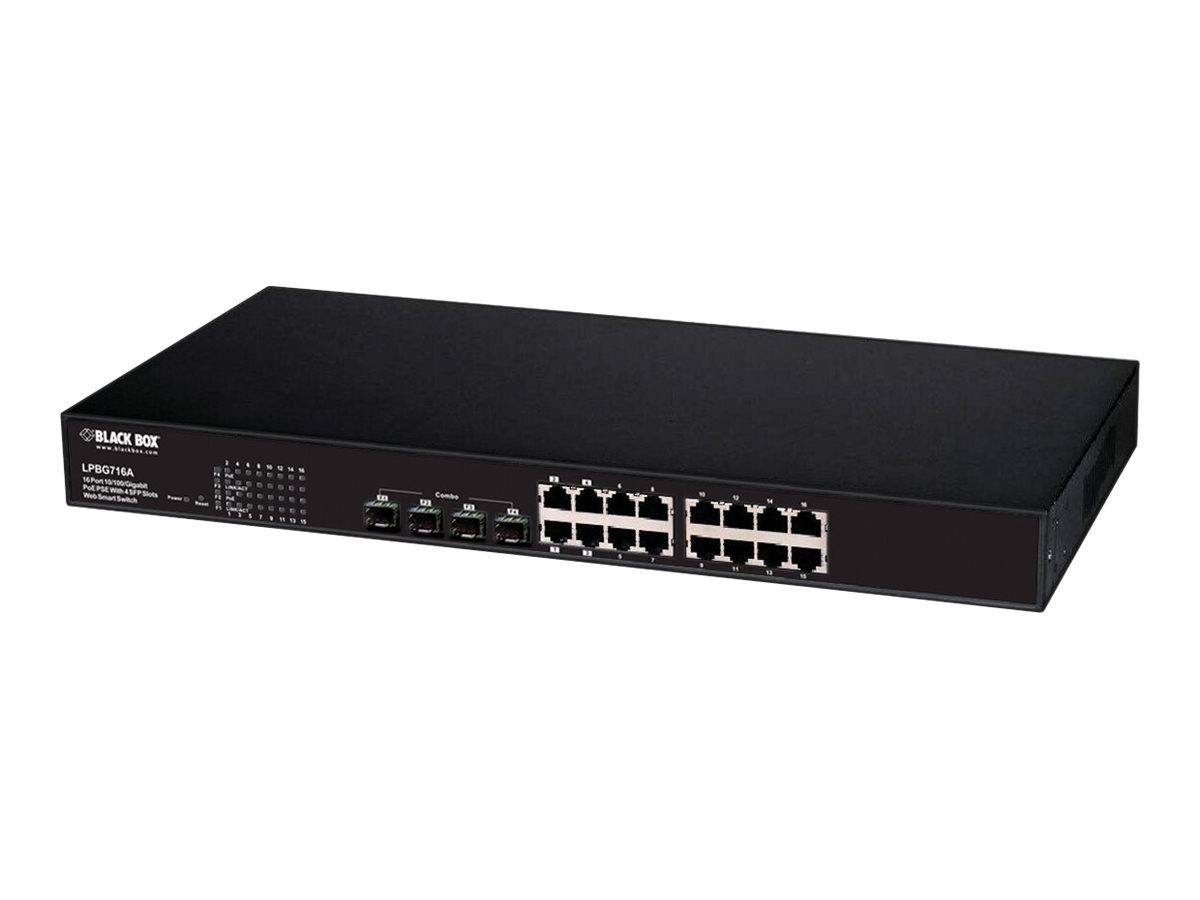

Black Box Web Smart Gigabit Switch
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Black Box Web Smart Gigabit Switch
- Switch
- managed
- 16 x 10/100/1000 + 4 x shared Gigabit SFP
- desktop
- PoE
| Additional Details | |
|---|---|
| Mfr Part #: | LPBG716A |
| SHI Part #: | 22664280 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Black Box |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Black Box Web Smart Gigabit Switch - Switch - managed - 16 x 10/100/1000 + 4 x shared Gigabit SFP - desktop - PoE |
| Manufacturer | Black Box |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 22 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 4.7 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | Black Box |
| Networking / Form Factor | Desktop |
| Networking / Ports Qty | 16 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 22 cm |
| Height | 4.4 cm |
| Weight | 4.7 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x |
| Device Type | Switch - 16 ports - managed |
| Enclosure Type | Desktop 1U |
| Features | Auto-sensing per device, auto-negotiation, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, manageable, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, RSTP support, QoS, Jumbo Frames support |
| MAC Address Table Size | 8K entries |
| Ports | 16 x 10/100/1000 + 4 x shared Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| RAM | 340 KB |
| Status Indicators | Power, status, link/activity |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, RoHS |
| Rack Mounting Kit | Included |
| Power | |
| Power Device | Power supply - external |
| Voltage Required | AC 120/230 V (50/60 Hz) |
