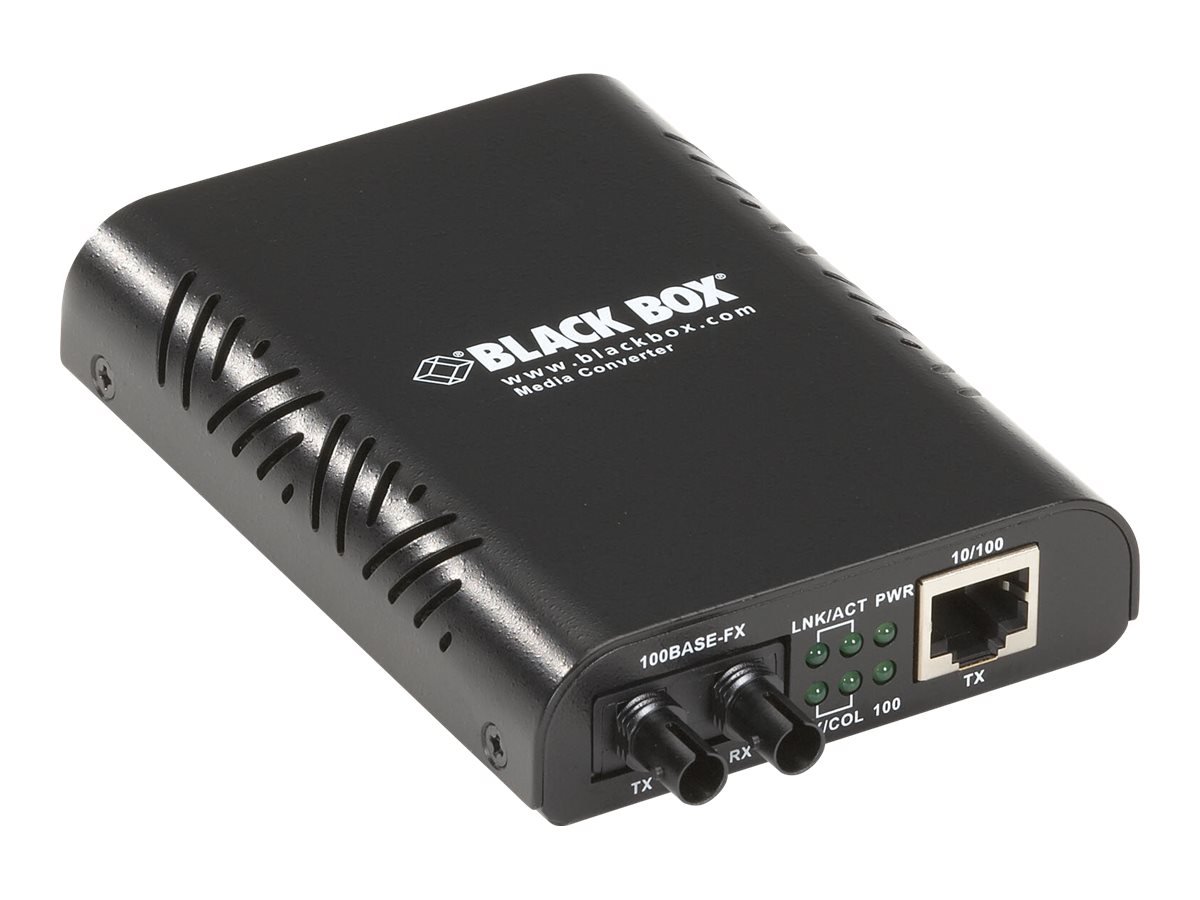

Black Box LinkGain - Fiber media converter
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Black Box LinkGain - Fiber media converter
- 10Base-T, 100Base-FX, 100Base-TX
- RJ-45 / ST multi-mode
- up to 2 km
- 850 nm / 1300 nm
- for P/N: LB300A-R3, LB300A-RACK, LBNC300A
| Additional Details | |
|---|---|
| Mfr Part #: | LBMC300-MMST |
| SHI Part #: | 22663408 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Black Box |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Black Box LinkGain - Fiber media converter - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / ST multi-mode - up to 2 km - 850 nm / 1300 nm - for P/N: LB300A-R3, LB300A-RACK, LBNC300A |
| Manufacturer | Black Box |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.1 cm |
| Dimensions & Weight / Height | 2.3 cm |
| Dimensions & Weight / Weight | 200 g |
| Dimensions & Weight / Width | 10.9 cm |
| Header / Brand | Black Box |
| Networking / Connectivity Technology | Wired |
| Networking / Data Transfer Rate | 100 Mbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Compatibility Information | |
| Designed For | P/N: LB300A-R3, LB300A-RACK, LBNC300A |
| Dimensions & Weight | |
| Depth | 8.1 cm |
| Height | 2.3 cm |
| Weight | 200 g |
| Width | 10.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Networking | |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Compliant Standards | IEEE 802.3, IEEE 802.3u |
| Connectivity Technology | Wired |
| Data Transfer Rate | 100 Mbps |
| Features | Auto-uplink (auto MDI/MDI-X), Link Fault Pass Through function (LFP) |
| Max Transfer Distance | 2 km |
| Optical Wave Length | 850 nm / 1300 nm |
| Status Indicators | Power, link/activity |
| Power | |
| Power Consumption Operational | 1.9 Watt |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
