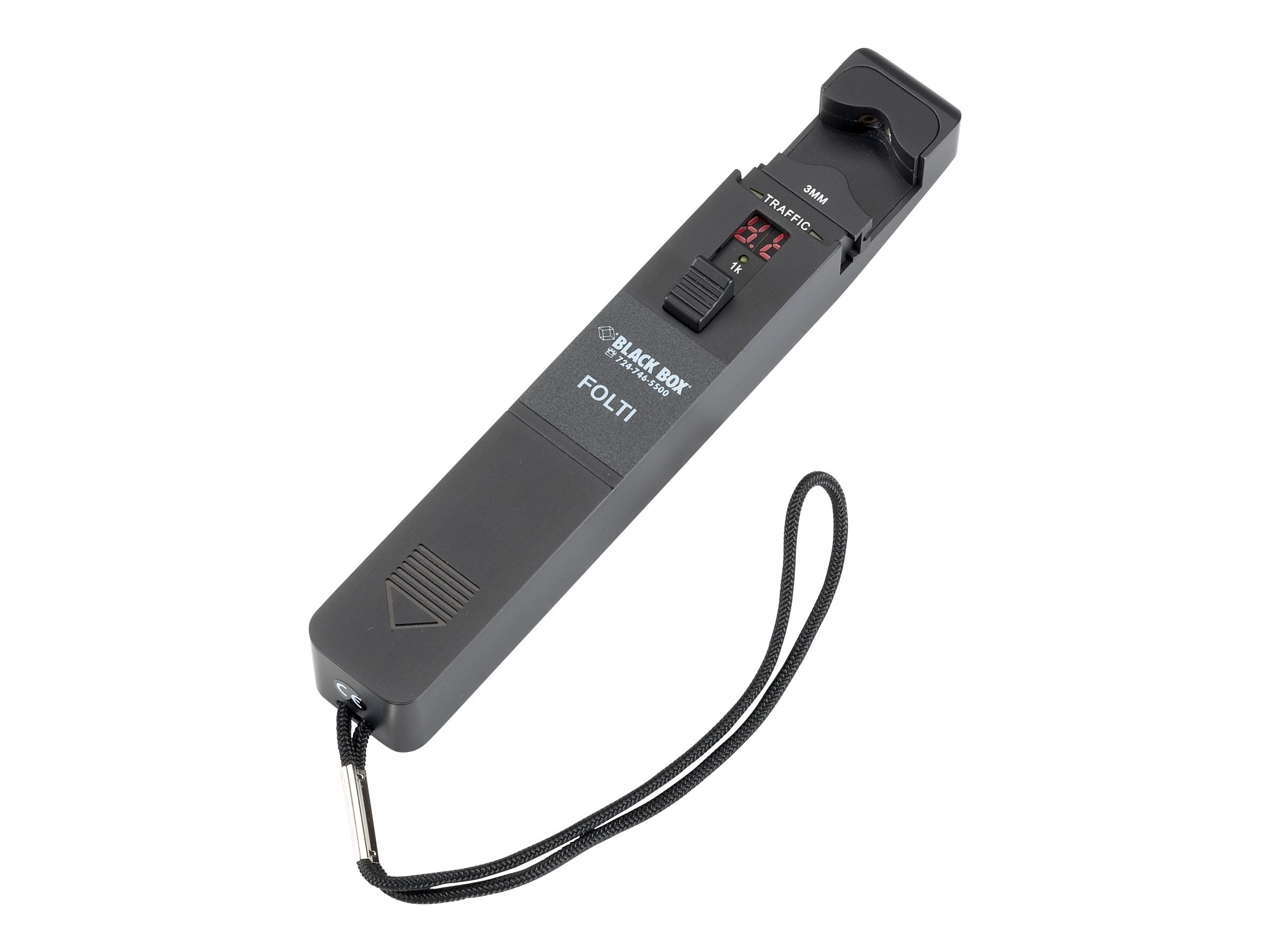

Black Box Live Traffic Identifier for Fiber

Identify live fibers and avoid unnecessary service disruptions. When traffic is present on the fiber an audible tone sounds. Detects low-frequency tones at 270 Hz 1 kHz and 2 kHz. Traffic direction is also indicated by LEDs on the probe. A range of 850 to 1700 nm enables use on single-mode and multimode fiber. Use with 900-um buffered fiber 250-um coated or ribbon fiber and 3-mm jacketed fiber. Three adapters are included. Ideal for troubleshooting maintenance and rerouting fiber cable without disrupting service. Displays the Relative Core Power to help identify bad connectors and splice points. Features a lightweight but rugged metal housing. Easy-to-use hands-free operation. It can be used with a light source. Repair a fiber cable on an active network with the Black Box(r) Live Traffic Identifier for Fiber. It's the technician's must-have instrument for isolating a fiber that's not transmitting properly because of bends breaks bad connectors and more. Instead of opening the fiber at the splice point and causing service interruptions all you need to do is clamp the Live Traffic Identifier on the fiber. It works by detecting the optical signals being transmitted through the fiber. By using a non-destructive macro-bend detection technology it doesn't damage or overstress the fiber. The identifier detects low-frequency tones at 270 Hz 1 kHz and 2 kHz. When it detects traffic on the fiber being tested it sounds an audible alarm. In addition an LED indicates the traffic direction. Because the Identifier uses InGaAs detectors you can use it on single-mode and multimode cable with wavelengths ranging from 850 to 1700 nm.
