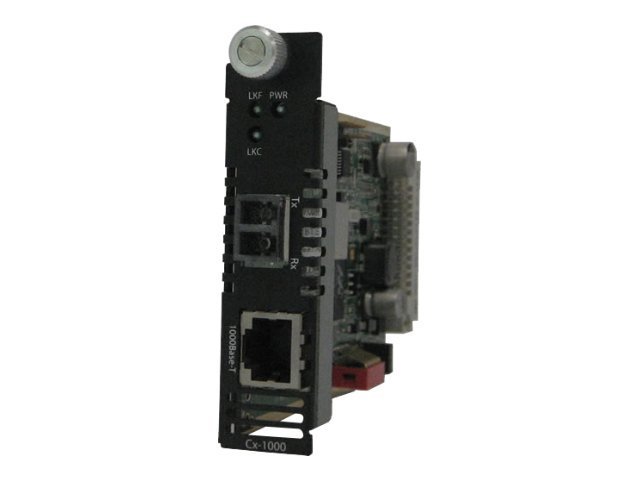

Perle CM-1000-S2LC10


MSRP$808.00
$711.00
Perle CM-1000-S2LC10

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Fiber media converter
  • GigE
  • 1000Base-LX, 1000Base-LH, 1000Base-T
  • RJ-45 / LC single-mode
  • up to 10 km
Perle CM-1000-S2LC10
  • Fiber media converter
  • GigE
  • 1000Base-LX, 1000Base-LH, 1000Base-T
  • RJ-45 / LC single-mode
  • up to 10 km
  • 1310 nm
  Additional Details
Price: $711.00
MSRP: $808.00
Mfr Part #: 05052020
SHI Part #: 22053764
Category: Channel converter
UNSPSC: 43201540
Manufacturer: Perle Systems
Product Type: Hardware
General Information
CategoryChannel converter
DescriptionPerle CM-1000-S2LC10 - Fiber media converter - GigE - 1000Base-LX, 1000Base-LH, 1000Base-T - RJ-45 / LC single-mode - up to 10 km - 1310 nm
ManufacturerPerle Systems
MSRP$808.00
UNSPSC43201540
Main Specifications
Dimensions & Weight / Weight150 g
Header / BrandPerle
Networking / Connectivity TechnologyWired
Networking / Data Link ProtocolGigabit Ethernet
Networking / Data Transfer Rate1 Gbps
Networking / Form FactorPlug-in module
Networking / TypeFiber media converter
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Weight150 g
Environmental Parameters
Humidity Range Operating5 - 90% (non-condensing)
Max Operating Temperature50 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Compatible Slots1 x expansion slot
Interfaces
  • 1 x Ethernet 1000Base-T - RJ-45 female
  • 1 x Ethernet 1000Base-LX/1000Base-LH - LC single-mode female x 2
General
Device TypeFiber media converter
Form FactorPlug-in module
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsCISPR 22 Class A, EN 60950, EN 61000-3-2, EN55024, EN55022 Class A, RoHS, UL 60950-1, WEEE, FCC Part 15 A, REACH, EN 60825-1
MTBF609,000 hours
Networking
Cabling Type1000Base-LX, 1000Base-LH, 1000Base-T
Compliant StandardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3x
Connectivity TechnologyWired
Data Link ProtocolGigE
Data Transfer Rate1 Gbps
FeaturesFiberAlert, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), manageable, Far End Fault (FEF), half duplex mode, full duplex mode, firmware upgradable
Max Transfer Distance10 km
Optical Wave Length1310 nm
Remote Management ProtocolSNMP, Telnet, SSH
Status IndicatorsPower, receive, link/activity
