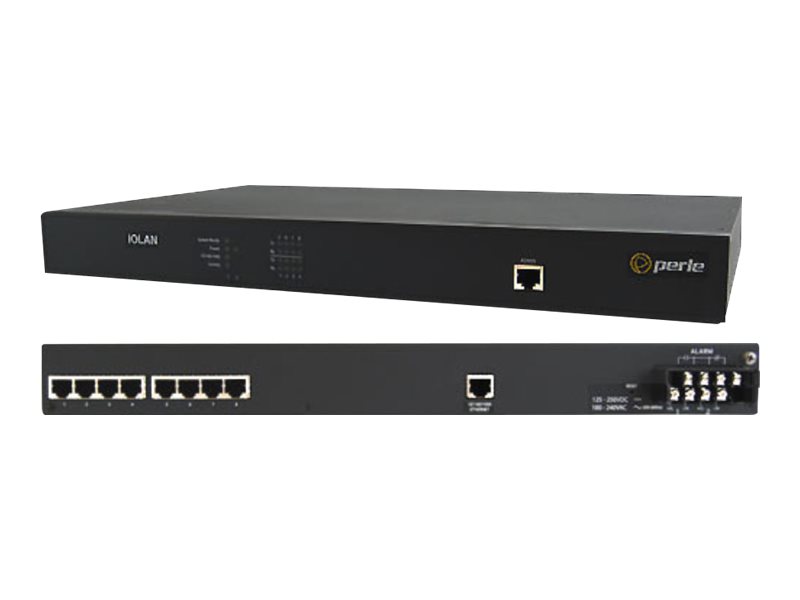

Perle IOLAN SDS8C DHV
MSRP$8,207.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Perle IOLAN SDS8C DHV
- Terminal server
- 8 ports
- RS-232, RS-422, RS-485
- 1U
- rack-mountable
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $8,207.00 |
| Mfr Part #: | 04032410 |
| SHI Part #: | 19116323 |
| Category: | Multistation access units (MAUs) |
| UNSPSC: | 43222630 |
| Manufacturer: | Perle Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Multistation access units (MAUs) |
| Description | Perle IOLAN SDS8C DHV - Terminal server - 8 ports - RS-232, RS-422, RS-485 - 1U - rack-mountable |
| Manufacturer | Perle Systems |
| MSRP | $8,207.00 |
| UNSPSC | 43222630 |
| Main Specifications | |
| Dimensions & Weight / Depth | 26.4 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 3.38 kg |
| Dimensions & Weight / Width | 43.4 cm |
| Header / Brand | Perle |
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 230 Kbps |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 8 |
| Networking / Type | Terminal server |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x PCI |
| Interfaces |
|
| General | |
| Depth | 26.4 cm |
| Device Type | Terminal server |
| Height | 4.4 cm |
| Height (Rack Units) | 1U |
| Weight | 3.38 kg |
| Width | 43.4 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, CB, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 15, EN 61000-4-5, CSA C22.2, EN 61000-4-11, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, WEEE, IEC 60529 IP30 |
| MTBF | 126,121 hours |
| Networking | |
| Authentication Method | Kerberos, SecurID, Secure Shell (SSH), RADIUS, PAP, CHAP, X.509 certificates, TACACS+, Secure Shell v.2 (SSH2), LDAP |
| Communication Mode | Half-duplex, full-duplex |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, RS-422, RS-485 |
| Data Transfer Rate | 230 Kbps |
| Encryption Algorithm | DES, Triple DES, Blowfish, RSA, RC4, RC2, MD5, ARCFOUR, 128-bit WEP, DSS, SHA-1, ARCTWO, TLS 1.0, SSL 3.0, SSL 2.0, DSA, 256-bit WPA, CAST-128, RIPEMD160, MODBUS, 128-bit AES, 192-bit AES, 256-bit AES |
| Features | DHCP support, BOOTP support, Syslog support, dynamic DNS server, IPv6 support, IP address filtering, software flow control, hardware flow control, SNTP support, Trivial File Transfer Protocol (TFTP) support |
| Form Factor | Rack-mountable |
| Network / Transport Protocol | TCP/IP, UDP/IP, L2TP, ICMP/IP, IPSec, SLIP, LPR/LPD, ARP, SMTP, RAW, BOOTP, DHCP, RARP |
| Ports Qty | 8 |
| Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2 |
| Routing Protocol | RIP-2 |
| Status Indicators | Power, link/activity |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 10 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (47 - 63 Hz) |
| Processor / Memory / Storage | |
| Flash Memory | 16 MB |
| Processors Installed | MIPS MPC8349E 400 MHz |
| RAM | 64 MB |
