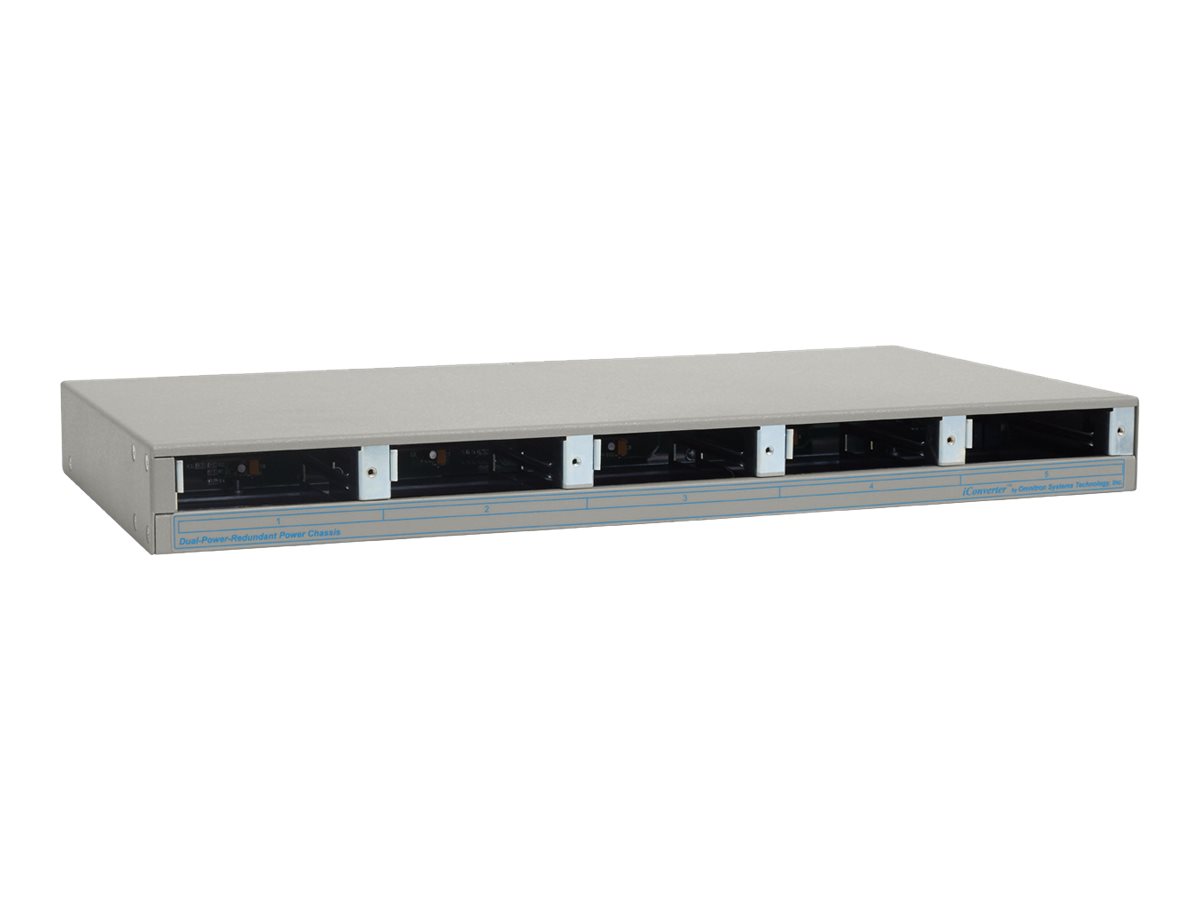

Omnitron iConverter 8220-1

The 1U (1.75 inch) high, 5-Module Managed Power Chassis can be mounted in a 19-inch or 23-inch rack and features dual hot-swappable redundant power supplies. Universal AC or 48V DC power supplies can be used in any combination. The power supplies operate in load-sharing mode for improved reliability and fault tolerance.

When used with the iConverter management module, the power system reports the voltage, current and temperature of each power supply. Any out of range violation can be set to trigger an SNMP management alarm to allow quick corrective maintenance.

The high reliability of the dual-redundancy power system combined with its AC or 48V DC power options make the 1U 5-Module chassis the ideal choice in Point of Presence (POP), Customer Premise Equipment (CPE) and Network Edge (NE) applications where reliability, modularity and space are critical.

The iConverter 5-Module Managed Power Chassis supports the entire family of In-Band or Out-of-Band SNMP managed media converters. Supporting 10, 100, 10/100, Gigabit Ethernet, T1, E1, OC-3 and OC-12 technologies, the iConverter family is suitable for LAN and MAN networks where copper to fiber, multimode fiber to single-mode fiber, dual fiber to single-fiber, or copper to coax conversions are required. Additional modules include redundant fiber or UTP, and a 4-port 10/100 switch module.
