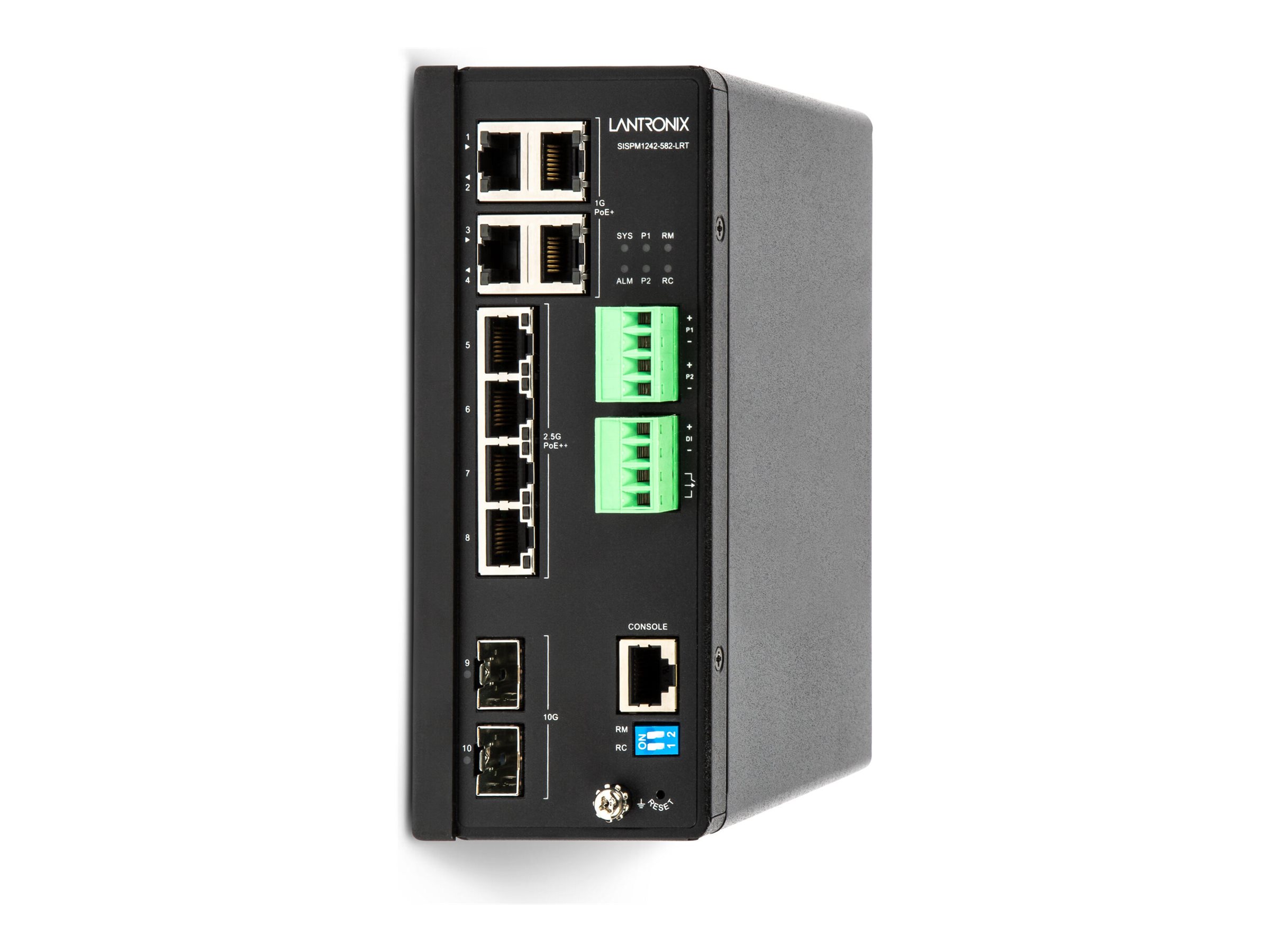

Lantronix SISPM1242-582-LRT

MSRP$1,996.00
$1,629.00
Lantronix SISPM1242-582-LRT
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • hardened
  • managed
  • 4 x 10/100/1000 (PoE+) + 4 x 100/1000/2.5G (PoE++) + 2 x 1/10 Gigabit SFP
  • DIN rail mountable
Lantronix SISPM1242-582-LRT
  • Switch
  • hardened
  • managed
  • 4 x 10/100/1000 (PoE+) + 4 x 100/1000/2.5G (PoE++) + 2 x 1/10 Gigabit SFP
  • DIN rail mountable
  • PoE++ (360 W)
  • TAA Compliant
  Additional Details
Price: $1,629.00
MSRP: $1,996.00
Mfr Part #: SISPM1242-582-LRT
SHI Part #: 50740085
Category: Network switches
UNSPSC: 43222612
Manufacturer: Lantronix
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionLantronix SISPM1242-582-LRT - Switch - hardened - managed - 4 x 10/100/1000 (PoE+) + 4 x 100/1000/2.5G (PoE++) + 2 x 1/10 Gigabit SFP - DIN rail mountable - PoE++ (360 W) - TAA Compliant
ManufacturerLantronix
MSRP$1,996.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth13 cm
Dimensions & Weight / Height16.8 cm
Dimensions & Weight / Width6.2 cm
Header / BrandLantronix
Miscellaneous / Product ColorBlack
Networking / Form FactorDIN rail mountable
Networking / Ports Qty10
Networking / TypeSwitch
Packaged Quantity1
Service & Support / Type5-year warranty
Dimensions & Weight
Depth13 cm
Height16.8 cm
Width6.2 cm
Environmental Parameters
Max Operating Temperature75 °C
Min Operating Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 4 x 10/100/1000 Base-T RJ-45 PoE+
  • 4 x 100/1000/2.5G RJ-45 PoE++
  • 2 x 1/10Gbit LAN SFP
  • 1 x console RJ-45 management
General
Capacity
  • ACL entries: 512
  • VLAN entries: up to 4000
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3ah, IEEE 802.3bt, IEEE 802.1ag, IEEE 802.3az, IEEE 1588v2, ITU-T Y.1731, ITU-T G.8031, ITU-T G.8032, IEEE 802.1x
Device TypeSwitch - 10 ports - managed
Enclosure TypeDIN rail mountable
FeaturesStore-and-forward technology, CSMA/CD, PoE scheduling, APR, DHCP support, Always on PoE, DMS, web-based management, trunking, LACP, MLD snooping, MLD snooping v2, MVR, port rate limiting, Port Scheduling, QoS, Ingress Layer 2 MAC ACLs, 802.1x authentication, IP source guard, Port Security, Storm Control, DHCP snooping, loop protection, secure web gateway, STP support, MSTP support, port-based VLAN, QinQ VLAN, firmware upgradable, MAC based VLAN, Private VLAN, VLAN management, Voice VLAN, MRP, dynamic routing, DHCP relay, DHCP server, port mirroring, Syslog support
Jumbo Frame Support9KB
MAC Address Table Size16K entries
PerformanceSwitching capacity: 68 Gbps
PoE Budget360 W
Ports4 x 10/100/1000 (PoE+) + 4 x 100/1000/2.5G (PoE++) + 2 x 1/10 Gigabit SFP
Power Over Ethernet (PoE)PoE++
Remote Management ProtocolDHCP, SNMP 1, SNMP 2c, SNMP 3, SSH, CLI, IPv4, IPv6, RADIUS, TACACS+, TLS, RSTP
Routing ProtocolIGMP, IGMPv2, IGMPv3, static IP routing, OSPFv2, OSPFv3, RIP-1, RIP-2
Status IndicatorsAlarm, system, power 1, power 2, port status
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Miscellaneous
Compliant StandardsNDAA, IP30, FCC Class A certified, NEMA TS-2, UL 2108, EN 62368-1, UL 62368-1
Included AccessoriesDIN-rail bracket
TAA CompliantYes
Power
Power Consumption Operational13 Watt
Power DeviceInternal power supply
Voltage RequiredDC 52 - 57 V
Software / System Requirements
Software IncludedPercepxion IoT Edge Solutions Platform
