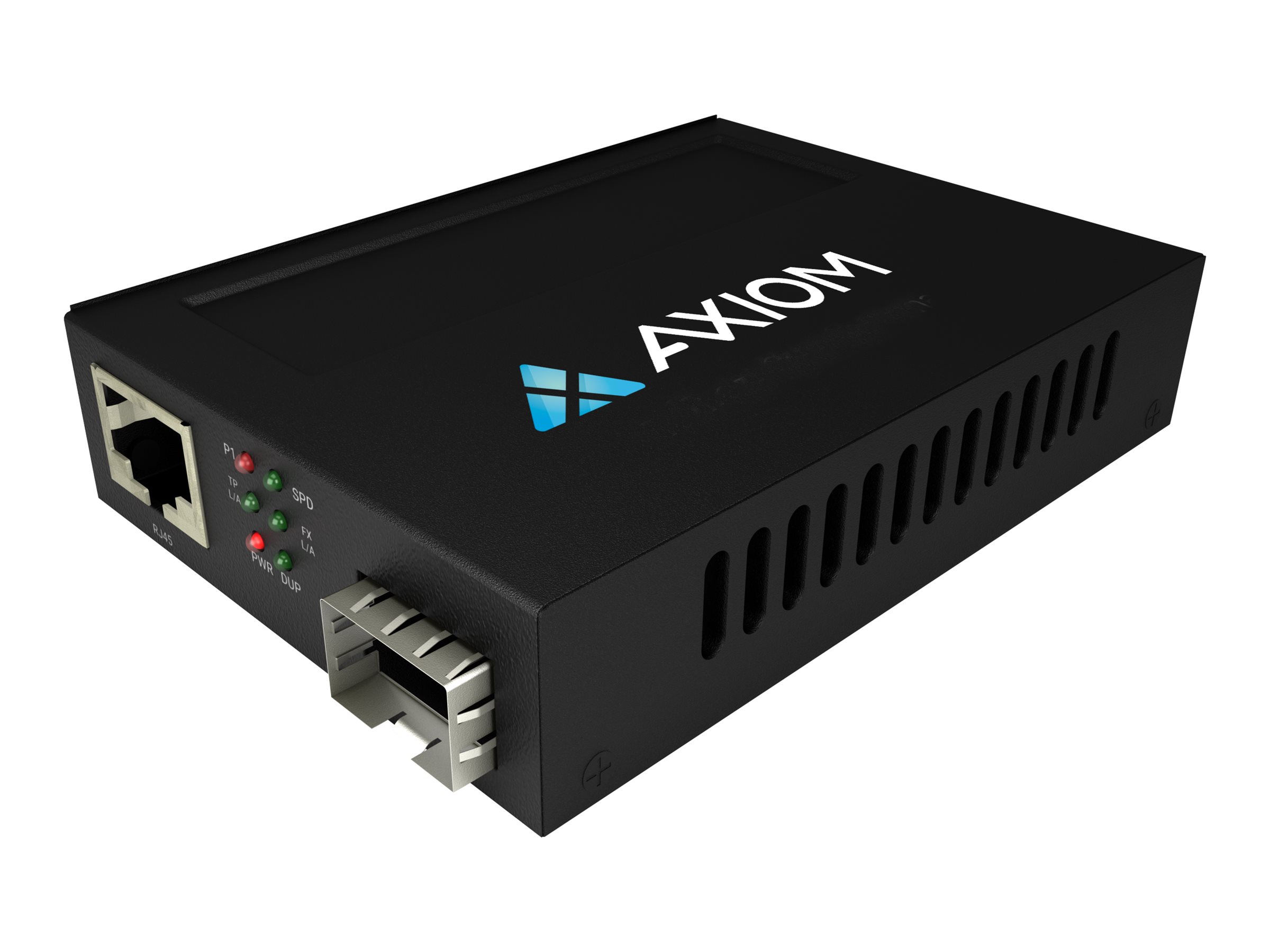

Axiom - Fiber media converter
MSRP$580.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Axiom - Fiber media converter
- 1GbE
- over CAT 5e/6
- 10Base-T, 100Base-TX, 1000Base-TX, 1000Base-LX
- RJ-45 / LC single-mode
- up to 80 km
- 850 nm / 1310 nm / 1550 nm
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $580.00 |
| Mfr Part #: | AXG100204 |
| SHI Part #: | 46459674 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Axiom Memory |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Axiom - Fiber media converter - 1GbE - over CAT 5e/6 - 10Base-T, 100Base-TX, 1000Base-TX, 1000Base-LX - RJ-45 / LC single-mode - up to 80 km - 850 nm / 1310 nm / 1550 nm |
| Manufacturer | Axiom Memory |
| MSRP | $580.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Header / Brand | Axiom |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Environmental Parameters | |
| Humidity Range Operating | 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-TX, 1000Base-LX |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3at |
| Connectivity Technology | Wired |
| Data Link Protocol | 100Mb LAN, 10Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Features | Link Fault Pass Through function (LFP), Power Sourcing Equipment (PSE), 16 KB Jumbo Frame, auto-uplink (auto MDI/MDI-X), auto-negotiation, full duplex mode, half duplex mode, built-in DIP switch, LED status indicators, over-current protection |
| Max Transfer Distance | 80 km |
| Optical Wave Length | 850 nm / 1310 nm / 1550 nm |
| Power | |
| Power Consumption Operational | 4 Watt |
| Power Device | Internal power supply |
| Power Over Ethernet (PoE) | PoE+ |
| Voltage Required | DC 44 - 57 V |
