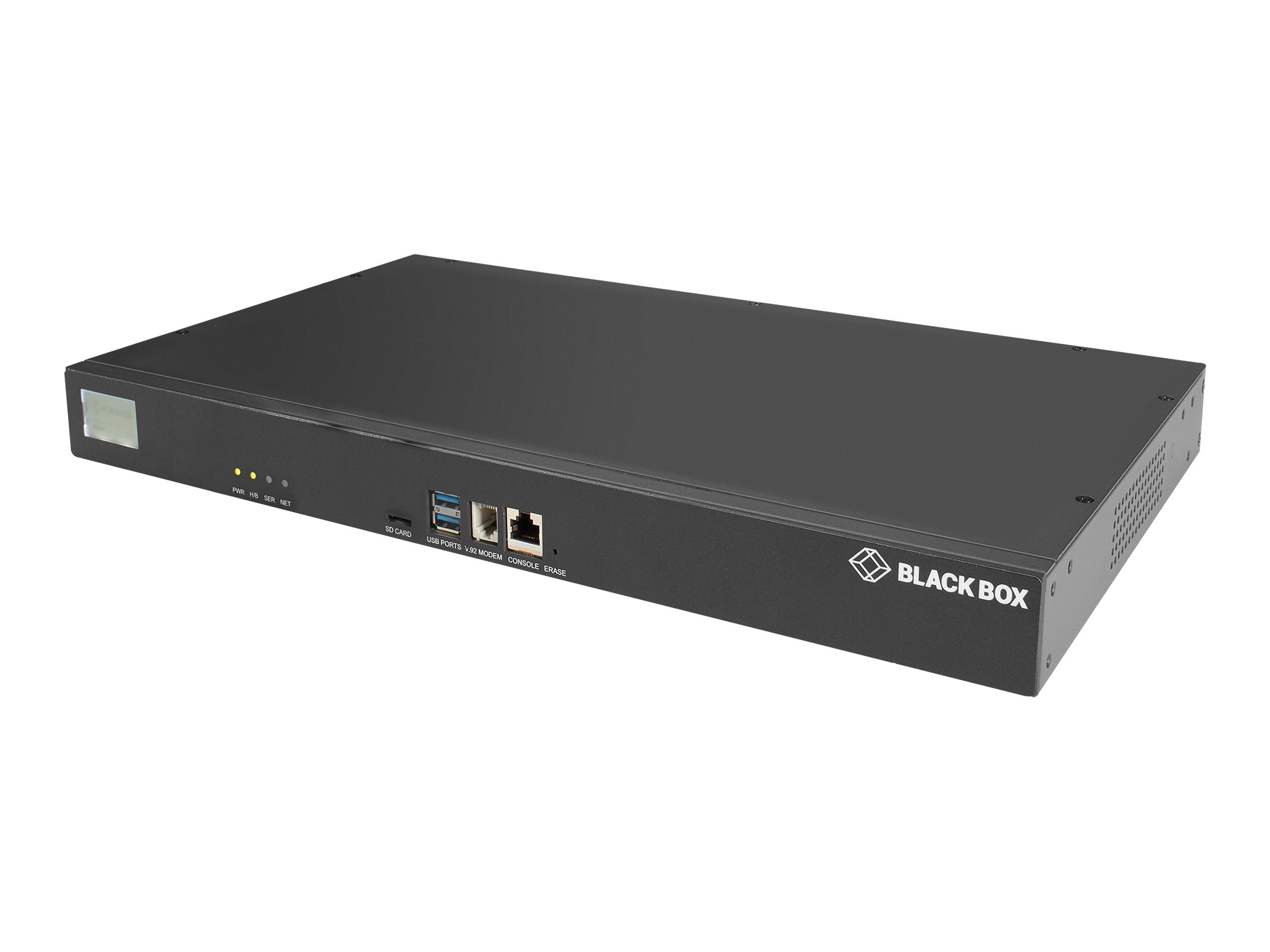

Black Box LES1700 Series LES1732A-R2

MSRP$4,786.40
$4,182.00
Black Box LES1700 Series LES1732A-R2
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Console server
  • 32 ports
  • RS-232
  • AC 100
  • 240 V
Black Box LES1700 Series LES1732A-R2
  • Console server
  • 32 ports
  • RS-232
  • AC 100
  • 240 V
  • 1U
  • rack-mountable
  Additional Details
Price: $4,182.00
MSRP: $4,786.40
Mfr Part #: LES1732A-R2
SHI Part #: 40668371
Category: Multistation access units (MAUs)
UNSPSC: 43222630
Manufacturer: Black Box
Product Type: Hardware
General Information
CategoryMultistation access units (MAUs)
DescriptionBlack Box LES1700 Series LES1732A-R2 - Console server - 32 ports - RS-232 - AC 100 - 240 V - 1U - rack-mountable
ManufacturerBlack Box
MSRP$4,786.40
UNSPSC43222630
Main Specifications
Dimensions & Weight / Depth25.4 cm
Dimensions & Weight / Height4.5 cm
Dimensions & Weight / Weight4.5 kg
Dimensions & Weight / Width44 cm
Header / BrandBlack Box
Miscellaneous / Product ColorBlack
Networking / Connectivity TechnologyWired
Networking / Data Link ProtocolRS-232
Networking / Form FactorRack-mountable
Networking / Ports Qty32
Networking / TypeConsole server
Packaged Quantity1
Communications
Protocols & SpecificationsITU V.92
Environmental Parameters
Humidity Range Operating5 - 90%
Max Operating Temperature40 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Interfaces
  • 32 x RS-232 - RJ-45
  • 2 x 1000Base-T - RJ-45/SFP (mini-GBIC)
  • 1 x console - RJ-45
  • 2 x USB 3.0 - Type A
  • 1 x modem - RJ-11
General
Built-in DevicesPOTS modem
Depth25.4 cm
Device TypeConsole server
Height4.5 cm
Height (Rack Units)1U
Weight4.5 kg
Width44 cm
Miscellaneous
Cables Included
  • 2 x patch cable - 1.8 m
  • 1 x serial adapter
  • 1 x crossover adapter
Compliant StandardsTUV, C-Tick, EN 61000-3-2, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 1950, EN 61000-3-3, EN55024, CCC, RoHS, FCC Part 15 B Class A, AS/NZS CISPR22:2004 Class A, ICES-003 issue 4, EN 55022 + A1
Included AccessoriesRack mount kit
MTBF150,000 hours
Networking
Authentication MethodKerberos, Secure Shell (SSH), RADIUS, TACACS+, LDAP, Active Directory
Compliant StandardsIEEE 802.1ab (LLDP)
Connectivity TechnologyWired
Data Link ProtocolRS-232
Encryption AlgorithmAES, SSL, FIPS 140-2
FeaturesFirewall protection, LLDP support, 1.5 KV Magnetic Isolation, Authentication, Authorization and Accounting (AAA), Zero-touch provisioning (ZTP), audit logs, Virtual Central Management System (VCMS), 1.5KV ESD Protector, RESTful APIs, OpenVPN server
Form FactorRack-mountable
Network / Transport ProtocolNTP, IPSec
Ports Qty32
Remote Management ProtocolSNMP, SSH
Power
Installed Qty2
Max Supported Qty2
Power Consumption Operational30 Watt
Power DeviceInternal power supply
Power RedundancyYes
Voltage RequiredAC 100 - 240 V
Processor / Memory / Storage
Flash Memory64 MB
Hard Drive16 GB
Max Supported Qty1
Processors Installed1 x ARM 88F6283 1 GHz
RAM256 MB DDR2 SDRAM
