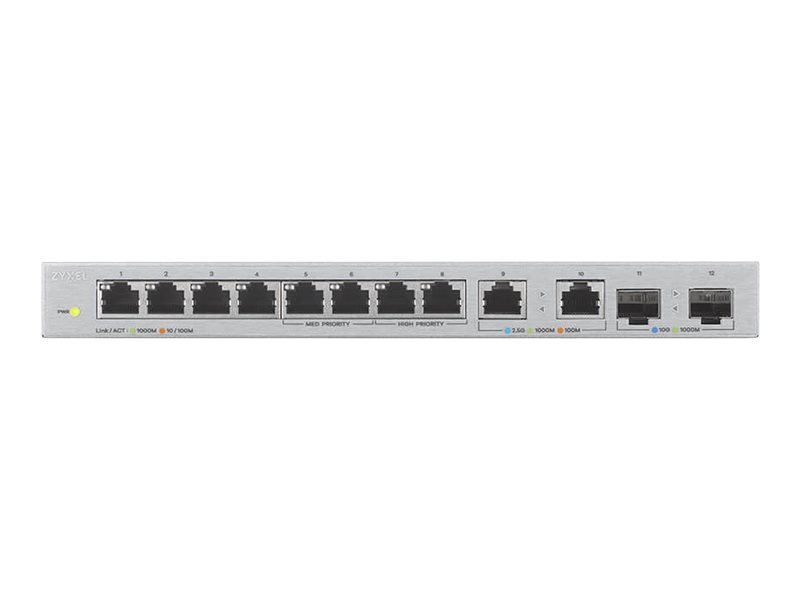

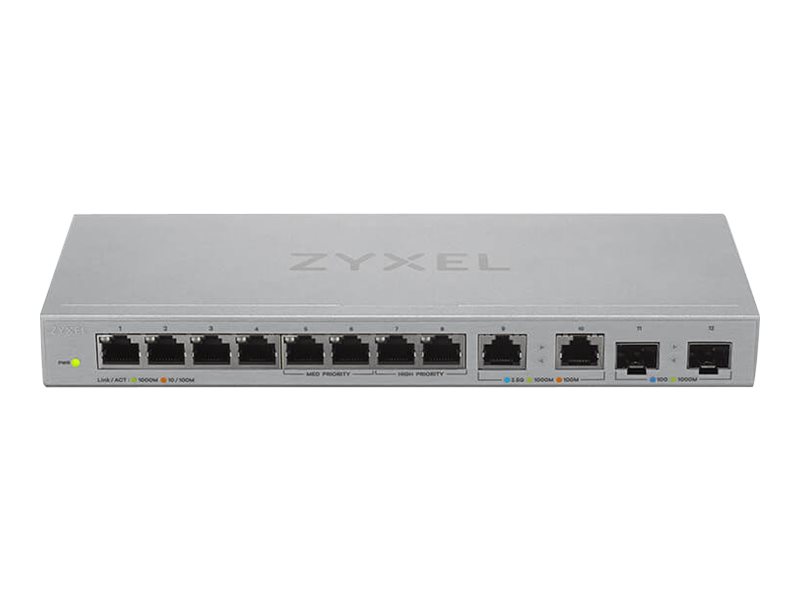

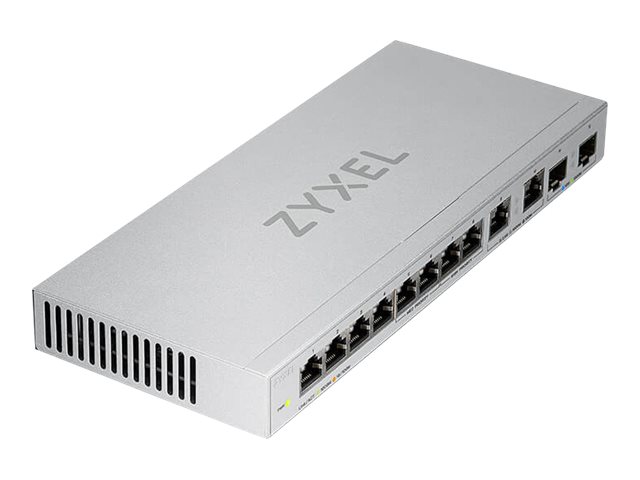

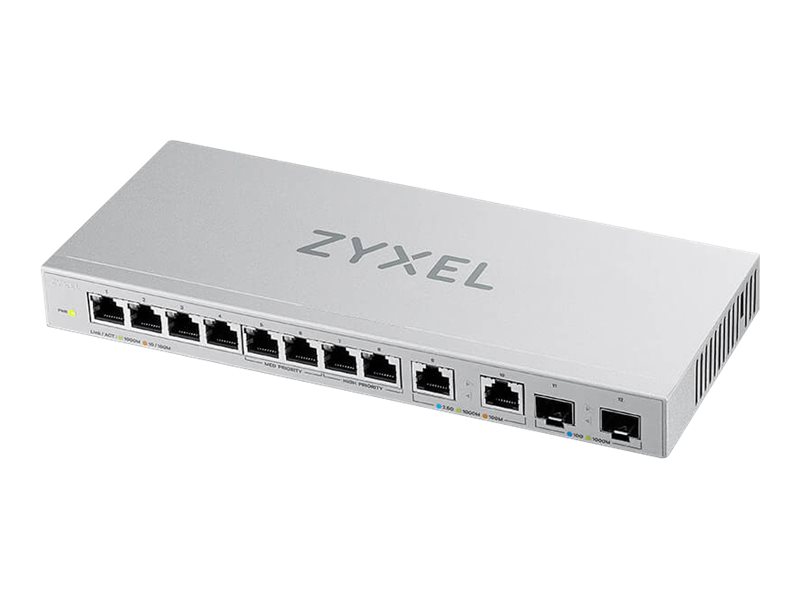

Zyxel XGS1010-12 - Switch
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Zyxel XGS1010-12 - Switch
- 8 x 10/100/1000 + 2 x 100/1000/2.5G + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
- desktop, wall-mountable
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | XGS1010-12 |
| SHI Part #: | 39847171 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | ZyXEL |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Zyxel XGS1010-12 - Switch - 8 x 10/100/1000 + 2 x 100/1000/2.5G + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - desktop, wall-mountable |
| Manufacturer | ZyXEL |
| MSRP | $99.99 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.4 cm |
| Dimensions & Weight / Height | 2.7 cm |
| Dimensions & Weight / Weight | 768 g |
| Dimensions & Weight / Width | 25 cm |
| Header / Brand | ZyXEL |
| Miscellaneous / Product Color | Gray |
| Networking / Form Factor |
|
| Networking / Ports Qty | 12 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 10.4 cm |
| Height | 2.7 cm |
| Weight | 768 g |
| Width | 25 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 22.5 cm |
| Shipping Height | 6.4 cm |
| Shipping Weight | 1.127 kg |
| Shipping Width | 30.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az, IEEE 802.3bz |
| Device Type | Switch - 12 ports |

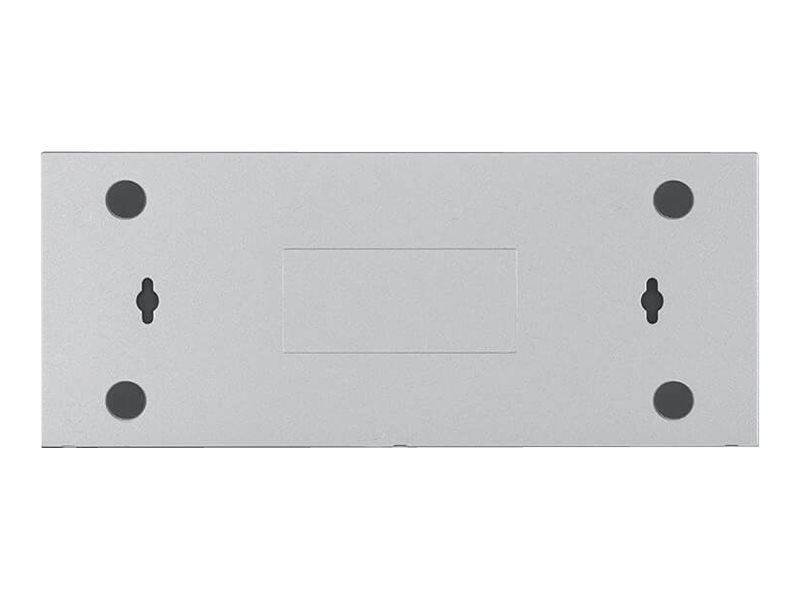

| Enclosure Type | Desktop, wall-mountable |
| Features | Auto-uplink (auto MDI/MDI-X), IGMP snooping, QoS, reset button, fanless, 1.5MB packet buffer, WRR |
| Jumbo Frame Support | 12KB |
| MAC Address Table Size | 16K entries |
| Performance |
|
| Ports | 8 x 10/100/1000 + 2 x 100/1000/2.5G + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
| Routing Protocol | IGMPv2, IGMP |
| Status Indicators | Power, link/activity |
| Subtype | 2.5 Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | Plug and Play, BSMI, EMC, FCC, LVD, EAC |
| Power | |
| Installed Qty | 1 |

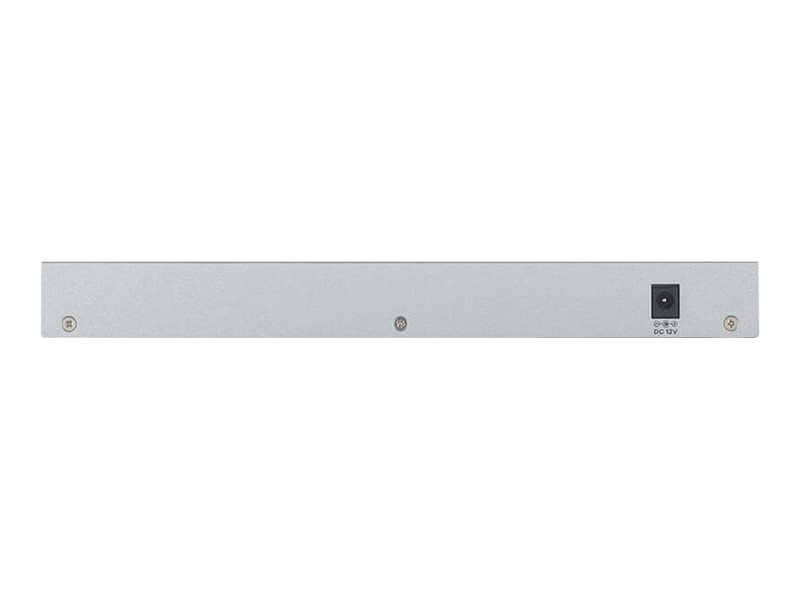

| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
