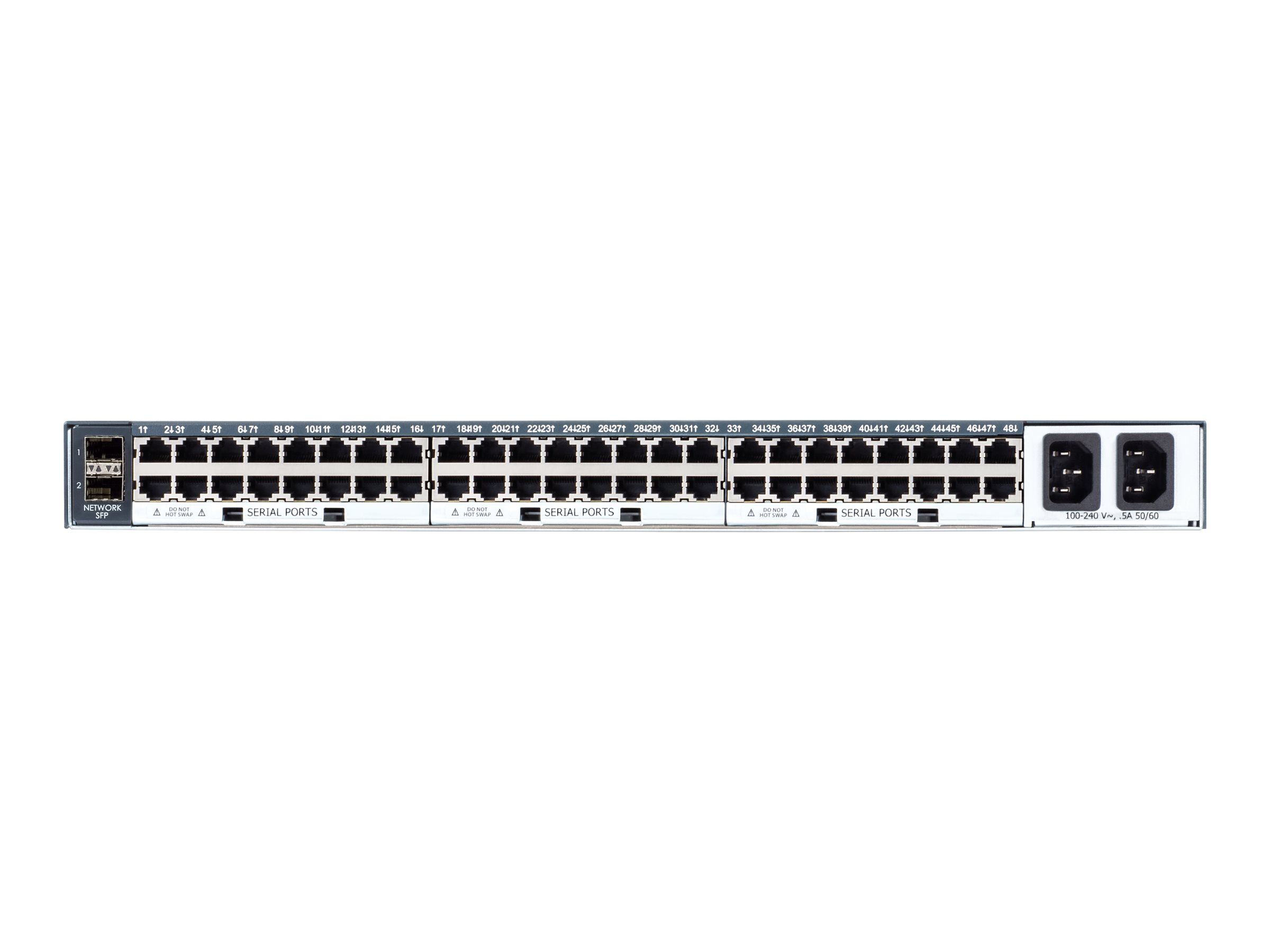

Lantronix SLC 8000 - Console server
MSRP$4,930.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Lantronix SLC 8000 - Console server
- 48 ports
- GigE, RS-232
- 1U
- rack-mountable
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $4,930.00 |
| Mfr Part #: | SLC80482211S |
| SHI Part #: | 34068082 |
| Category: | Multistation access units (MAUs) |
| UNSPSC: | 43222630 |
| Manufacturer: | Lantronix |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Multistation access units (MAUs) |
| Description | Lantronix SLC 8000 - Console server - 48 ports - GigE, RS-232 - 1U - rack-mountable |
| Manufacturer | Lantronix |
| MSRP | $4,930.00 |
| UNSPSC | 43222630 |
| Main Specifications | |
| Dimensions & Weight / Depth | 30.5 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 5.04 kg |
| Dimensions & Weight / Width | 43.8 cm |
| Header / Brand | Lantronix |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 230.4 Kbps |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 48 |
| Networking / Type | Console server |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Communications | |
| Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card |
| Environmental Parameters | |
| Humidity Range Operating | 30 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Built-in Devices | Keypad, status LCD |
| Depth | 30.5 cm |
| Device Type | Console server |
| Height | 4.4 cm |
| Height (Rack Units) | 1U |
| Weight | 5.04 kg |
| Width | 43.8 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC Part 15, EN55022, EN55024, EN 60950, CSA, VCCI, UL, cUL, C-Tick, CB, NIST, FIPS 197, FIPS 140-2 |
| Networking | |
| Authentication Method | Secure Shell (SSH), Secure Shell v.2 (SSH2), LDAP, RADIUS, Kerberos, TACACS+, Active Directory, CHAP, PAP |
| Capacity | Concurrent users: 352 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232, Gigabit Ethernet |
| Data Transfer Rate | 230.4 Kbps |
| Encryption Algorithm | SSL 3.0, TLS 1.0, AES |
| Features | Firewall protection, packet filtering, LDAP support, 256KB packet buffer, Management Information Base (MIB), VPN support, manageable |
| Form Factor | Rack-mountable |
| Network / Transport Protocol | TCP/IP, UDP/IP, DHCP, BOOTP, NTP, FTP, DNS, IPSec |
| Ports Qty | 48 |
| Remote Management Protocol | Telnet, SSH, SNMP 1, SNMP 2, SNMP 3, HTTP, TFTP |
| Routing Protocol | RIP, RIP-2 |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 30 Watt |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Software / System Requirements | |
| OS Provided | Linux |
