Opengear CM7148-2-DAC
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

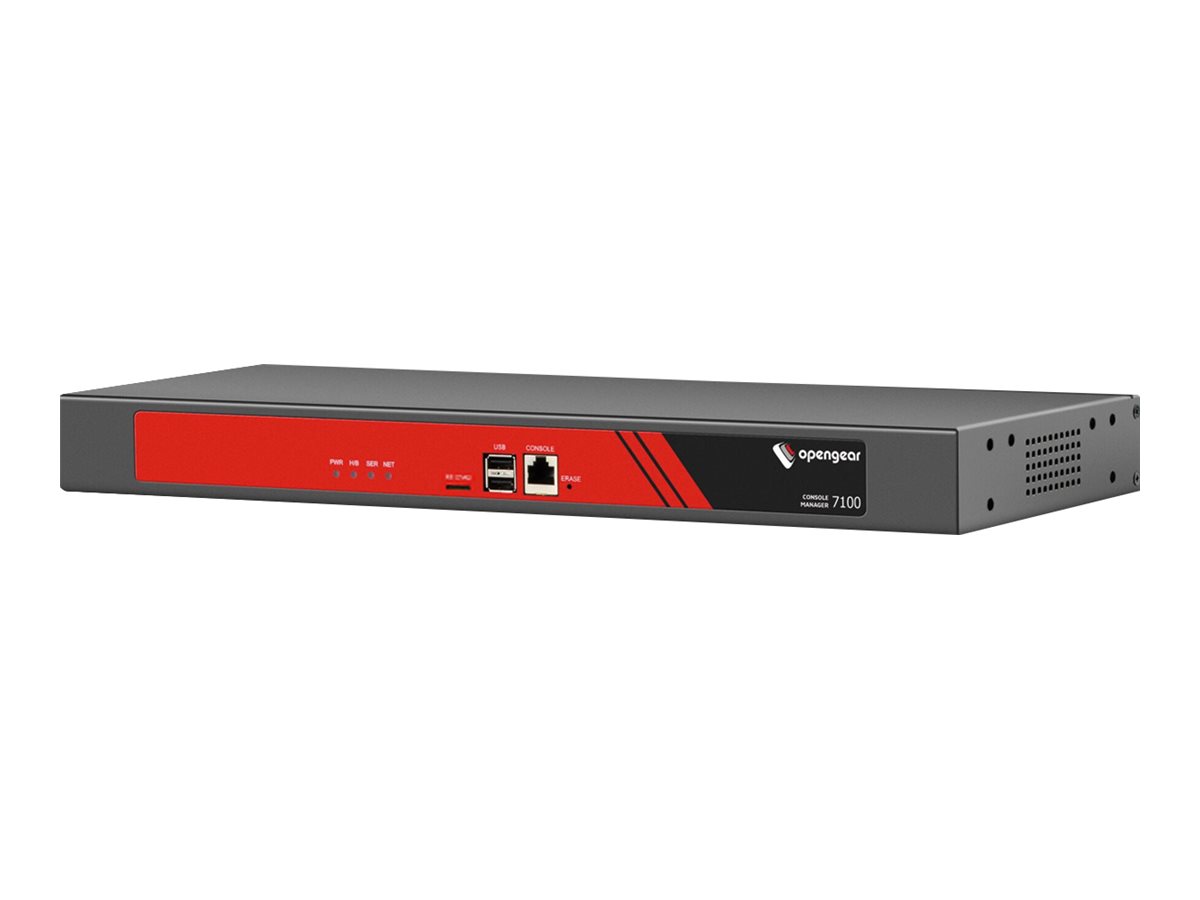

Opengear CM7148-2-DAC
- Console server
- 48 ports
- GigE, RS-232
- 1U
| Additional Details | |
|---|---|
| Mfr Part #: | CM7148-2-DAC-US |
| SHI Part #: | 29775709 |
| Category: | Multistation access units (MAUs) |
| UNSPSC: | 43222630 |
| Manufacturer: | Opengear |
| Product Type: | Hardware |
Power Cables
- 1.8 m
- black
- Europe
- for Opengear CM7116, CM7148, IM7208, IM7216, IM7232, IM7248, OM2216, OM2224, OM2232, OM2248
- GB 2099
- 1.8 m
- China
- for Opengear CM7116, CM7148, IM7208, IM7216, IM7232, IM7248, OM2216, OM2224, OM2232, OM2248
- 1.8 m
- black
- United Kingdom
- for Opengear CM7116, CM7148, IM7208, IM7216, IM7232, IM7248, OM2216, OM2224, OM2232, OM2248
| General Information | |
|---|---|
| Category | Multistation access units (MAUs) |
| Description | Opengear CM7148-2-DAC - Console server - 48 ports - GigE, RS-232 - 1U |
| Manufacturer | Opengear |
| UNSPSC | 43222630 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17.5 cm |
| Dimensions & Weight / Height | 4.5 cm |
| Dimensions & Weight / Weight | 4 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | Opengear |
| Header / Country Kits | United States |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 230.4 Kbps |
| Networking / Form Factor | External |
| Networking / Ports Qty | 48 |
| Networking / Type | Console server |
| Packaged Quantity | 1 |
| Service & Support / Type | 4-year warranty |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Depth | 17.5 cm |
| Device Type | Console server |
| Height | 4.5 cm |
| Height (Rack Units) | 1U |
| Localization | United States |
| Weight | 4 kg |
| Width | 44 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 4 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | TUV, C-Tick, ICES-003, UL 1950, EN 61000-4-4, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, RoHS, FIPS 140-2, FCC Part 15 B Class A, EN 55024-2:1998+A1:2001+A2:2003, EN 61000-4-2:2009, AS/NZS CISPR22:2004 Class A, EN55022:1998 + A1:2000 + A2:2003 Class A |
| Included Accessories | Rack mount kit |
| Networking | |
| Authentication Method | Kerberos, RADIUS, PAP, CHAP, TACACS+, Secure Shell v.2 (SSH2), LDAP, Active Directory |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Data Transfer Rate | 230.4 Kbps |
| Encryption Algorithm | SSL, FIPS 140-2 |
| Features | VPN support, Syslog support, IPv6 support, IP address filtering, event log, Trivial File Transfer Protocol (TFTP) support, SSH support, DHCP server, FTP server, port forwarding, Stateful Packet Inspection Firewall (SPIF), Zero Touch Auto Provisioning, 4KV ESD Protector, Cisco straight pinout |
| Form Factor | External |
| Network / Transport Protocol | NTP, IPSec, FTP, DHCP, DDNS |
| Performance |
|
| Ports Qty | 48 |
| Remote Management Protocol | SNMP, HTTPS, TFTP, SSH |
| Status Indicators | Power, link/activity |
| Power | |
| Installed Qty | 2 |
| Power Consumption Operational | 20 Watt |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V |
| Processor / Memory / Storage | |
| Flash Memory | 4 GB |
| Processors Installed | 1 x Marvell 88F6W11 800 MHz |
| RAM | 256 MB DDR3 SDRAM |
| Software / System Requirements | |
| OS Provided | Linux |
