Eaton Tripp Lite Series

Delivers Power and Gigabit Data to Devices Without Built-In PoE Support

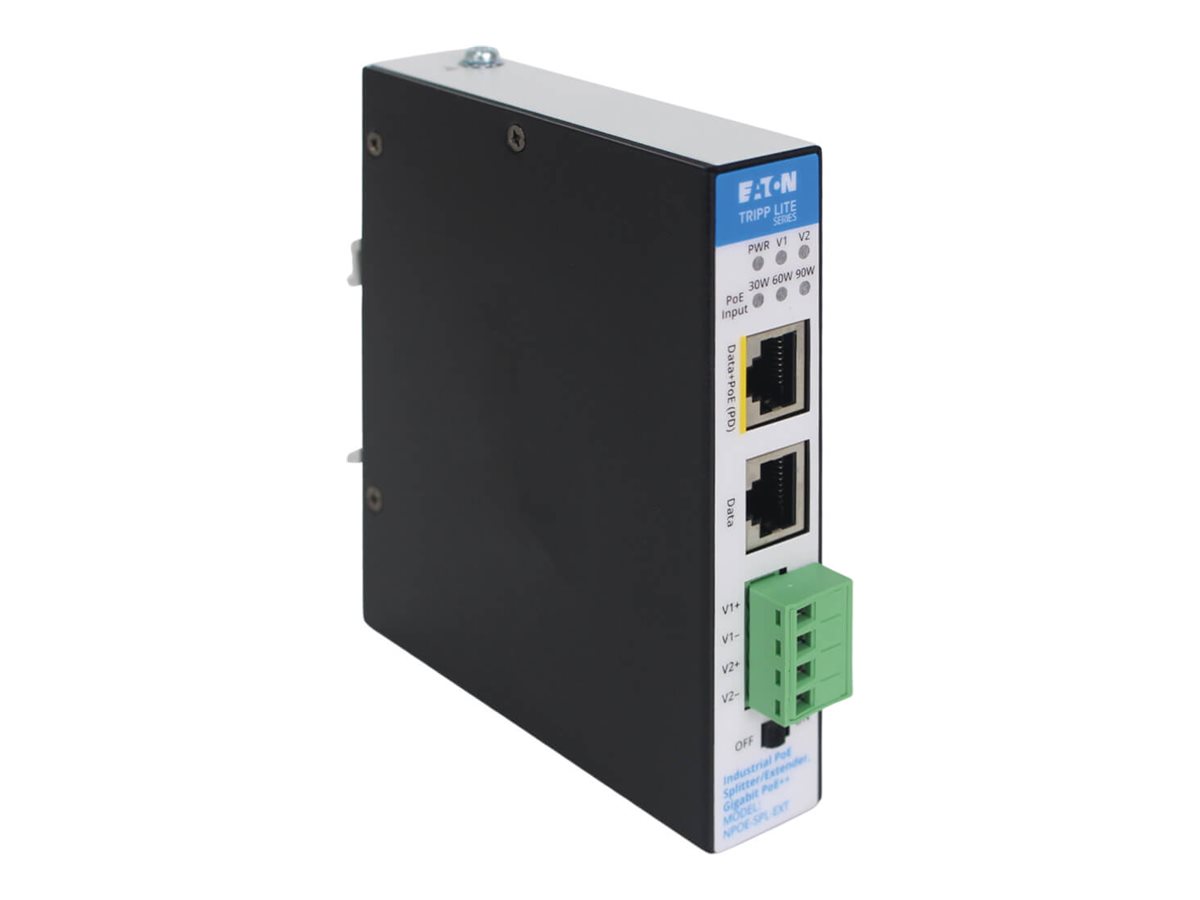

The NPOE-SPL-EXT Industrial PoE++ Splitter converts a single high-power Power over Ethernet (PoE) connection into Gigabit Ethernet data and 24V DC power, enabling reliable operation of non-PoE equipment in harsh industrial environments. By leveraging existing IEEE 802.3bt PoE++ infrastructure, it eliminates the need for local AC outlets and simplifies deployments in factories, warehouses, transportation systems and smart buildings. Using Cat5e/6/6a cabling, this splitter can extend your PoE signal up to 328 feet (100 meters).

Supports Power over Ethernet to Save You Money and Give You More Installation Choices

The NPOE-SPL-EXT leverages the latest IEEE 802.3bt (90W) standards to power high-demand devices without built-in PoE support over a single Ethernet cable. This splitter/extender supplies the power to operate a compatible non-PoE device in a variety of applications, including industrial, government, edge computing, military, transportation, food processing, security and smart building. The NPOE-SPL-EXT saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device, which can be installed in an area far away from AC outlets, such as poles or ceilings.

Easy to Deploy and Inexpensive to Operate

This plug-and-play splitter can be mounted on a DIN rail within a cabinet or rack enclosure. The durable 4-pin terminal block can supply up to 65W of reliable 24V DC power. An on/off switch helps reduce inrush current without disconnecting cables.

Built to Withstand Harsh Environments

Designed for cabinet, control panel and field installations, the IP30-rated metal housing resists vibration, shock and electromagnetic interference (EMI). A wide range of operating temperatures from -40°F to 140°F (-40°C to 60°C) help make the NPOE-SPL-EXT a reliable operator in outdoor, surveillance, security, building maintenance and other extreme environments.

Protects Your Critical Devices

Built-in overload and short circuit protection safeguards connected devices, such as VoIP phones and touchscreen kiosks. LED indicators let you monitor power status and PoE load levels (30W/60W/90W) at a glance.

TAA-Compliant for GSA Schedule Purchases

The NPOE-SPL-EXT is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Key Points

Product Features
