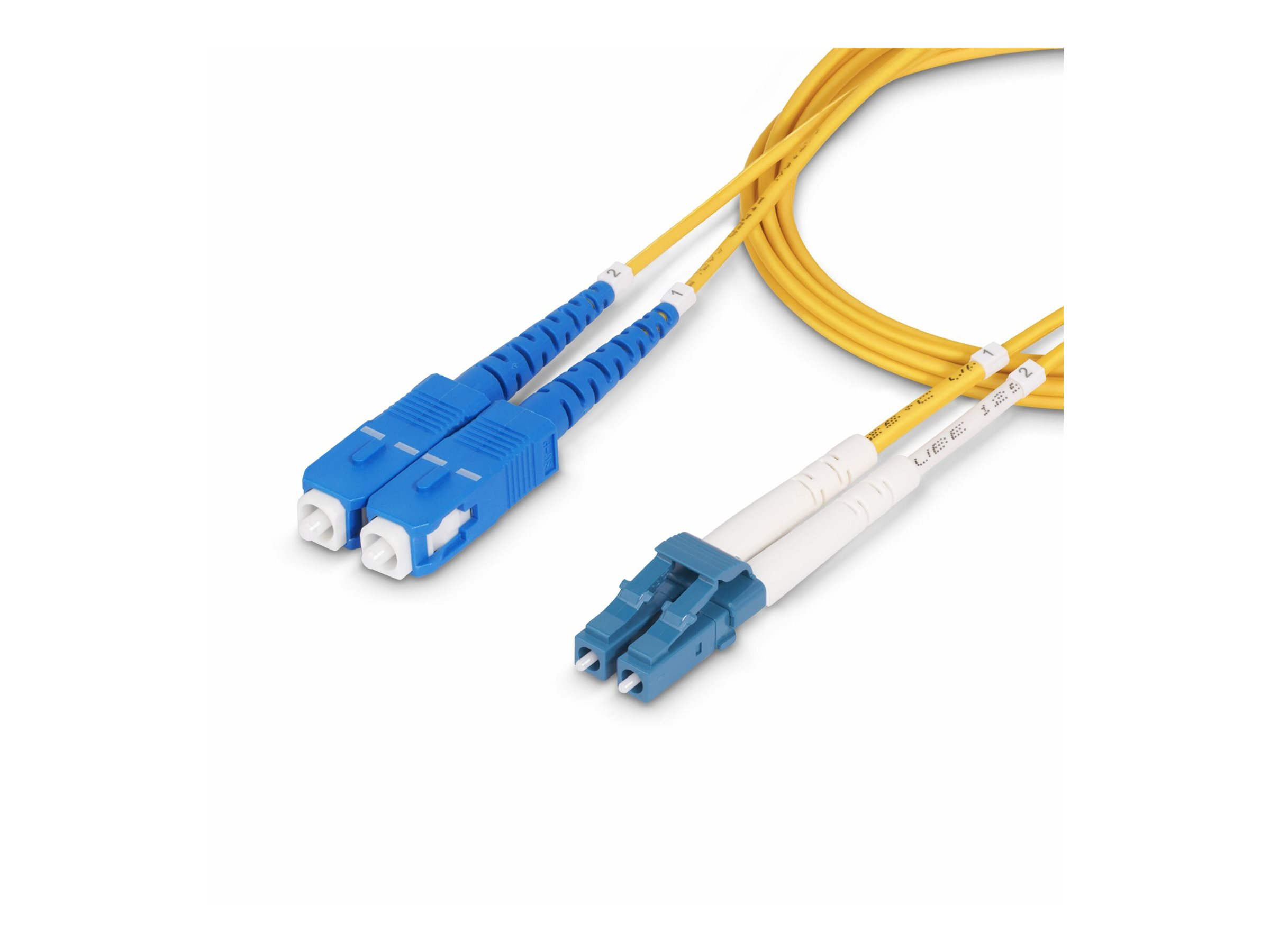

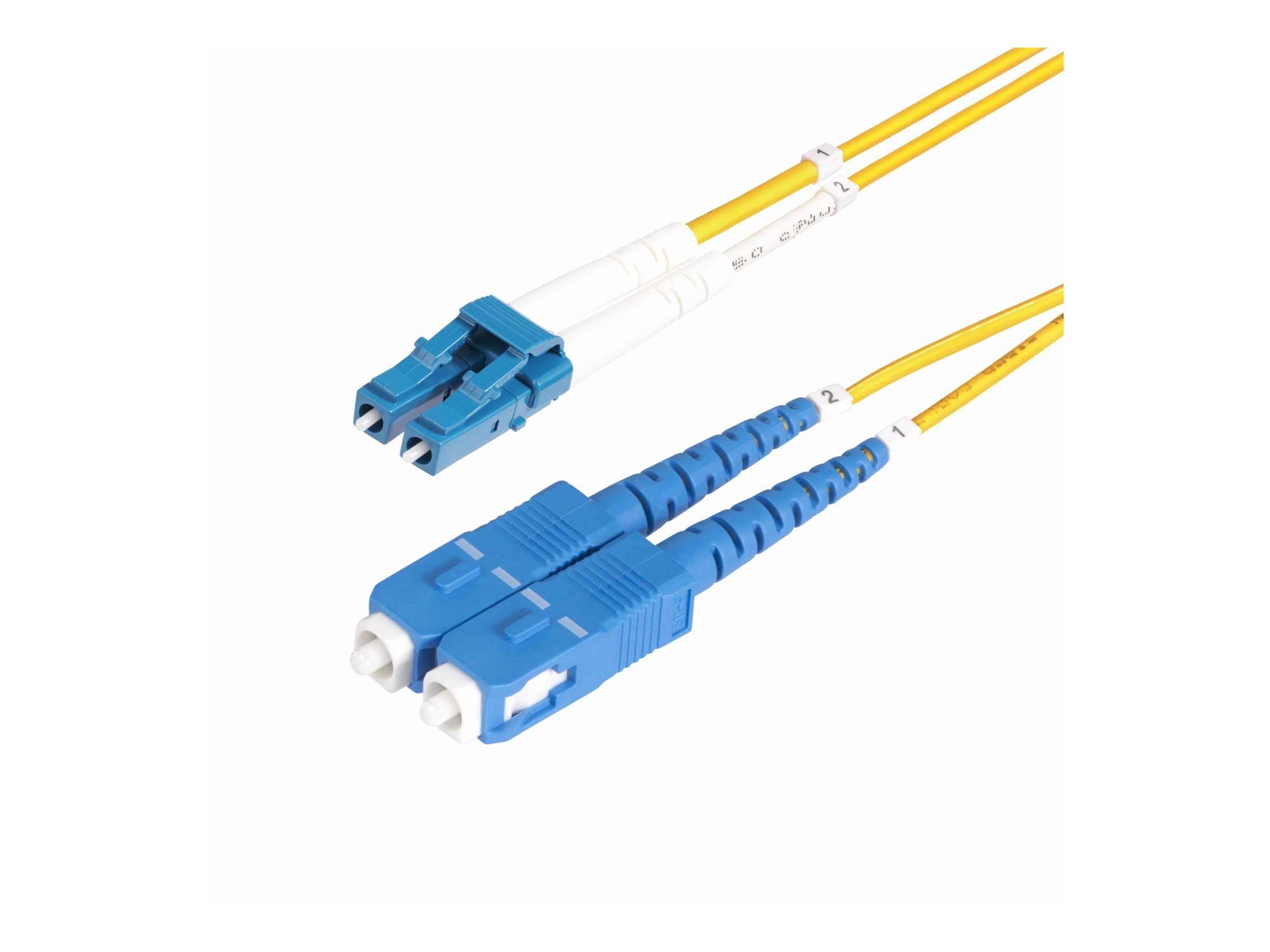

Startech - Patch cable
MSRP$22.99
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Startech - Patch cable
- LC/UPC single-mode (M) to SC/UPC single-mode (M)
- 8 m
- 2 mm
- fiber optic
- duplex
- 9 / 125 micron
- OS1/OS2
- halogen-free, passive, up to 100 Gbps data transfer rate
- yellow
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $22.99 |
| Mfr Part #: | SMLCSC-OS2-8M |
| SHI Part #: | 51797776 |
| Category: | Signal cable |
| UNSPSC: | 26121604 |
| Manufacturer: | StarTech.com |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Signal cable |
| Description | Startech - Patch cable - LC/UPC single-mode (M) to SC/UPC single-mode (M) - 8 m - 2 mm - fiber optic - duplex - 9 / 125 micron - OS1/OS2 - halogen-free, passive, up to 100 Gbps data transfer rate - yellow |
| Manufacturer | StarTech.com |
| MSRP | $22.99 |
| UNSPSC | 26121604 |
| Main Specifications | |
| Header / Brand | Startech |
| Left Connector Type | LC/UPC single-mode |
| Miscellaneous / Product Color | Yellow |
| Network Cable Type | Patch cable |
| Packaged Quantity | 1 |
| Right Connector Type | SC/UPC single-mode |
| Service & Support / Type | Limited lifetime warranty |
| Connectivity | |
| Connector | 2 x LC/UPC single-mode - male |
| Connector (Second End) | 2 x SC/UPC single-mode - male |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 23 cm |
| Shipping Height | 2.1 cm |
| Shipping Weight | 90 g |
| Shipping Width | 18 cm |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -20 °C |
| General | |
| Cable Length | 8 m |
| Color | Yellow |
| Core / Cladding Diameter | 9 / 125 micron |
| Diameter | 2 mm |
| Features | Halogen-free, passive adapter, up to 100 Gbps data transfer rate, Coarse Wavelength Division Multiplexing (CWDM) support, wavelength of 1260-1625 nm, color coded connectors, bending radius 10mm, low insertion loss, 0.3 dB insertion loss, 55 dB return loss, bend insensitive, aramid fiber reinforced, ceramic ferrule, flame retardant |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Length | 8 m |
| Network Cable Type | Patch cable - OS1/OS2 |
| Technology | Duplex fiber optic |
| Type of Fiber Optics | Singlemode |
| Weight | 67 g |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| Compliant Standards | RoHS, WEEE, EMI |
