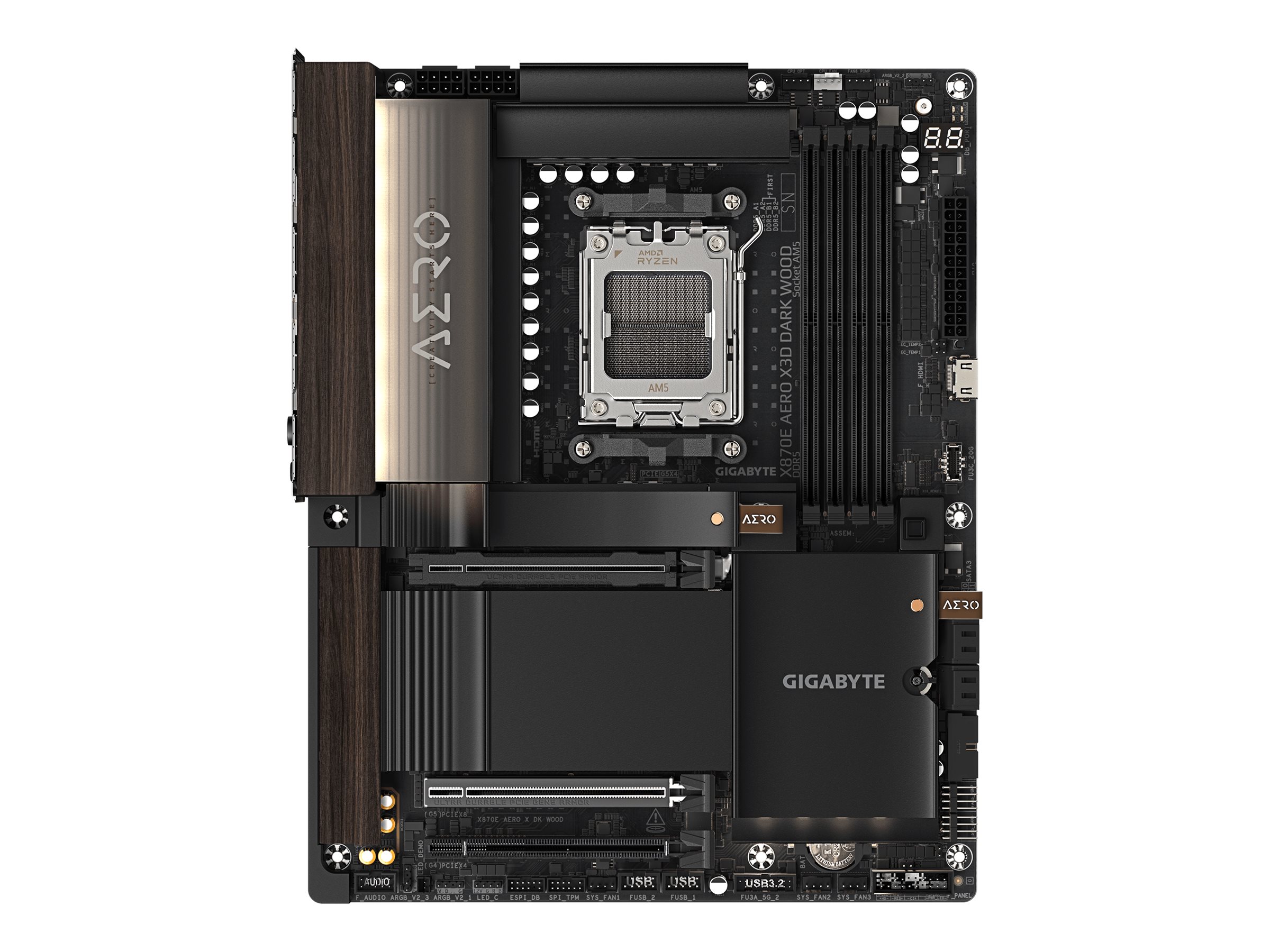

Gigabyte X870E AERO X3D DARK WOOD

$614.00
Gigabyte X870E AERO X3D DARK WOOD
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • Socket AM5
  • AMD X870E Chipset
  • USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB4, USB 3.2 Gen 2
Gigabyte X870E AERO X3D DARK WOOD
  • Motherboard
  • ATX
  • Socket AM5
  • AMD X870E Chipset
  • USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB4, USB 3.2 Gen 2
  • 2 x 5 Gigabit LAN, Wi-Fi 7, Bluetooth
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Price: $614.00
Mfr Part #: X870E AERO X DK WOOD
SHI Part #: 51748013
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: GIGABYTE
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionGigabyte X870E AERO X3D DARK WOOD - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB4, USB 3.2 Gen 2 - 2 x 5 Gigabit LAN, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerGIGABYTE
MSRP$499.99
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandGIGABYTE
Mainboard / Chipset TypeAMD X870E
Mainboard / Processor SocketSocket AM5
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • 5 Gigabit Ethernet
  • Bluetooth 5.4
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11be (Wi-Fi 7)
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecRealtek ALC1220
Compliant StandardsHigh Definition Audio
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 5.0 x16 (x8 mode)
  • 1 x PCIe 4.0 x16 (x4 mode)
  • 1 x M.2 socket (2280/2580 M.2 Key M slot)
  • 3 x M.2 socket (2280/22110 M.2 Key M slot)
Interfaces
  • 2 x USB4
  • 5 x USB 3.2 Gen 2
  • 1 x USB-C 3.2 Gen2x2
  • 3 x USB 3.2 Gen 1
  • 2 x antenna
  • 2 x LAN (5Gigabit Ethernet)
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
  • 1 x SPDIF out
  • 1 x HDMI
Internal Interfaces
  • USB-C 3.2 Gen 2x2 - header
  • 4 x USB 3.2 Gen 1 - header
  • 4 x USB 2.0 - header
  • 1 x audio - header
  • 1 x SPI - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Features
BIOS FeaturesWfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
BIOS TypeAMI
Hardware FeaturesQ-Flash, Q-Flash Plus, Q-Flash Plus button, Clear CMOS Button, power button, reset button, 16+2+2 Phase Power Design, 2x Copper PCB, 8 Layer PCB, DIY Friendly Design, M.2 EZ Flex Design, M.2 EZ Latch click, M.2 EZ Latch plus, M.2 Thermal Guard Ext., M.2 Thermal Guard L, PCIe EZ Latch Plus, pre-mounted I/O shield, Thermal Baseplate, Ultra Durable, VRM Thermal Armor Advanced, WIFI EZ Plug, X3D Turbo Mode 2.0, wood grain panels, AI Overclocking, AORUS AI SNATCH, GIGABYTE Smart Fan 6
Hardware MonitoringSystem voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning, fan control, noise detection
General
Chipset TypeAMD X870E
Compatible Processors(supports Ryzen 7000/8000/9000 Series)
Max Processors Qty1
Processor SocketSocket AM5
Product TypeMotherboard - ATX
LAN
Network ControllerMediatek MT7927 / RZ738
Network Interfaces2 x 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Miscellaneous
Cables Included2 x Serial ATA cable
Compliant StandardsDisplayPort 1.4, HDCP 2.3
Depth24.4 cm
Included AccessoriesWi-Fi antenna, G-Connector, 3 x thermal pads for M.2 SSD thick/thin
Software IncludedGIGABYTE Smart Backup, Norton Internet Security (OEM Version), HWiNFO, GIGABYTE Control Center
Width30.5 cm
Supported RAM
Bus Clock9000 MT/s (O.C.), 8800 MT/s (O.C.), 8600 MT/s (O.C.), 8400 MT/s (O.C.), 8200 MT/s (O.C.), 8000 MT/s (O.C.), 7800 MT/s (O.C.), 7600 MT/s (O.C.), 7200 MT/s (O.C.), 7000 MT/s (O.C.), 6800 MT/s (O.C.), 6600 MT/s (O.C.), 6400 MT/s (O.C.), 6200 MT/s (O.C.), 6000 MT/s (O.C.), 5600 MT/s (O.C.), 5200 MT/s, 4800 MT/s
FeaturesDual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP)
Max Size256 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC
TechnologyDDR5
