Startech - Patch cable
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

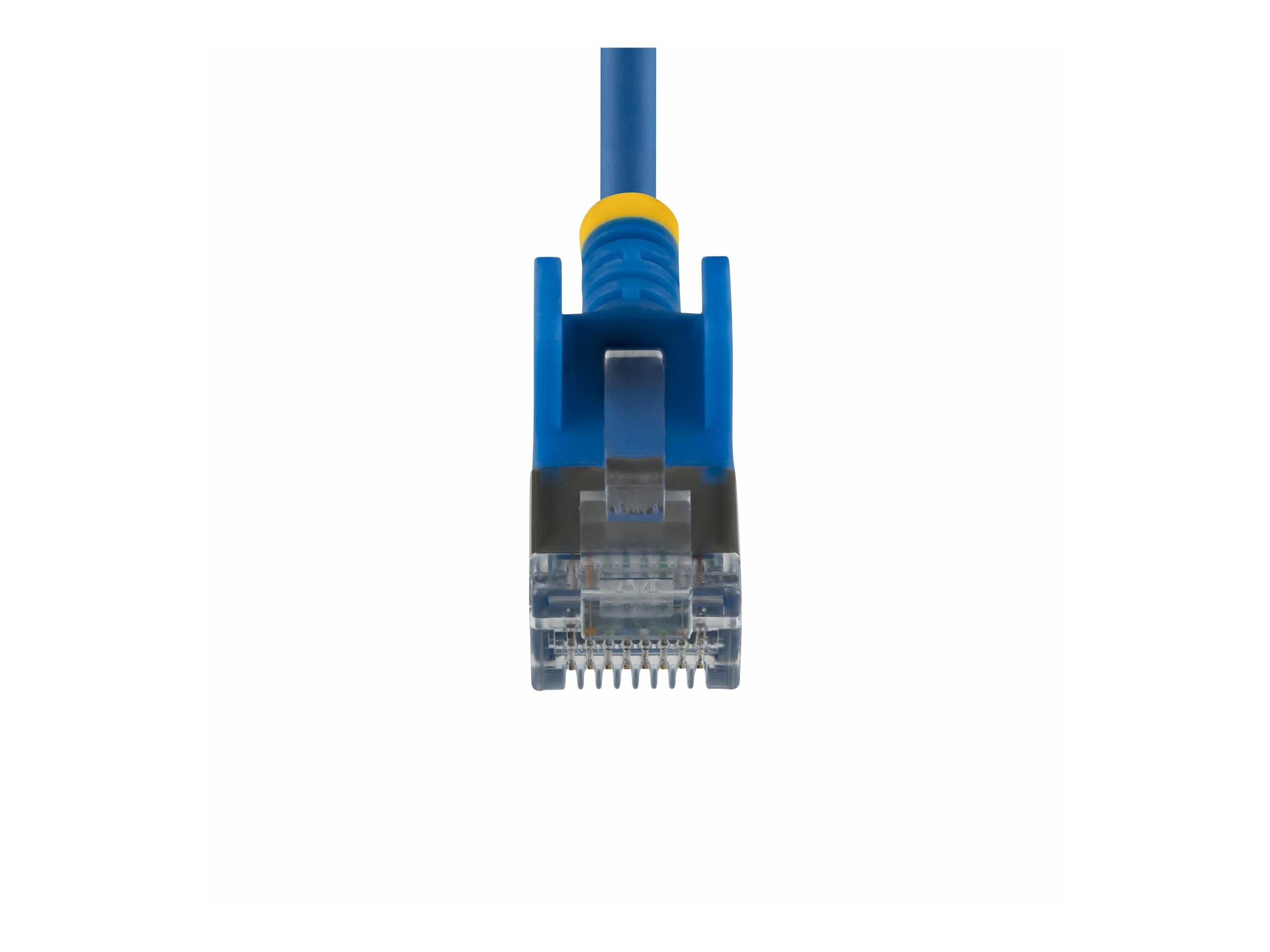

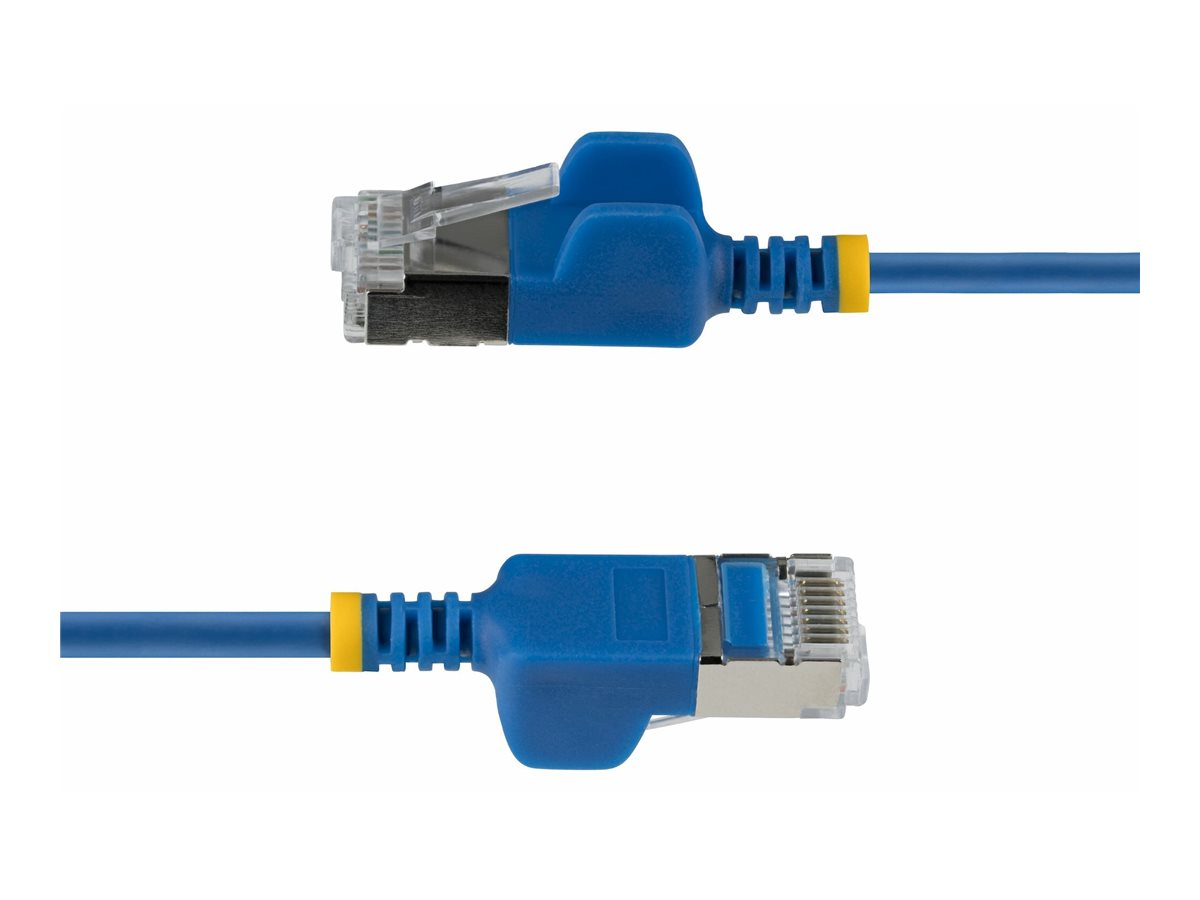

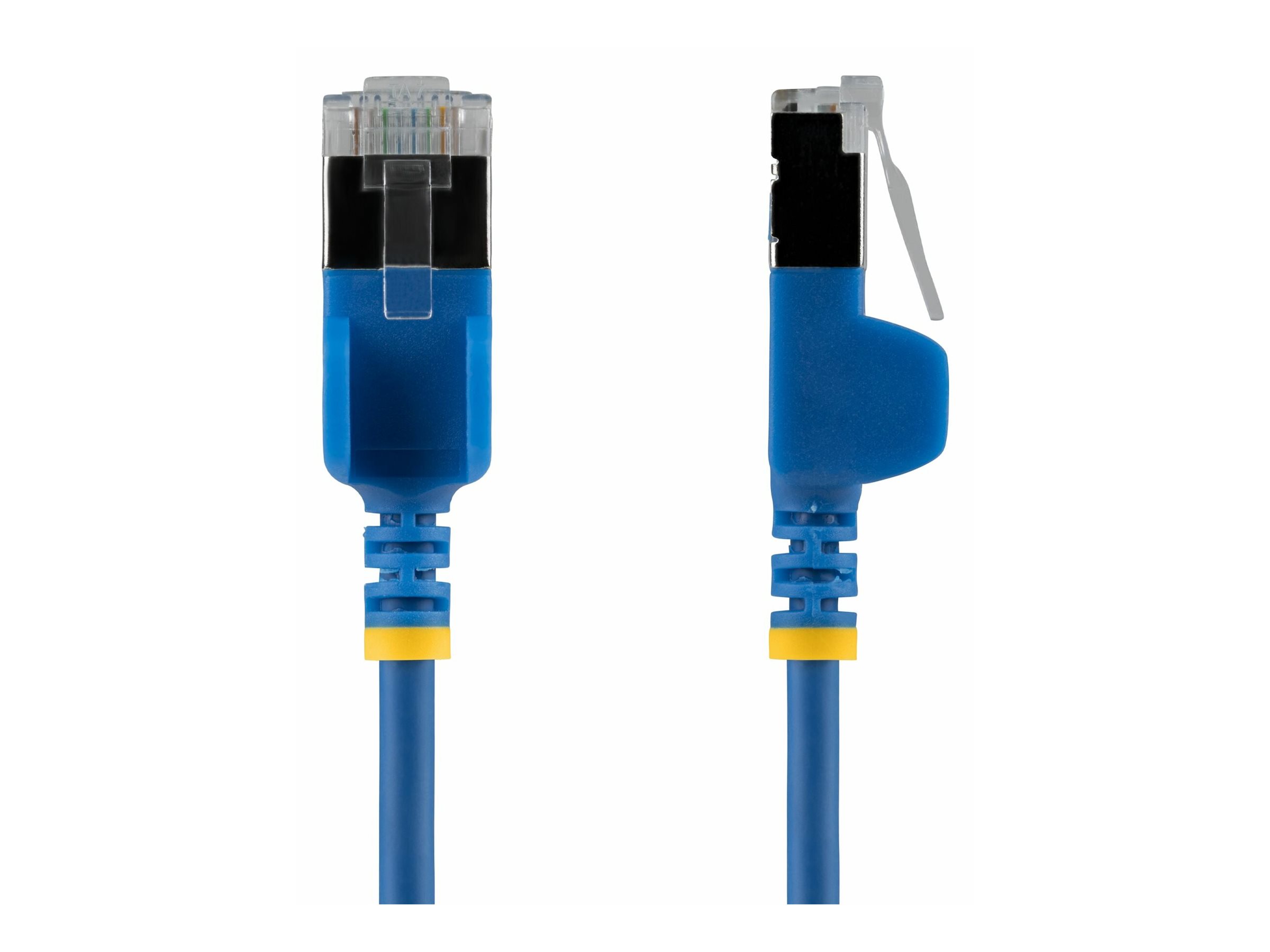

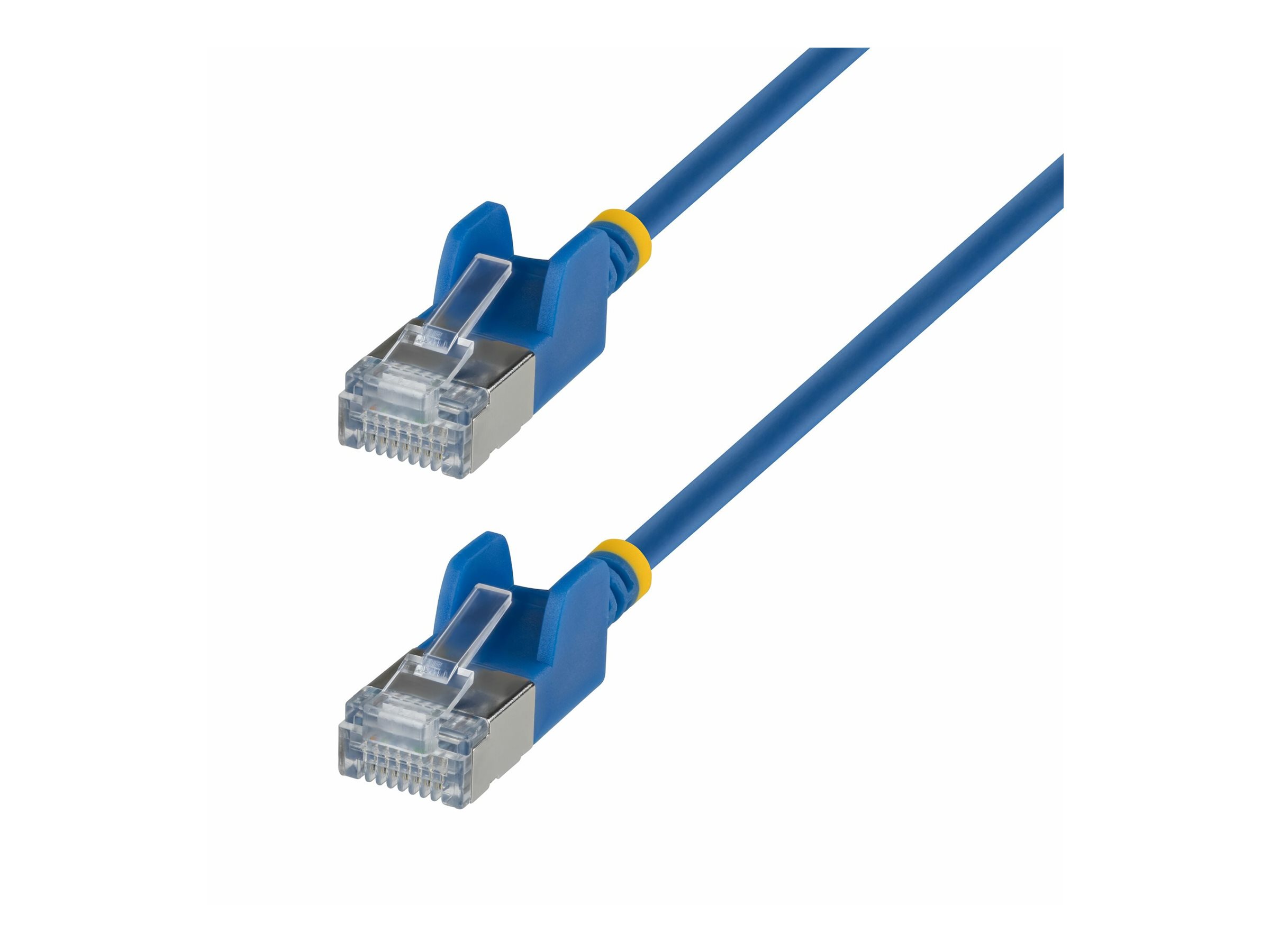

Startech - Patch cable
- RJ-45 (M) to RJ-45 (M)
- 3.7 mm
- U/FTP
- CAT 6a
- snagless, ultra-slim, stranded copper
- blue
| Additional Details | |
|---|---|
| Mfr Part #: | N6APATSTP34BLS-10FT |
| SHI Part #: | 51723542 |
| Category: | fiber patch cords |
| UNSPSC: | 43223326 |
| Manufacturer: | StarTech.com |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | fiber patch cords |
| Description | Startech - Patch cable - RJ-45 (M) to RJ-45 (M) - 3.7 mm - U/FTP - CAT 6a - snagless, ultra-slim, stranded copper - blue |
| Manufacturer | StarTech.com |
| UNSPSC | 43223326 |
| Main Specifications | |
| Header / Brand | Startech |
| Left Connector Type | RJ-45 |
| Miscellaneous / Product Color | Blue |
| Network Cable Type | Patch cable |
| Packaged Quantity | 1 |
| Right Connector Type | RJ-45 |
| Service & Support / Type | Limited lifetime warranty |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 14 cm |
| Shipping Height | 2.5 cm |
| Shipping Weight | 54 g |
| Shipping Width | 20 cm |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -20 °C |
| General | |
| American Wire Gauge (AWG) | 34 |
| Cable Length | 3.1 m |
| Color | Blue |
| Diameter | 3.7 mm |
| Features | Snagless, ultra-slim, stranded copper, pure bare copper conductors, 50 micron gold-plated connectors, flexible, minimized Near-End Crosstalk (NEXT), reduced Return Loss (RL), translucent connector boots, up to 10 Gbps, EMI shielding |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Network Cable Type | Patch cable - CAT 6a |
| Pairs per Cable | 4 pairs |
| Plated Connector | Gold |
| Shielding Material | Aluminum mylar foil with drain |
| Technology | U/FTP |
| Weight | 39 g |
| Wires per Cable | 8 wires |
| Wiring Scheme | T568B |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| Compliant Standards | RoHS, ANSI/TIA-568-C.2, TIA/EIA-568-B.1-2001, WEEE - up to 500 MHz |
