Hardware Computer Components Motherboards
Add to My Favorites
Motherboards

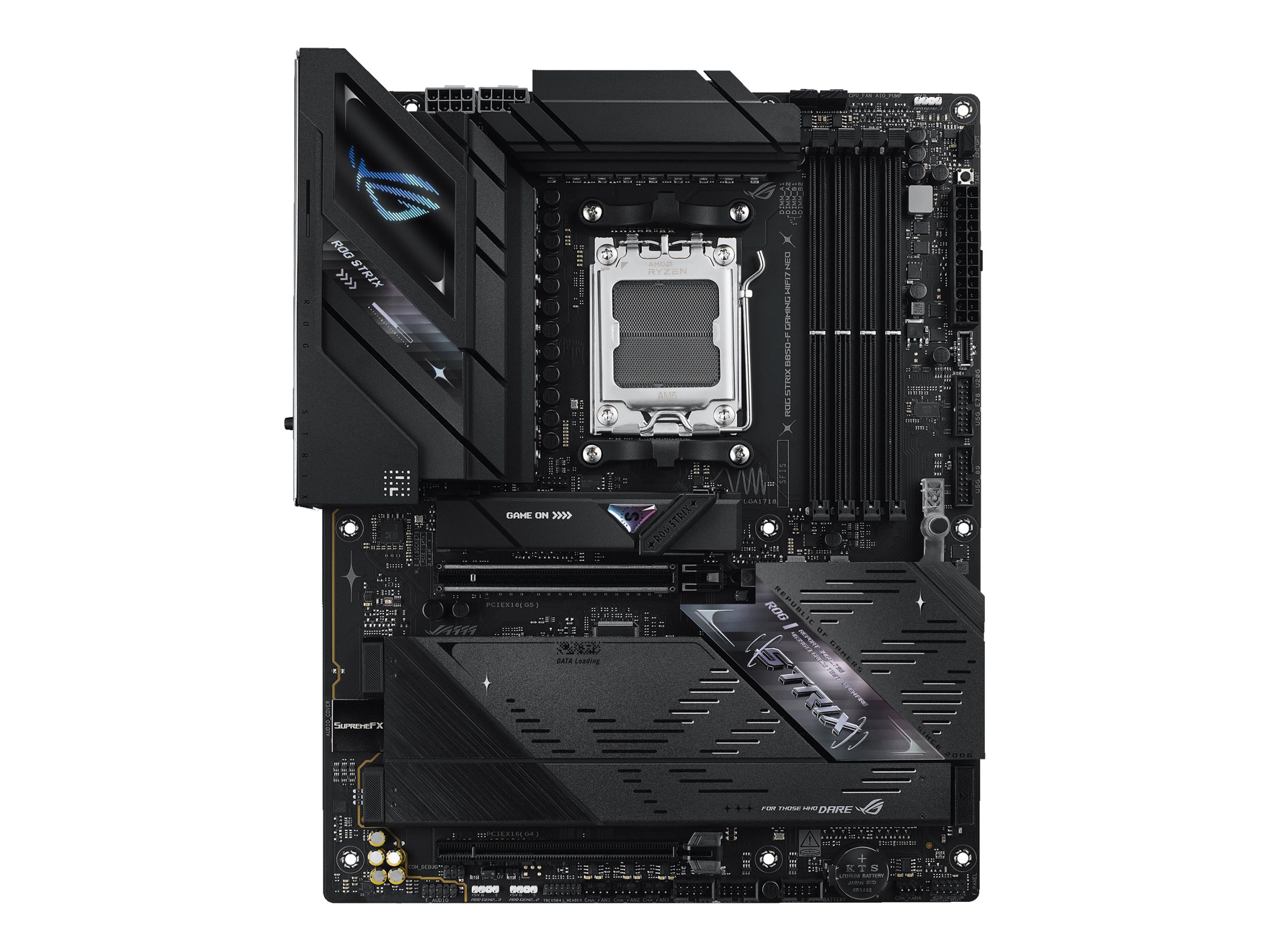

ASUS ROG STRIX B850-F GAMING WIFI7 NEO

$357.00
ASUS ROG STRIX B850-F GAMING WIFI7 NEO
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • Socket AM5
  • AMD B850 Chipset
  • USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 1, USB-C 3.2 Gen 2x2, USB4
ASUS ROG STRIX B850-F GAMING WIFI7 NEO
  • Motherboard
  • ATX
  • Socket AM5
  • AMD B850 Chipset
  • USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 1, USB-C 3.2 Gen 2x2, USB4
  • Wi-Fi 7, 5 Gigabit Ethernet, Bluetooth
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Price: $357.00
Mfr Part #: ROG STRIX B850-F GAMING WIFI7 NEO
SHI Part #: 51723297
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS ROG STRIX B850-F GAMING WIFI7 NEO - Motherboard - ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 1, USB-C 3.2 Gen 2x2, USB4 - Wi-Fi 7, 5 Gigabit Ethernet, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
MSRP$319.99
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeAMD B850
Mainboard / Processor SocketSocket AM5
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • 5 Gigabit Ethernet
  • Bluetooth 5.4
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11be (Wi-Fi 7)
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecRealtek ALC4080
Compliant StandardsHigh Definition Audio, Dolby Atmos
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 4.0 x16 (x4 mode)
  • 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
  • 2 x M.2 socket (2280 M.2 Key M slot)
Interfaces
  • 1 x HDMI
  • 2 x USB-C 3.2 Gen 2
  • 2 x USB 3.2 Gen 2
  • 5 x USB 3.2 Gen 1
  • 1 x USB-C 3.2 Gen 1
  • 2 x USB 2.0
  • 1 x LAN (5Gigabit Ethernet)
  • 2 x antenna
  • 1 x SPDIF out
  • 1 x microphone - mini-jack
  • 1 x audio line-out - mini-jack
Internal Interfaces
  • 6 x USB 2.0 - header
  • 4 x USB 3.2 Gen 1 - header
  • 1 x USB-C 3.2 Gen 2x2 - header
  • 1 x Thunderbolt 4 - header
  • 1 x audio - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors
RAID FeaturesAMD RAID Xpert2 Technology
Storage Interfaces
  • SATA-600 -connectors: 2 x 7pin Serial ATA
  • PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Features
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
BIOS TypeAMI
Hardware FeaturesASUS Enhanced Memory Profile (AEMP), LANGuard, power button, BIOS FlashBack button, Clear CMOS Button, CrashFree BIOS 3, 5K Black Metallic Capacitors, ASUS Aura Sync, ASUS Extreme Engine Digi+, ASUS EZ DIY, ASUS ProCool, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, BIOS FlashBack LED, M.2 heatsink, M.2 heatsink backplate, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release, Preboot eXecution Environment (PXE), pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, 16+2+2 Phase Power Design, AI Cooling II, AI Networking II, AMD Precision Boost Overdrive (PBO), ASUS Asynchronous Clock, chipset heatsink, VRM heatsink design
Sleep / Wake UpWake on LAN (WOL), wake on PME
General
Chipset TypeAMD B850
Compatible Processors(supports Ryzen 7000/8000/9000 Series)
Max Processors Qty1
Processor SocketSocket AM5
Product TypeMotherboard - ATX
LAN
Network ControllerMediatek MT7925
Network Interfaces802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 5 Gigabit Ethernet, Bluetooth 5.4
Miscellaneous
Cables Included2 x Serial ATA cable
Depth24.4 cm
Included AccessoriesASUS Wi-Fi Q-antenna, cable ties, M.2 Q-Latch, M.2 Q-Slide, 3 x M.2 rubber, M.2 backplate rubber package, ROG key chain, ROG Strix sticker
Software IncludedAdobe Creative Cloud (free trial), AIDA64 Extreme (60 days trial), Armoury Crate, ASUS AI Advisor, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, HWiNFO, Norton 360 for Gamers (60 days trial), ROG CPU-Z, ROG GameFirst Utility, TurboV Core, WinRAR (40 days trial)
Width30.5 cm
Supported RAM
Bus Clock8400 MT/s (O.C.), 8200 MT/s (O.C.), 9000 MT/s (O.C.), 8600 MT/s (O.C.), 8000 MT/s (O.C.)
FeaturesAMD EXPO technology, dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
Max Size256 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC, ECC, on-die ECC, ECC (operate in non-ECC mode)
TechnologyDDR5
