Axiom C5030n Series - SSD
MSRP$2,922.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

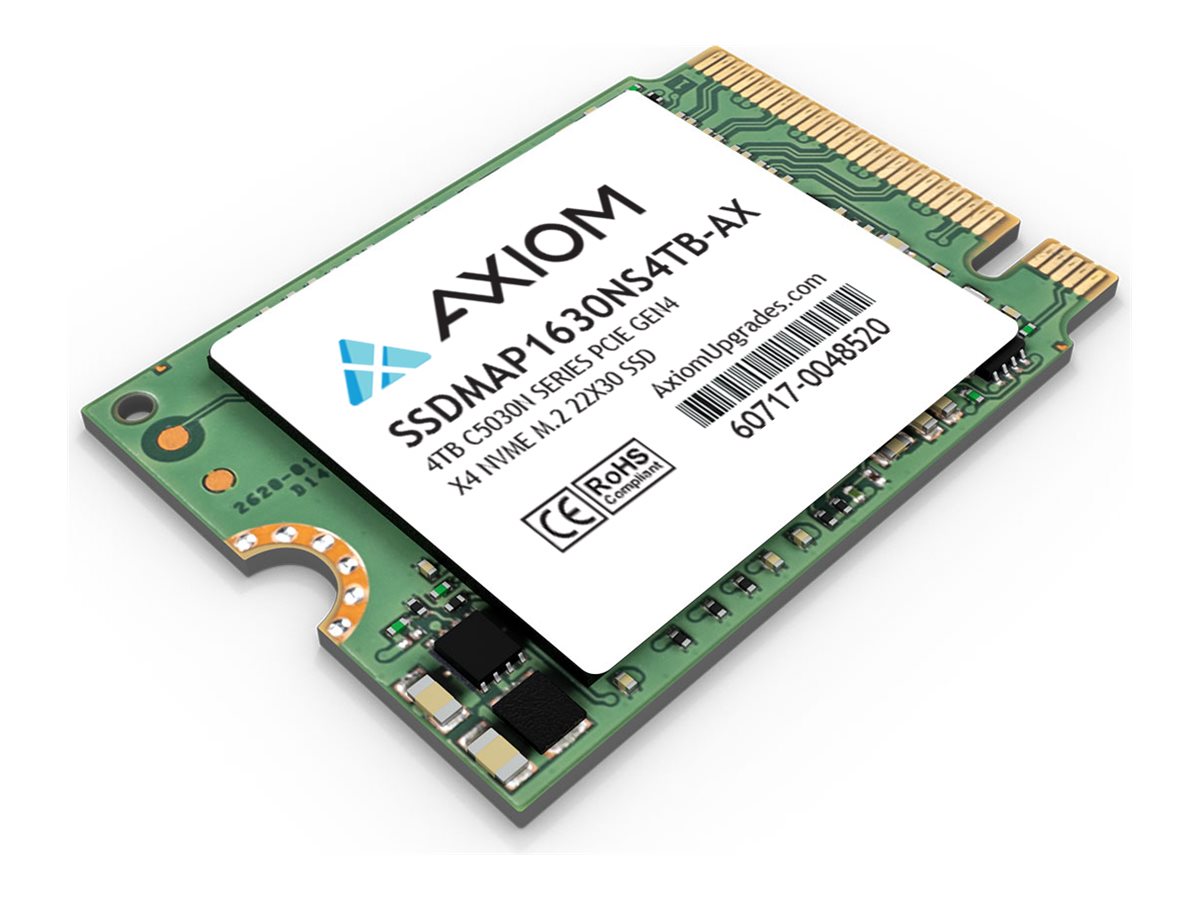

Axiom C5030n Series - SSD
- encrypted
- 4 TB
- internal
- M.2 2230
- PCIe 4.0 x4 (NVMe)
- 256-bit AES
- TCG Opal Encryption 2.0
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,922.00 |
| Mfr Part #: | SSDMAP1630NS4TB-AX |
| SHI Part #: | 51698501 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Axiom Memory |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Axiom C5030n Series - SSD - encrypted - 4 TB - internal - M.2 2230 - PCIe 4.0 x4 (NVMe) - 256-bit AES - TCG Opal Encryption 2.0 - TAA Compliant |
| Manufacturer | Axiom Memory |
| MSRP | $2,922.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 3 mm |
| Dimensions & Weight / Weight | 6.8 g |
| Dimensions & Weight / Width | 2.2 mm |
| Hard Drive / Capacity | 4 TB |
| Hard Drive / Form Factor | M.2 2230 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 4.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 4.0 x4 (NVMe) |
| Header / Brand | Axiom |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / Type | Solid state drive |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2230 |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) |
| General | |
| Capacity | 4 TB |
| Depth | 3 mm |
| Device Type | Solid state drive - internal |
| Encryption Algorithm | 256-bit AES |
| Features | 3D NAND Technology, Maxio MAP1602 controller, Global Wear Leveling, StaticDataRefresh Technology, NVM Express (NVMe) deallocate support, HMB (Host Memory Buffer) supported, NVM Express (NVMe) 2.0, NVMe Secure Erase support, Advanced Encrypting Standard (AES), LDPC error correction |
| Form Factor | M.2 2230 |
| Hardware Encryption | Yes |
| Interface | PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | Single-level cell (SLC) |
| Weight | 6.8 g |
| Width | 2.2 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS |
| TAA Compliant | Yes |
| Performance | |
| Drive Writes Per Day (DWPD) | 0.593 |
| Internal Data Rate | 5000 MBps (read) / 4600 MBps (write) |
| Maximum 4KB Random Read | 580000 IOPS |
| Maximum 4KB Random Write | 650000 IOPS |
| SSD Endurance | 2600 TB |
| Power | |
| Power Consumption |
|
| Voltage Required | DC 3.3 V |
| Reliability | |
| MTBF | 1,500,000 hours |
