Startech - Patch cable
MSRP$12.29
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

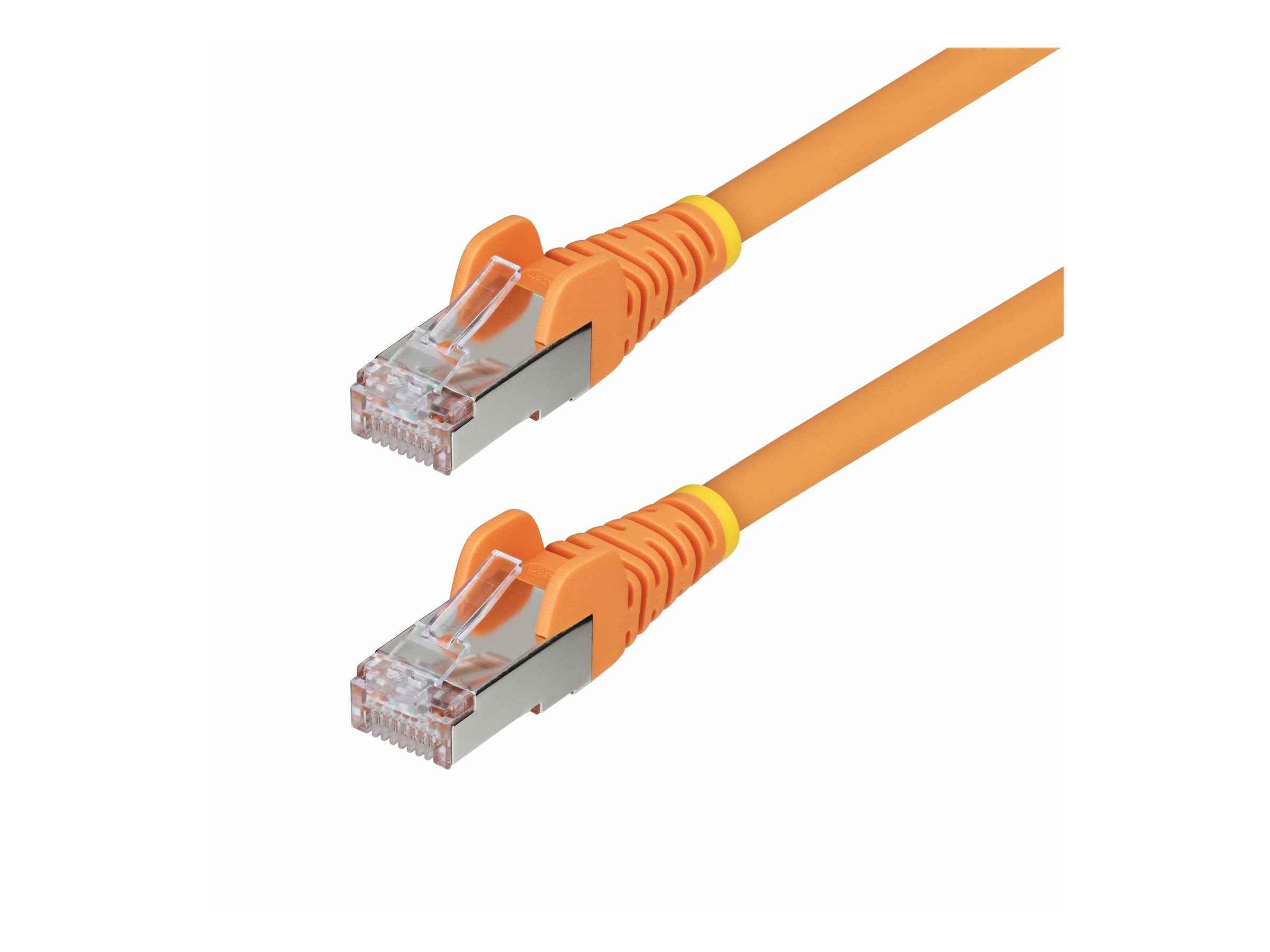

Startech - Patch cable
- RJ-45 (M) to RJ-45 (M)
- 5.7 mm
- S/FTP
- CAT 5/5e/6/6a
- IEEE 802.3bt
- halogen-free, snagless, up to 10 Gbps data transfer rate
- orange
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $12.29 |
| Mfr Part #: | NLOR-2F-CAT6A-PATCH |
| SHI Part #: | 51666944 |
| Category: | Network cable |
| UNSPSC: | 26121609 |
| Manufacturer: | StarTech.com |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network cable |
| Description | Startech - Patch cable - RJ-45 (M) to RJ-45 (M) - 5.7 mm - S/FTP - CAT 5/5e/6/6a - IEEE 802.3bt - halogen-free, snagless, up to 10 Gbps data transfer rate - orange |
| Manufacturer | StarTech.com |
| MSRP | $12.29 |
| UNSPSC | 26121609 |
| Main Specifications | |
| Header / Brand | Startech |
| Left Connector Type | RJ-45 |
| Miscellaneous / Product Color | Orange |
| Network Cable Type | Patch cable |
| Packaged Quantity | 1 |
| Right Connector Type | RJ-45 |
| Service & Support / Type | Limited lifetime warranty |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 17.2 cm |
| Shipping Height | 1.9 cm |
| Shipping Weight | 44 g |
| Shipping Width | 19.6 cm |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| General | |
| American Wire Gauge (AWG) | 27 |
| Cable Length | 60 cm |
| Color | Orange |
| Diameter | 5.7 mm |
| Features | Halogen-free, snagless, up to 10 Gbps data transfer rate, strain relief, pure bare copper conductors, minimized Near-End Crosstalk (NEXT), reduced Return Loss (RL), 100W PoE++ support, EMI protection, flame retardant, 50 micron gold-plated connectors, stranded conductor |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Network Cable Type | Patch cable - CAT 5/5e/6/6a - IEEE 802.3bt |
| Pairs per Cable | 4 pairs |
| Plated Connector | Gold |
| Shielding Material | Aluminum mylar foil with braid |
| Technology | S/FTP |
| Weight | 32 g |
| Wires per Cable | 8 wires |
| Wiring Scheme | T568B |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| Compliant Standards | ETL, ANSI/TIA-568.2-D, Halogen-free, IEEE 802.3bt Type 4, TIA/EIA T568B, RoHS, WEEE - up to 500 MHz |
