Vertiv PowerIT PMN05MCZ1-18SD43-8HW22A9DXX-S
MSRP$3,816.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

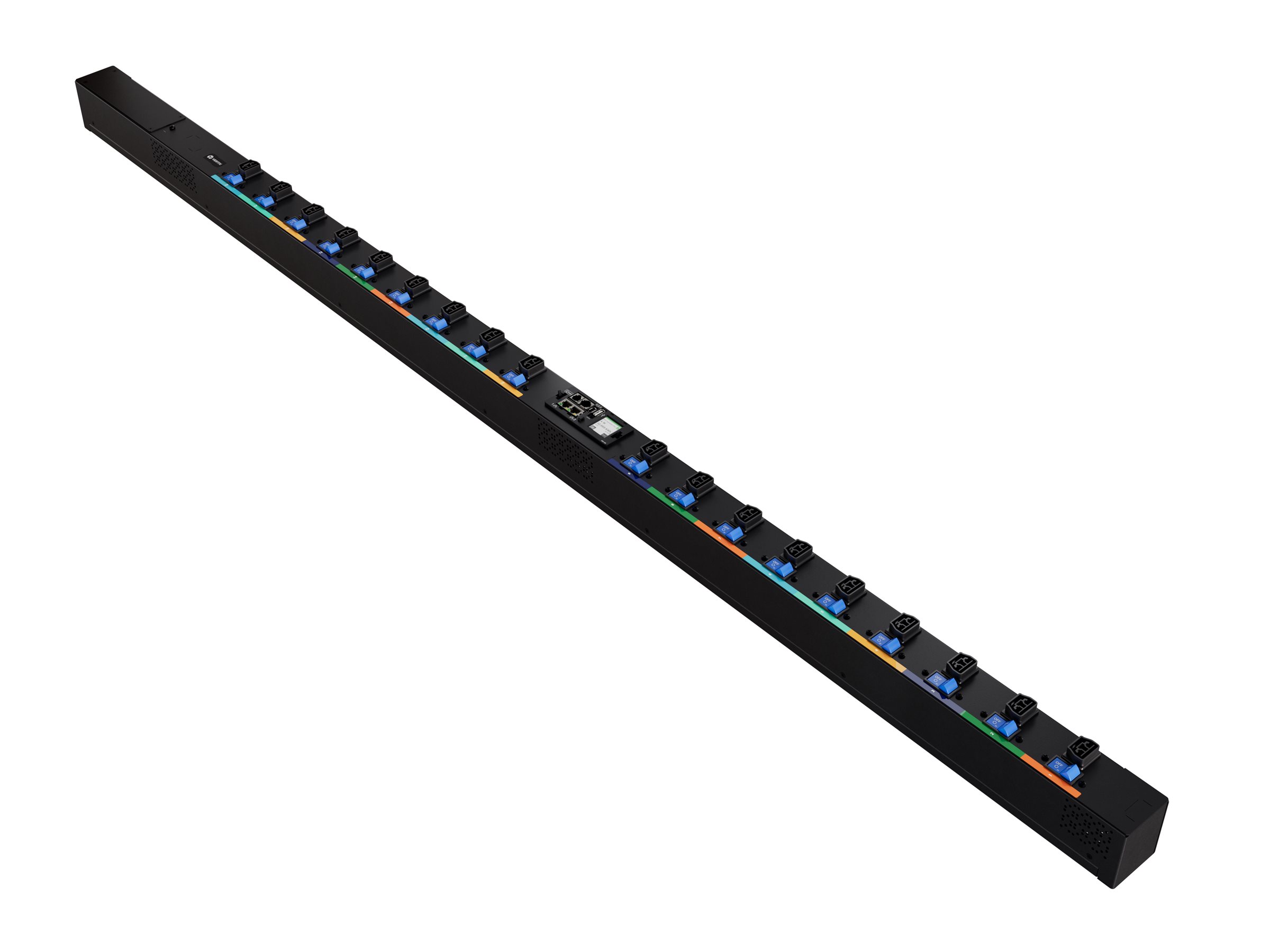

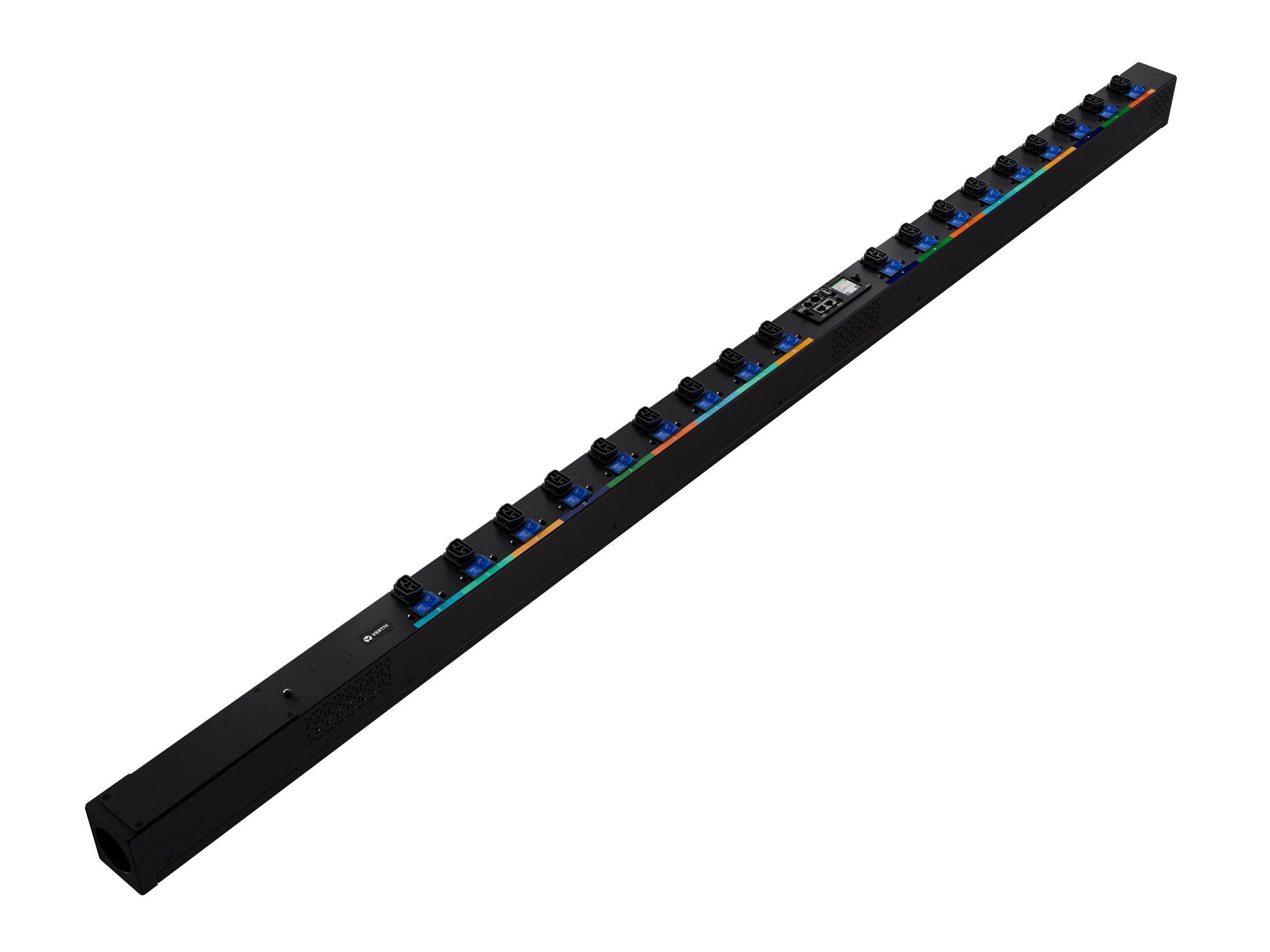

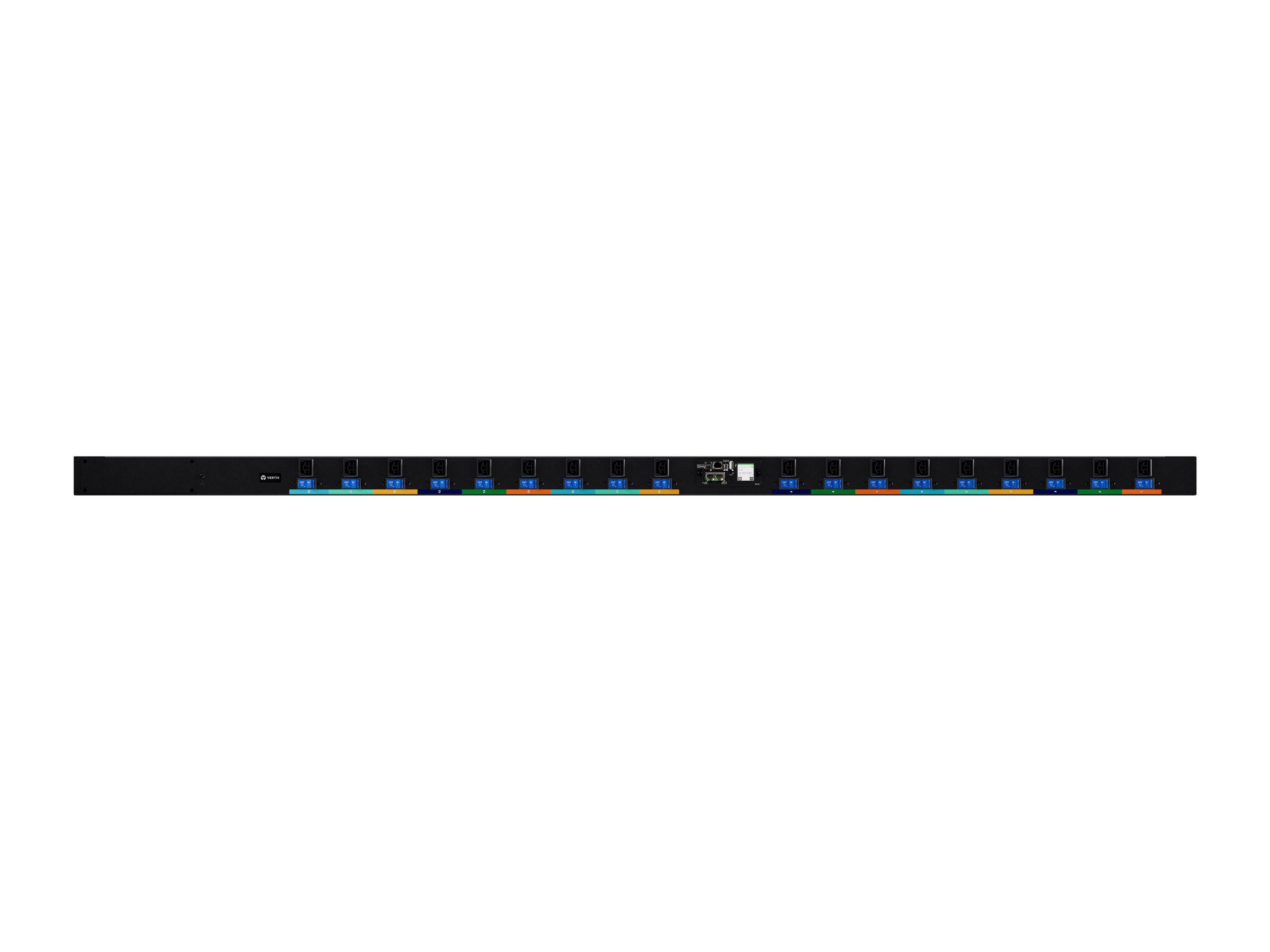

Vertiv PowerIT PMN05MCZ1-18SD43-8HW22A9DXX-S
- Power distribution unit (rack-mountable)
- AC 277-480 V
- 66.4 kW
- 3-phase WYE
- Ethernet 10/100/1000, RS-232, USB
- input: IEC 60309 3P+N+E
- output connectors: 18 (Saf-D-Grid)
- 72"
- black
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,816.00 |
| Mfr Part #: | VP4NA0A4 |
| SHI Part #: | 51580146 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Vertiv PowerIT PMN05MCZ1-18SD43-8HW22A9DXX-S - Power distribution unit (rack-mountable) - AC 277-480 V - 66.4 kW - 3-phase WYE - Ethernet 10/100/1000, RS-232, USB - input: IEC 60309 3P+N+E - output connectors: 18 (Saf-D-Grid) - 72" - black - TAA Compliant |
| Manufacturer | Vertiv |
| MSRP | $3,816.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.62 cm |
| Dimensions & Weight / Height | 182.9 cm |
| Dimensions & Weight / Width | 6.35 cm |
| Header / Brand | Vertiv |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 18 |
| Power Device / Voltage Required | AC 277-480 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 7.62 cm |
| Height | 182.9 cm |
| Width | 6.35 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 9.1 kg |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 72" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | RoHS, UL 62368-1, FCC Part 15 A, ANSI C12.1, IEC 62053-21 |
| Features | Powder-coated, vertical orientation, monitored, circuit/breaker current monitoring, input power monitoring, per phase power monitoring, daisy chain functionality, 15 x 20A single pole magnetic breakers, breaker/switch combination, touch screen LCD display, color-coded labels, internal RMS current sensor, internal RMS voltage sensor, hard reboot button, IP reset button, top-end feed cord entry |
| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP 1, SNMP 2c, SNMP 3, Syslog, TACACS+, Modbus TCP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+N+E |
| Input Voltage | AC 277-480 V |
| Input Wiring | 3-phase WYE |
| Max Electric Current | 80 A |
| Output Voltage | AC 277 V 50/60 Hz |
| Power Capacity | 66.4 kW |
| Power Output Connectors Details | 18 x Saf-D-Grid |
