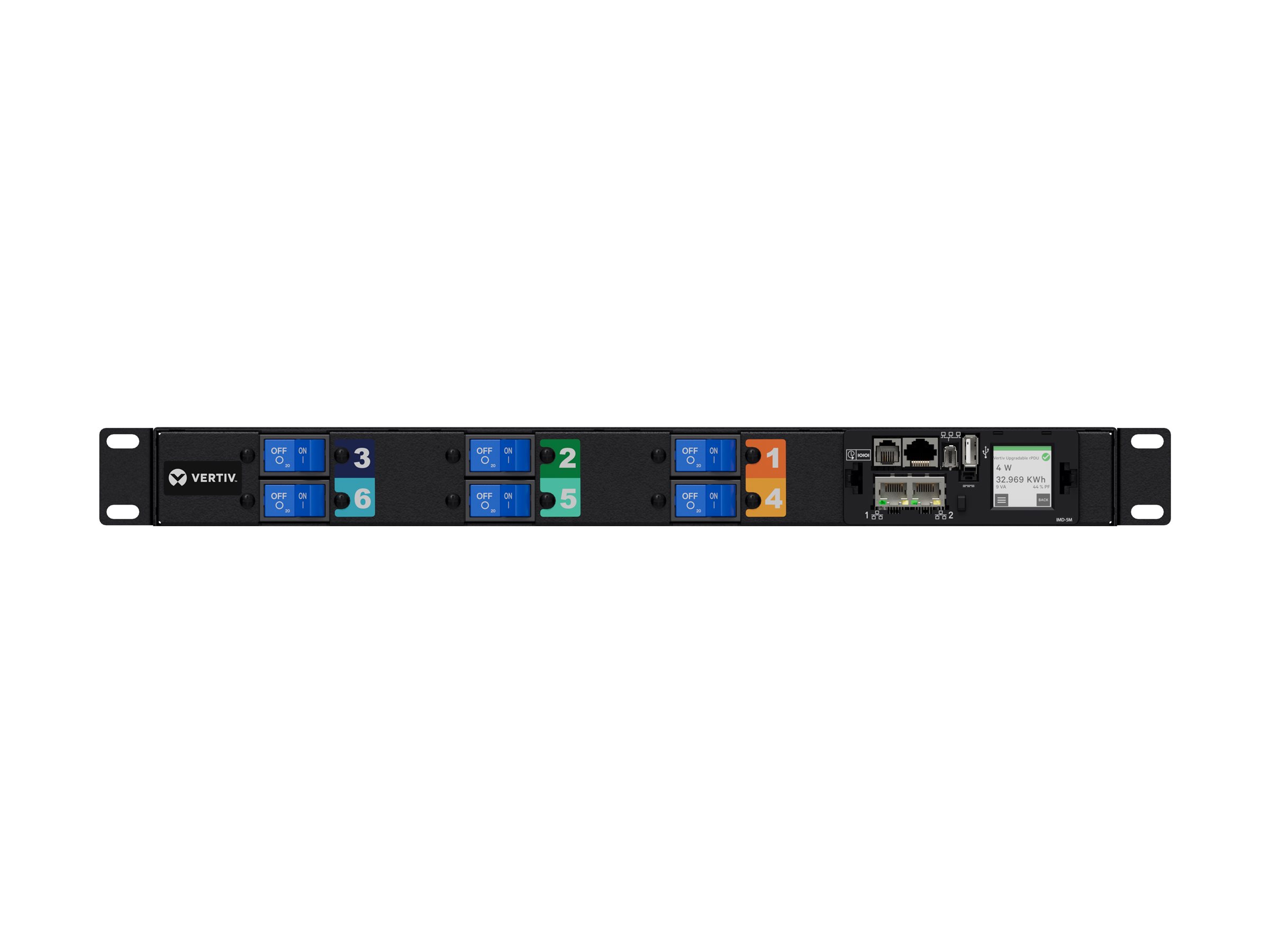

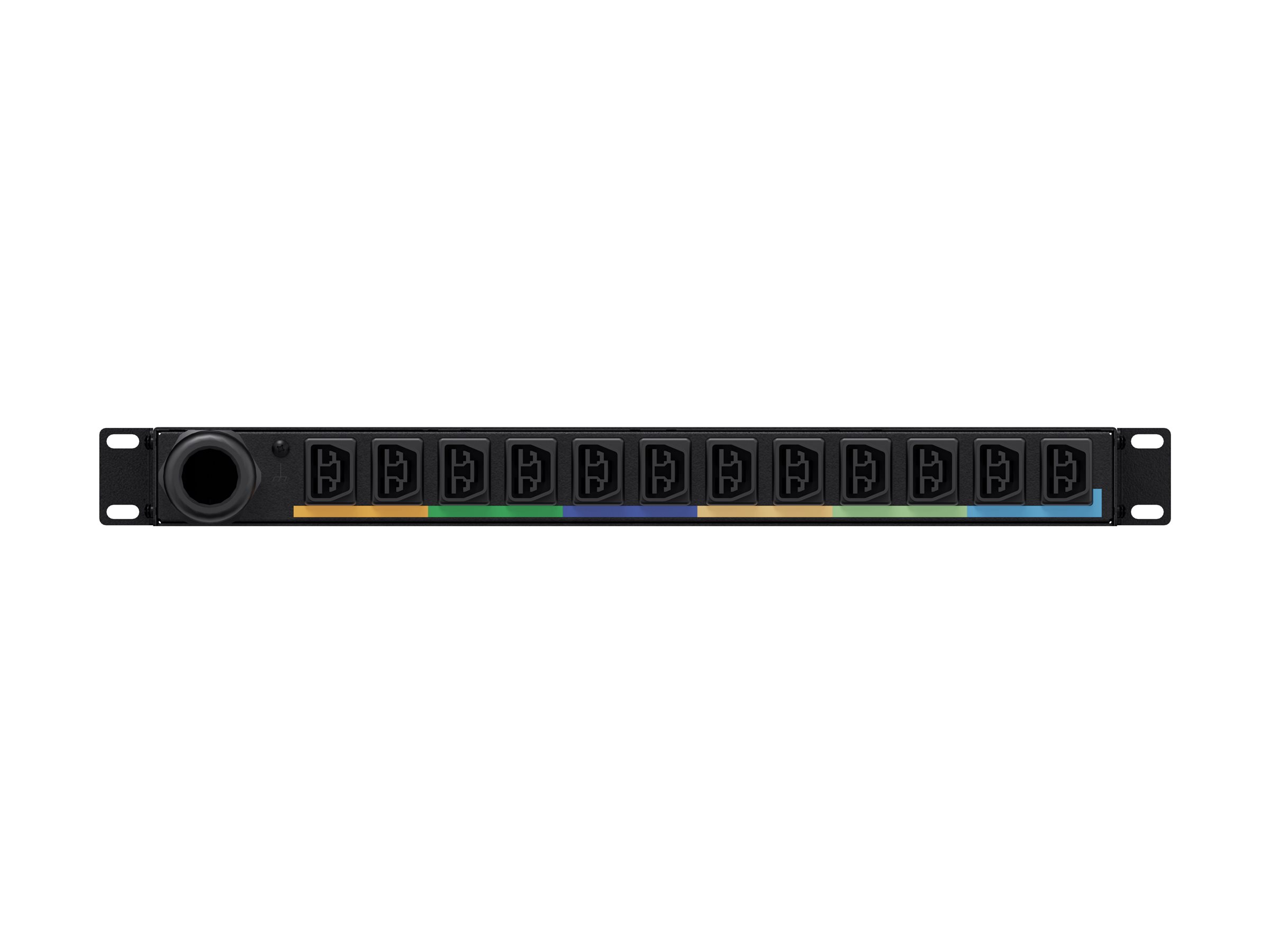

Vertiv PowerIT - Power distribution unit (rack-mountable)
MSRP$2,288.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Vertiv PowerIT - Power distribution unit (rack-mountable)
- AC 277-480 V
- 19.9 kW
- 3-phase WYE
- Ethernet 10/100/1000, RS-232, USB
- input: NEMA L22-30P
- output connectors: 12 (Saf-D-Grid)
- 1U
- 19"
- 3 m cord
- black
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,288.00 |
| Mfr Part #: | VP4N31A6 |
| SHI Part #: | 51580141 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Vertiv PowerIT - Power distribution unit (rack-mountable) - AC 277-480 V - 19.9 kW - 3-phase WYE - Ethernet 10/100/1000, RS-232, USB - input: NEMA L22-30P - output connectors: 12 (Saf-D-Grid) - 1U - 19" - 3 m cord - black - TAA Compliant |
| Manufacturer | Vertiv |
| MSRP | $2,288.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 30.5 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | Geist |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 12 |
| Power Device / Voltage Required | AC 277-480 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 30.5 cm |
| Height | 4.4 cm |
| Width | 44 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 13.6 kg |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | FCC Part 15 A, RoHS, UL/CUL 62368-1 |
| Features | Horizontal mount, phase monitoring, line monitoring, circuit/breaker current monitoring, 3 x 20A double pole magnetic breakers, breaker/switch combination, touch screen LCD display, twist lock plug, U-lock outlets, internal RMS voltage sensor, internal RMS current sensor, IP reset button, hard reboot button, daisy chain functionality |
| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP 1, SNMP 2c, SNMP 3, TACACS+, Modbus TCP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L22-30P |
| Input Voltage | AC 277-480 V |
| Input Wiring | 3-phase WYE |
| Max Electric Current | 30 A |
| Output Voltage | AC 277 V 50/60 Hz |
| Power Capacity | 19.9 kW |
| Power Output Connectors Details | 12 x Saf-D-Grid |
