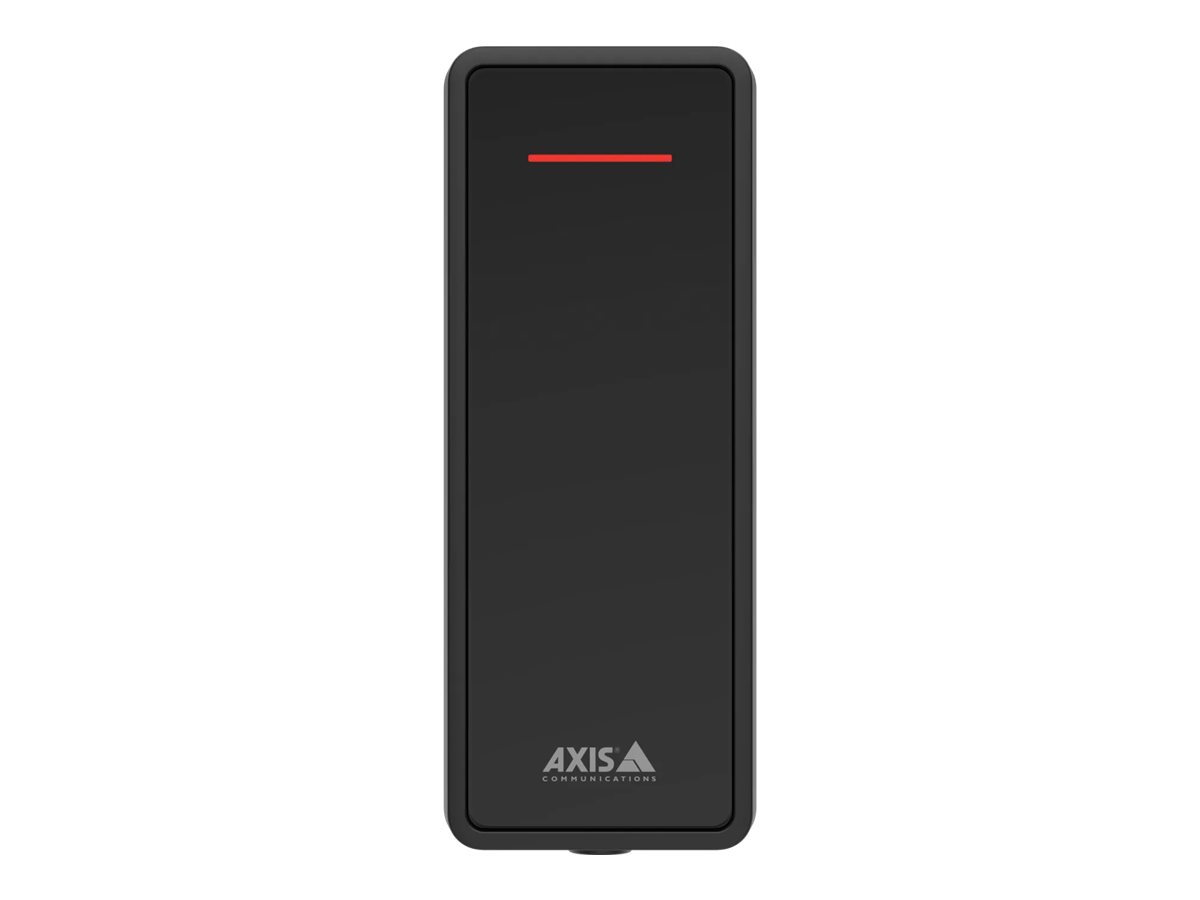

Axis A4030-E Reader - RFID proximity reader
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Axis A4030-E Reader - RFID proximity reader
- with compact mulion design
- wired
- black, NCS S 9000-N
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 03423-001 |
| SHI Part #: | 51579626 |
| Category: | Circuit assemblies and radio frequenc... |
| UNSPSC: | 32101500 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Circuit assemblies and radio frequenc... |
| Description | Axis A4030-E Reader - RFID proximity reader - with compact mulion design - wired - black, NCS S 9000-N |
| Manufacturer | Axis Communications |
| MSRP | $229.00 |
| UNSPSC | 32101500 |
| Main Specifications | |
| Dimensions & Weight / Depth | 2.7 cm |
| Dimensions & Weight / Height | 12.1 cm |
| Dimensions & Weight / Weight | 118 g |
| Dimensions & Weight / Width | 4.8 cm |
| Header / Brand | Axis |
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology | Wired |
| Packaged Quantity | 1 |
| Compatibility Information | |
| Designed For | AXIS A1214 |
| Dimensions & Weight | |
| Depth | 2.7 cm |
| Height | 12.1 cm |
| Weight | 118 g |
| Width | 4.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 100% RH (condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -40 °C |
| General | |
| Card Technology | HID MIFARE Plus, HID MIFARE Classic, HID MIFARE DESFire EV1, HID MIFARE DESFire EV2, HID MIFARE DESFire EV3 |
| Connectivity Technology | Wired |
| Environment | Indoor, outdoor |
| Features | RGB LED indicator, alarm mode, tamper switch, scratch protection, impact protection Open Supervised Device Protocol (OSDP) |
| Integrated Sensors | 13.56 MHz RFID Proximity Card Scanner |
| Interfaces Details | Serial |
| Placing / Mounting | Wall-mounting |
| Product Type | RFID proximity reader |
| Miscellaneous | |
| Color | Black, NCS S 9000-N |
| Compliant Standards | EAL 6+, IP65, IK07, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK07, EN 62311, EN 300330, EN 301489-1, EN 301.489.3, FCC Part 15 Subpart C, RSS-102, RSS-210, FIPS 140-3 Level 3, ISO 14443 type A, EN 18031-1: 2024 |
| Localization | Australia, Europe, United Kingdom, United States |
| Power Consumption Operational | 114 mAh |
| Product Material | Plastic |
| Voltage Required | DC 12 V |
| Warranty | 5-year warranty |
