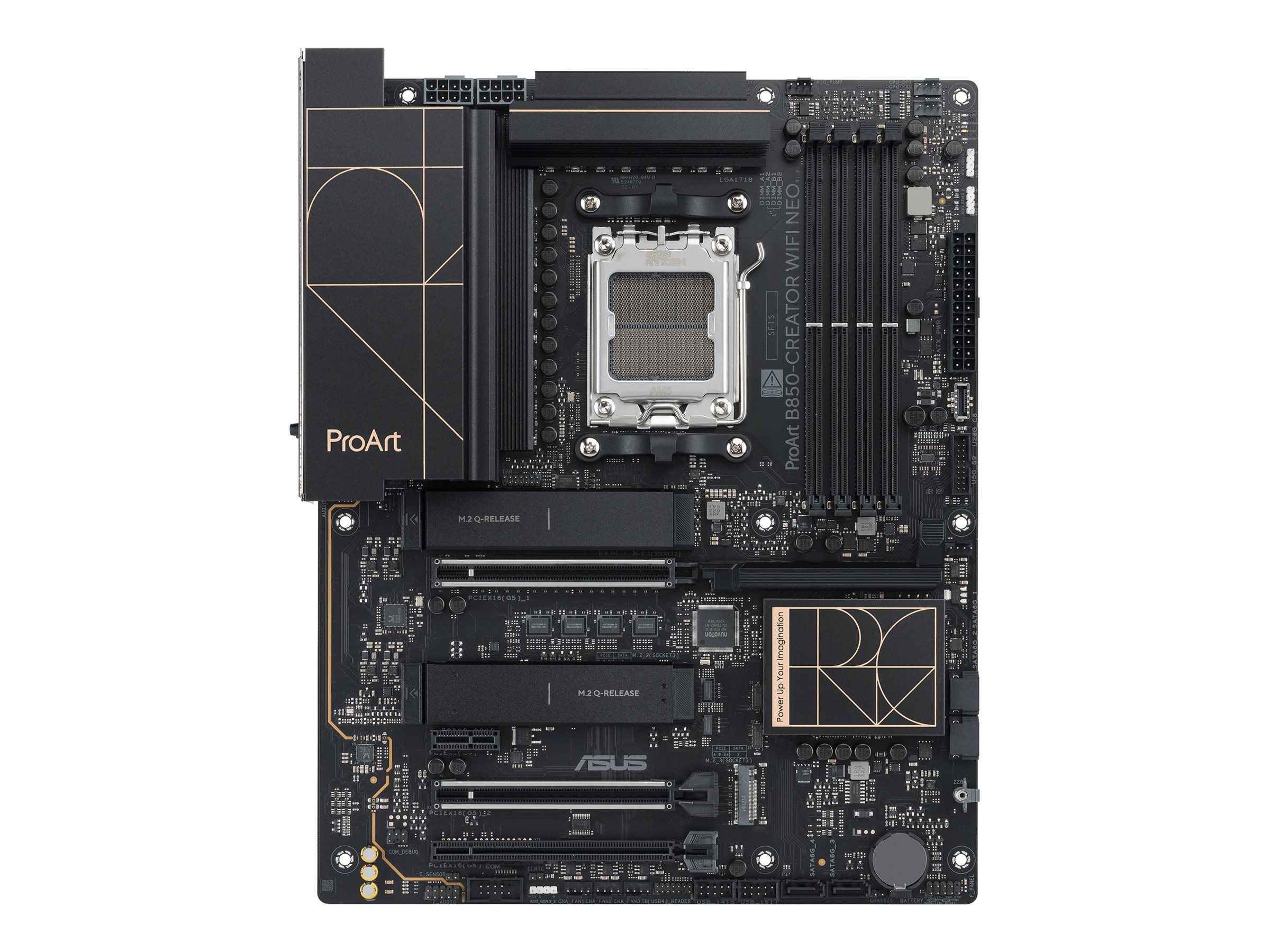

ASUS ProArt B850-CREATOR WIFI NEO

$337.00
ASUS ProArt B850-CREATOR WIFI NEO
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • Socket AM5
  • AMD B850 Chipset
  • USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB4, USB-C 3.2 Gen 1
ASUS ProArt B850-CREATOR WIFI NEO
  • Motherboard
  • ATX
  • Socket AM5
  • AMD B850 Chipset
  • USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB4, USB-C 3.2 Gen 1
  • 2 x 5 Gigabit LAN, Wi-Fi 7, Bluetooth
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Price: $337.00
Mfr Part #: PROART B850-CREATOR WIFI NEO
SHI Part #: 51406586
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS ProArt B850-CREATOR WIFI NEO - Motherboard - ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB4, USB-C 3.2 Gen 1 - 2 x 5 Gigabit LAN, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
MSRP$299.99
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeAMD B850
Mainboard / Processor SocketSocket AM5
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • 5 Gigabit Ethernet
  • Bluetooth
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11be (Wi-Fi 7)
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecRealtek ALC1220P
Compliant StandardsHigh Definition Audio
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 2 x PCIe 5.0 x16
  • 1 x PCIe 4.0 x16 (x4 mode)
  • 1 x PCIe 4.0 x1
  • 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
  • 1 x M.2 socket (2280 M.2 Key M slot)
Interfaces
  • 1 x HDMI
  • 1 x DisplayPort
  • 2 x USB 3.2 Gen 1
  • 2 x USB-C 3.2 Gen 1
  • 4 x USB 2.0
  • 2 x antenna
  • 2 x LAN (5Gigabit Ethernet)
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
Internal Interfaces
  • 4 x USB 2.0 - header
  • 2 x USB 3.2 Gen 1 - header
  • 1 x USB-C 3.2 Gen 2 - header
  • 1 x Thunderbolt 4 - header
  • 1 x serial - header
  • 1 x audio - header
  • 1 x SPI - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors
RAID FeaturesAMD RAID Xpert2 Technology
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Features
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
BIOS TypeAMI
Hardware FeaturesASUS Enhanced Memory Profile (AEMP), Preboot eXecution Environment (PXE), CrashFree BIOS 3, BIOS FlashBack button, AI Cache Boost, ASUS Aura Sync, LANGuard, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool, ASUS SafeDIMM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, BIOS FlashBack LED, ESD Guards, M.2 heatsink backplate, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Connector, Q-DIMM, Q-LED, Q-Slot, VRM heatsink design, 14+2+1 Phase Power Design, 8 Layer PCB, AI Cooling II, AMD Precision Boost Overdrive (PBO), chipset heatsink
Sleep / Wake UpWake on LAN (WOL), wake on PME
General
Chipset TypeAMD B850
Compatible Processors(supports Ryzen 7000/8000/9000 Series)
Max Processors Qty1
Processor SocketSocket AM5
Product TypeMotherboard - ATX
LAN
Network Interfaces2 x 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth
Miscellaneous
Cables Included2 x Serial ATA cable
Compliant StandardsDisplayPort 1.4
Depth24.4 cm
Included AccessoriesACC Express Activation Key Card, ASUS ProArt accessory bag, ASUS Wi-Fi Q-antenna, M.2 backplate rubber package, M.2 Q-Latch, M.2 Q-Slide, Q-Connector
Software IncludedAdobe Creative Cloud (free trial), Armoury Crate, ASUS AI Advisor, ASUS AURA Creator, ASUS CPU-Z, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, ASUS ProArt Creator Hub, Norton 360 Deluxe (60 days trial), TurboV Core, USB Wattage Watcher, WinRAR (40 days trial)
Width30.5 cm
Supported RAM
Bus Clock8400 MT/s (O.C.), 8200 MT/s (O.C.), 8600 MT/s (O.C.), 9000 MT/s (O.C.), 8000 MT/s (O.C.)
FeaturesDual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP)
Max Size256 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC, ECC, on-die ECC
TechnologyDDR5
