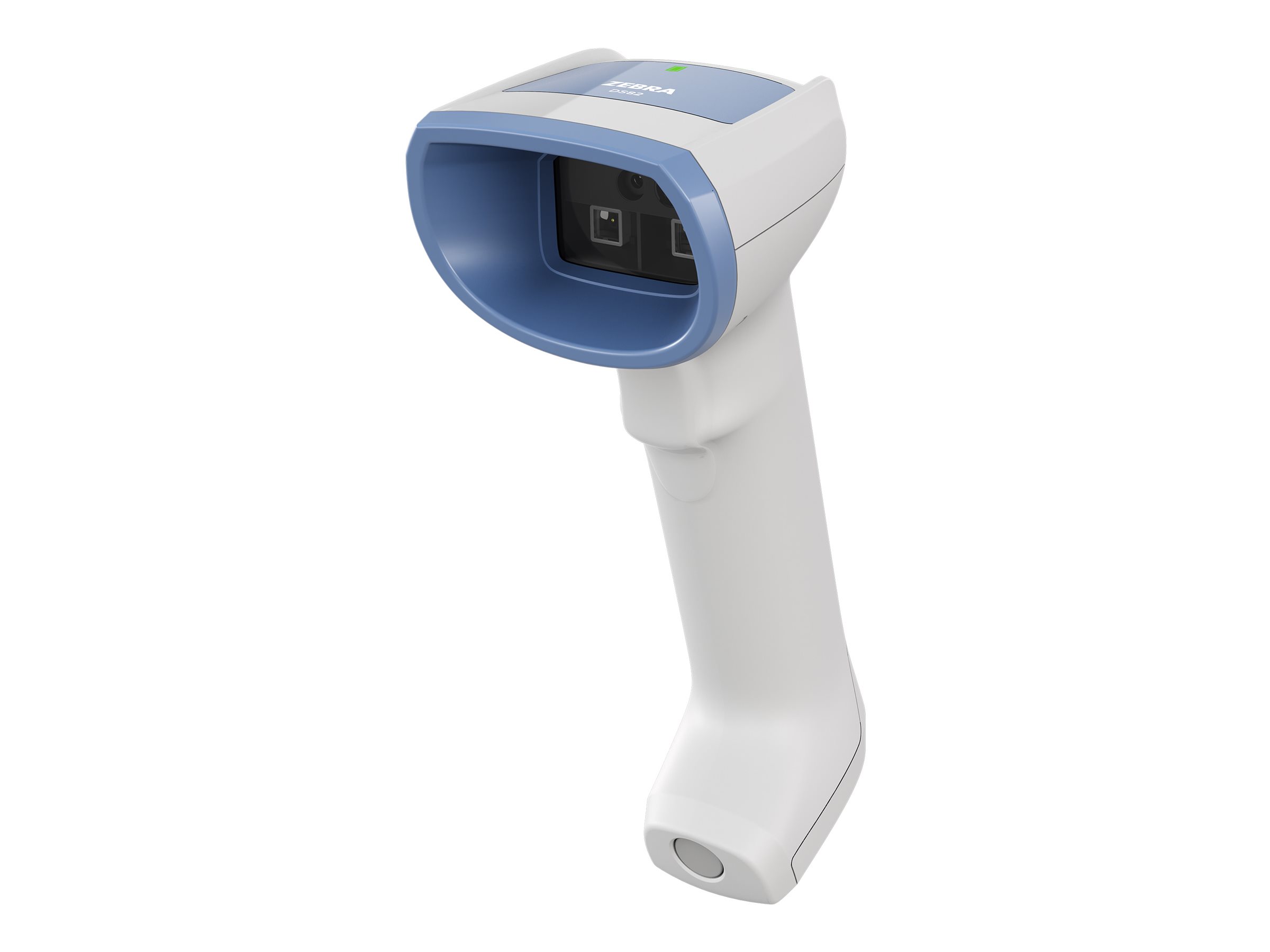

Zebra DS82 Series DS8288-HC
MSRP$1,639.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Zebra DS82 Series DS8288-HC
- Barcode scanner
- handheld
- SR
- 2D imager
- decoded
- Bluetooth 5.2 LE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,639.00 |
| Mfr Part #: | DS8288-HCBU210PSAW |
| SHI Part #: | 51397046 |
| Category: | Bar code equipment |
| UNSPSC: | 43211701 |
| Manufacturer: | Zebra Technologies |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Bar code equipment |
| Description | Zebra DS82 Series DS8288-HC - Barcode scanner - handheld - SR - 2D imager - decoded - Bluetooth 5.2 LE |
| Manufacturer | Zebra Technologies |
| MSRP | $1,639.00 |
| UNSPSC | 43211701 |
| Main Specifications | |
| Dimensions & Weight / Depth | 11.1 cm |
| Dimensions & Weight / Height | 17.6 cm |
| Dimensions & Weight / Weight | 248.3 g |
| Dimensions & Weight / Width | 6.9 cm |
| Header / Brand | Zebra |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Scanner / Type | Barcode scanner |
| Service & Support / Type | 3-year warranty |
| Barcode | |
| Connectivity Technology | Wireless |
| Decode Capability | Code 39, Code 128, Code 93, Codabar, NW-7, Code 11, MSI-Plessey, EAN/JAN, UPC, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32, Italy Pharmacode, PDF417, MicroPDF417, Composite, TLC39, Aztec code, Data Matrix, Micro QR code, QR code, MaxiCode, Han Xin, Postal Code, SecurPharm, OCR-A, OCR-B, MICR, US currency serial number, GS1 Digital Link, Digimarc Barcode |
| Features | White LEDs illumination, Qi inductive charging, 1000 F battery, 8 kV ESD protection (direct discharge), 16 kV ESD protection (air discharge), 8 kV ESD protection (indirect discharge) |
| Interface Type | Bluetooth 5.2 LE |
| Light Source Wave Length | 524 nm |
| Max Working Distance | 104.1 cm |
| Minimum Bar Width | 3 mil |
| OK Notification | Vibration, LED indicator |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 16% |
| Scan Element Type | 2D imager - green LED |
| Scan Engine Focus Range | Standard Range (SR) |
| Scan Mode | Single-pass |
| Sensor Resolution | 1600 x 1200 |
| Skew (Degrees) | 60 |
| TTL Decoding | Decoded |
| Dimensions & Weight | |
| Depth | 11.1 cm |
| Height | 17.6 cm |
| Weight | 248.3 g |
| Width | 6.9 cm |
| Environmental Parameters | |
| Drop Specification | 3 m to concrete |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x USB |
| General | |
| Color | Healthcare white |
| Type | Barcode scanner - handheld |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x USB cable - external |
| Compliant Standards | FIPS, FIPS 140-3, EN/IEC 63000:2018, EN 62368-1, IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1-19, EN 50663, EN 62479, FCC CFR47 Part 2.1093, RSS-102 Issue 6, IEC/EN 62471, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 60601-1-2, FCC 47 CFR part 15 B class B, ICES-003 issue 7 Class B, EN 300 328, EN 303 417, EN 301 489-1, EN 301 489-17, IP52, EN 61000-4-2 |
| Included Accessories | PowerCap capacitor, cradle |
| Power | |
| Battery | Lithium ion |
| Electric Current Required | 450 mA (typical), 90 mA (standby) |
