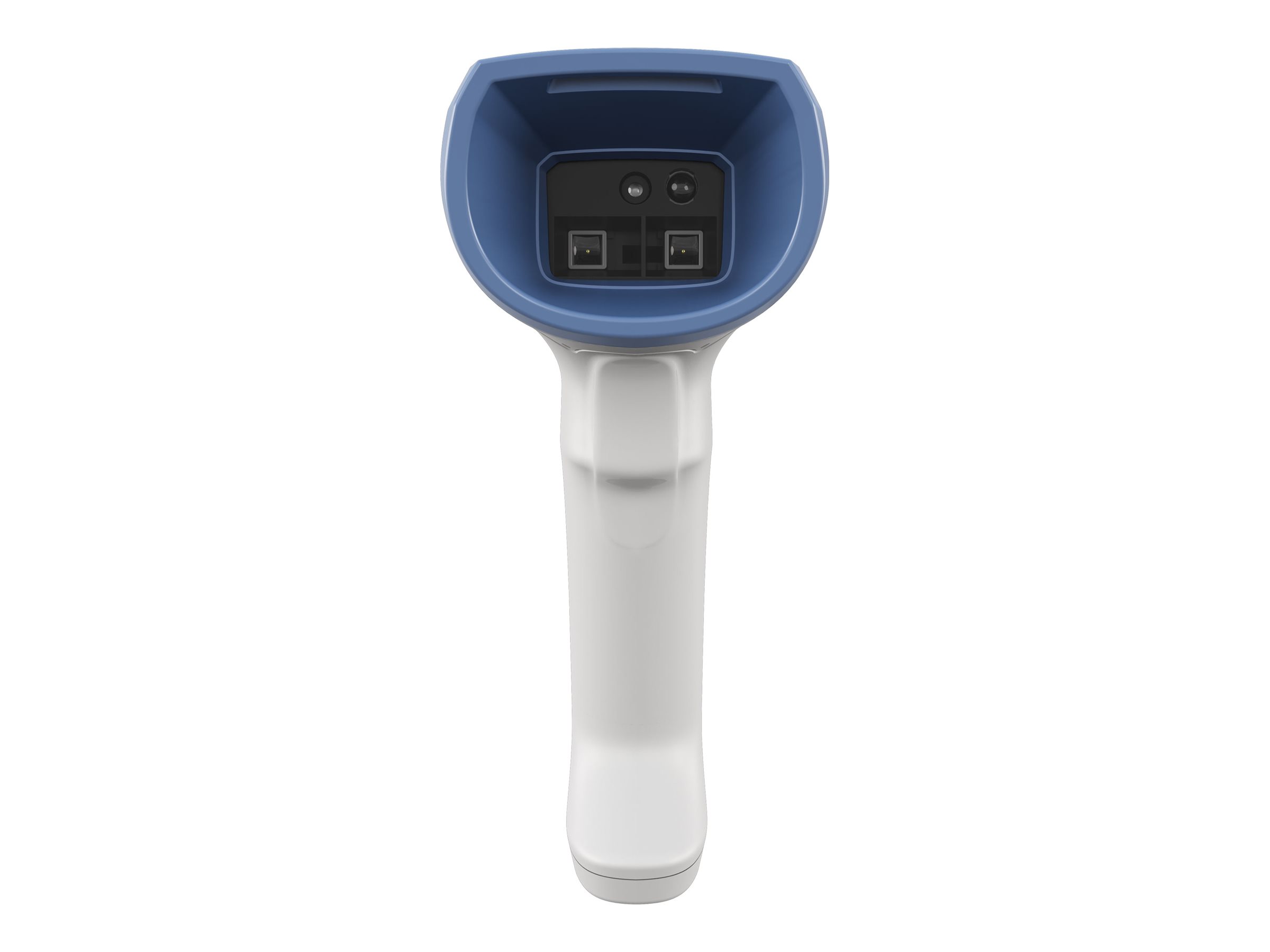

Zebra DS82 Series DS8208-HC
MSRP$657.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Zebra DS82 Series DS8208-HC
- USB Kit
- barcode scanner
- handheld
- SR
- 2D imager
- 406 mm / sec
- decoded
- RS-232, USB
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $657.00 |
| Mfr Part #: | DS8208-HCBU2104ZVW |
| SHI Part #: | 51389951 |
| Category: | Bar code equipment |
| UNSPSC: | 43211701 |
| Manufacturer: | Zebra Technologies |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Bar code equipment |
| Description | Zebra DS82 Series DS8208-HC - USB Kit - barcode scanner - handheld - SR - 2D imager - 406 mm / sec - decoded - RS-232, USB |
| Manufacturer | Zebra Technologies |
| MSRP | $657.00 |
| UNSPSC | 43211701 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.5 cm |
| Dimensions & Weight / Height | 16.5 cm |
| Dimensions & Weight / Weight | 185.5 g |
| Dimensions & Weight / Width | 6.9 cm |
| Header / Brand | Zebra |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Scanner / Type | Barcode scanner |
| Service & Support / Type | 3-year warranty |
| Barcode | |
| Connectivity Technology | Wired |
| Decode Capability | EAN/JAN, Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, MicroPDF417, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, PDF417, MSI-Plessey, Data Matrix, TLC39, OCR-A, OCR-B, Micro QR code, Han Xin, Korean 3 of 5, Base 32, US currency serial number, Composite Codes, SecurPharm, Digimarc Barcode, Postal Code, Aztec, MICR |
| Features | White LEDs illumination, 8 kV ESD protection (direct discharge), 8 kV ESD protection (indirect discharge), 16 kV ESD protection (air discharge) |
| Interface Type | RS-232, USB |
| Light Source Wave Length | 524 nm |
| Max Working Distance | 104.1 cm |
| Minimum Bar Width | 3 mil |
| OK Notification | LED indicator, vibration |
| Pitch (Degrees) | 60 |
| Scan Element Type | 2D imager - green LED |
| Scan Engine Focus Range | Standard Range (SR) |
| Scan Mode | Single-pass |
| Scan Speed | 406 mm / sec |
| Sensor Resolution | 1600 x 1200 |
| Skew (Degrees) | 60 |
| TTL Decoding | Decoded |
| Dimensions & Weight | |
| Depth | 10.5 cm |
| Height | 16.5 cm |
| Weight | 185.5 g |
| Width | 6.9 cm |
| Environmental Parameters | |
| Drop Specification | 1.8 m to concrete |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x USB / RS-232 |
| General | |
| Color | Healthcare white |
| Type | Barcode scanner - handheld |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-6-2, EN 60601-1-2, IP52, EN 300 328, EN 301 489-1, EN 62479, EN 62368-1, IEC 62368-1, IEC/EN 62471, EN 55032, UL 62368-1, EN 55035, FCC CFR47 Part 2.1093, EN 301 489-17, EN/IEC 63000:2018, EN 50663, FIPS 140-3, ICES-003 issue 7 Class B, FCC 47 CFR Part 15 Subpart B Class B, RSS-102 Issue 6, EN 303 417, CAN/CSA-C22.2 No. 62368-1-19 |
| Networking | |
| Wireless Connectivity | Bluetooth 5.2 LE |
| Power | |
| Electric Current Required | 450 mA (operating), 90 mA (standby) |
