CPI Switched Pro eConnect EA-67F1W-C
MSRP$5,703.50
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

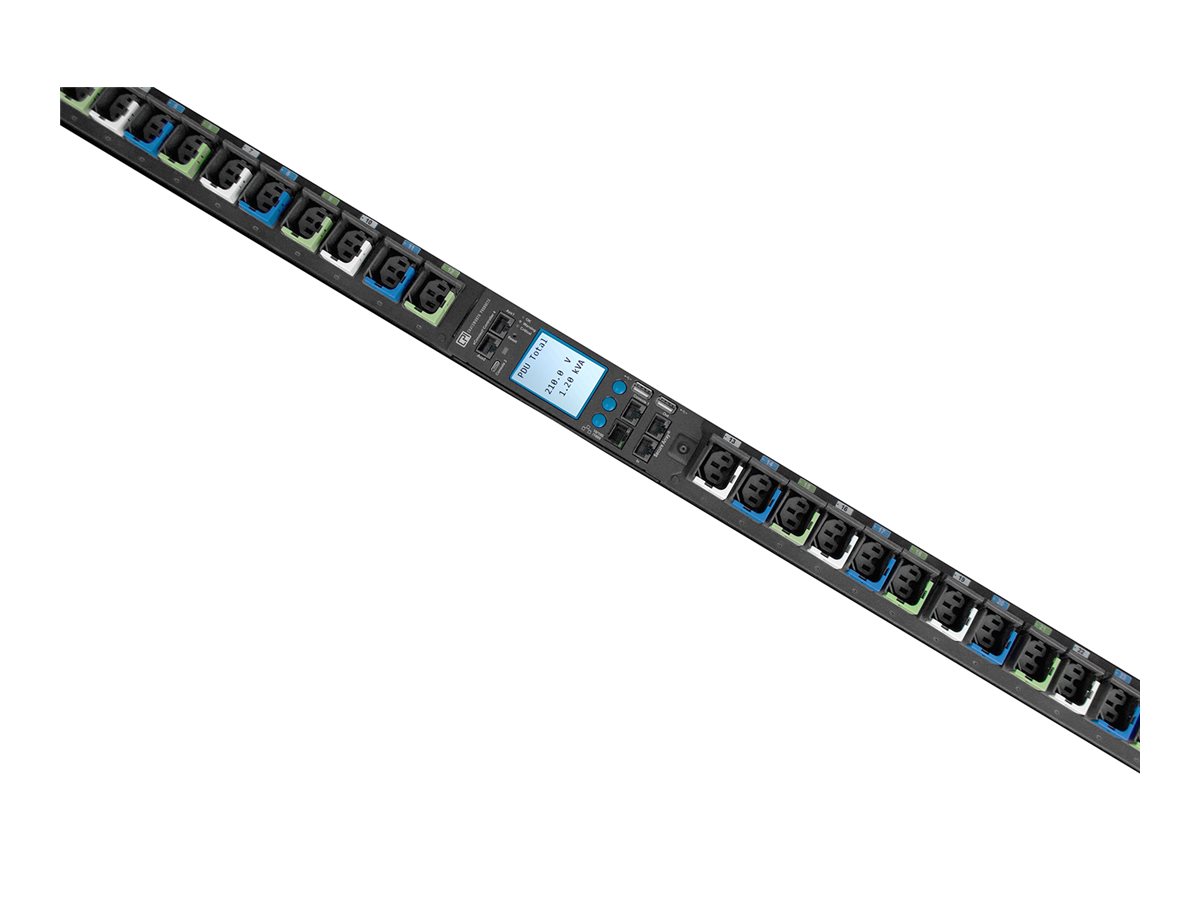

CPI Switched Pro eConnect EA-67F1W-C
- Power distribution unit (rack-mountable)
- vertical, locking, quadlock outlets
- AC 208 V
- 17.2 kW
- 3-phase
- Ethernet 10/100/1000, USB, serial
- input: IEC 60309 3P+E 60A
- output connectors: 48 (24 x IEC 60320 C13, 24 x Quadlock)
- 45U
- 3 m cord
- black
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $5,703.50 |
| Mfr Part #: | EA-67F1W-C |
| SHI Part #: | 51240975 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Chatsworth |
| Product Type: | Hardware |
| Product Line: | Chatsworth Products |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CPI Switched Pro eConnect EA-67F1W-C - Power distribution unit (rack-mountable) - vertical, locking, quadlock outlets - AC 208 V - 17.2 kW - 3-phase - Ethernet 10/100/1000, USB, serial - input: IEC 60309 3P+E 60A - output connectors: 48 (24 x IEC 60320 C13, 24 x Quadlock) - 45U - 3 m cord - black - TAA Compliant |
| Manufacturer | Chatsworth |
| MSRP | $5,703.50 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.76 cm |
| Dimensions & Weight / Height | 195.72 cm |
| Dimensions & Weight / Width | 9.65 cm |
| Header / Brand | CPI |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 48 |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 5.76 cm |
| Height | 195.72 cm |
| Width | 9.65 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 12 kg |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 45U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advanced replacement - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL 489 |
| Features | For indoor use, vertical orientation, tool-less, simplified load balancing, high temperature protection, vertical orientation, voltage meter, current meter, power measuring, energy meter, power factor meter, outlet grouping, replaceable controller, LCD display, Hydraulic-Magnetic breakers, locking outlets, color-coded labels, field-replaceable module, LED indicators, individually switchable sockets, environmental sensor ready, grounded, firmware upgradable |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB, serial |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2, CLI, HTTPS, LDAP, RADIUS, HTTP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+E 60A |
| Input Voltage | AC 208 V |
| Input Wiring | 3-phase |
| Max Electric Current | 60 A |
| Power Capacity | 17.2 kW |
| Power Output Connectors Details |
|
