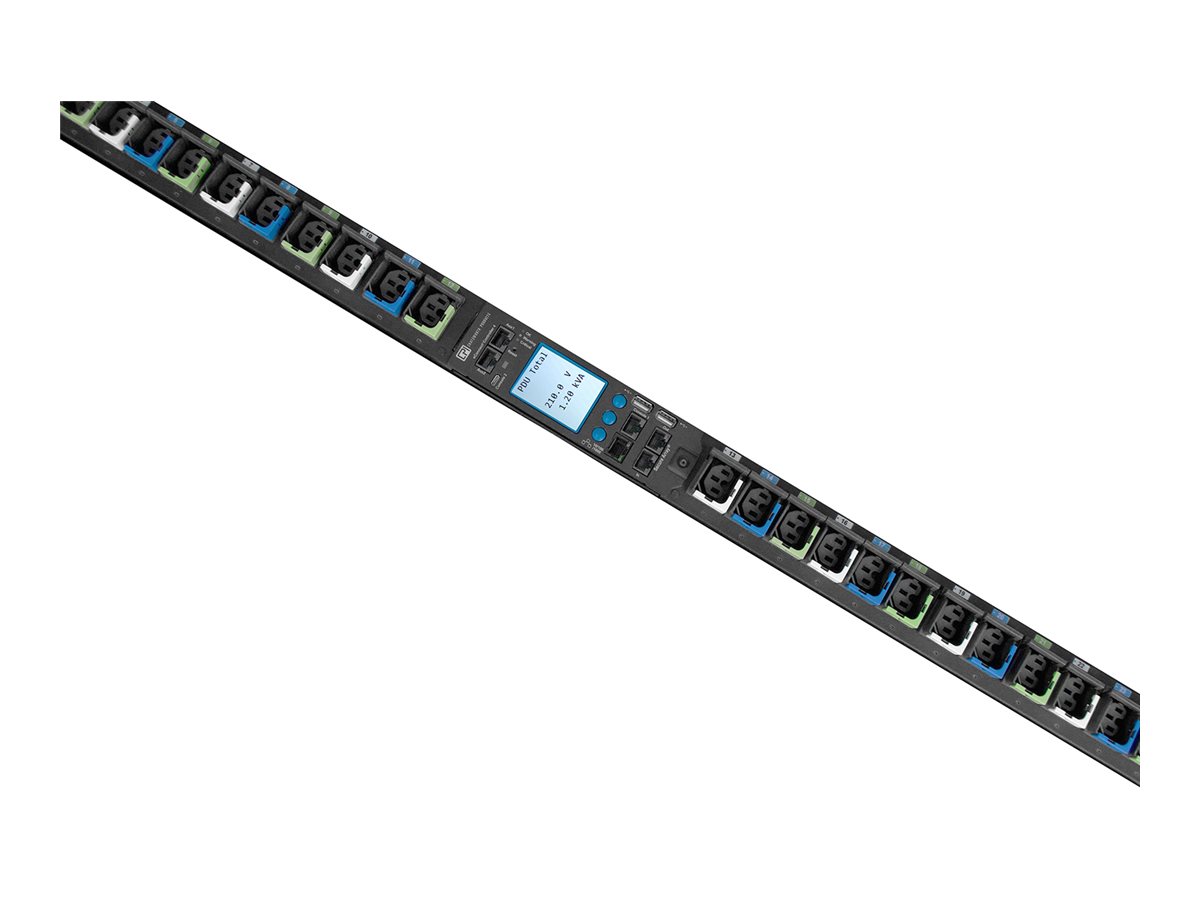

CPI Switched eConnect PDU EA-5145-C
MSRP$4,162.18
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
CPI Switched eConnect PDU EA-5145-C
- Power distribution unit (rack-mountable)
- AC 208 V
- 17.2 kW
- 3-phase
- Ethernet 10/100/1000, USB, RS-232
- input: IEC 60309 3P+E
- output connectors: 36 (24 x IEC 60320 C13, 12 x IEC 60320 C19)
- 45U
- 3 m cord
- North America
- black
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $4,162.18 |
| Mfr Part #: | EA-5145-C |
| SHI Part #: | 51240729 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Chatsworth |
| Product Type: | Hardware |
| Product Line: | Chatsworth Products |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CPI Switched eConnect PDU EA-5145-C - Power distribution unit (rack-mountable) - AC 208 V - 17.2 kW - 3-phase - Ethernet 10/100/1000, USB, RS-232 - input: IEC 60309 3P+E - output connectors: 36 (24 x IEC 60320 C13, 12 x IEC 60320 C19) - 45U - 3 m cord - North America - black - TAA Compliant |
| Manufacturer | Chatsworth |
| MSRP | $4,162.18 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.5 cm |
| Dimensions & Weight / Height | 195.85 cm |
| Dimensions & Weight / Weight | 10 kg |
| Dimensions & Weight / Width | 7.01 cm |
| Header / Brand | CPI |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 5.5 cm |
| Height | 195.85 cm |
| Weight | 10 kg |
| Width | 7.01 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 45U |
| Localization | North America |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | IP67, NEMKO, IEC 62368, UL 62368, RoHS, FCC Part 15 A, EN55022, cULus, WEEE, UL 489, Redfish API, IEEE 802.1x |
| Features | Vertical orientation, tool-less, password security, switched, locking outlets, Secure Array technology, field-replaceable module, 1% metering accuracy, LCD display, environmental sensor ready, electronic lock integration, Hydraulic-Magnetic breakers, 5kAIC breaker, 6 branch circuit protectors, Branch Current Monitoring, current meter, voltage meter, power factor meter, Power IQ technology, remote metered, firmware upgradable, LED indicators, color-coded labels, grounded, Zero Touch Provisioning (ZTP) |
| Included Accessories | 2 x toolless mounting buttons |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB, RS-232 |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, LDAP, RADIUS, HTTPS, Web GUI, RESTful API |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+E |
| Input Voltage | AC 208 V |
| Input Wiring | 3-phase |
| Max Electric Current | 60 A |
| Output Voltage | AC 208 V 50/60 Hz |
| Power Capacity | 17.2 kW |
| Power Output Connectors Details |
|
