Panduit Intelligent Series G6
MSRP$2,253.80
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

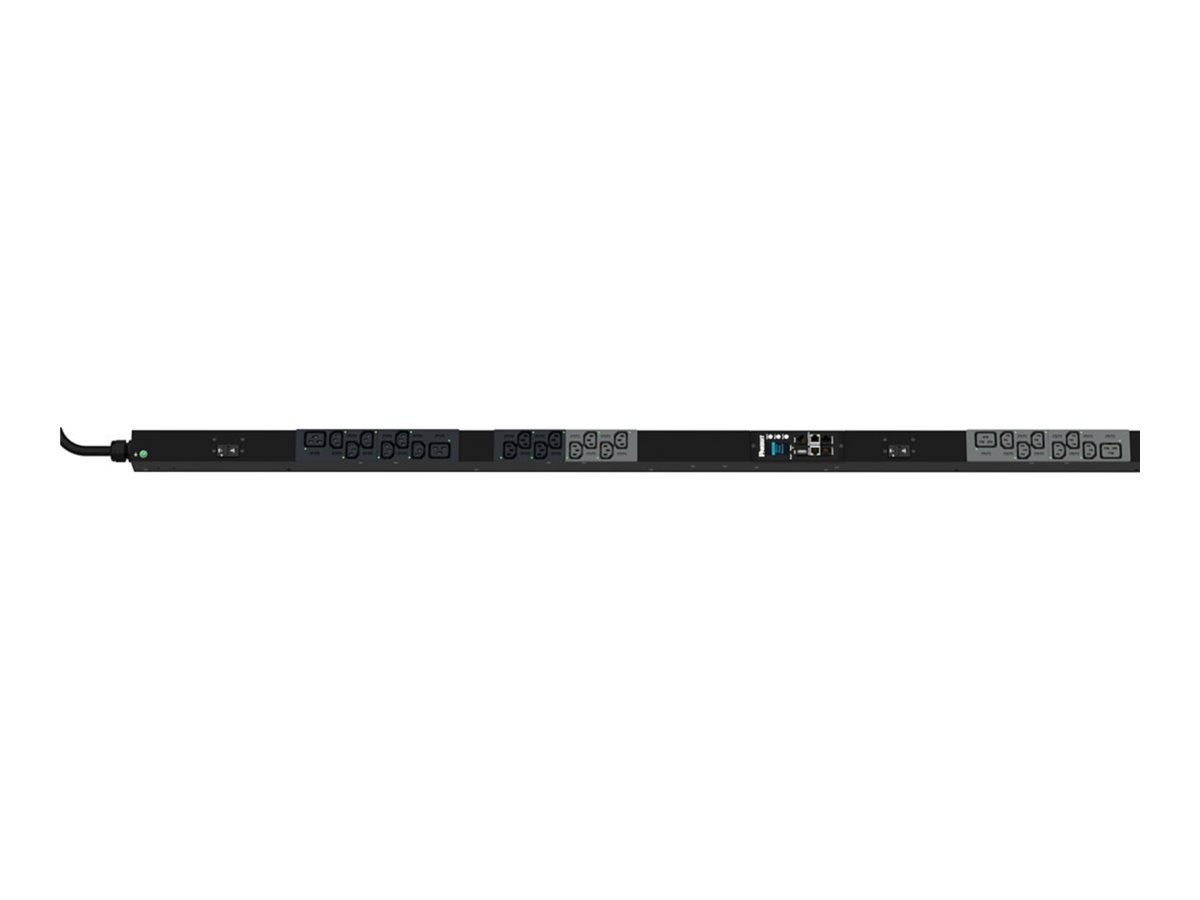

Panduit Intelligent Series G6
- Power distribution unit (rack-mountable)
- switched and monitored
- AC 208 V
- 5000 VA
- 1-phase
- Ethernet 10/100/1000
- input: NEMA L6-30P
- output connectors: 24 (20 x IEC 60320 C13, 4 x IEC 60320 C19)
- 0U
- North America (US and Canada)
- black
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,253.80 |
| Mfr Part #: | P24E28G |
| SHI Part #: | 51207896 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Panduit |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Panduit Intelligent Series G6 - Power distribution unit (rack-mountable) - switched and monitored - AC 208 V - 5000 VA - 1-phase - Ethernet 10/100/1000 - input: NEMA L6-30P - output connectors: 24 (20 x IEC 60320 C13, 4 x IEC 60320 C19) - 0U - North America (US and Canada) - black |
| Manufacturer | Panduit |
| MSRP | $2,253.80 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.3 cm |
| Dimensions & Weight / Height | 17.5 cm |
| Dimensions & Weight / Width | 5.2 cm |
| Header / Brand | Panduit |
| Header / Country Kits | North America (US and Canada) |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | Ethernet 10/100/1000 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Power Capacity (VA) | 5000 VA |
| Power Device / Voltage Required |
|
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 5.3 cm |
| Height | 17.5 cm |
| Width | 5.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Localization | North America (US and Canada) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated |
| Compliant Standards | RoHS, REACH, CB, UL, UL E218078, NEC |
| Features | Vertical orientation, daisy chain function, hot-swappable, Hydraulic-Magnetic breakers |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Input Voltage | AC 208 V |
| Input Wiring | 1-phase |
| Max Electric Current | 30 A |
| Output Voltage | AC 120-240 V 50/60 Hz |
| Power Capacity | 5000 VA |
| Power Output Connectors Details |
|
