Hanwha Vision PNM-A13022RV
MSRP$3,200.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

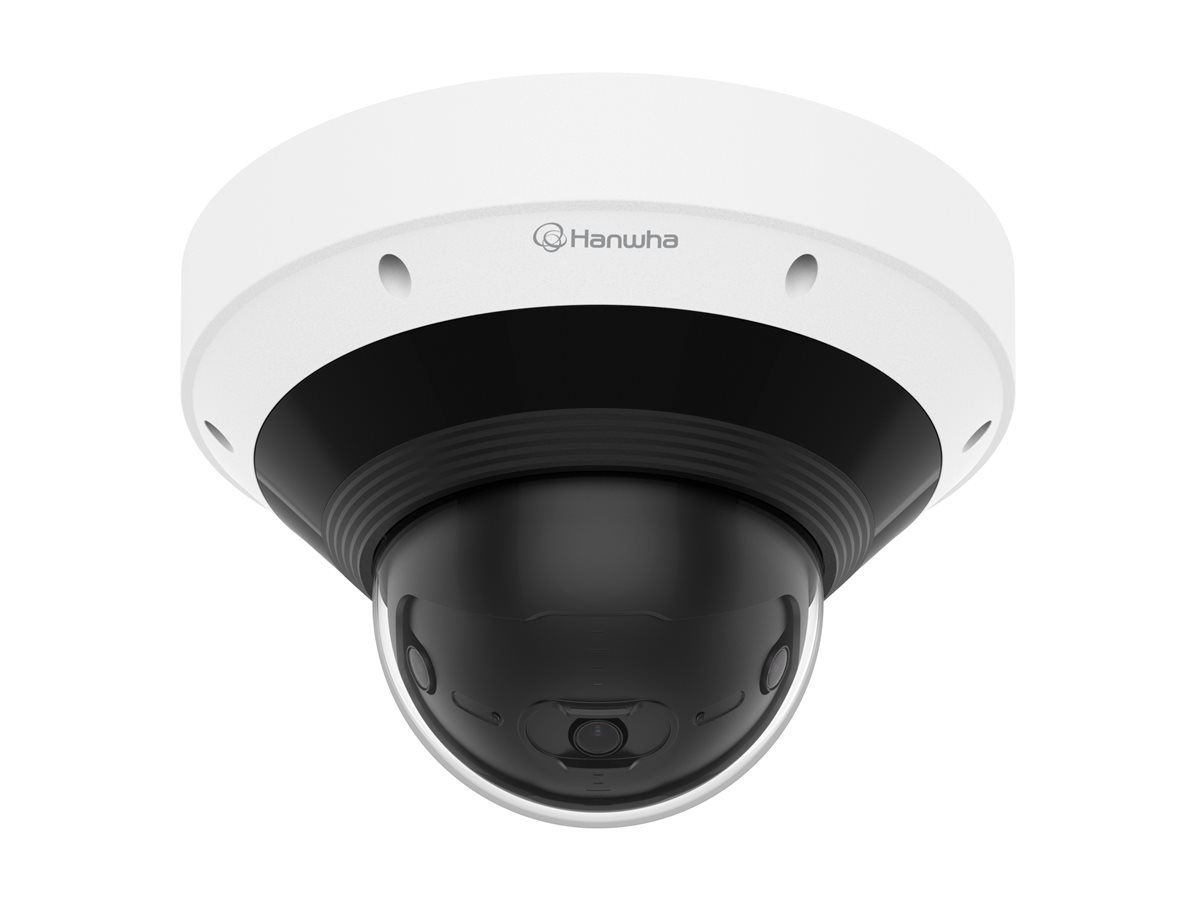

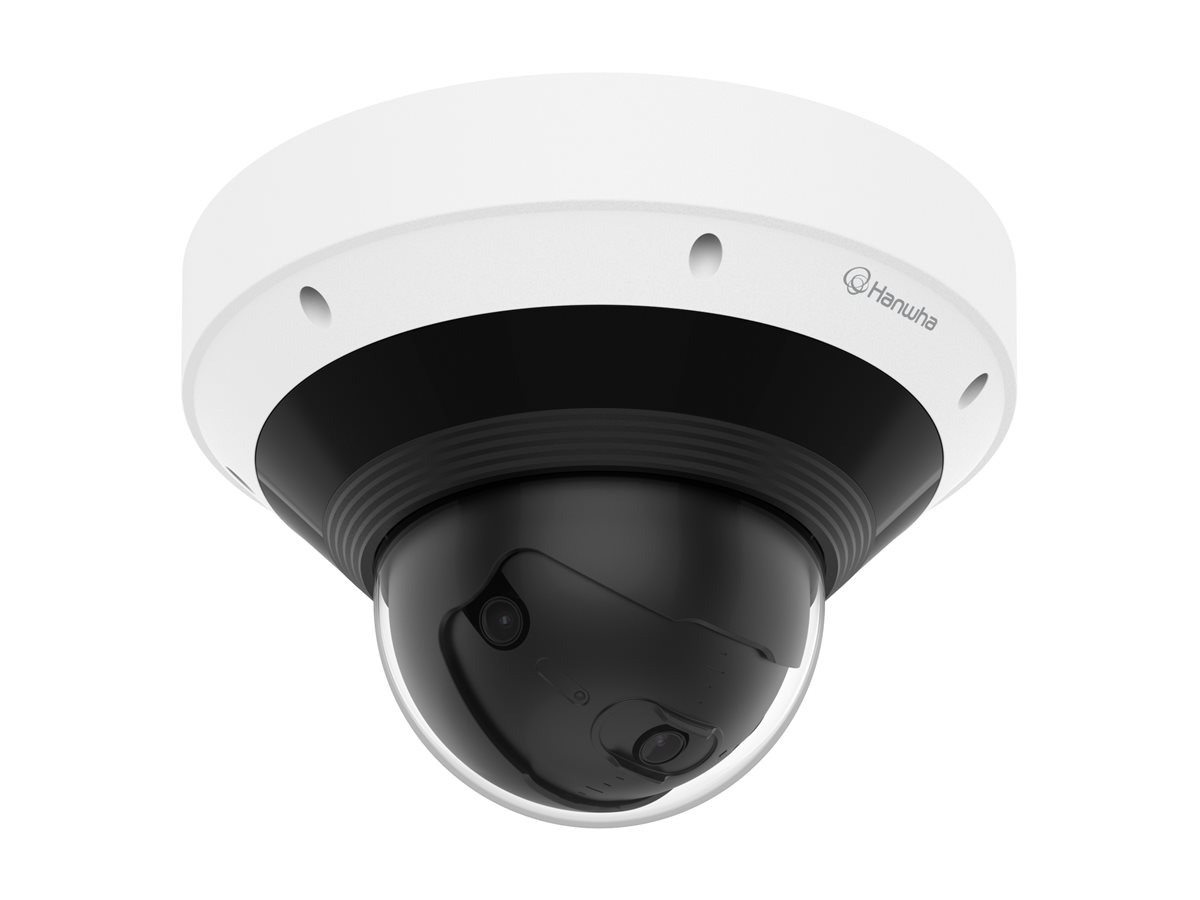

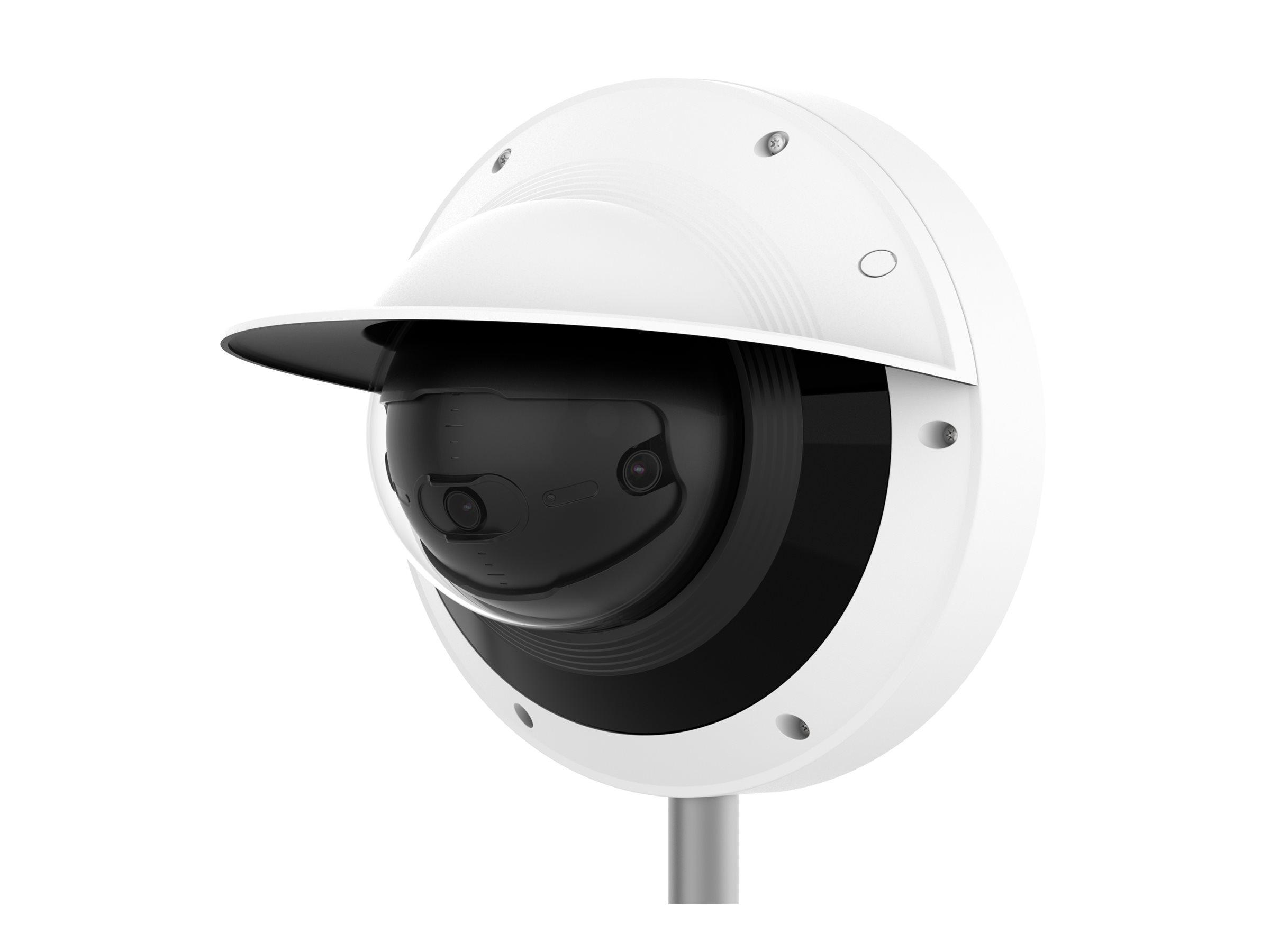

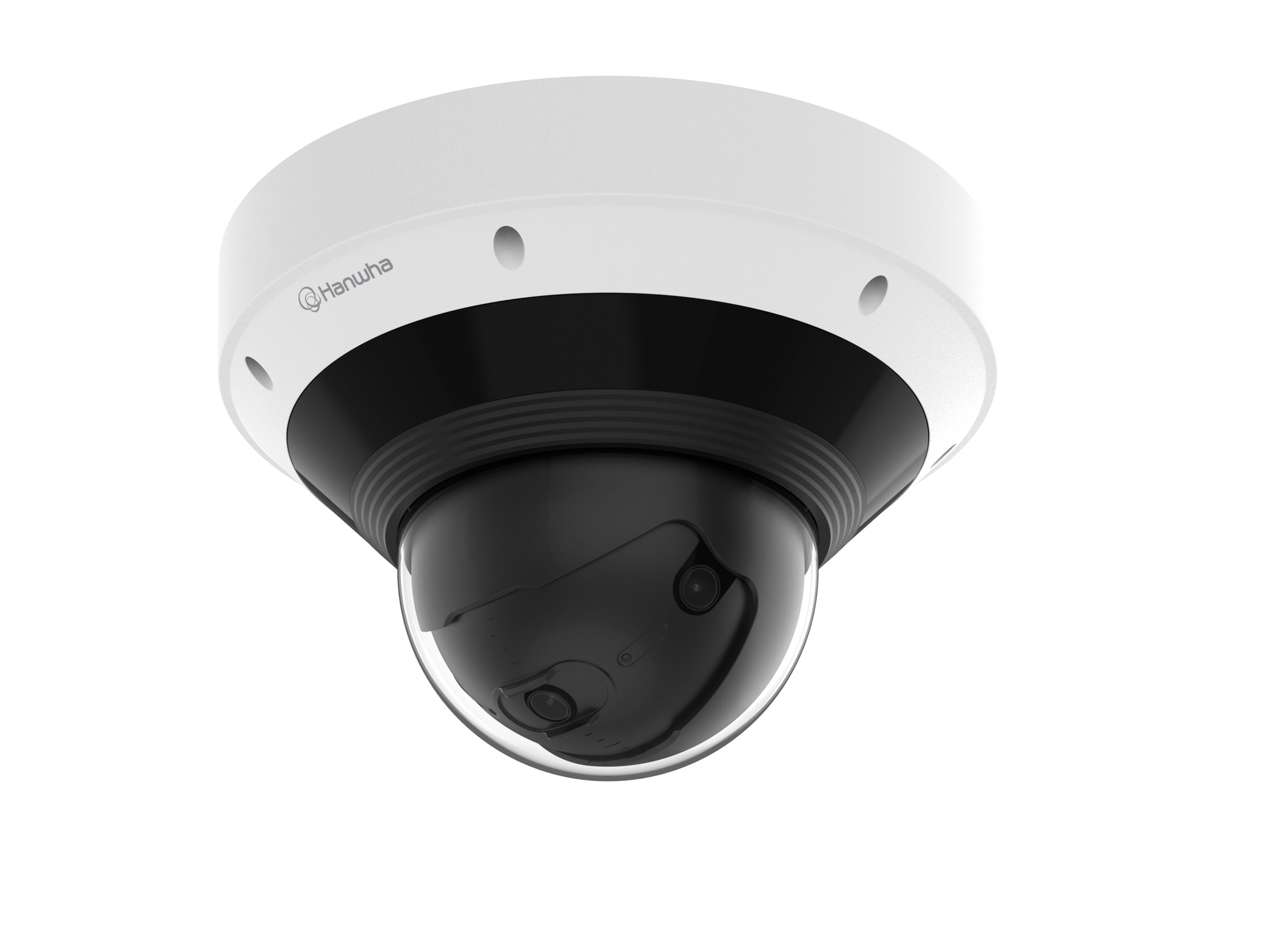

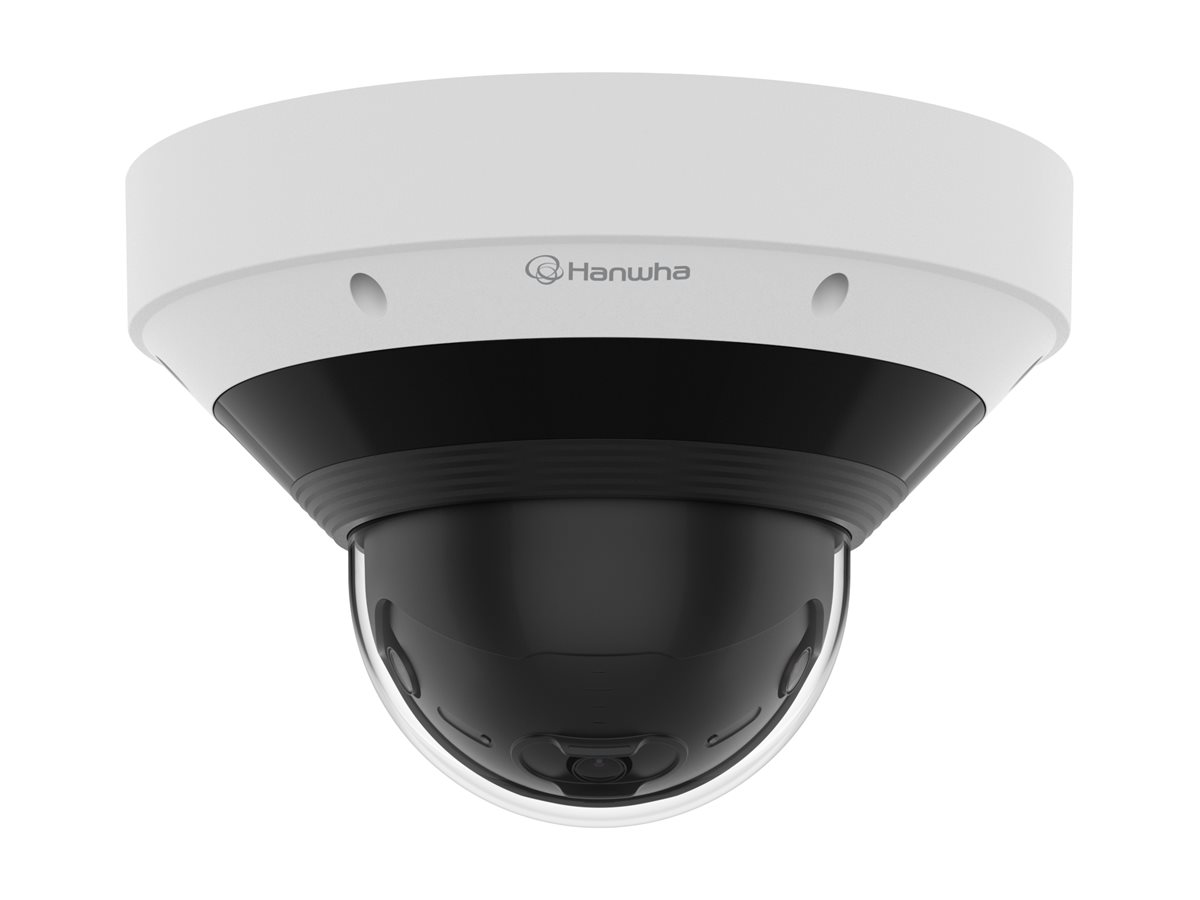

Hanwha Vision PNM-A13022RV
- Network surveillance camera
- multi-sensor + pan / tilt
- dome
- color (Day&Night)
- 13 MP
- 5120 x 2592
- fixed focal
- audio
- GbE
- USB-C
- MJPEG, H.264, H.265
- DC 12 V / PoE Plus Class 4
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,200.00 |
| Mfr Part #: | PNM-A13022RV |
| SHI Part #: | 51204233 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision PNM-A13022RV - Network surveillance camera - multi-sensor + pan / tilt - dome - color (Day&Night) - 13 MP - 5120 x 2592 - fixed focal - audio - GbE - USB-C - MJPEG, H.264, H.265 - DC 12 V / PoE Plus Class 4 |
| Manufacturer | HANWHA VISION |
| MSRP | $3,200.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 25.3 cm |
| Dimensions & Weight / Height | 17 cm |
| Dimensions & Weight / Weight | 2.8 kg |
| Dimensions & Weight / Width | 25.3 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 5120 x 2592, 4112 x 2080, 3240 x 1640, 2940 x 1488, 2560 x 1296, 2016 x 1016, 1600 x 800, 1424 x 720, 1280 x 648, 1016 x 512, 832 x 480, 832 x 416, 800 x 600, 640 x 480 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Image stitching, auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), WiseNR II, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Privacy Mask Function, vertical flip and mirror, anti-flicker, object classification, FTP alerts, e-mail alerts, Handover, trigger recording, clothes color detection, vehicle recognition, face analytics, Defocus Detection, Object Detection, Virtual Line detection, enter area detection, exit area detection, loitering detection, intrusion detection, mask detection, social distancing detection, tamper-detection, Audio Detection, appearing / disappearing detection, people counting, queue management, Heat Map, crowd counting, vehicle counting, Unicast Streaming, Multicast Streaming, IP address filtering, user access log, digest authentication, Trusted Platform Module (TPM), Variable Bitrate (VBR), Constant Bitrate (CBR), ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile G) support, ONVIF (Profile M) support, 2 microSD card slots, aluminum enclosure, hard-coated dome |
| Flash Memory | 8 GB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 20 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 5120 x 2592 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 8 GB |
| Type | Color - Day&Night - multi-sensor + pan / tilt |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 100% (condensing) |
| Expansion / Connectivity | |
| Encryption Algorithm | FIPS 140-2, EAP-TLS, LEAP, PEAP, MSCHAPv2 |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 25.3 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 17 cm |
| Weight | 2.8 kg |
| Width | 25.3 cm |
| Image Sensor | |
| Type | 13 MP CMOS 3 x 1/2.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Computer Interface | USB-C |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | SUNAPI, IPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP, MQTT, TCP, SNMP 1, SNMP 2c, SNMP 3, TLS |
| Lens Construction | |
| Focal Length | 3.06 mm |
| Focus Adjustment | Fixed focus |
| Horizontal Field of View (degree) | 194 |
| Lens Iris | F/1.6 |
| Min Focus Distance | 5 cm |
| Type | Fixed focal |
| Vertical Field of View (degree) | 93 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | IEEE 802.1x, IEEE 802.11at, EN 62676-4, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC 62471, IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 Type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, UKCA, RCM |
| Panning | |
| Range (degree) | 0 to 360 |
| Power | |
| Power Requirements | DC 12 V / PoE Plus Class 4 |
| Tilting | |
| Range (degree) | 0 to 50 |
