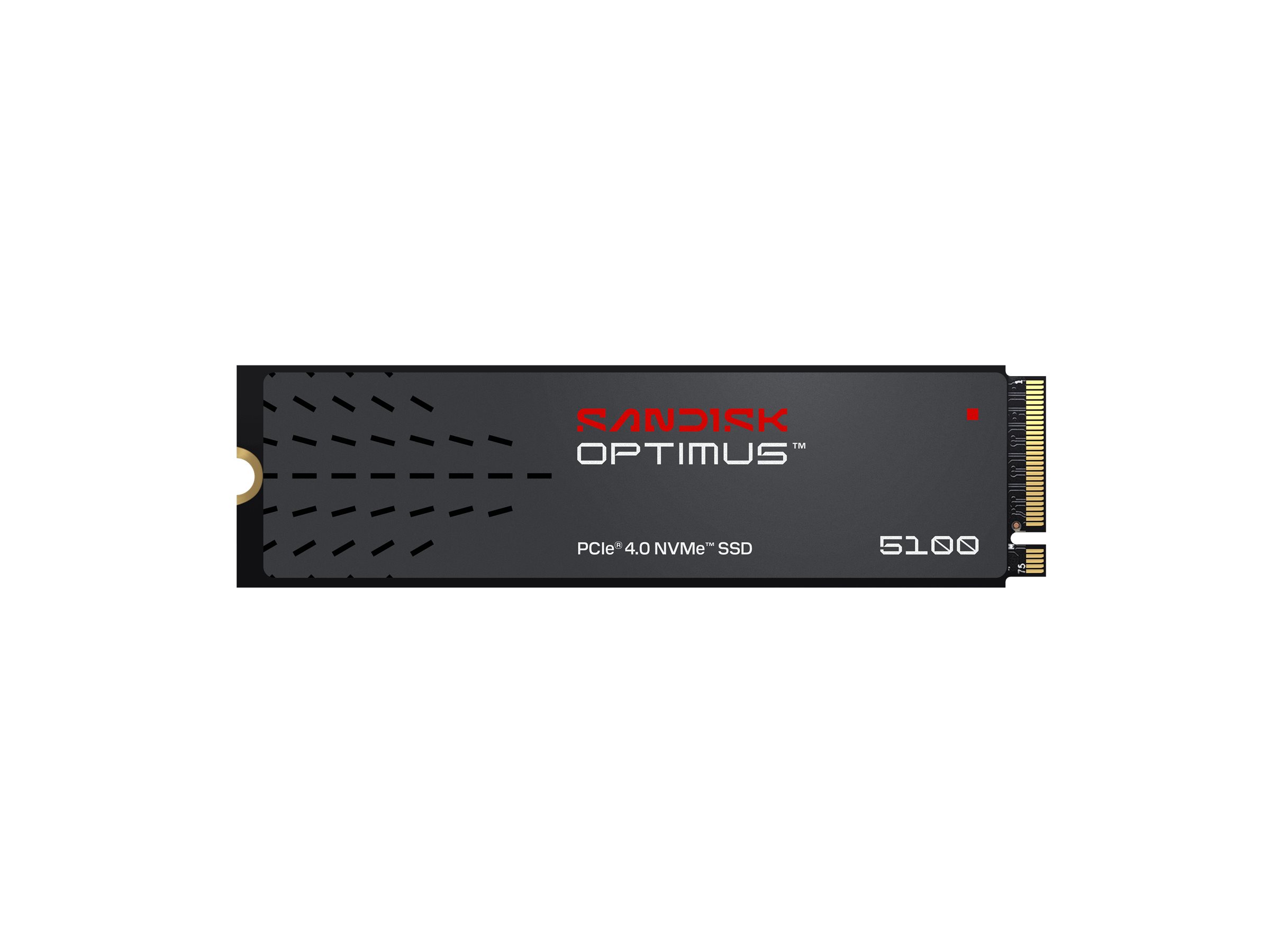

SanDisk Optimus 5100
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
SanDisk Optimus 5100
- SSD
- 500 GB
- internal
- M.2 2280
- PCIe 4.0 x4 (NVMe)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | SDSP51500GAN-000E0 |
| SHI Part #: | 51196818 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | SanDisk |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | SanDisk Optimus 5100 - SSD - 500 GB - internal - M.2 2280 - PCIe 4.0 x4 (NVMe) |
| Manufacturer | SanDisk |
| MSRP | $0.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80 mm |
| Dimensions & Weight / Height | 2.38 mm |
| Dimensions & Weight / Weight | 5.7 g |
| Dimensions & Weight / Width | 22 mm |
| Hard Drive / Capacity | 500 GB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 4.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 4.0 x4 (NVMe) |
| Header / Brand | SanDisk |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Max Operating Temperature | 85 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 4.9 g @ 7-800 Hz |
| Vibration Tolerance (operating) | 5 g @ 10-2000 Hz |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) |
| General | |
| Capacity | 500 GB |
| Depth | 80 mm |
| Device Type | Solid state drive - internal |
| Features | Sandisk BiCS QLC 3D CBA NAND, nCache 4.0 technology, Host Memory Buffer (HMB), TCG Pyrite 2.01, ATA security |
| Form Factor | M.2 2280 |
| Height | 2.38 mm |
| Interface | PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | 3D quad-level cell (QLC) |
| Weight | 5.7 g |
| Width | 22 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | BSMI, CAN ICES-003(B)/NMB003(B), CB Scheme, FCC, KCC, Morocco, RCM, TUV, UL, VCCI, UKCA, RoHS |
| Performance | |
| 4KB Random Read | 660000 IOPS |
| 4KB Random Write | 1100000 IOPS |
| Internal Data Rate | 6600 MBps (read) / 5600 MBps (write) |
| SSD Endurance | 300 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 1.750.000 hours |
| Software & System Requirements | |
| Software Included | SanDisk SSD Dashboard, Acronis True Image |
