Hardware Computer Components Motherboards
Add to My Favorites
Motherboards

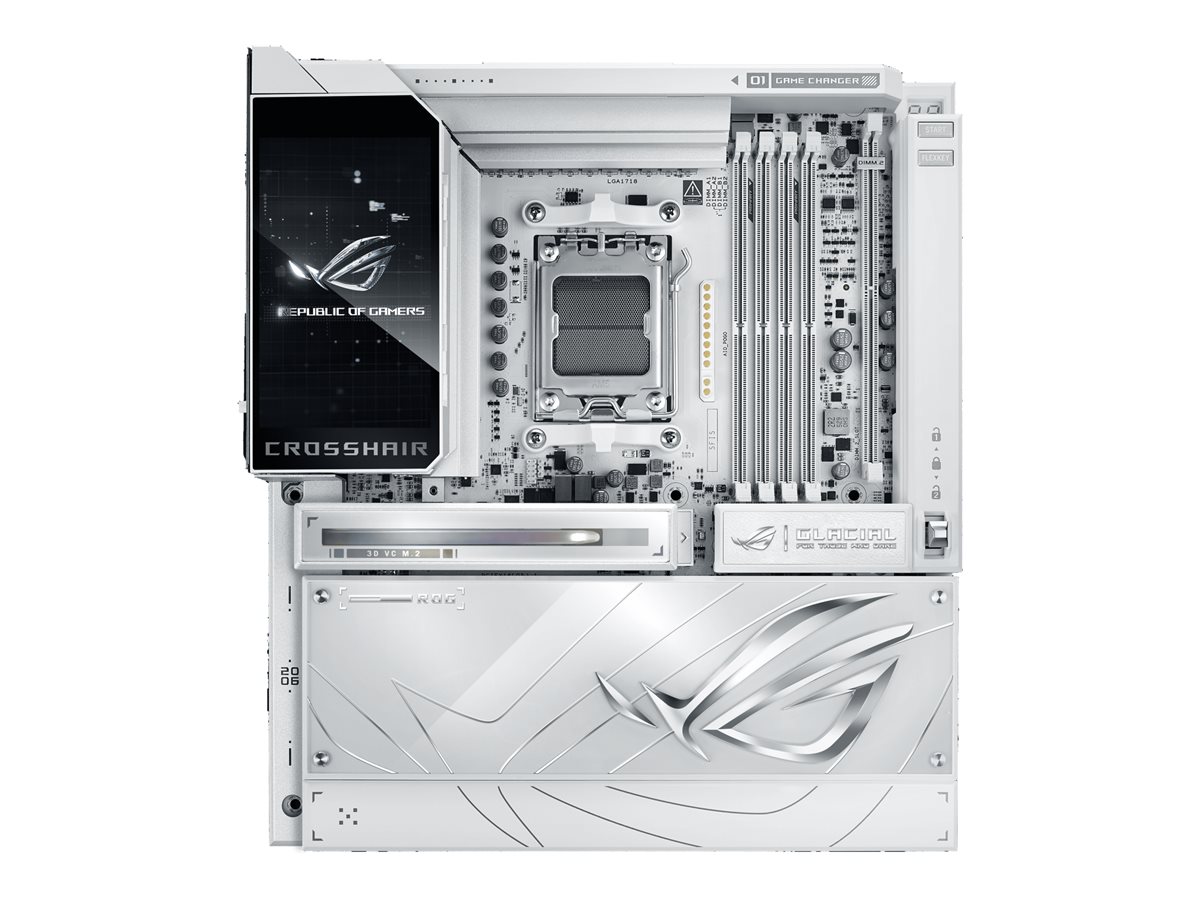

ASUS ROG CROSSHAIR X870E GLACIAL

$1,459.00
ASUS ROG CROSSHAIR X870E GLACIAL
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • extended ATX
  • Socket AM5
  • AMD X870E Chipset
  • USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2
ASUS ROG CROSSHAIR X870E GLACIAL
  • Motherboard
  • extended ATX
  • Socket AM5
  • AMD X870E Chipset
  • USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2
  • Wi-Fi 7, Bluetooth, 2 x 10 Gigabit LAN
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Price: $1,459.00
Mfr Part #: ROG CROSSHAIR X870E GLACIAL
SHI Part #: 51176842
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS ROG CROSSHAIR X870E GLACIAL - Motherboard - extended ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 - Wi-Fi 7, Bluetooth, 2 x 10 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
MSRP$1,299.99
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth27.7 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeAMD X870E
Mainboard / Processor SocketSocket AM5
Networking / Data Link Protocol
  • 10 Gigabit Ethernet
  • 2.5 Gigabit Ethernet
  • 5 Gigabit Ethernet
  • Bluetooth 5.4
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11be (Wi-Fi 7)
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecSupremeFX (ALC4082)
Compliant StandardsHigh Definition Audio, Dolby Atmos
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 2 x PCIe 5.0 x16
  • 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
  • 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Interfaces
  • 2 x USB4
  • 8 x USB 3.2 Gen 2
  • 4 x USB-C 3.2 Gen 2
  • 2 x antenna
  • 2 x LAN (10Gigabit Ethernet)
  • 1 x microphone - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x SPDIF out
Internal Interfaces
  • 2 x USB-C 3.2 Gen 2x2 - header
  • 4 x USB 3.2 Gen 1 - header
  • 6 x USB 2.0 - header
  • 1 x audio - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector
RAID FeaturesAMD RAID Xpert2 Technology
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Features
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
BIOS TypeAMI
Hardware FeaturesASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), ASUS Q-Fan, 3D VC M.2 heatsink, ASUS Q-Connector, AI Cooling II, AI Cache Boost, BIOS FlashBack button, Clear CMOS Button, 10K Black Metallic Capacitors, 2 BCLK buttons, ASUS Extreme Engine Digi+, ASUS Extreme OC Kit, ASUS Q-Design, FlexKey button, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, MicroFine Alloy Chokes, PCIe Slot Q-Release, ProbeIt, Q-Antenna, Q-Code, Q-Dashboard, Q-LED, ReTry button, Safe boot button, Start button, Q-DIMM.2, M.2 heatsink, M.2 heatsink backplate, metal backplate, VRM heatsink design, 5" LCD full-color display, ASUS Aura Sync, ASUS EZ DIY, ASUS ProCool II, ASUS SafeDIMM, ASUS SafeSlot, CPU Socket lever protector, pre-mounted I/O shield
Sleep / Wake UpWake on LAN (WOL), wake on PME
General
Chipset TypeAMD X870E
Compatible Processors(supports Ryzen 7000/8000/9000 Series)
Max Processors Qty1
Processor SocketSocket AM5
Product TypeMotherboard - extended ATX
LAN
Network ControllerMediatek MT7927
Network Interfaces802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 2 x 10 Gigabit Ethernet
Miscellaneous
Cables Included2 x Serial ATA cable
Depth27.7 cm
Included Accessories1 to 2 ARGB LED splitter cable, 1 to 4 ARGB LED splitter cable, ROG Hyper M.2 card with heatsink, 2 x thermal pad for ROG Hyper M.2 card, M.2 pad package for ROG Hyper M.2 card, ROG Q-DIMM.2 with heatsink, M.2 pad package for ROG Q-DIMM.2, 2 x thermal pad for ROG Q-DIMM.2, thermal pad for M.2 SSD, ROG memory Q-Fan, ASUS Wi-Fi Q-antenna, Q-Connector, 7 x M.2 backplate rubber package, M.2 Q-Slide, ROG logo plate sticker, ROG stickers, ROG VIP card, ROG bottle opener, 2 x 1 to 3 fan splitter cable, ROG DIMM.2 with heatsink
Software IncludedAdobe Creative Cloud (free trial), AIDA64 Extreme (1 year license), Armoury Crate, ASUS AI Advisor, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, BullGuard Internet Security (1 year license), HWiNFO, ROG CPU-Z, ROG GameFirst Utility, TurboV Core, USB Wattage Watcher, WinRAR (40 days trial)
Width30.5 cm
Supported RAM
Bus Clock8600 MT/s (O.C.), 9600 MT/s (O.C.), 8000 MT/s (O.C.)
FeaturesAMD EXPO technology, dual channel memory architecture, Intel Extreme Memory Profiles (XMP), NitroPath technology
Max Size256 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC, ECC
TechnologyDDR5
