Hardware Computers and Tablets Desktops and Workstations
Add to My Favorites
Desktops and Workstations

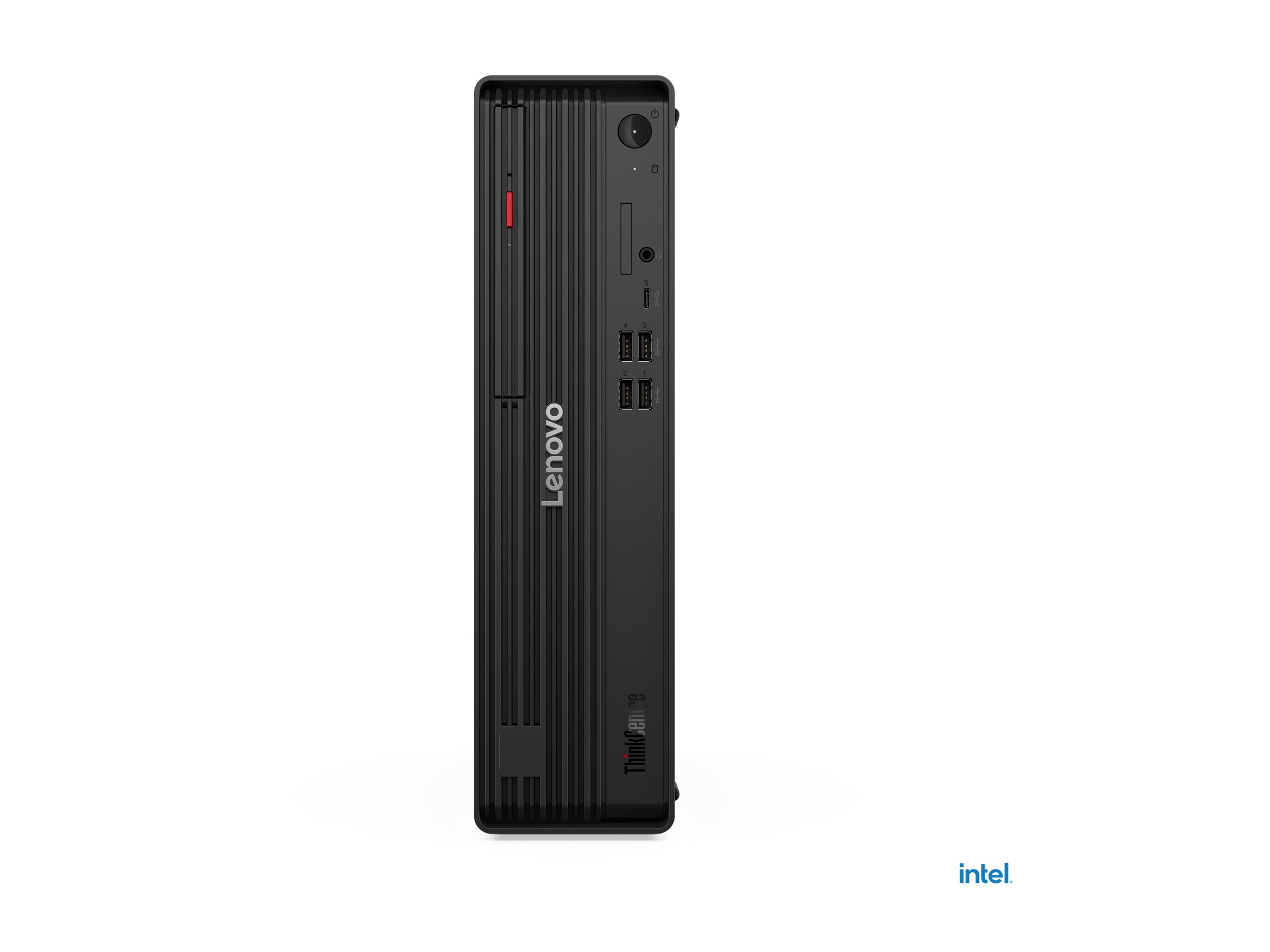

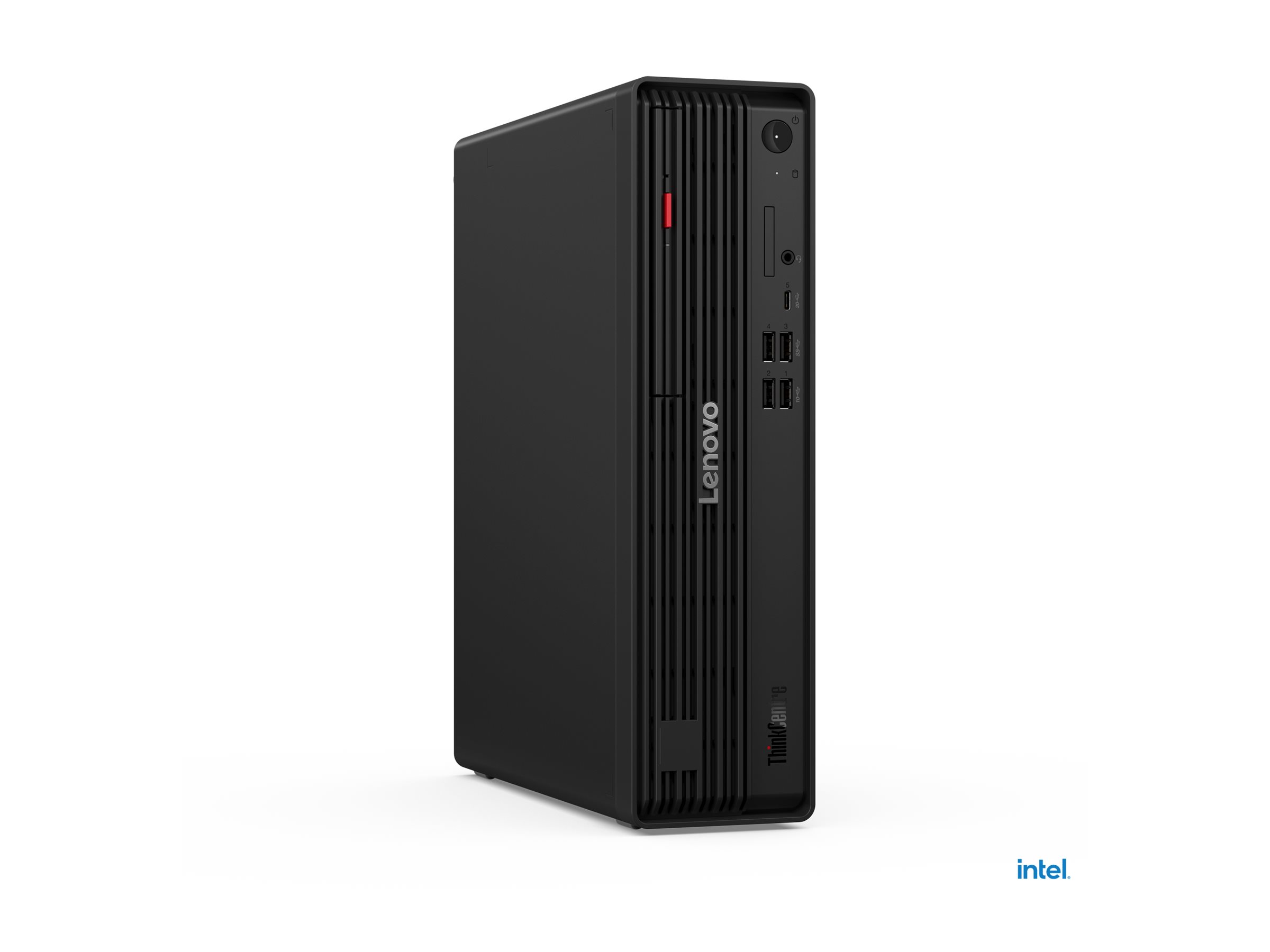

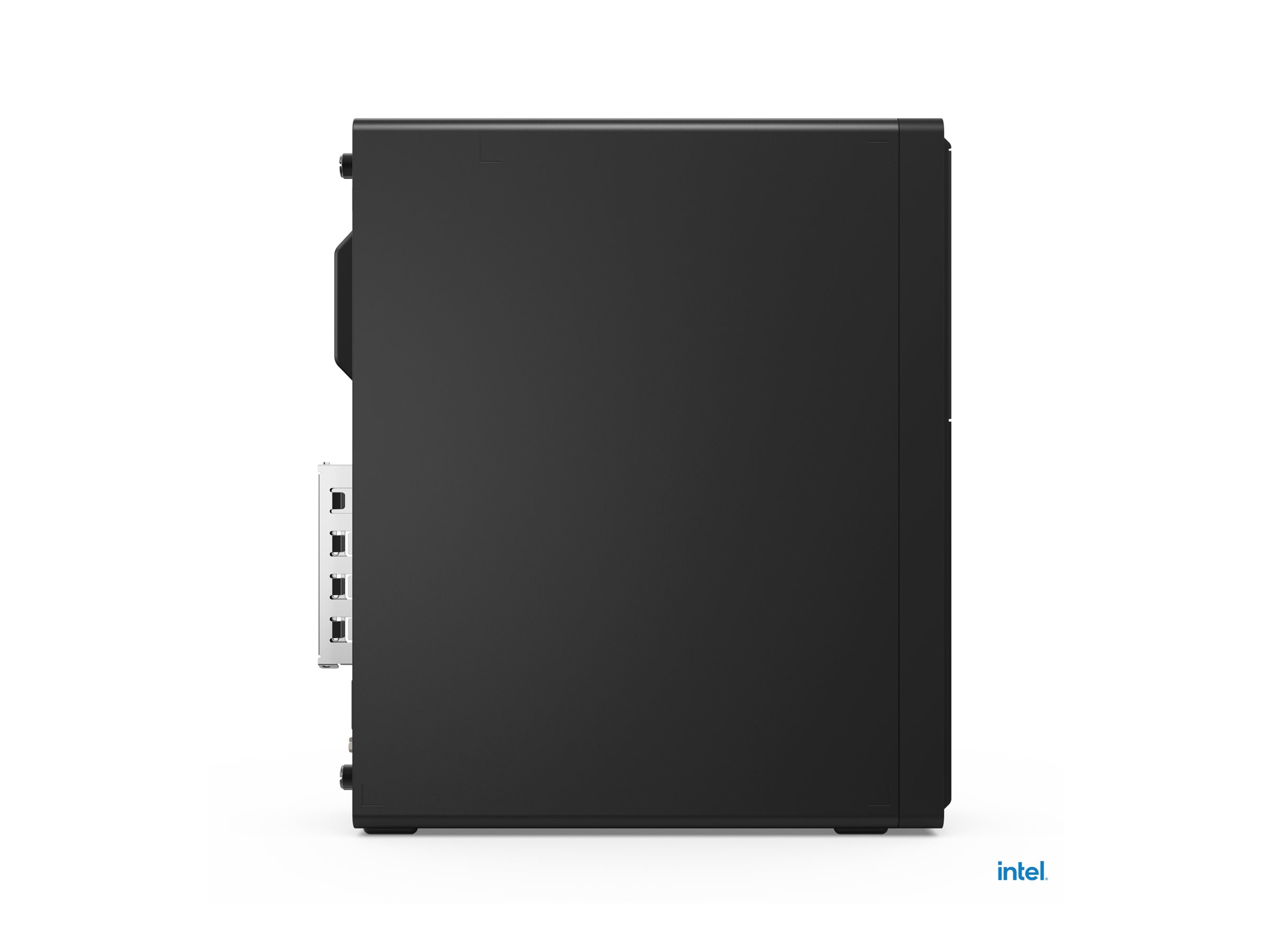

Lenovo ThinkCentre M90s Gen 6 12YU

$5,444.00
Lenovo ThinkCentre M90s Gen 6 12YU
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • AI PC
  • SFF Core Ultra 5 225 / up to 4.9 GHz
  • RAM 32 GB
  • SSD 1 TB
  • TCG Opal Encryption, TLC
Lenovo ThinkCentre M90s Gen 6 12YU
  • AI PC
  • SFF Core Ultra 5 225 / up to 4.9 GHz
  • RAM 32 GB
  • SSD 1 TB
  • TCG Opal Encryption, TLC
  • DVD-Writer
  • Intel Graphics
  • Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
  • Win 11 Pro
  • monitor: none
  • keyboard: US
  • black
  Additional Details
Price: $5,444.00
Mfr Part #: 12YU0018US
SHI Part #: 51172693
Category: Desktop computers
UNSPSC: 43211507
Manufacturer: Lenovo
Product Type: Hardware
General Information
CategoryDesktop computers
DescriptionLenovo ThinkCentre M90s Gen 6 12YU - AI PC - SFF Core Ultra 5 225 / up to 4.9 GHz - RAM 32 GB - SSD 1 TB - TCG Opal Encryption, TLC - DVD-Writer - Intel Graphics - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - keyboard: US - black
ManufacturerLenovo
UNSPSC43211507
Main Specifications
Chassis / Form FactorSmall form factor
Dimensions & Weight / Depth29.97 cm
Dimensions & Weight / Height33.95 cm
Dimensions & Weight / Weight5.3 kg
Dimensions & Weight / Width9.25 cm
Display / TypeNone.
Hard Drive / Capacity1 TB
Hard Drive / InterfacePCI Express 4.0 x4
Hard Drive / Interface TypePCI Express 4.0 x4
Header / BrandLenovo
Header / Country KitsUnited States
Header / LocalizationEnglish
Mainboard / Chipset TypeIntel Q870
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • Bluetooth 5.3
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Wireless LAN SupportedYes
Networking / Wireless Protocol
  • 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
  • Bluetooth 5.3
Optical Storage / Drive TypeDVD-Writer
Optical Storage / TypeDVD-Writer
OS Provided / TypeWindows 11 Pro
Packaged Quantity1
Processor / Clock Speed3.3 GHz
Processor / GenerationSeries 2
Processor / ManufacturerIntel
Processor / Number of Cores10-core
Processor / Processor Number225
Processor / TypeCore Ultra 5
RAM / Data Integrity CheckNon-ECC
RAM / Form FactorDIMM 288-pin
RAM / TechnologyDDR5 SDRAM
System / Hard Drive Capacity1 TB
System / TypePersonal computer
Video Output / Graphics ProcessorIntel Graphics
Audio Output
Compliant StandardsHigh Definition Audio
Cache Memory
Cache Per Processor20 MB
Installed Size20 MB
Dimensions & Weight
Depth29.97 cm
Height33.95 cm
Weight5.3 kg
Width9.25 cm
Dimensions & Weight (Shipping)
Shipping Depth39.5 cm
Shipping Height53 cm
Shipping Weight7.6 kg
Shipping Width19.5 cm
Environmental Parameters
Humidity Range Operating20 - 80%
Max Operating Temperature35 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Bays
  • 1 (total) / 0 (free) x external 5.25" Ultra Slim
  • 1 (total) / 1 (free) x internal 3.5"
Interfaces
  • 1 x USB-C 3.2 Gen 2x2 (1 front) (15W charging)
  • 4 x USB 3.2 Gen 1 (2 front, 2 rear)
  • 2 x USB 3.2 Gen 2 (2 front)
  • 1 x headphones/microphone (1 front)
  • 2 x USB 2.0 (2 rear)
  • 1 x HDMI (1 rear)
  • 2 x DisplayPort 1.4a (2 rear)
  • 1 x LAN (1 rear)
  • 1 x audio line-out (1 rear)
Slots
  • 3 (total) / 2 (free) x M.2 Card (for SSD)
  • 1 (total) / 0 (free) x M.2 Card (for WLAN)
  • 1 (total) / 1 (free) x PCIe 5.0 x16 - low-profile
  • 1 (total) / 1 (free) x PCIe 4.0 x16 - low-profile (x4 mode)
  • 2 (total) / 2 (free) x PCIe 3.0 x1 - low-profile
General
AI LevelAI PC
Built-in DevicesSpeaker
ColorBlack
Embedded SecurityDiscrete Trusted Platform Module (TPM 2.0) Security Chip
EU Data ActHttps://www.lenovo.com/us/en/compliance/eu-data-act-transparency-declaration/
LocalizationLanguage: English / region: United States
Product Form FactorSFF
TypePersonal computer
Graphics Controller
Graphics ProcessorIntel Graphics shared video memory (UMA) - up to 4 TOPS
Max Monitors Supported3
Video InterfacesHDMI, DisplayPort
Hard Drive
Capacity1 x 1 TB
FeaturesTCG Opal Encryption, triple-level cell (TLC)
Interface TypePCI Express 4.0 x4
ManufacturerSamsung
TypeSSD - M.2 2280
Input Device
TypeMouse, keyboard
Keyboard
InterfaceUSB
Keyboard NameLenovo AI Keyboard
Localization & LayoutUS
Miscellaneous
Compliant StandardsRoHS, FIPS 140-2, GREENGUARD, Energy-Related Products (ErP) Lot 3, TCG Certified
Included AccessoriesVertical stand
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately), padlock loop
Monitor
Monitor TypeNone.
Mouse
InterfaceUSB
Mouse NameLenovo Calliope Mouse
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
Ethernet ControllerIntel I219-LM
FeaturesWake on LAN (WoL), dual stream (2x2)
Interface (Bus) TypeM.2 Card
Wireless LAN SupportedYes
Wireless NICIntel Wi-Fi 6E AX 211
Neural Processor Unit (NPU)
AI Datatype Support on NPUINT8
AI Software Frameworks Supported by NPUDirectML, OpenVINO, WebNN, WindowsML, ONNX RT
Neural Processor Unit (NPU)Intel AI Boost
NPU Performance Up To (TOPS)13 TOPS
Sparsity SupportYes
Total Processor Performance Up To (TOPS)23 TOPS
Windows Studio Effects SupportYes
Operating System / Software
OS ProvidedWindows 11 Pro English
Optical Storage
TypeDVD-Writer - SATA
Power
Device TypePower supply
Efficiency90%
Power Provided260 watt
Voltage RequiredAC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset TypeIntel Q870
Clock Speed3.3 GHz (P-core) / 2.7 GHz (E-core)
CPUIntel Core Ultra 5 (Series 2) 225
CPU Qty1
Max CPU Qty1
Max Turbo Speed4.9 GHz (P-core) / 4.4 GHz (E-core)
Number of Cores10-core
Processor Main FeaturesIntel Smart Cache
RAM
Configuration Features2 x 16 GB
Effective Memory Speed5600 MT/s
FeaturesUnbuffered, dual channel memory architecture
Form FactorDIMM 288-pin
Installed Size32 GB (installed) / 128 GB (max)
Rated Memory Speed5600 MT/s
Slots4 (total) / 2 (empty)
TechnologyDDR5 SDRAM - non-ECC
Sustainability Information
Carbon Footprint639 kg carbon emissions
EPEAT CompliantEPEAT Gold
PAIA Version1.4.6
TCO CertifiedTCO Certified, generation 10, for desktops
Total CF/unit Standard Deviation (kg CO2e)109
