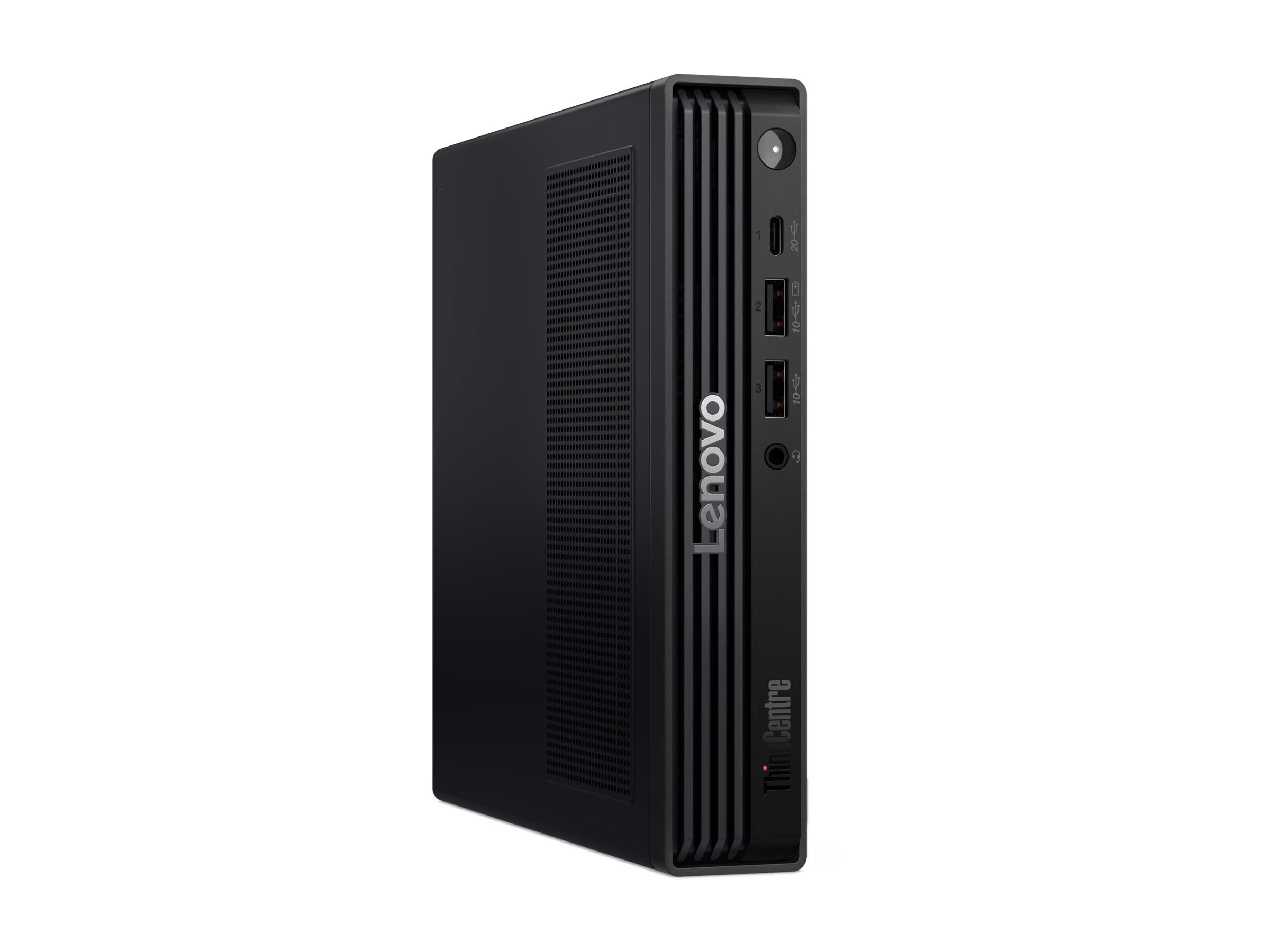

Lenovo ThinkCentre M90q Gen 6 13AD
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Lenovo ThinkCentre M90q Gen 6 13AD
- Tiny Core Ultra 7 265T / up to 5.3 GHz
- RAM 32 GB
- SSD 512 GB
- TCG Opal Encryption
- Intel Graphics
- Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E)
- Win 11 Pro
- monitor: none
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 13ADS0J102 |
| SHI Part #: | 51123939 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | Lenovo ThinkCentre M90q Gen 6 13AD - Tiny Core Ultra 7 265T / up to 5.3 GHz - RAM 32 GB - SSD 512 GB - TCG Opal Encryption - Intel Graphics - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E) - Win 11 Pro - monitor: none - black |
| Manufacturer | Lenovo |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Ultra small form factor |
| Dimensions & Weight / Depth | 18.29 cm |
| Dimensions & Weight / Height | 3.65 cm |
| Dimensions & Weight / Weight | 1.34 kg |
| Dimensions & Weight / Width | 17.9 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 512 GB |
| Hard Drive / Interface | PCI Express 4.0 x4 |
| Hard Drive / Interface Type | PCI Express 4.0 x4 |
| Header / Brand | Lenovo |
| Mainboard / Chipset Type | Intel Q870 |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 1.5 GHz |
| Processor / Generation | Series 2 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 20-core |
| Processor / Processor Number | 265T |
| Processor / Type | Core Ultra 7 |
| RAM / Form Factor | SO-DIMM 262-pin |
| RAM / Technology | DDR5 SDRAM |
| System / Hard Drive Capacity | 512 GB |
| System / Type | Personal computer |
| Video Output / Graphics Processor | Intel Graphics |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Cache Memory | |
| Cache Per Processor | 30 MB |
| Installed Size | 30 MB |
| Dimensions & Weight | |
| Depth | 18.29 cm |
| Height | 3.65 cm |
| Weight | 1.34 kg |
| Width | 17.9 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 48.8 cm |
| Shipping Height | 26.6 cm |
| Shipping Weight | 3.905 kg |
| Shipping Width | 14 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | Speaker |
| Color | Black |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Product Form Factor | Tiny |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | Intel Graphics shared video memory (UMA) - up to 8 TOPS |
| Max Monitors Supported | 2 |
| Video Interfaces | HDMI, DisplayPort |
| Hard Drive | |
| Capacity | 1 x 512 GB |
| Features | TCG Opal Encryption |
| Interface Type | PCI Express 4.0 x4 |
| Manufacturer | Samsung |
| Type | SSD - M.2 2280 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Keyboard Name | Lenovo AI Keyboard |
| Miscellaneous | |
| Compliant Standards | RoHS, FIPS 140-2, Energy-Related Products (ErP) Lot 3, TCG Certified |
| Included Accessories | Dust filter |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion switch |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Interface | USB |
| Mouse Name | Lenovo Calliope Mouse |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.1, IEEE 802.11ax (Wi-Fi 6E) |
| Ethernet Controller | Intel I219-LM |
| Features | Wake on LAN (WoL), dual stream (2x2) |
| Interface (Bus) Type | M.2 Card |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Neural Processor Unit (NPU) | |
| AI Datatype Support on NPU | INT8 |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 13 TOPS |
| Sparsity Support | Yes |
| Total Processor Performance Up To (TOPS) | 33 TOPS |
| Windows Studio Effects Support | Yes |
| Operating System / Software | |
| OS Provided | Windows 11 Pro |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Efficiency | 90% |
| Power Provided | 135 watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel Q870 |
| Clock Speed | 1.5 GHz (P-core) / 1.2 GHz (E-core) |
| CPU | Intel Core Ultra 7 (Series 2) 265T |
| CPU Qty | 1 |
| L2 cache | 36 MB |
| Max CPU Qty | 1 |
| Max Turbo Speed | 5.3 GHz (P-core) / 4.6 GHz (E-core) |
| Number of Cores | 20-core |
| Processor Main Features | Intel Smart Cache |
| RAM | |
| Configuration Features | 2 x 16 GB |
| Effective Memory Speed | 5600 MT/s |
| Features | Dual channel memory architecture |
| Form Factor | SO-DIMM 262-pin |
| Installed Size | 32 GB (installed) / 64 GB (max) |
| Rated Memory Speed | 5600 MT/s |
| Slots | 2 (total) / 0 (empty) |
| Technology | DDR5 SDRAM |
| Sustainability Information | |
| Carbon Footprint | 317 kg carbon emissions (EU) |
| EPEAT Compliant | EPEAT Gold |
| PAIA Version | 1.4.7 |
| TCO Certified | TCO Certified, generation 10, for desktops |
| Total CF/unit Standard Deviation (kg CO2e) | 99 |
