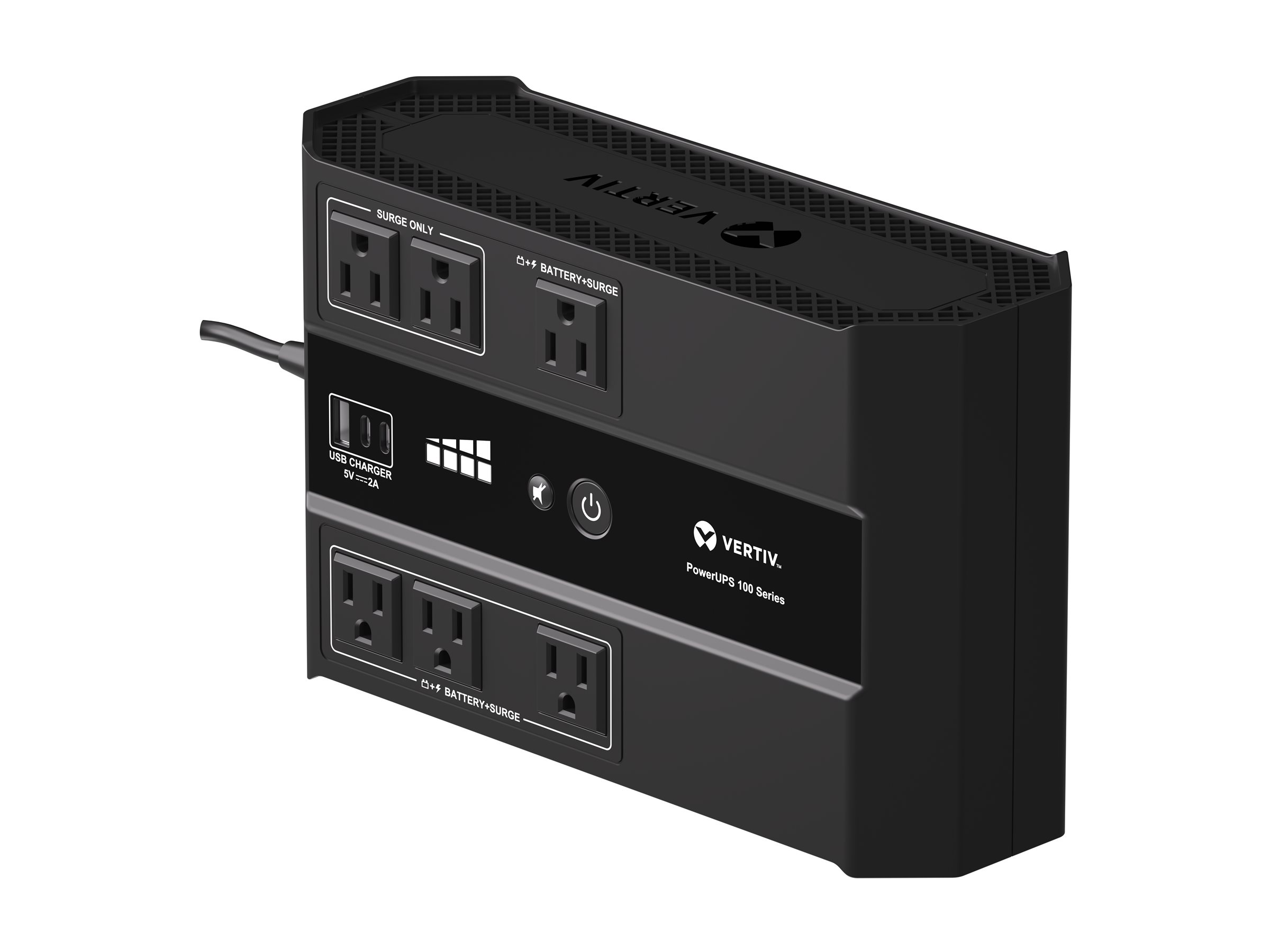

Vertiv PowerUPS 100 Standby Series PST6-500LVMT
MSRP$135.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Vertiv PowerUPS 100 Standby Series PST6-500LVMT
- UPS
- AC 120 V
- 305 Watt
- 500 VA
- output connectors: 6
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $135.00 |
| Mfr Part #: | PST6-500LVMT |
| SHI Part #: | 51081188 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | Vertiv PowerUPS 100 Standby Series PST6-500LVMT - UPS - AC 120 V - 305 Watt - 500 VA - output connectors: 6 |
| Manufacturer | Vertiv |
| MSRP | $135.00 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 26.42 cm |
| Dimensions & Weight / Height | 8.8 cm |
| Dimensions & Weight / Weight | 3 kg |
| Dimensions & Weight / Width | 16.7 cm |
| Header / Brand | Vertiv |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 6 |
| Power Device / Power Capacity (VA) | 500 VA |
| Power Device / Voltage Required | AC 120 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Features | Sealed, valve-regulated |
| Quantity | 1 |
| Technology | Lead acid |
| Transfer Time | 10 ms |
| Dimensions & Weight | |
| Depth | 26.42 cm |
| Height | 8.8 cm |
| Weight | 3 kg |
| Width | 16.7 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 36.7 cm |
| Shipping Height | 19.5 cm |
| Shipping Width | 26.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 45 dB |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | UPS - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | cTUVus, UL 1778, CSA 2.2 No.1073:2014, FCC Part 15 B, ANSI C62.41, Energy Star 2.0, DOE, ISTA 3A |
| Equipment Protection Value | 300000 US Dollars |
| Features | Wall mountable, user-replaceable batteries, Extended Power Performance (EPP), overcurrent protection, short-circuit protection, overcharge protection |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 95% at 100% Load |
| Frequency Provided | 50/60 Hz ± 1 Hz |
| Frequency Required | 50/60 Hz ± 5Hz |
| Input Connectors | 1 x power NEMA 5-15R |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 88 - 142 V |
| Output Voltage | AC 120 V 50/60 Hz |
| Output Waveform | Simulated sine wave |
| Power Capacity | 305 watt / 500 VA |
| Power Output Connectors Details | 6 x power NEMA 5-15R (surge) - 120 V |
| Surge Energy Rating | 500 joules |
| Software / System Requirements | |
| Software Included | Vertiv Power Assist |
| Sustainability Information | |
| ENERGY STAR | Yes |
