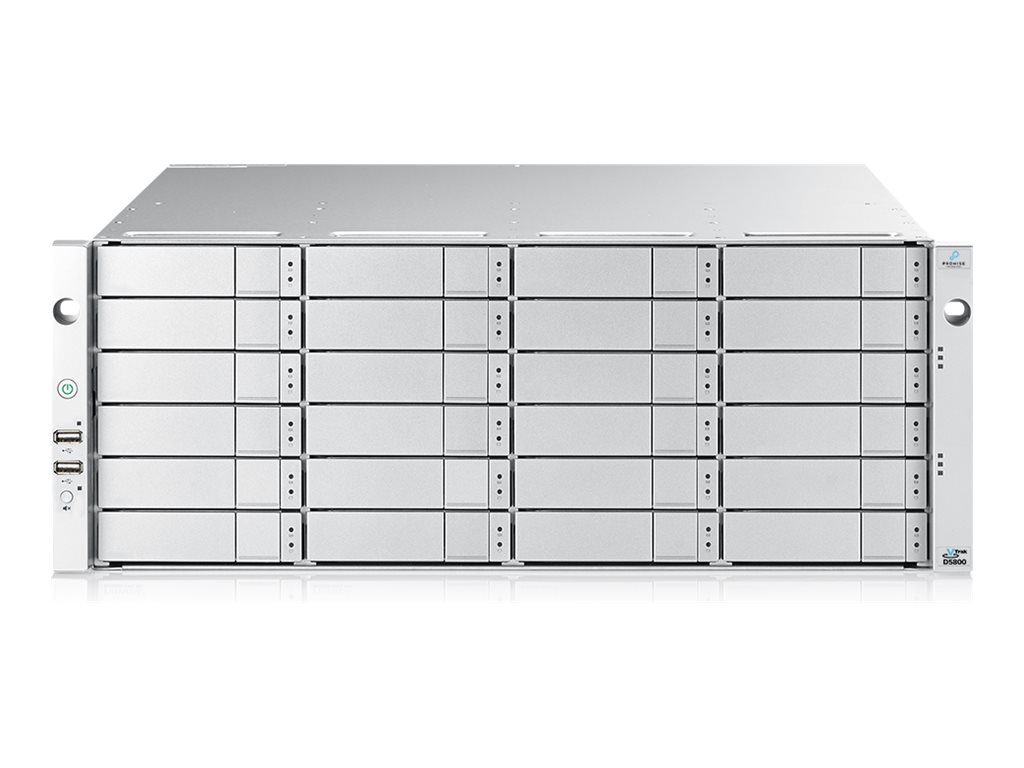

Promise VTrak D5800yxD

MSRP$56,609.00
$40,357.00
Promise VTrak D5800yxD
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Unified storage system
  • 24 bays
  • 336 TB
  • rack-mountable
  • SATA 6Gb/s / SAS 12Gb/s
Promise VTrak D5800yxD
  • Unified storage system
  • 24 bays
  • 336 TB
  • rack-mountable
  • SATA 6Gb/s / SAS 12Gb/s
  • HDD 14 TB x 24
  • RAID 0, 1, 5, 6, 10, 50, 60
  • RAM 16 GB
  • 25 Gigabit Ethernet / 10 Gigabit Ethernet
  • iSCSI support
  • 4U
  Additional Details
Price: $40,357.00
MSRP: $56,609.00
Mfr Part #: VTD5800YXD14TX
SHI Part #: 51011997
Category: Electronic data storage equipment
UNSPSC: 43201800
Manufacturer: Promise Technology
Product Type: Hardware
General Information
CategoryElectronic data storage equipment
DescriptionPromise VTrak D5800yxD - Unified storage system - 24 bays - 336 TB - rack-mountable - SATA 6Gb/s / SAS 12Gb/s - HDD 14 TB x 24 - RAID 0, 1, 5, 6, 10, 50, 60 - RAM 16 GB - 25 Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support - 4U
ManufacturerPromise Technology
MSRP$56,609.00
UNSPSC43201800
Main Specifications
Dimensions & Weight / Depth50.7 cm
Dimensions & Weight / Height17.4 cm
Dimensions & Weight / Weight26.8 kg
Dimensions & Weight / Width44.67 cm
Hard Drive / Capacity14 TB
Hard Drive / Form Factor3.5"
Hard Drive / InterfaceSerial Attached SCSI
Hard Drive / Interface TypeSerial Attached SCSI
Header / BrandPromise
Miscellaneous / Product ColorSilver
Networking / Data Link Protocol
  • 10 Gigabit Ethernet
  • 25 Gigabit Ethernet
Optical Storage / TypeNone
Packaged Quantity1
Service & Support / Type3-year warranty
Storage / Rack-mountableRack-mountable
System Requirements / OS Required
  • Apple macOS Sierra 10.12.6
  • Apple macOS Ventura 13.1
  • Citrix Hypervisor 7.0 LTSR
  • Citrix Hypervisor 7.1 LTSR
  • Citrix Hypervisor 8.0
  • Citrix Hypervisor 8.1
  • Citrix Hypervisor 8.2 LTSR
  • Microsoft Windows Server 2012 R2
  • Microsoft Windows Server 2016
  • Microsoft Windows Server 2019
  • Microsoft Windows Server 2022
  • Red Hat Enterprise Linux 6.6
  • Red Hat Enterprise Linux 6.7
  • Red Hat Enterprise Linux 6.8
  • Red Hat Enterprise Linux 7
  • Red Hat Enterprise Linux 7.2
  • Red Hat Enterprise Linux 7.4
  • SuSE Linux Enterprise Server 11 SP4
  • SuSE Linux Enterprise Server 12 SP1
  • VMware ESXi 6.0
  • VMware ESXi 6.5
  • VMware ESXi 6.7
  • VMware ESXi 7.0
  • VMware ESXi 8.0
Environmental Parameters
Humidity Range Operating20 - 80%
Max Operating Temperature35 °C
Min Operating Temperature5 °C
Sound Emission60 dB
Expansion / Connectivity
Expansion Bays
  • 24 (total) / 0 (free) x hot-swap - 3.5" LFF
  • 4 (total) / 4 (free) x hot-swap - 2.5" SFF
Interfaces
  • 4 x Ethernet 10Gb - SFP+
  • 1 x serial (management) - RJ-11
  • 2 x Ethernet 1000 (management) - RJ-45
  • 4 x Ethernet 25Gb - SFP28
General
Depth50.7 cm
Device TypeUnified storage system
Enclosure TypeRack-mountable - 4U
Height17.4 cm
Host Connectivity25 Gigabit Ethernet / 10 Gigabit Ethernet
Installed Devices / Modules Qty24 (installed) / 24 (max)
Total Storage Capacity336 TB
Weight26.8 kg (without HDD)
Width44.67 cm
Hard Drive
Capacity24 x 14 TB
Interface TypeSAS
TypeHDD - hot-swap - 3.5"
Manufacturer Warranty
Service & Support
  • Limited warranty - 3 years
  • Phone / e-mail support - response time: 24 hours / 7 days
Miscellaneous
Compliant StandardsEMC Class A, FCC, VCCI, BSMI, RCM, CB, cTUVus, RoHS2, WEEE
FeaturesIntelligent Bad Sector Remapping, NVRAM error logging, drive power management (MAID), SMART error handling and write hole table, Background Synchronization, Media Patrol, Redundancy Check, Partial Rebuild, task scheduler, permission management, quota management, online expansion, Asymmetric LUN Unit Access (ALUA), Advanced Cache Mirroring, thin provision, Snapshot function, thin clone, thick clone, SSD cache, local replication, JBOD support, Predictive Data Migration (PDM)
Networking
Data Link Protocol10GbE, 25GbE
FeaturesManageable, firmware upgradable, WebDAV server support
Network / Transport ProtocolTCP/IP, iSCSI, SMB, CIFS, FTP, NFS
Network Services CompatibilityMicrosoft CIFS, Network File System (NFS), Server Message Block (SMB), Web-based Distributed Authoring and Versioning (WebDAV)
Performance
  • Maximum domain accounts: 100000
  • Maximum accounts: 10000
  • Concurrent sessions: 128
  • NAS share size: 1 PB
  • Maximum NAS share: 1024 per pool
  • Maximum volumes per pool: 256
  • Maximum pools per system: 32
  • Maximum snapshots: 512
  • Clones per volume: 128
Remote Management ProtocolSNMP, SSH, CLI, LDAP
Power
80 PLUS Certification80 PLUS
Power DeviceInternal power supply
Voltage RequiredAC 100-240 V
Processor / Memory
RAM16 GB
Software / System Requirements
OS RequiredMicrosoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Apple macOS Sierra 10.12.6, Apple macOS Ventura 13.1, Red Hat Enterprise Linux 6.6, Red Hat Enterprise Linux 6.7, Red Hat Enterprise Linux 6.8, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 7.2, Red Hat Enterprise Linux 7.4, SuSE Linux Enterprise Server 11 SP4, SuSE Linux Enterprise Server 12 SP1, Citrix Hypervisor 7.0 LTSR, Citrix Hypervisor 7.1 LTSR, Citrix Hypervisor 8.0, Citrix Hypervisor 8.1, Citrix Hypervisor 8.2 LTSR, VMware ESXi 6.0, VMware ESXi 6.5, VMware ESXi 6.7, VMware ESXi 7.0, VMware ESXi 8.0
Software IncludedDrivers & Utilities
Storage Controller
Interface TypeSATA 6Gb/s / SAS 12Gb/s
RAID LevelRAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
Type2 x RAID
