Hardware Cameras and Camcorders Digital Cameras and Camcorders
Add to My Favorites
Digital Cameras and Camcorders

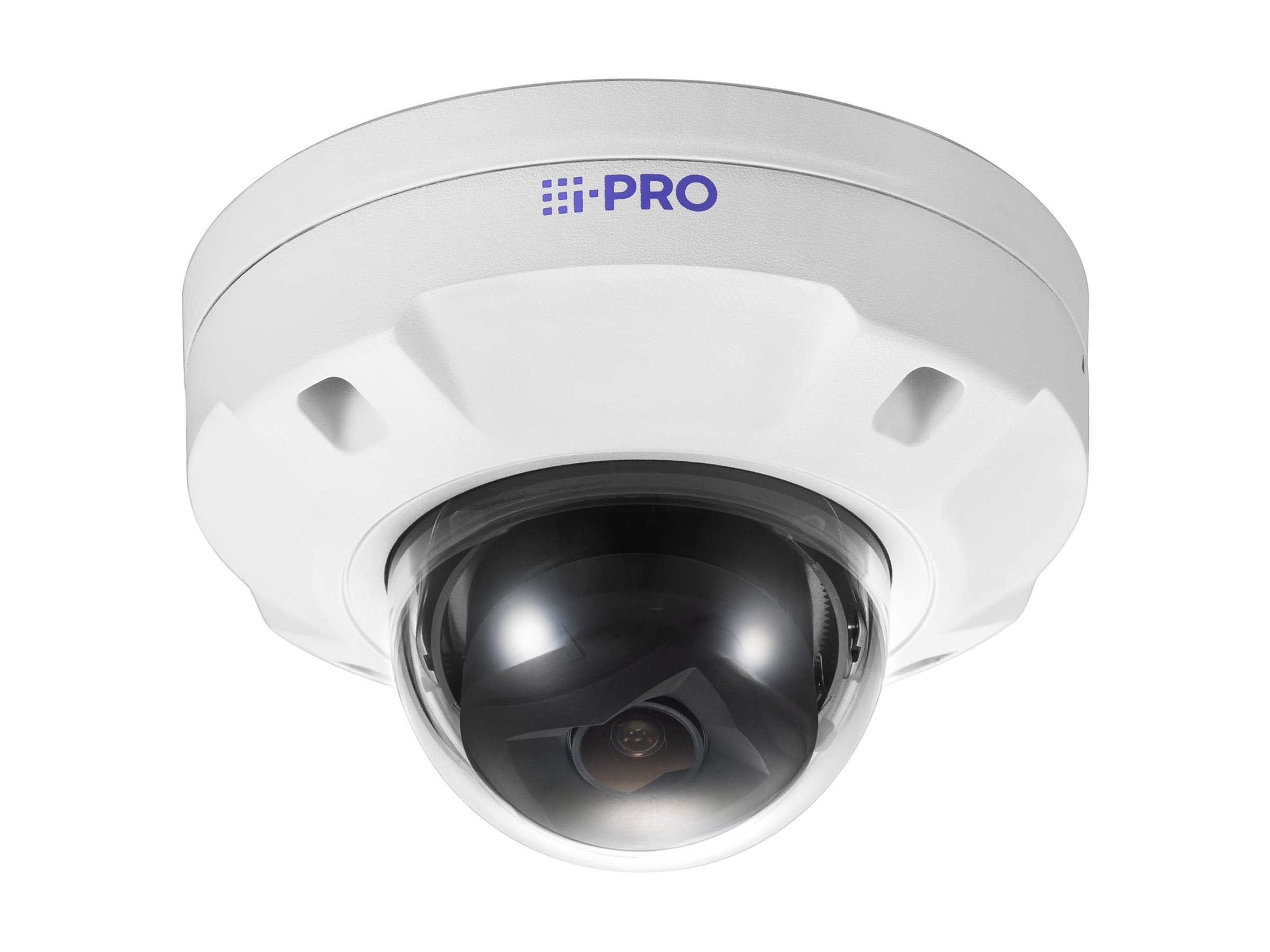

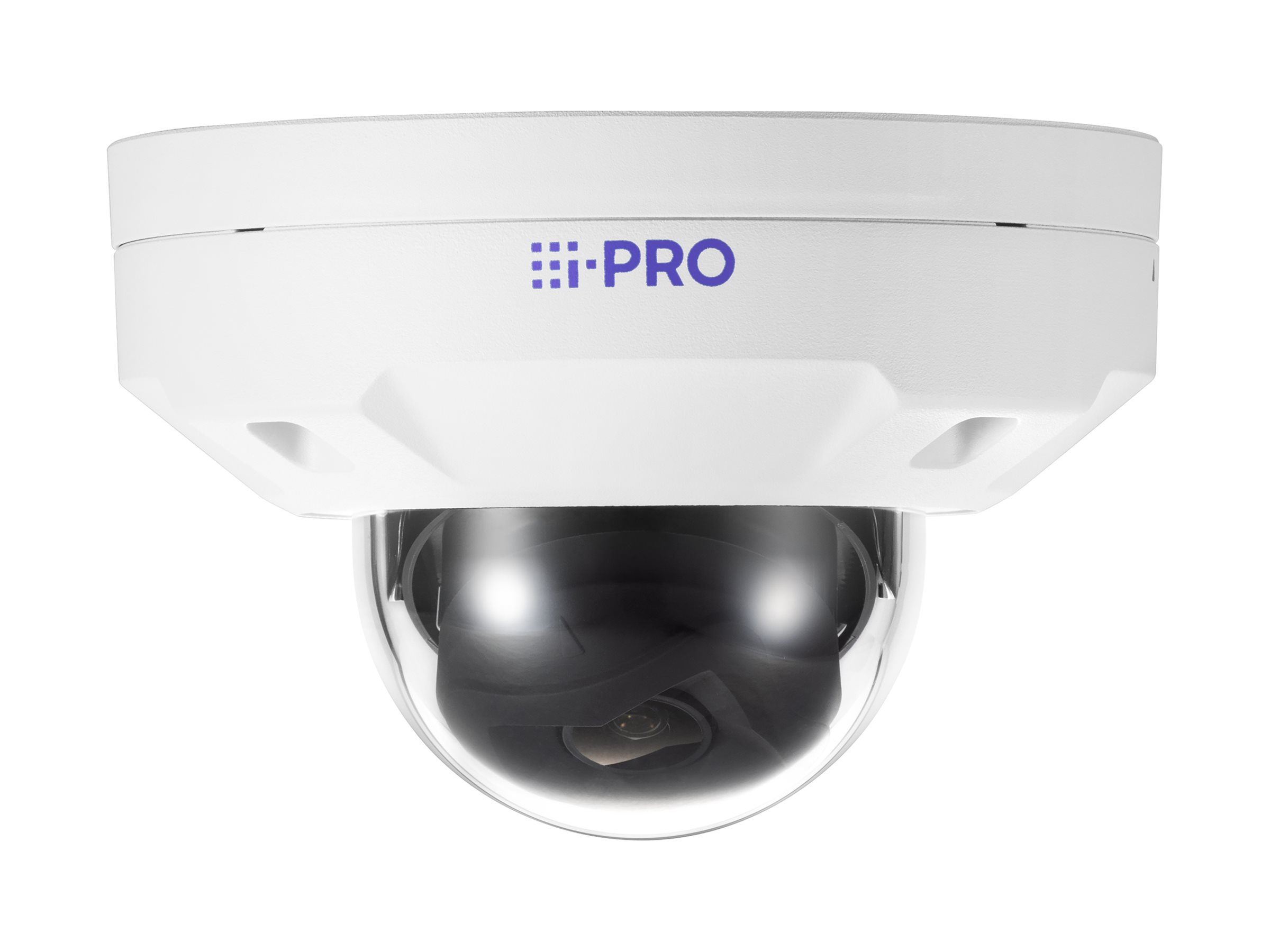

i-PRO WV-U25502-V3L - Network surveillance camera

MSRP$764.06
$545.00
i-PRO WV-U25502-V3L - Network surveillance camera
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • dome
  • outdoor
  • dust resistant / water resistant / shock resistant / wind resistant
  • color (Day&Night)
  • 2592 x 1944
i-PRO WV-U25502-V3L - Network surveillance camera
  • dome
  • outdoor
  • dust resistant / water resistant / shock resistant / wind resistant
  • color (Day&Night)
  • 2592 x 1944
  • LAN 10/100
  • H.264, H.265
  • DC 48 V / PoE
  Additional Details
Price: $545.00
MSRP: $764.06
Mfr Part #: WV-U25502-V3L
SHI Part #: 50964409
Category: Digital cameras
UNSPSC: 45121504
Manufacturer: i-Pro Americas Inc.
Product Type: Hardware
General Information
CategoryDigital cameras
Descriptioni-PRO WV-U25502-V3L - Network surveillance camera - dome - outdoor - dust resistant / water resistant / shock resistant / wind resistant - color (Day&Night) - 2592 x 1944 - LAN 10/100 - H.264, H.265 - DC 48 V / PoE
Manufactureri-Pro Americas Inc.
MSRP$764.06
UNSPSC45121504
Main Specifications
Dimensions & Weight / Depth15.4 cm
Dimensions & Weight / Height10.5 cm
Dimensions & Weight / Weight1 kg
Dimensions & Weight / Width15.4 cm
Header / Brandi-Pro
Miscellaneous / Product ColorWhite
Packaged Quantity1
Camera
Digital Video FormatH.264, H.265
Digital Zoom12.8
FeaturesONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, auto ICR, digital noise reduction, Scene Change Detection (SCD), Video Motion Detection (VMD), 8 privacy zones, 90° image rotation, 180° image rotation, 270° image rotation, Variable Bitrate (VBR), Unicast Streaming, Multicast Streaming, Group of Pictures (GOP), Device Certificate GlobalSign pre-installed, user authentication, host authentication, Auto VIQS, up to 14 users, 205.4m detect distance (tele), 43.7m detect distance (wide), 82.1m observe distance (tele), 17.5m observe distance (wide), 41.1 m recognize distance (tele), 8.7 m recognize distance (wide), 20.5m identify distance (tele), 4.4m identify distance (wide), DORI coverage, alarm notifications, e-mail alerts, 120 dB dynamic range
Infrared LEDsYes
Max Digital Video Resolution2592 x 1944
Minimum Illumination
  • 0.07 lux - color - F1.6 - 30 IRE - shutter 1/30 sec
  • 0.1 lux - color - F1.6 - 50 IRE - shutter 1/30 sec
  • 0.006 lux - color - F1.6 - 50 IRE - shutter 16/30 sec
  • 0 lux - B&W - F1.6 - 50 IRE - shutter 1/30 sec / infrared LEDs on
  • 0.04 lux - B&W - F1.6 - 50 IRE - shutter 1/30 sec
  • 0.003 lux - B&W - F1.6 - 50 IRE - shutter 16/30 sec
Motion DetectionYes
Supported Image FormatsJPEG
TypeColor - Day&Night - fixed - outdoor - dust resistant / water resistant / shock resistant / wind resistant
Video Capture
  • 2592 x 1944 @ 30 fps
  • 2560 x 1440 @ 30 fps
  • 1920 x 1080 @ 30 fps
  • 1280 x 720 @ 30 fps
  • 640 x 360 @ 30 fps
  • 320 x 180 @ 30 fps
  • 2560 x 1920 @ 30 fps
  • 1280 x 960 @ 30 fps
  • 640 x 480 @ 30 fps
  • 400 x 300 @ 30 fps
  • 320 x 240 @ 30 fps
Environmental Parameters
Max Operating Temperature50 °C
Min Operating Temperature-30 °C
Relative Humidity (operating)10 - 100% (non-condensing)
Expansion / Connectivity
Encryption AlgorithmFIPS 140-3 Level 3
Ports
  • LAN/power - RJ-45
  • Audio line-in/microphone - 3.5 mm stereo jack
Supported Memory CardsmicroSD Card, microSDHC Card, microSDXC Card
General
Connectivity TechnologyWired
Depth15.4 cm
Device TypeNetwork surveillance camera
Form FactorDome
Height10.5 cm
Weight1 kg
Width15.4 cm
Image Sensor
TypeCMOS 1/2.8"
Interfaces
Network InterfaceEthernet 10Base-T/100Base-TX
Network ProtocolsIPv6, TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP 1, SNMP 2, SNMP 3, DHCPv6, RTP, MLD, ICMP, ARP, DiffServ, MQTT, LLDP, IPv4, RTSP, DHCP, DDNS, UPnP, IGMP, RTCP, SRTP
Lens Construction
Focal Length3.2 mm - 10.2 mm
Lens IrisF/1.6
Min Focus Distance2 cm
Miscellaneous
ColorI-PRO White
Compliant StandardsIEEE 802.1x, IEC 62262 IK10, NDAA, UL 62368-1 Third Edition, cUL, CAN/CSA-C22.2 No. 62368-1-19, IEC 62368-1 Third Edition, FCC Part 15 B Class A, ICES-003 issue 7 Class A, EN55032 Class A, EN55035, IP66, IK10
Panning
Range (degree)-105 to +255
Power
Power Device9.6 watt
Power RequirementsDC 48 V / PoE - 200 mA
Tilting
Range (degree)-30 to +85
