Planar Helium PCT2275
MSRP$335.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

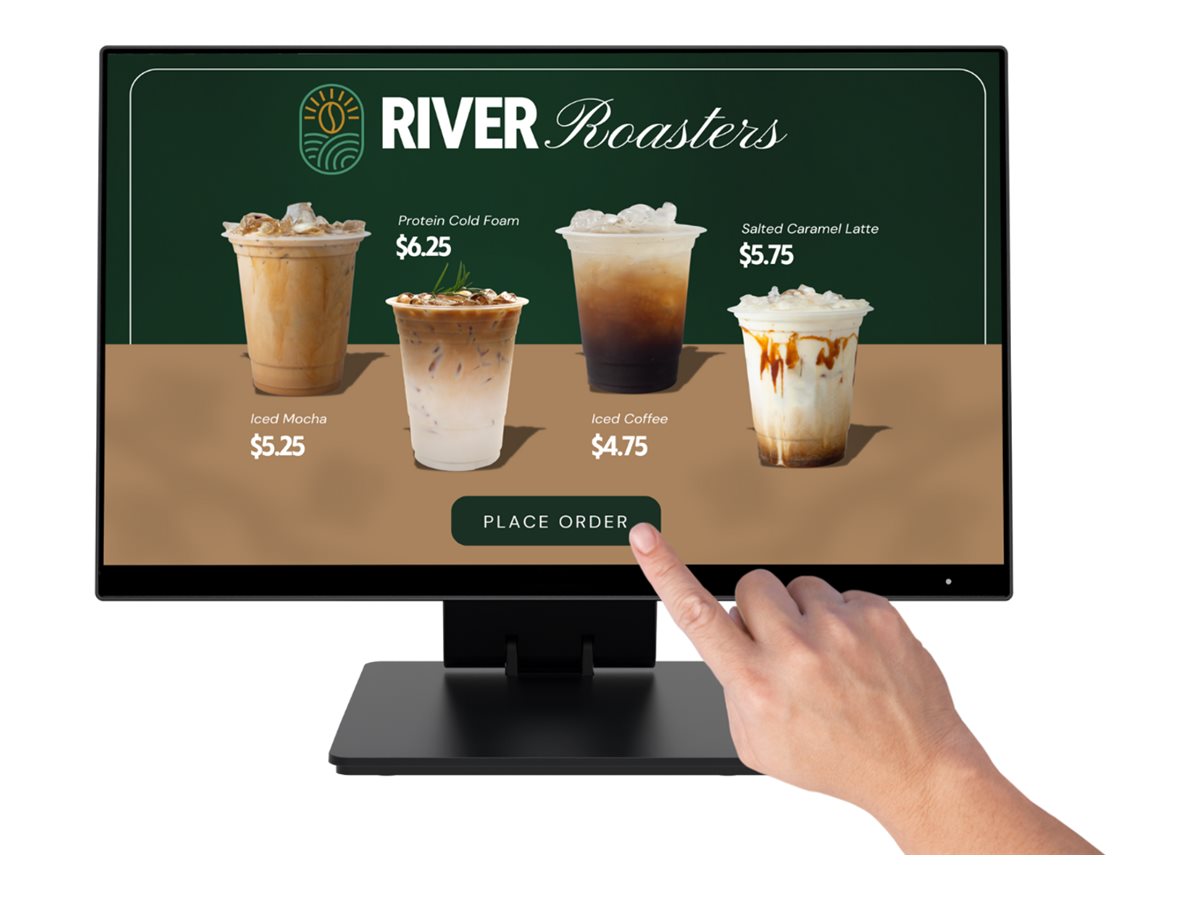

Planar Helium PCT2275
- LED monitor
- 22" (21.5" viewable)
- touchscreen
- 1920 x 1080 Full HD (1080p) @ 100 Hz
- IPS
- 312 cd/m²
- 1300:1
- HDMI, VGA, DisplayPort
- speakers
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $335.00 |
| Mfr Part #: | 998-4111-00 |
| SHI Part #: | 50881267 |
| Category: | Touch screen monitors |
| UNSPSC: | 43211903 |
| Manufacturer: | Planar |
| Product Type: | Hardware |
| Product Line: | Planar Systems |
| General Information | |
|---|---|
| Category | Touch screen monitors |
| Description | Planar Helium PCT2275 - LED monitor - 22" (21.5" viewable) - touchscreen - 1920 x 1080 Full HD (1080p) @ 100 Hz - IPS - 312 cd/m² - 1300:1 - HDMI, VGA, DisplayPort - speakers |
| Manufacturer | Planar |
| MSRP | $335.00 |
| UNSPSC | 43211903 |
| Main Specifications | |
| Dimensions & Weight / Depth | 20.64 cm |
| Dimensions & Weight / Height | 37.21 cm |
| Dimensions & Weight / Weight | 5.3 kg |
| Dimensions & Weight / Width | 48.92 cm |
| Display / Diagonal Size | 22 in |
| Display / Diagonal Size (metric) | 55.9 cm |
| Display / Interface |
|
| Display / Native Resolution | 1920 x 1080 |
| Display / Pixel Pitch | 0.24795 mm |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | Planar |
| Image Brightness | 312 cd/m² |
| Input Device / Type | Touchscreen |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Audio | |
| Output Power / Channel | 2 Watt |
| Type | Speakers - stereo |
| Connectivity | |
| Interfaces |
|
| Dimensions & Weight | |
| Dimensions & Weight Details |
|
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 7.6 kg |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Aspect Ratio | 16:9 |
| Backlight Technology | LED backlight |
| Brightness | 312 cd/m² |
| Brightness w/touchscreen | 250 cd/m² |
| Built-in Devices | USB 3.2 Gen 1 hub |
| Color Support | 16.7 million colors |
| Contrast Ratio | 1300:1 |
| Diagonal Size | 22" |
| Dimensions (WxDxH) | 48.92 cm x 20.64 cm x 37.21 cm - with stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class E |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2465919 |
| Features | Bezeless, dual-hinge stand, edge-to-edge glass, MPP2.0 Active Pen compatible |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 100 Hz |
| Panel Type | IPS |
| Pixel Pitch | 0.24795 mm |
| Screen Coating | Planar ERO protective glass, anti-glare |
| Viewable Size | 21.5" |
| Weight | 5.3 kg |
| Input | |
| Movement Detection Technology | Projected capacitive |
| Type | Touchscreen - touchscreen |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 3 years - response time: 2 days |
| Mechanical | |
| Display Position Adjustments | Tilt |
| Tilt Angle | -5/+90 |
| Miscellaneous | |
| Cables Included |
|
| Features | Security lock slot (cable lock sold separately) |
| Included Accessories | Screwdriver, stand |
| Security Slot Type | Kensington security slot |
| Power | |
| Input Voltage | AC 100/240 V (50/60 Hz) |
| Power Consumption (Off Mode) | 0.3 Watt |
| Power Consumption (Typical) | 30 Watt |
| Power Consumption SDR (On mode) | 14 kWh/1000h |
| Power Consumption Stand by | 0.5 Watt |
