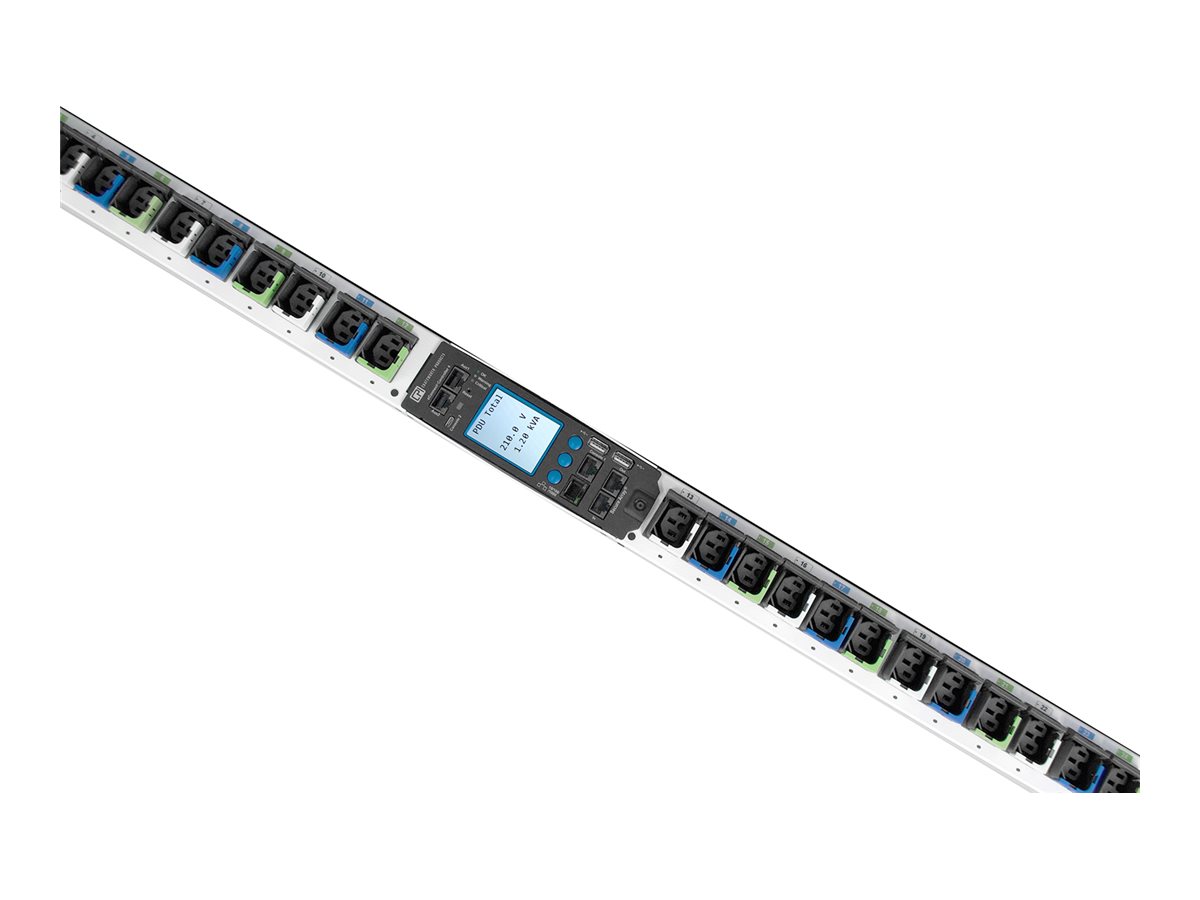

CPI Switched eConnect PDU EA-5015-E
MSRP$2,769.62
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
CPI Switched eConnect PDU EA-5015-E
- Power distribution unit (rack-mountable)
- AC 120/208 V
- 8.6 kW
- 3-phase
- Ethernet 10/100/1000, USB, RS-232
- input: NEMA L21-30
- output connectors: 24 (18 x IEC 60320 C13, 6 x IEC 60320 C19)
- 42U
- 3 m cord
- North America
- glacier white
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,769.62 |
| Mfr Part #: | EA-5015-E |
| SHI Part #: | 50713322 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Chatsworth |
| Product Type: | Hardware |
| Product Line: | Chatsworth Products |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CPI Switched eConnect PDU EA-5015-E - Power distribution unit (rack-mountable) - AC 120/208 V - 8.6 kW - 3-phase - Ethernet 10/100/1000, USB, RS-232 - input: NEMA L21-30 - output connectors: 24 (18 x IEC 60320 C13, 6 x IEC 60320 C19) - 42U - 3 m cord - North America - glacier white - TAA Compliant |
| Manufacturer | Chatsworth |
| MSRP | $2,769.62 |
| UNSPSC | 24102001 |
| Main Specifications | |
| General / Subcategory | Power distribution devices |
| Header / Brand | CPI |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | White |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Voltage Required | AC 120/208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 12 kg |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -25 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Glacier white |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 42U |
| Localization | North America |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL, IEC 62368, UL 489, cUL, FCC Part 15 A, EN55022, RoHS |
| Features | Vertical orientation, tool-less, password security, switched, locking outlets, replaceable controller, LCD display, Hydraulic-Magnetic breakers, Secure Array technology, simplified load balancing, Protect or Disconnect, electronic lock integration, current meter, energy meter, power factor meter, power measuring, voltage meter, outlet grouping, SD-card transfers PDU identity, individually switchable sockets, vertical orientation, field-replaceable module, firmware upgradable, LED indicators, color-coded labels, grounded, bistable latching relays |
| Included Accessories | 2 x toolless mounting buttons |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB, RS-232 |
| Remote Management Protocol | SNMP 1, SNMP 3, HTTP, HTTPS, LDAP, SNMP 2, RADIUS, CLI |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L21-30 |
| Input Voltage | AC 120/208 V |
| Input Wiring | 3-phase |
| Max Electric Current | 30 A |
| Output Voltage | AC 120/208 V 50/60 Hz |
| Power Capacity | 8.6 kW |
| Power Output Connectors Details |
|
