Hanwha Vision WiseNet P PNO-A9082R
MSRP$2,300.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

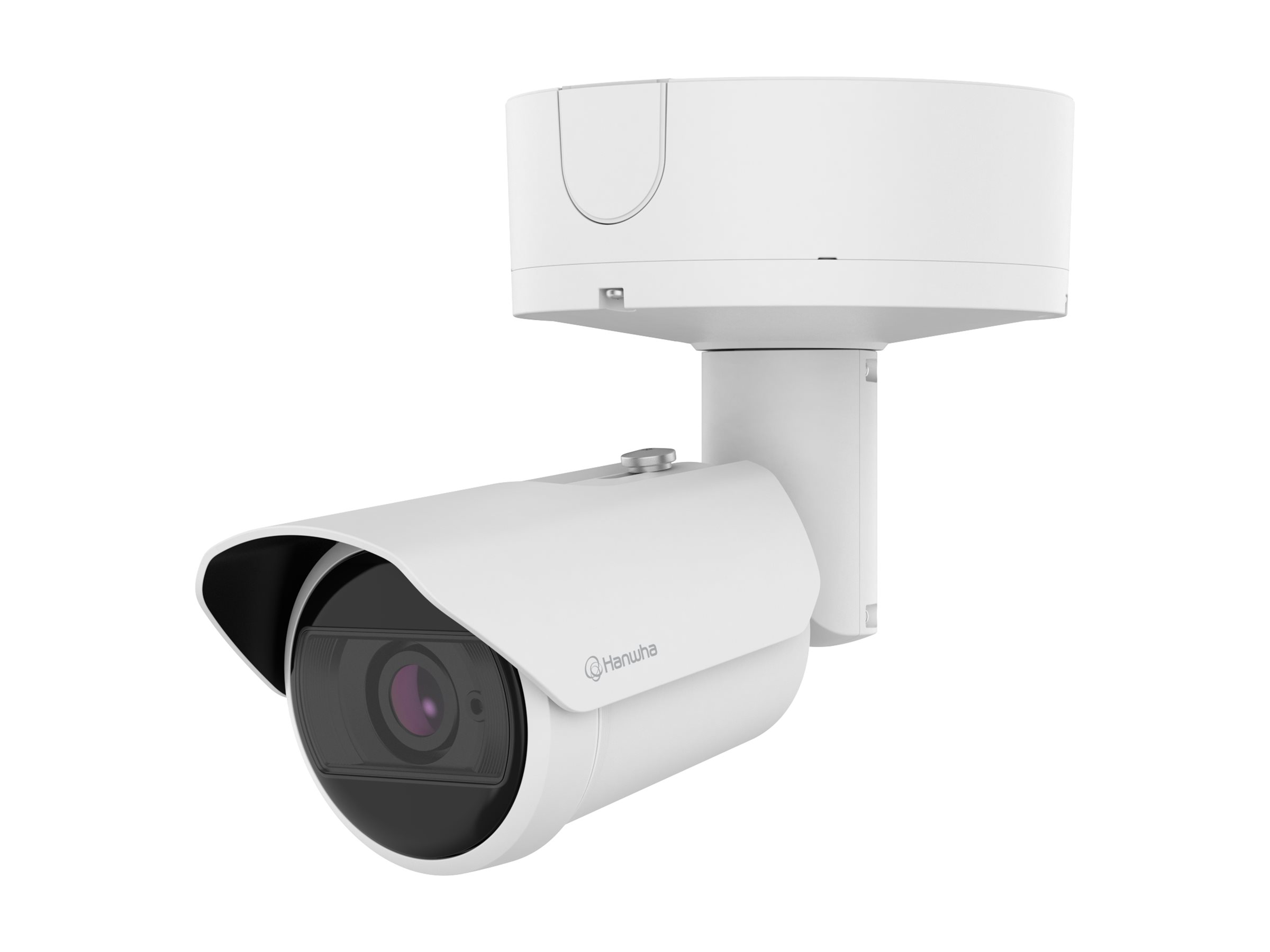

Hanwha Vision WiseNet P PNO-A9082R
- Network surveillance camera
- PTZ
- bullet
- color (Day&Night)
- 8 MP
- 3840 x 2160
- motorized
- audio
- USB
- GbE
- H.265, H.264, MJPEG
- DC 12 V / PoE Plus Class 4
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,300.00 |
| Mfr Part #: | PNO-A9082R |
| SHI Part #: | 50705806 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet P PNO-A9082R - Network surveillance camera - PTZ - bullet - color (Day&Night) - 8 MP - 3840 x 2160 - motorized - audio - USB - GbE - H.265, H.264, MJPEG - DC 12 V / PoE Plus Class 4 |
| Manufacturer | HANWHA VISION |
| MSRP | $2,300.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 29.84 cm |
| Dimensions & Weight / Height | 9.34 cm |
| Dimensions & Weight / Weight | 2.06 kg |
| Dimensions & Weight / Width | 9.34 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 3840 x 2160, 3328 x 1872, 3072 x 1728, 2688 x 1512, 2592 x 1944, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 640 x 480, 640 x 360, 320 x 240, 320 x 180 |
| Digital Video Format | H.265, H.264, MJPEG |
| Exposure Range | 2 sec - 1/30000 sec |
| Features | 0° / 180° rotation, Backlight Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), WiseNR II, Samsung Super Noise Reduction (SSNR) V, digital noise reduction, Digital Image Stabilization (DIS), Defog, privacy masking (up to 32 areas), dynamic privacy masking, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), anti-flicker, Lens Distortion Compensation (LDC), vertical flip and mirror, Hallway View, e-mail alerts, notification picture to FTP, alarm event, Handover, object classification, clothes color detection, gender recognition, bag detection, vehicle type classification, vehicle color recognition, age recognition, Face Recognition, mask detection, glasses detection, line-crossing detection, social distancing detection, loitering detection, intrusion detection, entrance / exit detection, appearing / disappearing detection, tamper-detection, Audio Detection, shock sensor, people counting, queue management, Heat Map, vehicle counting, crowd counting, Variable Bitrate (VBR), Constant Bitrate (CBR), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, aluminum housing, hard-coated window |
| Flash Memory | 8 GB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 60 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 4 GB |
| Type | Color - Day&Night - pan / tilt / zoom |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -50 °C |
| Relative Humidity (operating) | 0 - 100% (condensing) |
| Expansion / Connectivity | |
| Encryption Algorithm | EAP-LEAP, EAP-TLS, EAP-PEAP, MSCHAPv2 |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711, PCM, G.726, ADPCM, AAC-LC, OPUS |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 29.84 cm |
| Device Type | Network surveillance camera |
| Form Factor | Bullet |
| Height | 9.34 cm |
| Weight | 2.06 kg |
| Width | 9.34 cm |
| Image Sensor | |
| Type | 8 MP CMOS 1/1.2" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTCP, RTSP, NTP, HTTP, HTTPS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, CDP, MQTT, Syslog, SUNAPI, SNMP 1, SNMP 2c, SNMP 3, TCP, UDP, SRTP, SSL, TLS, RTP |
| Video | USB |
| Lens Construction | |
| Diagonal Field of View (degree) | 56 - 128 |
| Focal Length | 5.9 mm - 13.3 mm |
| Horizontal Field of View (degree) | 49 - 109 |
| Lens Iris | F/1.5-2.9 (P-Iris) |
| Min Focus Distance | 80 cm |
| Optical Zoom | 2.25 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 27 - 59 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | IEEE 802.1x, AES-256, FIPS 140-3 Level 3, ETSI EN 303 645, FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC 62471, IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS-2 2013 (2.2.7-2.2.8-2.2.9), NEMA 250 Type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, EN 62676-4, RCM, UKCA |
| Panning | |
| Range (degree) | 0 to 360 |
| Power | |
| Power Requirements | DC 12 V / PoE Plus Class 4 |
| Tilting | |
| Range (degree) | 0 to 90 |
