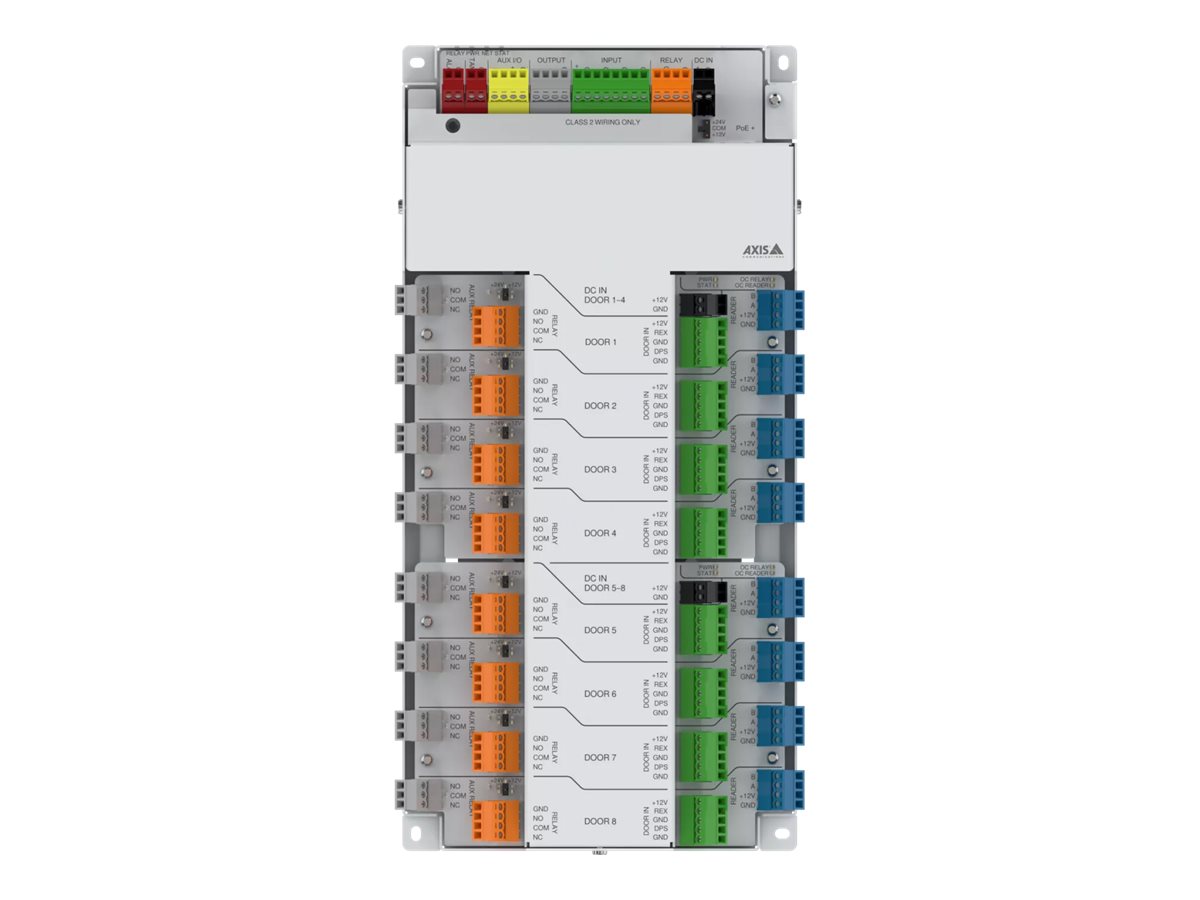

Axis A1810-B - Door controller
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Axis A1810-B - Door controller
- wired
- serial RS-485/Gigabit Ethernet/Wiegand
- white, NCS S 1002-B
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 03342-004 |
| SHI Part #: | 50702309 |
| Category: | Security or access control systems |
| UNSPSC: | 46171619 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Security or access control systems |
| Description | Axis A1810-B - Door controller - wired - serial RS-485/Gigabit Ethernet/Wiegand - white, NCS S 1002-B |
| Manufacturer | Axis Communications |
| MSRP | $3,799.00 |
| UNSPSC | 46171619 |
| Main Specifications | |
| Dimensions & Weight / Depth | 2.85 cm |
| Dimensions & Weight / Height | 32.65 cm |
| Dimensions & Weight / Weight | 1.33 kg |
| Dimensions & Weight / Width | 16.61 cm |
| Header / Brand | Axis |
| Header / Country Kits |
|
| Miscellaneous / Product Color | White |
| Networking / Connectivity Technology | Wired |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 2.85 cm |
| Height | 32.65 cm |
| Weight | 1.33 kg |
| Width | 16.61 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Flash Memory | |
| Installed Size | 2 GB |
| General | |
| Connectivity Technology | Wired - Wiegand, RS-485, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Up to 16 OSDP readers, up to 8 doors, up to 250000 events, up to 250000 credentials, PoE+, Open Supervised Device Protocol (OSDP), HTTP support, HTTPS support, IPv4 support, IPv6 support, DiffServ support, mDNS, SMTP support, DDNS (Dynamic Domain Name Service), DHCP support, DNS support, IGMP support, MQTT support, NTP support, RTCP support, RTP support, RTSP support, SNMP support, SOCKS support, Syslog support, TCP support, UDP support, signed firmware, brute force delay protection, digest authentication, password protection, Axis Edge Vault, secure boot, IP address filtering |
| Functions | Tamper detection |
| Interfaces Details |
|
| Placing / Mounting | DIN rail-mounting, wall-mounting |
| Power Source | PoE |
| Product Type | Door controller |
| Miscellaneous | |
| Authentication Method | Secure Shell (SSH) |
| Color | White, NCS S 1002-B |
| Compliant Standards | IEEE 802.3at, EAL 6+, IEEE 802.1x, IEEE 802.1ar, X.509, PVC-free, BFR-free, CFR free, EAC, EN 55035, EN 55032 Class B, EN 50130-4, EN 61000-3-2, EN 61000-3-3, KN32 Class B, KN35, IEC/EN/UL 62368-1, IEC/EN 60950-1, NEMA TS-2 (2.2.7-2.2.9) |
| Encryption Algorithm | EAP-TLS, TLS 1.2, TLS 1.3 |
| Included Accessories | Grounding kit, splicing connectors |
| Product Material | Aluminum |
| Warranty | 5-year warranty |
| RAM | |
| Installed Size | 512 MB |
