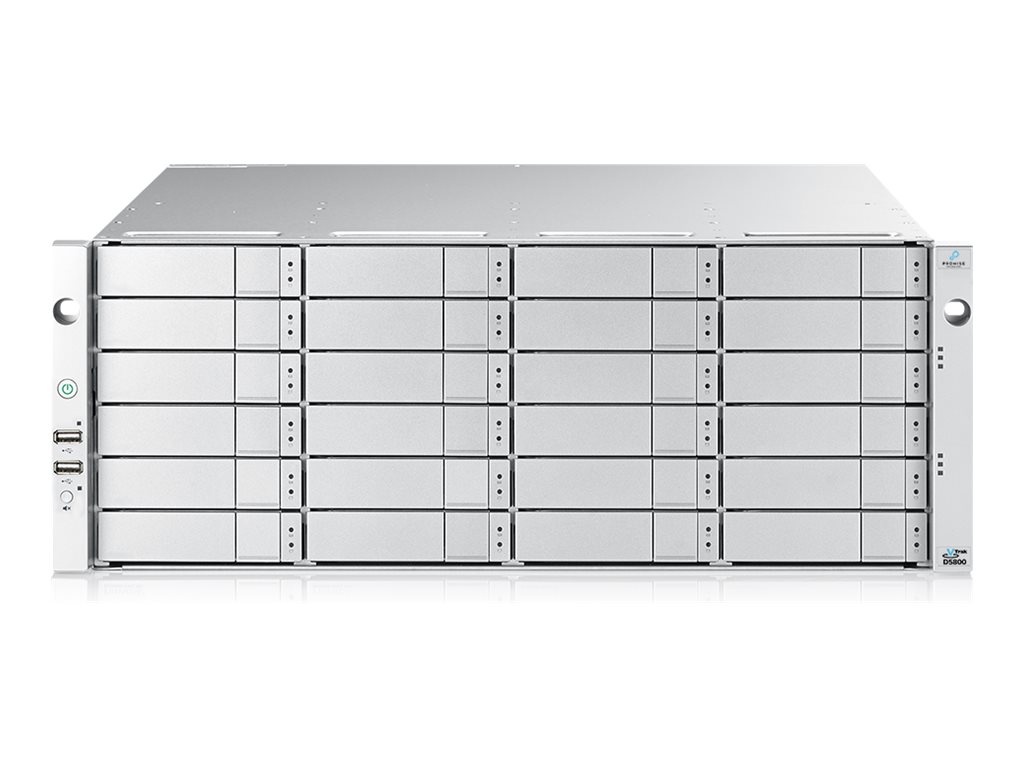

Promise VTrak D5800yxD
MSRP$45,749.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Promise VTrak D5800yxD
- Hard drive array
- 240 TB
- 28 bays (SATA-600 / SAS-3)
- HDD 10 TB x 24
- iSCSI (10 GbE), iSCSI (25 GbE) (external)
- rack-mountable
- 4U
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $45,749.00 |
| Mfr Part #: | VTD5800YXD10TX |
| SHI Part #: | 50661893 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Promise Technology |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Promise VTrak D5800yxD - Hard drive array - 240 TB - 28 bays (SATA-600 / SAS-3) - HDD 10 TB x 24 - iSCSI (10 GbE), iSCSI (25 GbE) (external) - rack-mountable - 4U |
| Manufacturer | Promise Technology |
| MSRP | $45,749.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 50.7 cm |
| Dimensions & Weight / Height | 17.4 cm |
| Dimensions & Weight / Weight | 43.8 kg |
| Dimensions & Weight / Width | 44.67 cm |
| Hard Drive / Capacity | 10 TB |
| Hard Drive / Interface | Serial Attached SCSI 3 |
| Hard Drive / Interface Type | Serial Attached SCSI 3 |
| Header / Brand | Promise |
| Miscellaneous / Product Color | Silver |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / HDD Array External Interface |
|
| Storage / HDD Array External Interface Class | iSCSI |
| Storage / Rack-mountable | Rack-mountable |
| Storage / Total Array Capacity | 240 TB |
| Storage / Type | Hard drive array |
| Chassis | |
| Installed Devices / Modules Qty | 24 |
| Supported Devices / Modules Qty | 28 |
| Supported Drives | SATA-600 / SAS-3 |
| Dimensions & Weight | |
| Depth | 50.7 cm |
| Height | 17.4 cm |
| Weight | 43.8 kg |
| Width | 44.67 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Sound Emission | 60 dB |
| Expansion / Connectivity | |
| Expansion Bays |
|
| Interfaces |
|
| General | |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 4U |
| Hard Drive | |
| Capacity | 24 x 10 TB |
| Interface Type | SAS 12Gb/s |
| Type | HDD - hot-swap |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | FCC, VCCI, BSMI, RCM, IEEE CB, cTUVus, RoHS2, WEEE |
| Features | Asymmetric LUN Unit Access (ALUA), Predictive Data Migration (PDM), thin provision, Snapshot function, thin clone, thick clone, SSD cache, advanced cache mirroring over PCIe Gen3, task scheduler, Partial Rebuild, Background Synchronization, Redundancy Check, Media Patrol, Intelligent Bad Sector Remapping, NVRAM error logging, drive power management (MAID), SMART error handling and write hole table, LDAP support, 100000 domain accounts, Online Capacity Expansion (OCE), quota function, built-in scheduler, CLI ready, SNMP support, SSH support, TCP/IP support |
| Software Included | Command Line Interface (CLI), Promise WebPAM PROe |
| Power | |
| 80 PLUS Certification | 80 PLUS |
| Max Supported Qty | 2 |
| Power Device | 2 x internal power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Storage | |
| HDD Array External Interface | iSCSI (10 GbE), iSCSI (25 GbE) |
| Host Channels | 4 |
| Total Array Capacity | 240 TB |
| Storage Controller | |
| Data Transfer Rate | 10 GBps |
| Installed Qty | 2 |
| Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Max Storage Devices Qty | 24 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, JBOD |
| Type | RAID (iSCSI) |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| System Requirements | |
| OS Required | Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Apple macOS Sierra 10.12.6, Apple macOS Ventura 13.1, Red Hat Enterprise Linux 6.6, Red Hat Enterprise Linux 6.7, Red Hat Enterprise Linux 6.8, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 7.2, Red Hat Enterprise Linux 7.4, SuSE Linux Enterprise Server 11 SP4, SuSE Linux Enterprise Server 12 SP1, VMware vSphere Hypervisor 6.0 (ESXi), VMware vSphere Hypervisor 6.5 (ESXi), VMware vSphere Hypervisor 6.7 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor (ESXi) 8.0, Citrix Hypervisor 7.0 LTSR, Citrix Hypervisor 7.1 LTSR, Citrix Hypervisor 8.0, Citrix Hypervisor 8.1, Citrix Hypervisor 8.2 LTSR |
