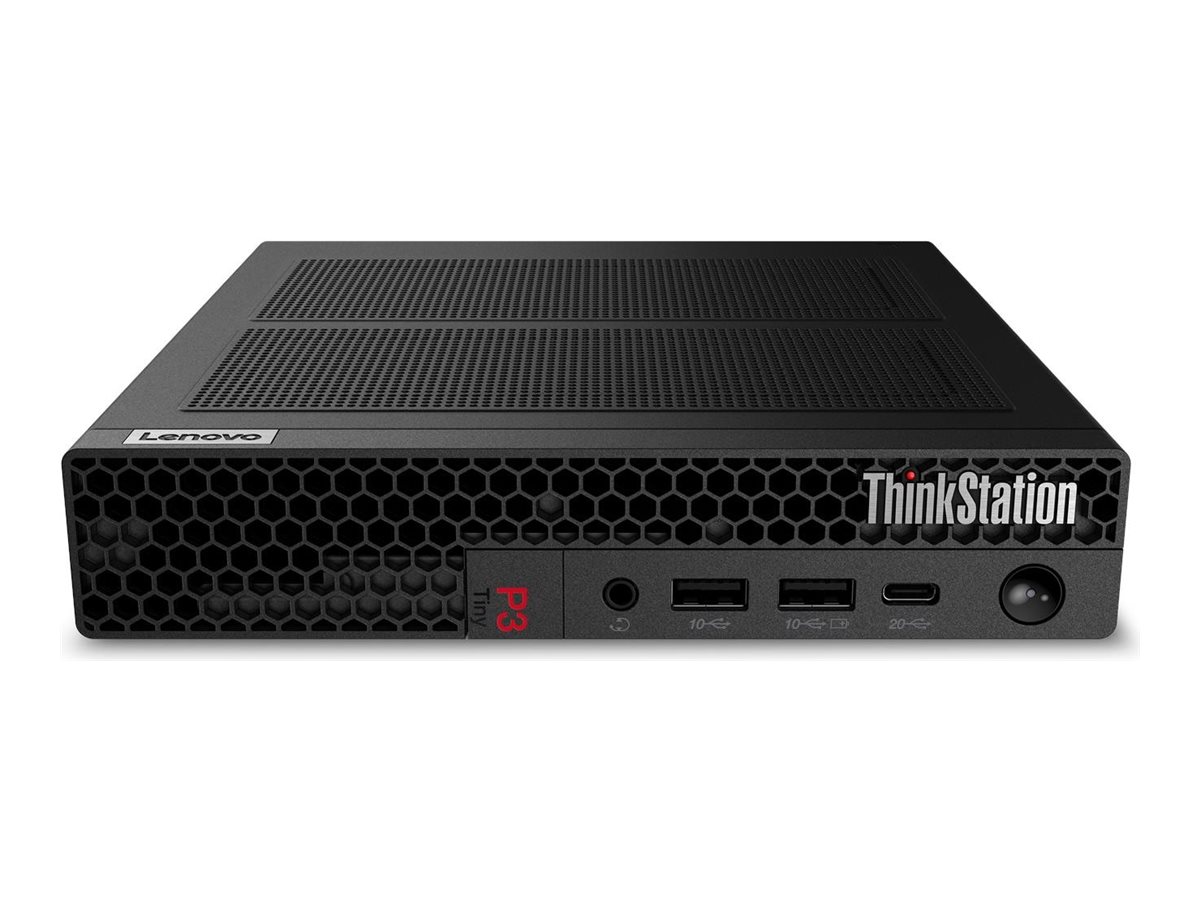

Lenovo ThinkStation P3 Gen 2 30K6

$6,717.00
Lenovo ThinkStation P3 Gen 2 30K6
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Tiny 1 x Core Ultra 9 285 / up to 5.6 GHz
  • RAM 64 GB
  • SSD 512 GB
  • TCG Opal Encryption, Performance
  • RTX A400
Lenovo ThinkStation P3 Gen 2 30K6
  • Tiny 1 x Core Ultra 9 285 / up to 5.6 GHz
  • RAM 64 GB
  • SSD 512 GB
  • TCG Opal Encryption, Performance
  • RTX A400
  • Gigabit Ethernet
  • Win 11 Pro
  • monitor: none
  Additional Details
Price: $6,717.00
Mfr Part #: 30K6S1AW00
SHI Part #: 50643676
Category: Desktop computers
UNSPSC: 43211507
Manufacturer: Lenovo
Product Type: Hardware
General Information
CategoryDesktop computers
DescriptionLenovo ThinkStation P3 Gen 2 30K6 - Tiny 1 x Core Ultra 9 285 / up to 5.6 GHz - RAM 64 GB - SSD 512 GB - TCG Opal Encryption, Performance - RTX A400 - Gigabit Ethernet - Win 11 Pro - monitor: none
ManufacturerLenovo
UNSPSC43211507
Main Specifications
Chassis / Form FactorUltra small form factor
Dimensions & Weight / Depth18.29 cm
Dimensions & Weight / Height3.7 cm
Dimensions & Weight / Weight1.4 kg
Dimensions & Weight / Width17.9 cm
Display / TypeNone.
Hard Drive / Capacity512 GB
Hard Drive / InterfacePCI Express 4.0 x4
Hard Drive / Interface TypePCI Express 4.0 x4
Header / BrandLenovo
Mainboard / Chipset TypeIntel Q870
Mainboard / Processor SocketFCLGA1851 Socket
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeWindows 11 Pro
Packaged Quantity1
Processor / Clock Speed2.5 GHz
Processor / GenerationSeries 2
Processor / ManufacturerIntel
Processor / Number of Cores24-core
Processor / Processor Number285
Processor / TypeCore Ultra 9
RAM / Data Integrity CheckNon-ECC
RAM / Form FactorSO-DIMM 262-pin
RAM / TechnologyDDR5 SDRAM
System / Hard Drive Capacity512 GB
System / TypeWorkstation
Video Memory / TechnologyGDDR6 SDRAM
Video Output / Graphics ProcessorNVIDIA RTX A400 / Intel Graphics
Audio Output
Compliant StandardsHigh Definition Audio
Cache Memory
Cache Per Processor36 MB
Installed SizeL3 cache - 36 MB
Dimensions & Weight
Depth18.29 cm
Height3.7 cm
Weight1.4 kg
Width17.9 cm
Environmental Parameters
Humidity Range Operating20 - 80%
Max Operating Temperature35 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Interfaces
  • 1 x USB-C 3.2 Gen 2x2 (1 front) (data only)
  • 1 x USB 3.2 Gen 2 (1 front) (Always On)
  • 3 x USB 3.2 Gen 2 (1 front, 2 rear)
  • 1 x USB 3.2 Gen 2 (1 rear) (supports SmartPower On)
  • 1 x headphones/microphone (1 front)
  • 1 x USB 3.2 Gen 1 (1 rear)
  • 1 x HDMI (1 rear) (TMDS compatible)
  • 1 x DisplayPort 1.4 (1 rear)
  • 1 x LAN (Gigabit Ethernet) (1 rear)
  • 4 x Mini DisplayPort 1.4a (4 rear)
  • 3 x HDMI (on supplied cable)
Slots
  • 1 (total) / 0 (free) x PCIe 4.0 x16 - low-profile (x8 mode)
  • 1 (total) / 1 (free) x PCIe 4.0 x4 - low-profile
  • 3 (total) / 2 (free) x M.2 Card (for SSD)
  • 1 (total) / 1 (free) x M.2 Card (for WLAN)
General
Built-in DevicesSpeaker
Embedded SecurityDiscrete Trusted Platform Module (TPM 2.0) Security Chip
Product Form FactorTiny
TypeWorkstation
Graphics Controller
Graphics ProcessorNVIDIA RTX A400 / Intel Graphics - up to 8 TOPS
Multi-GPU Configuration1 single GPU card / integrated GPU
Video InterfacesMini DisplayPort
Video Memory4 GB GDDR6 SDRAM
Hard Drive
Capacity1 x 512 GB
FeaturesTCG Opal Encryption, Performance
Interface TypePCI Express 4.0 x4
ManufacturerWestern Digital
TypeSSD - M.2 2280
Input Device
TypeMouse, keyboard
Keyboard
InterfaceUSB
Keyboard NameLenovo AI Keyboard
Miscellaneous
Cables IncludedMini DisplayPort-HDMI cable (3 pcs.)
Compliant StandardsRoHS, FIPS 140-2, FSC, TCG Certified
Included AccessoriesPCI Express riser card
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately), chassis intrusion switch
Monitor
Monitor TypeNone.
Mouse
InterfaceUSB
Mouse NameLenovo Calliope Mouse
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Ethernet ControllerIntel I219-LM
FeaturesWake on LAN (WoL)
Neural Processor Unit (NPU)
AI Datatype Support on NPUINT8
AI Software Frameworks Supported by NPUDirectML, OpenVINO, WebNN, WindowsML, ONNX RT
Neural Processor Unit (NPU)Intel AI Boost
NPU Performance Up To (TOPS)13 TOPS
Sparsity SupportYes
Total Processor Performance Up To (TOPS)36 TOPS
Windows Studio Effects SupportYes
Operating System / Software
OS ProvidedWindows 11 Pro
Optical Storage
TypeNo optical drive
Power
Device TypePower adapter
Efficiency90%
Power Provided300 Watt
Voltage RequiredAC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset TypeIntel Q870
Clock Speed2.5 GHz (P-core) / 1.9 GHz (E-core)
CPUIntel Core Ultra 9 (Series 2) 285
CPU Qty1
CPU SocketFCLGA1851 Socket
L2 cache40 MB
Max CPU Qty1
Max Turbo Speed5.6 GHz (P-core) / 4.6 GHz (E-core)
Number of Cores24-core
Processor Main FeaturesIntel Smart Cache
RAM
Configuration Features2 x 32 GB
Effective Memory Speed5600 MT/s
FeaturesDual channel memory architecture
Form FactorSO-DIMM 262-pin
Installed Size64 GB (installed) / 128 GB (max)
Rated Memory Speed5600 MT/s
Slots2 (total) / 0 (empty)
TechnologyDDR5 SDRAM - non-ECC
Storage Controller
Controller Interface TypePCI Express (NVMe)
RAID LevelRAID 0, RAID 1, RAID 5
Type1 x NVMe
Sustainability Information
Carbon Footprint365 kg carbon emissions (EU)
PAIA Version1.4.7
TCO CertifiedTCO Certified, generation 10, for desktops
Total CF/unit Standard Deviation (kg CO2e)122
