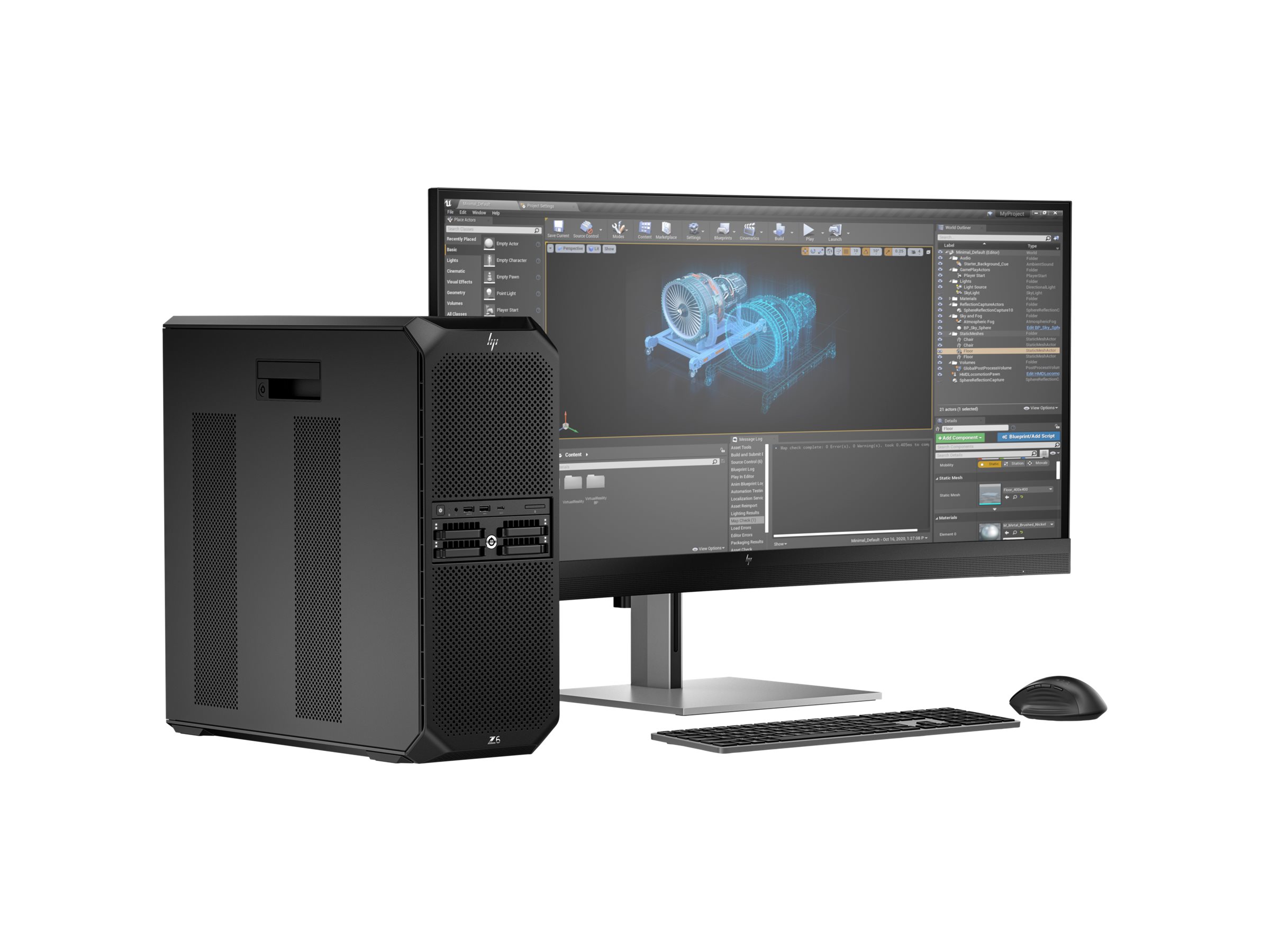

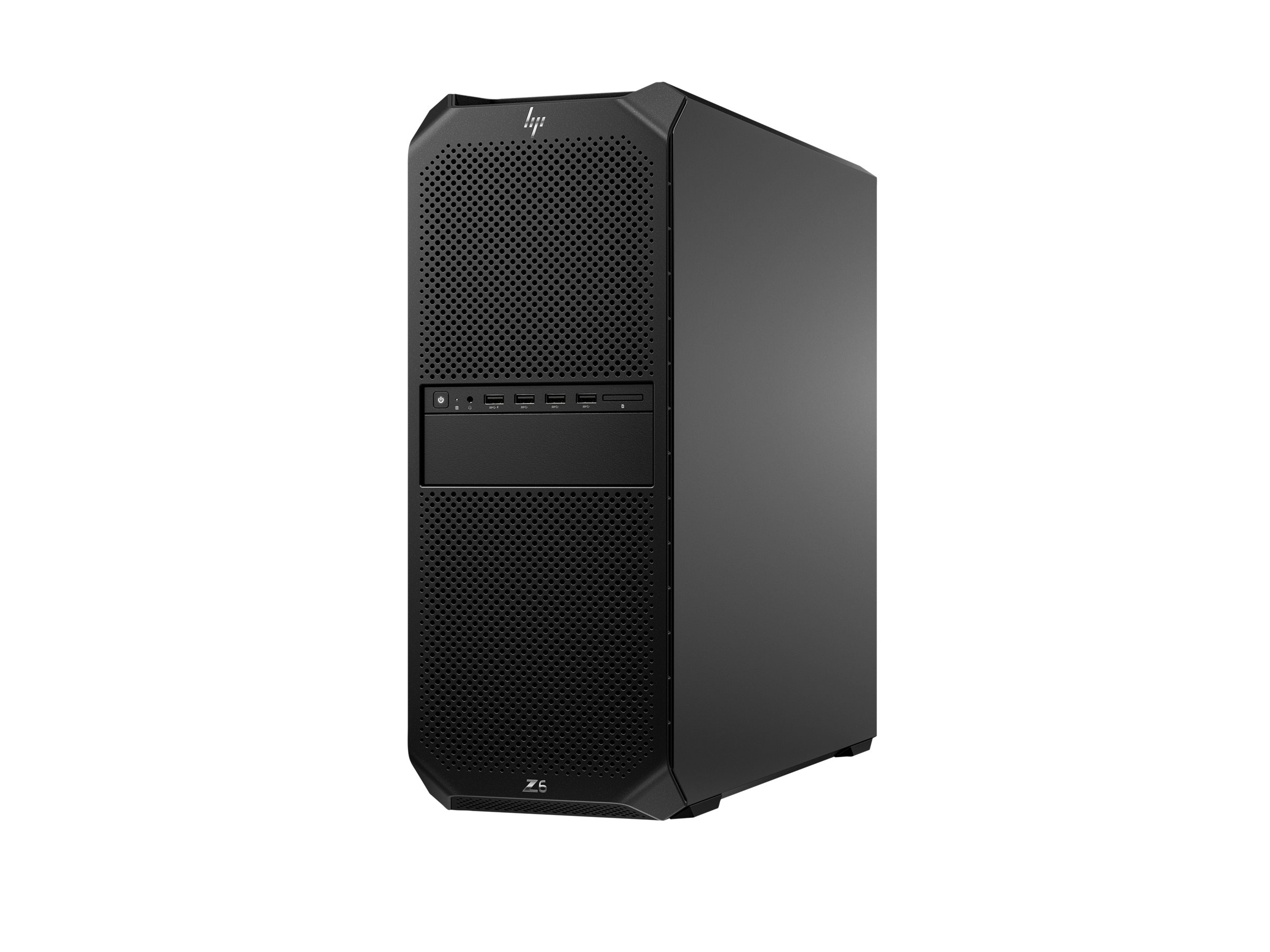

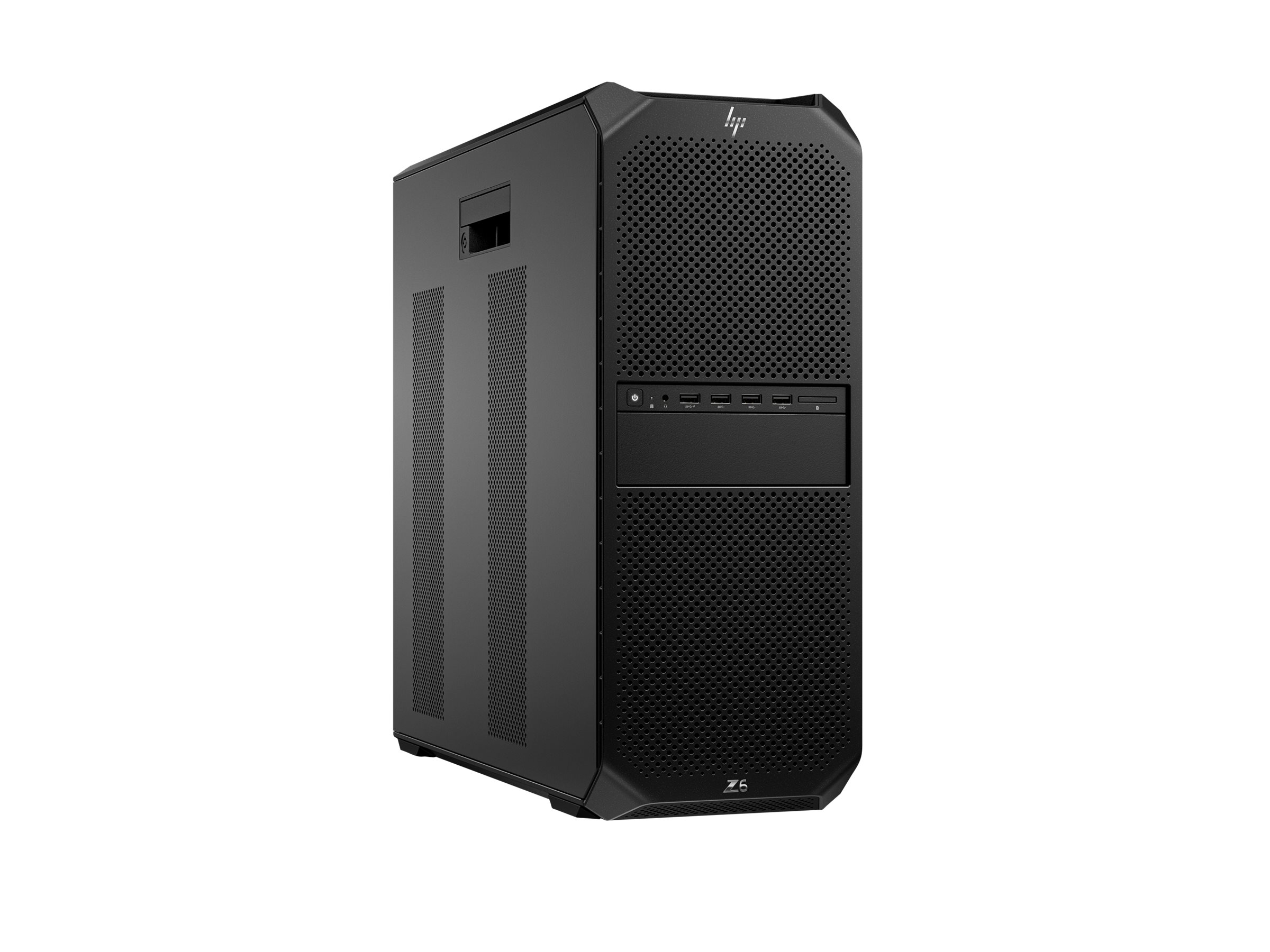

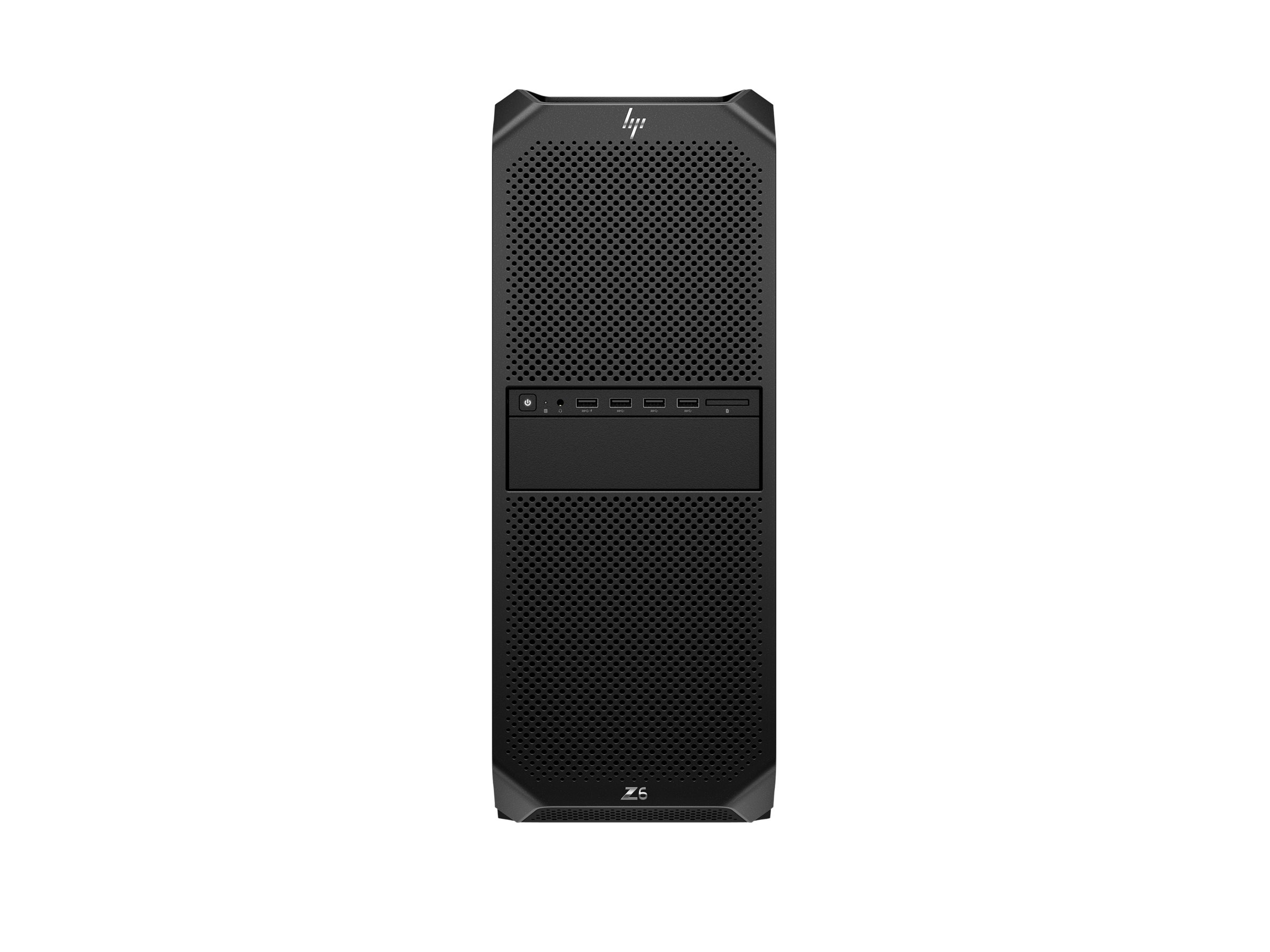

HP Workstation Z6 G5 A

Login for Price
HP Workstation Z6 G5 A
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • AI Workstation
  • tower 4U
  • 1 x Ryzen ThreadRipper PRO 9955WX / up to 5.4 GHz
  • RAM 32 GB
  • SSD 1 TB
HP Workstation Z6 G5 A
  • AI Workstation
  • tower 4U
  • 1 x Ryzen ThreadRipper PRO 9955WX / up to 5.4 GHz
  • RAM 32 GB
  • SSD 1 TB
  • HP Z Turbo Drive, TLC
  • NVIDIA RTX 2000 Ada
  • Gigabit Ethernet
  • Win 11 Pro
  • monitor: none
  • keyboard: US
  • black
  • Smart Buy
  • with HP Wolf Pro Security Edition (1 year)
  Additional Details
Mfr Part #: C9JR0UT#ABA
SHI Part #: 50630305
Category: Workstation
UNSPSC: 43211515
Manufacturer: HP, Inc.
Product Type: Hardware
General Information
CategoryWorkstation
DescriptionHP Workstation Z6 G5 A - AI Workstation - tower 4U - 1 x Ryzen ThreadRipper PRO 9955WX / up to 5.4 GHz - RAM 32 GB - SSD 1 TB - HP Z Turbo Drive, TLC - NVIDIA RTX 2000 Ada - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - black - Smart Buy - with HP Wolf Pro Security Edition (1 year)
ManufacturerHP, Inc.
UNSPSC43211515
Main Specifications
A/V Interface TypePCI Express 4.0 x8
Chassis / Form FactorTower
Dimensions & Weight / Depth46.5 cm
Dimensions & Weight / Height44.45 cm
Dimensions & Weight / Weight13.2 kg
Dimensions & Weight / Width16.9 cm
Display / TypeNone.
Hard Drive / Capacity1 TB
Hard Drive / InterfacePCI Express 4.0
Hard Drive / Interface TypePCI Express 4.0
Header / BrandHP
Header / Country KitsUnited States
Header / LocalizationEnglish
Mainboard / Chipset TypeAMD PRO 695
Mainboard / Processor SocketSocket SP6
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeWindows 11 Pro
Packaged Quantity1
Processor / Clock Speed4.5 GHz
Processor / ManufacturerAMD
Processor / Number of Cores16-core
Processor / Processor Number9955WX
Processor / TypeRyzen ThreadRipper PRO
RAM / Data Integrity CheckECC
RAM / Form FactorDIMM 288-pin
RAM / TechnologyDDR5 SDRAM
System / Hard Drive Capacity1 TB
System / TypeWorkstation
Video Memory / TechnologyGDDR6 SDRAM
Video Output / Graphics ProcessorNVIDIA RTX 2000 Ada
Audio Output
Compliant StandardsHigh Definition Audio
Cache Memory
Cache Per Processor64 MB
Installed SizeL3 cache - 64 MB
Dimensions & Weight
Depth46.5 cm
Height44.45 cm
Weight13.2 kg
Width16.9 cm
Dimensions & Weight (Shipping)
Shipping Depth59.3 cm
Shipping Height63 cm
Shipping Weight18.3 kg
Shipping Width31.3 cm
Environmental Parameters
Humidity Range Operating8 - 85% RH (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Bays
  • 1 (total) / 1 (free) x external 5.25"
  • 1 (total) / 1 (free) x internal 5.25"

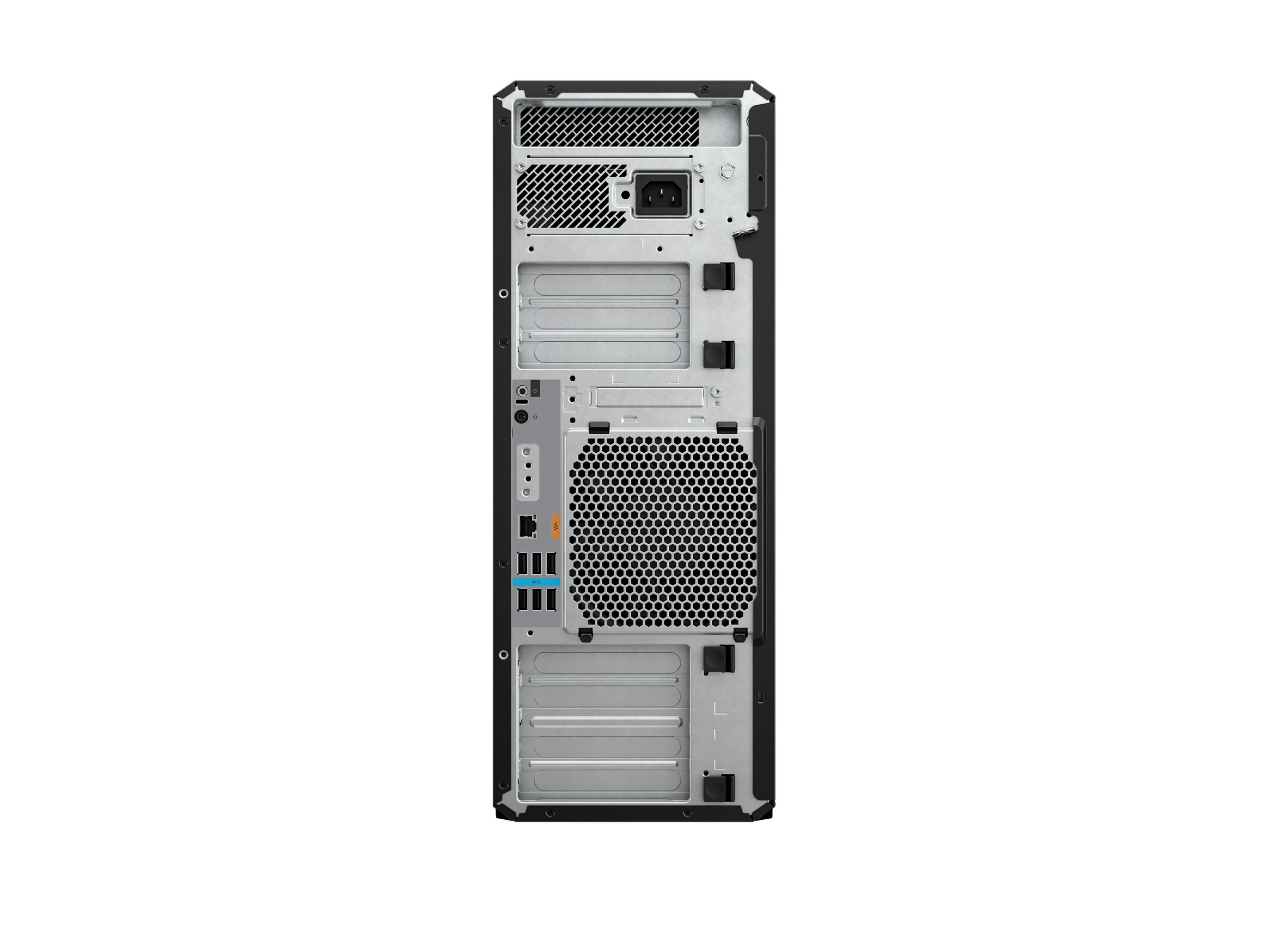

Interfaces
  • 1 x headphones/microphone (1 in front) (CTIA headset support)
  • 4 x USB 3.2 Gen 1 - Type A (4 front) (one of them is charging)
  • 1 x audio line-out/line-in (1 rear) (CTIA headset support)
  • 6 x USB 3.2 Gen 1 - Type A (6 rear)
  • 1 x LAN (Gigabit Ethernet) - RJ-45 (1 rear)
  • 4 x Mini DisplayPort 1.4a (4 rear)
Slots
  • 4 (total) / 3 (free) x PCIe 5.0 x16
  • 2 (total) / 2 (free) x PCIe 5.0 x4
  • 1 (total) / 0 (free) x PCIe 4.0 x16
  • 3 (total) / 3 (free) x PCIe 4.0 x4
  • 2 (total) / 2 (free) x M.2 Card (PCIe 5.0 x4 mode)
  • 2 (total) / 1 (free) x M.2 Card (PCIe 4.0 x4 mode)
General
AI LevelAI Workstation
Bundled withHP Wolf Pro Security Edition (1 year)
ColorBlack
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
LocalizationLanguage: English / region: United States
Product Form FactorTower - 4U
SensorsHP Tamper Lock
TypeWorkstation
Graphics Controller
Bandwidth224 GBps
Graphics ProcessorNVIDIA RTX 2000 Ada
Interface TypePCIe 4.0 x8
Max Monitors Supported4
Video InterfacesDisplayPort
Video Memory16 GB GDDR6 SDRAM
Hard Drive
Capacity1 x 1 TB
FeaturesHP Z Turbo Drive, triple-level cell (TLC)
Interface TypePCI Express 4.0
TypeSSD - M.2
Input Device
TypeMouse, keyboard
Keyboard
Keyboard NameHP 320K
Localization & LayoutUS
Miscellaneous
Compliant StandardsRoHS, Green Mark, Common Criteria EAL4+, CECP, CEL, SEPA, low halogen, ACPI 6.0, Korea Eco-Label
Manufacturer Selling ProgramHP Smart Buy
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately), chassis intrusion sensor
Monitor
Monitor TypeNone.
Mouse
Mouse NameHP 320M
Networking
Compliant StandardsDASH
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Ethernet ControllerRealtek RTL8111EPP-CG
FeaturesWake on LAN (WoL), PXE 2.1 support
Operating System / Software
OS ProvidedWindows 11 Pro English
SoftwareHP PC Hardware Diagnostics UEFI, HP Secure Erase, HP BIOSphere, HP Sure Run, HP Sure Recover, HP Sure Start
Optical Storage
TypeNo optical drive
Power
Device TypePower supply
Efficiency90%
Installed Qty1
Power Factor CorrectionYes (active)
Power Provided775 watt
Processor / Chipset
Chipset TypeAMD PRO 695
Clock Speed4.5 GHz
CPUAMD Ryzen ThreadRipper PRO 9955WX
CPU Qty1
CPU SocketSocket SP6
CPU UpgradabilityUpgradable
Max CPU Qty1
Max Turbo Speed5.4 GHz
Number of Cores16-core
Processor Main Features350W TDP
RAM
Configuration Features2 x 16 GB
Effective Memory Speed6400 MT/s
FeaturesRegistered
Form FactorDIMM 288-pin
Installed Size32 GB (installed) / 1 TB (max)
Slots8 (total) / 6 (empty)
TechnologyDDR5 SDRAM - ECC
Storage Controller
Controller Interface TypeSATA 6Gb/s / PCIe 4.0 x4 (NVMe)
RAID LevelRAID 0, RAID 1, RAID 5, RAID 10
Type1 x SATA/NVMe
Sustainability Information
ENERGY STAR CertifiedYes
EPEAT CompliantEPEAT Gold
TCO CertifiedTCO Certified Desktops 9
