CPI Switched Pro eConnect EA-6295-C
MSRP$2,642.45
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

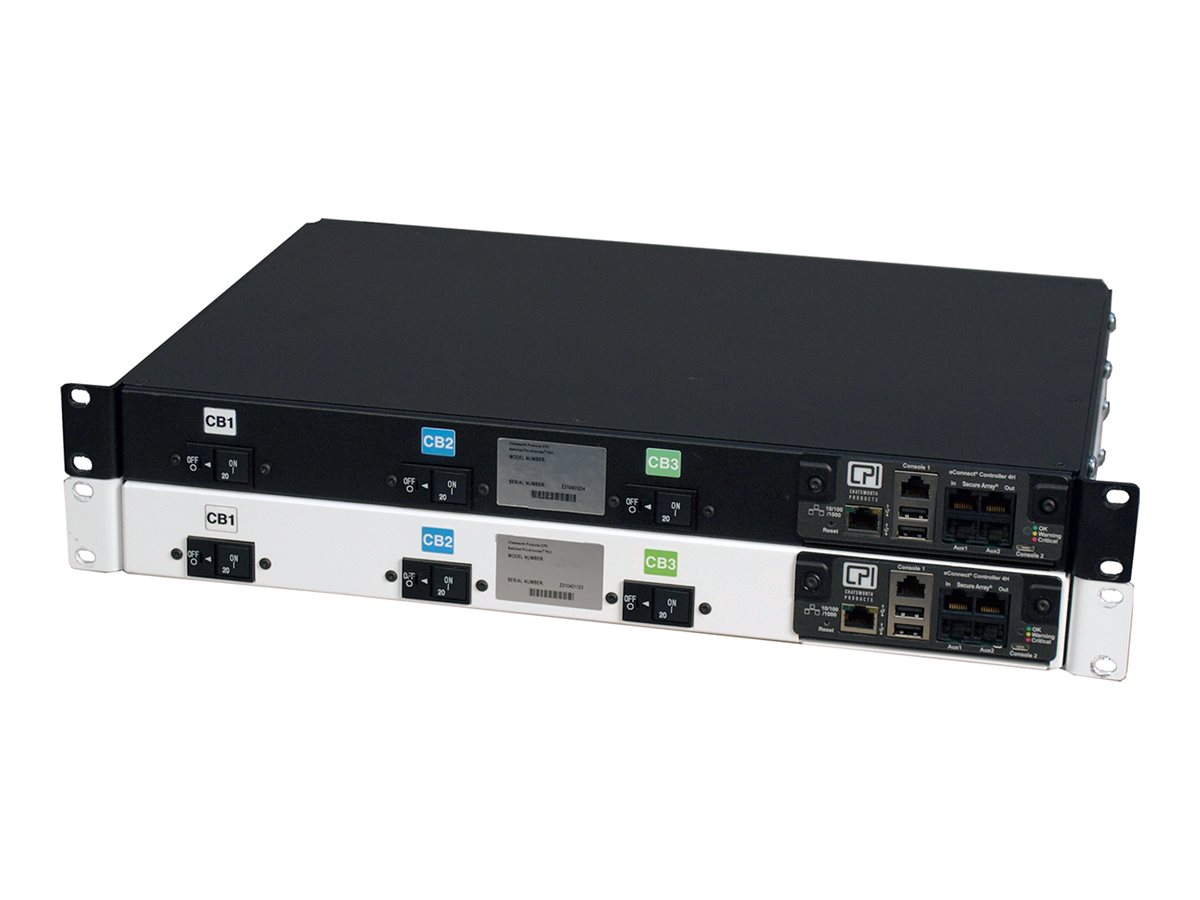

CPI Switched Pro eConnect EA-6295-C
- Power distribution unit (rack-mountable)
- AC 208 V
- 8.6 kW
- 3-phase
- Ethernet 10/100/1000, serial, USB
- input: NEMA L5-30P
- output connectors: 12 (8 x IEC 60320 C13, 4 x IEC 60320 C19)
- 1U
- 19"
- 3 m cord
- black
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,642.45 |
| Mfr Part #: | EA-6295-C |
| SHI Part #: | 50616170 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Chatsworth |
| Product Type: | Hardware |
| Product Line: | Chatsworth Products |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CPI Switched Pro eConnect EA-6295-C - Power distribution unit (rack-mountable) - AC 208 V - 8.6 kW - 3-phase - Ethernet 10/100/1000, serial, USB - input: NEMA L5-30P - output connectors: 12 (8 x IEC 60320 C13, 4 x IEC 60320 C19) - 1U - 19" - 3 m cord - black - TAA Compliant |
| Manufacturer | Chatsworth |
| MSRP | $2,642.45 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 30.48 cm |
| Dimensions & Weight / Height | 4.369 cm |
| Dimensions & Weight / Weight | 8.2 kg |
| Dimensions & Weight / Width | 43.18 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | CPI |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 12 |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 30.48 cm |
| Height | 4.369 cm |
| Weight | 8.2 kg |
| Width | 43.18 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | IEEE 802.1x, IEC 62368, UL 489, FCC Part 15 A, EN55022, RoHS |
| Features | Tool-less, for indoor use, password security, Secure Array technology, locking outlets, replaceable controller, LCD display, environmental sensor ready, electronic lock integration ready, simplified load balancing, electronic lock integration, vertical orientation, monitored per outlet, current meter, voltage monitoring, power measuring, energy meter, power factor meter, individually switchable sockets, grounded, color-coded labels, firmware upgradable, LED indicators, switched per outlet, outlet grouping, SD-card transfers PDU identity, Branch Circuit Monitoring System (BCMS), Hydraulic-Magnetic breakers, 5kAIC breaker, bistable latching relays, field-replaceable module, Zero Touch Provisioning (ZTP) |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, serial, USB |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2, LDAP, RADIUS, HTTPS, CLI, HTTP, SSH, RESTful API |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L5-30P |
| Input Voltage | AC 208 V |
| Input Wiring | 3-phase |
| Max Electric Current | 30 A |
| Output Voltage | AC 208 V |
| Power Capacity | 8.6 kW |
| Power Output Connectors Details |
|
