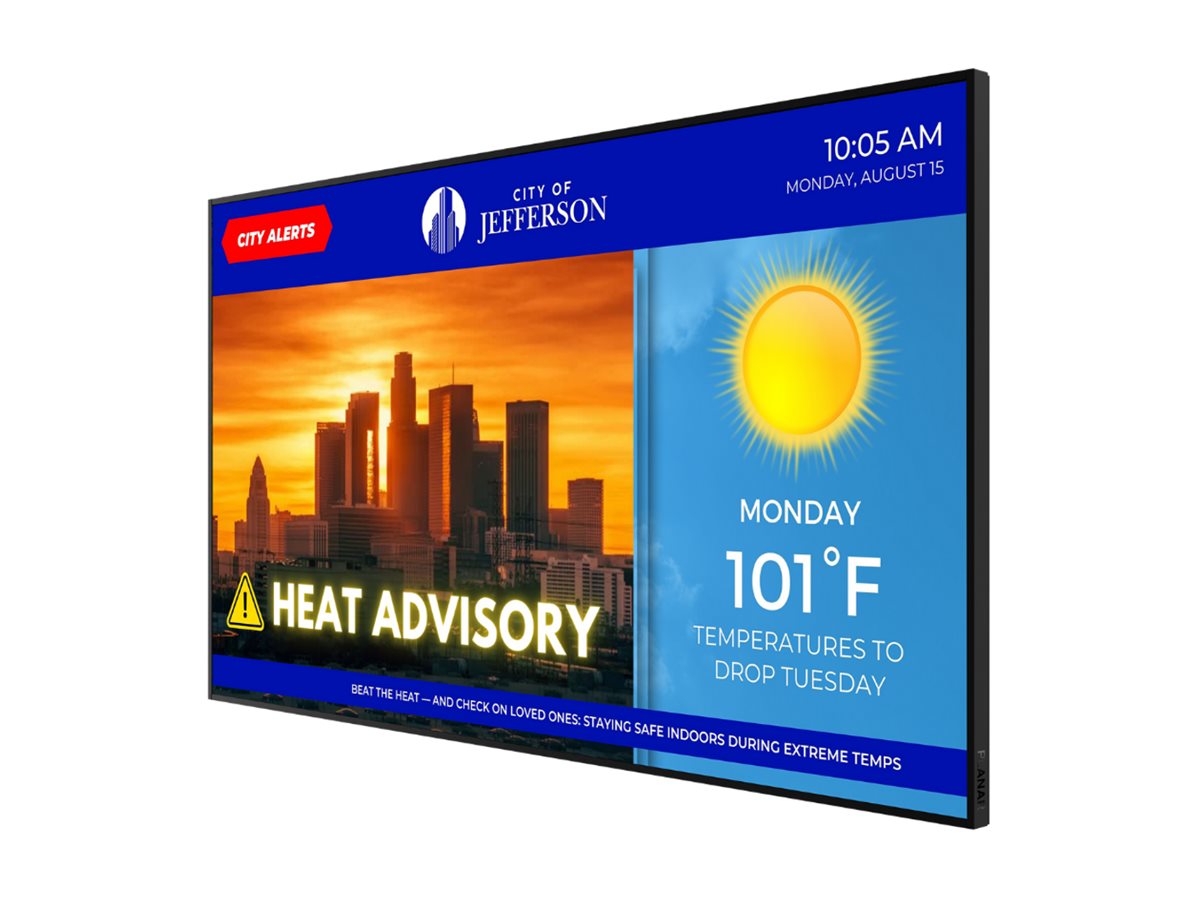

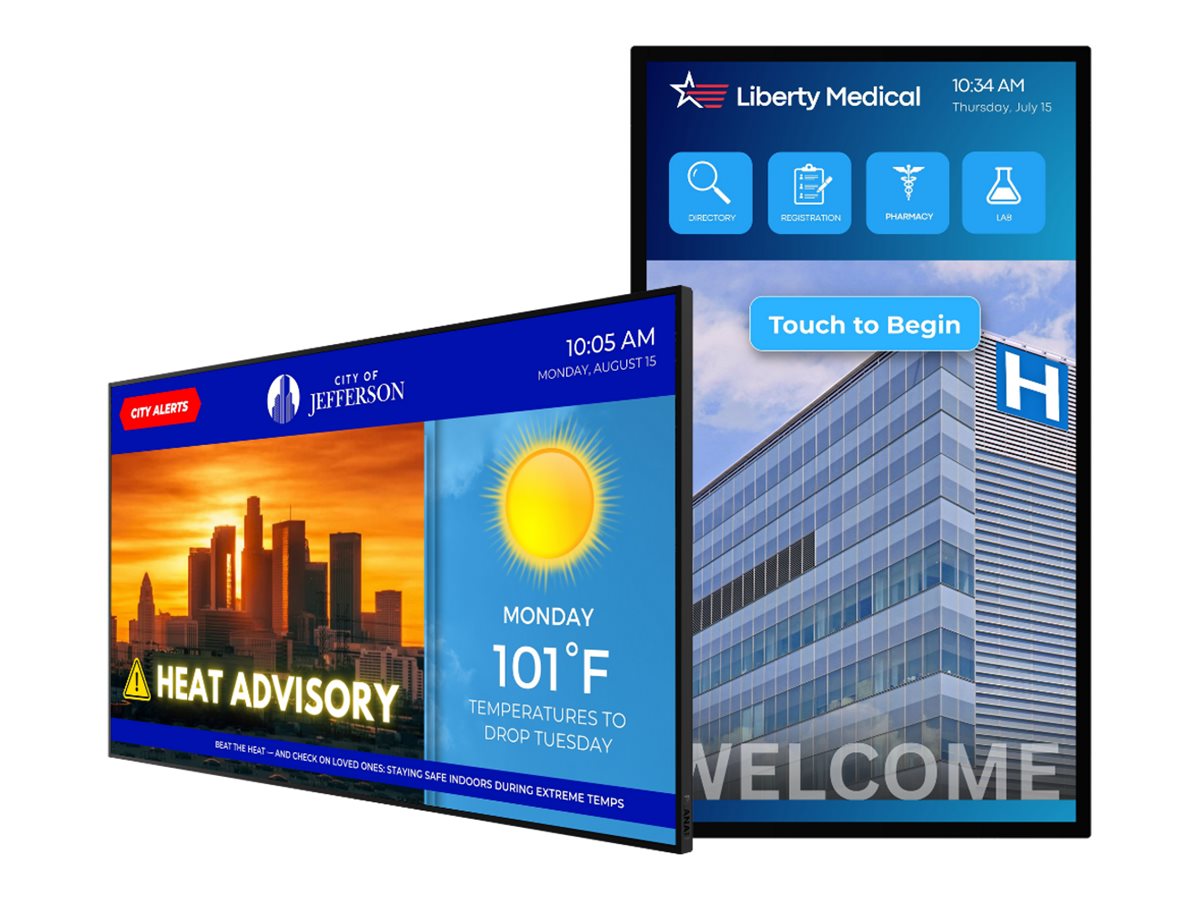

Planar URP862-ERO-T - 86" Diagonal Class UltraRes P Series LED-backlit LCD display
MSRP$8,512.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Planar URP862-ERO-T - 86" Diagonal Class UltraRes P Series LED-backlit LCD display
- interactive digital signage
- with touchscreen (multi touch)
- 4K UHD (2160p) 3840 x 2160
- HDR
- direct-lit LED
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $8,512.00 |
| Mfr Part #: | 998-4239-00 |
| SHI Part #: | 50608499 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | Planar |
| Product Type: | Hardware |
| Product Line: | Planar Systems |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | Planar URP862-ERO-T - 86" Diagonal Class UltraRes P Series LED-backlit LCD display - interactive digital signage - with touchscreen (multi touch) - 4K UHD (2160p) 3840 x 2160 - HDR - direct-lit LED - TAA Compliant |
| Manufacturer | Planar |
| MSRP | $8,512.00 |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.85 cm |
| Dimensions & Weight / Height | 113.29 cm |
| Dimensions & Weight / Weight | 88 kg |
| Dimensions & Weight / Width | 96.26 cm |
| Display / Diagonal Size | 86 in |
| Header / Brand | Planar |
| Miscellaneous / Product Color | Black |
| Service & Support / Type | 3-year warranty |
| Television / Brightness | 700 cd/m² |
| Television / Combined with | Touchscreen (multi touch) |
| Television / Diagonal Size | 86 in |
| Television / Diagonal Size (cm) | 218 cm |
| Television / Display Format | 4K UHD (2160p) |
| Television / Image Aspect Ratio | 16:9 |
| Television / Image Contrast Ratio | 8000:1 |
| Television / PC Interface |
|
| Television / Resolution | 3840 x 2160 |
| Television / Type | LED-backlit LCD flat panel display |
| Television / Viewing Angle | 178° |
| Audio System | |
| Speaker System | 2 speakers, woofer |
| Speakers |
|
| Connections | |
| Connector Type |
|
| Dimensions & Weight Details | |
| Dimensions & Weight Details |
|
| Display | |
| Additional Features | Projected Capacitive Technology (PCAP), Planar MediaPlex Plus Processing, picture in picture (no tuner), Dual Screen, Quad Screen, 10-bit support |
| Backlight Life | 30,000 hour(s) |
| Brightness | 700 cd/m² |
| Coating | Anti-glare, 3 mm glass |
| Color Support | 1000000000 colors |
| Commercial Features | Contents Scheduling, metal enclosure |
| Display Format | 4K UHD (2160p) |
| Dynamic Contrast Ratio | 50000:1 |
| Frame Rate & Enhancement Technology | 60 Hz Frame Rate |
| Image Aspect Ratio | 16:9 |
| Image Contrast Ratio | 8000:1 |
| LCD Backlight Technology | Direct-lit LED |
| Operation Hours / Days | 24 / 7 |
| Pixel Pitch | 0.4935 mm |
| Resolution | 3840 x 2160 |
| Response Time | 8 ms |
| Viewing Angle | 178° |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 85% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Combined With | Touchscreen (multi touch) |
| Commercial Use | Yes - interactive digital signage |
| Cooling System | Fanless |
| Depth | 7.85 cm |
| Design | Fanless Design |
| Diagonal Class | 86" |
| Dimensions | Without handles |
| HDMI Ports Qty | 4 ports |
| HDR Capable | Yes |
| Height | 113.29 cm |

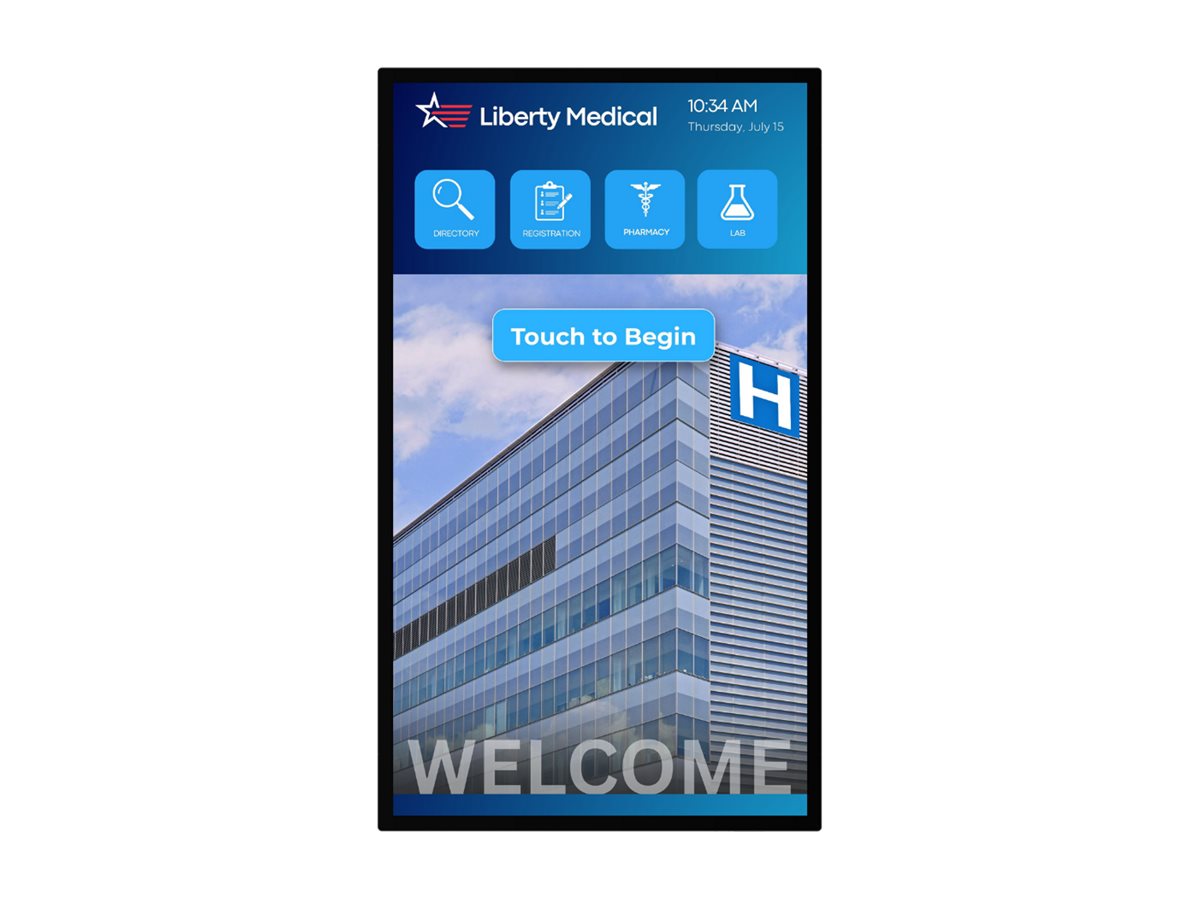

| Modes | Portrait mode, landscape mode |
| PC Interface | DisplayPort, USB, USB-C |
| Picture Enhancements | 90% Color Gamut NTSC |
| Power Consumption Operational | 190 Watt |
| Product Type | LED-backlit LCD flat panel display |
| Protection | Optical bonded glass |
| Series | UltraRes P Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| Weight | 88 kg |
| Width | 96.26 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advanced exchange program - 3 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | CEC, DisplayPort 2.0, HDCP 2.2, FCC Class A certified, cTUVus, WEEE, RoHS |
| Included Accessories | Power cord (US plug), power cord (EU plug), stylus, cable clips |
| TAA Compliant | Yes |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| LAN Protocol | Ethernet |
| Power | |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| Remote Control | |
| Type | Remote control |
| Stands & Mounts | |
| Flat Panel Mount Interface | 800 x 600 mm |
| VESA Compatibility | Yes |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
