Lenovo ThinkStation P3 Ultra Gen 2 30J3
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

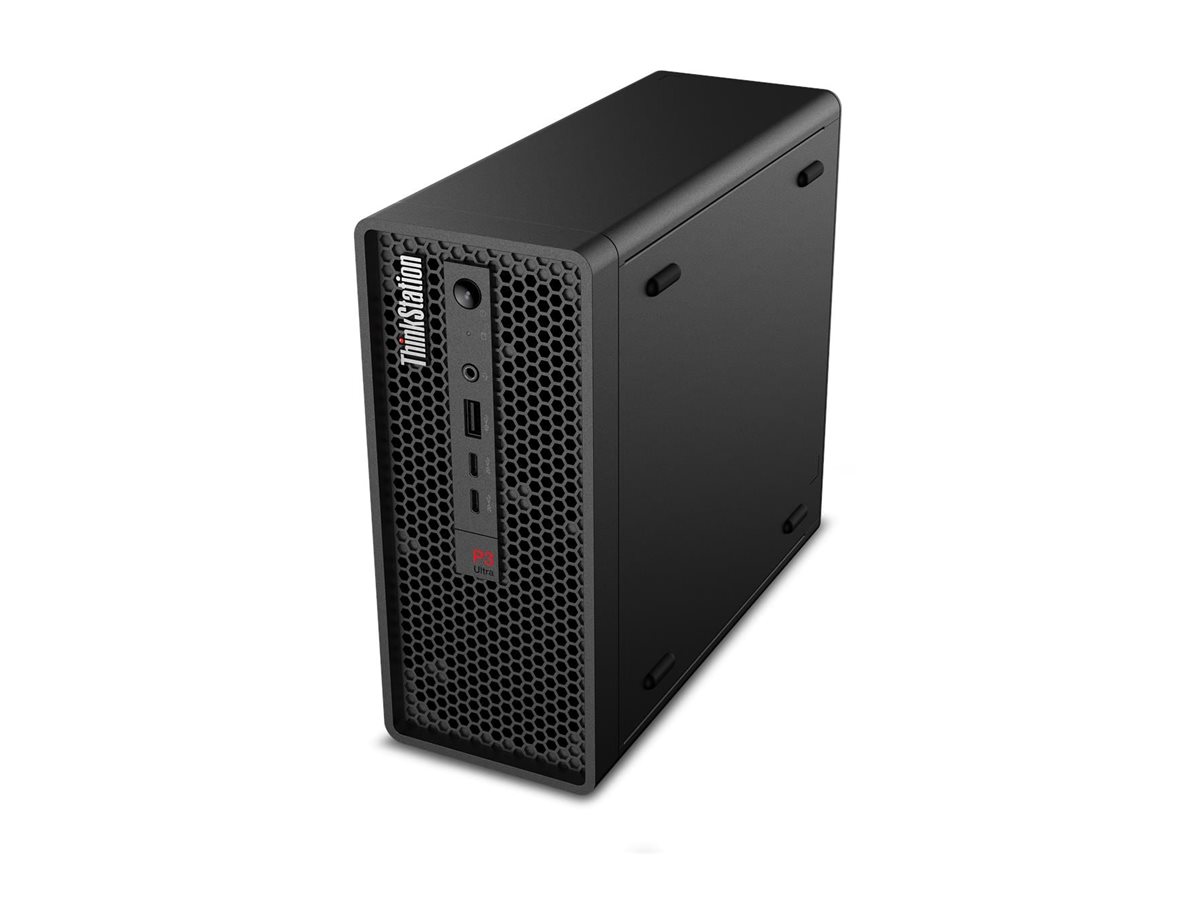

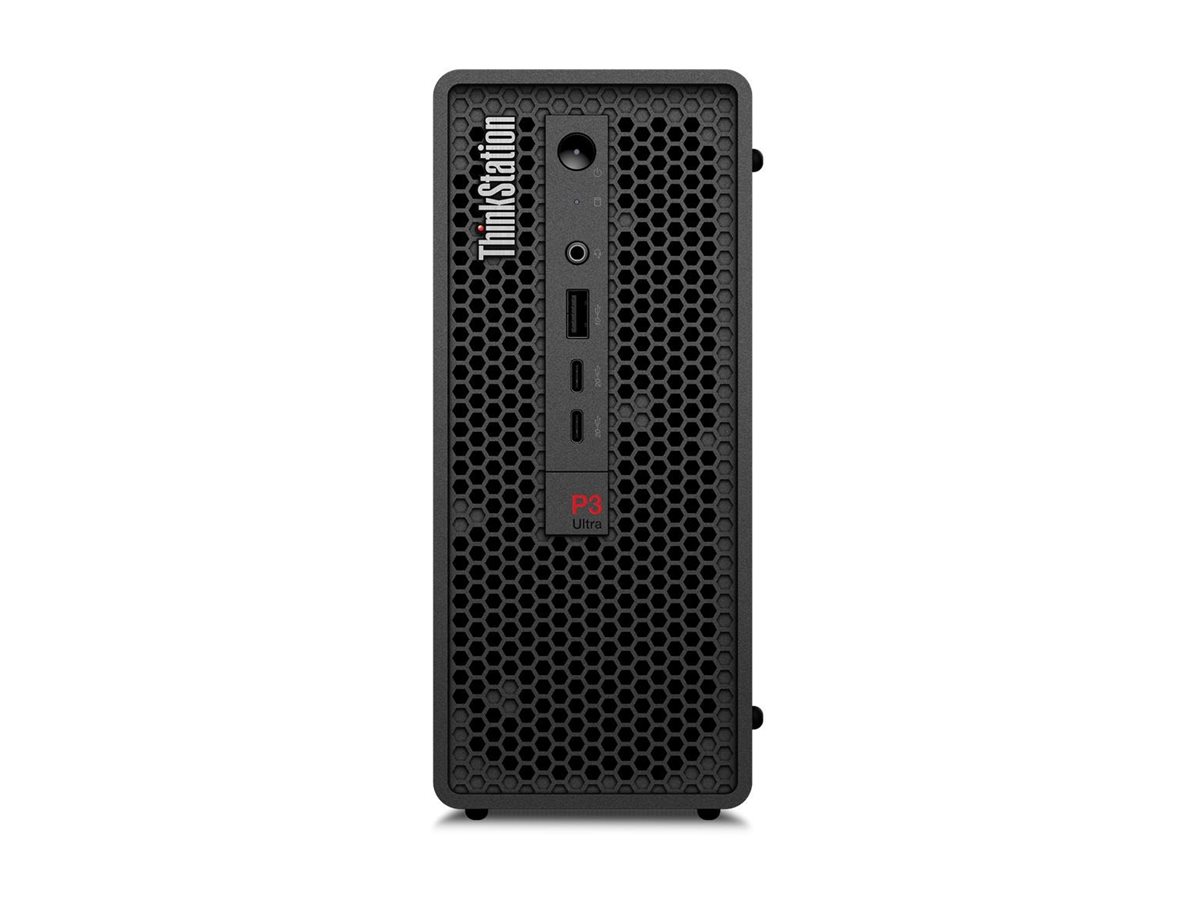

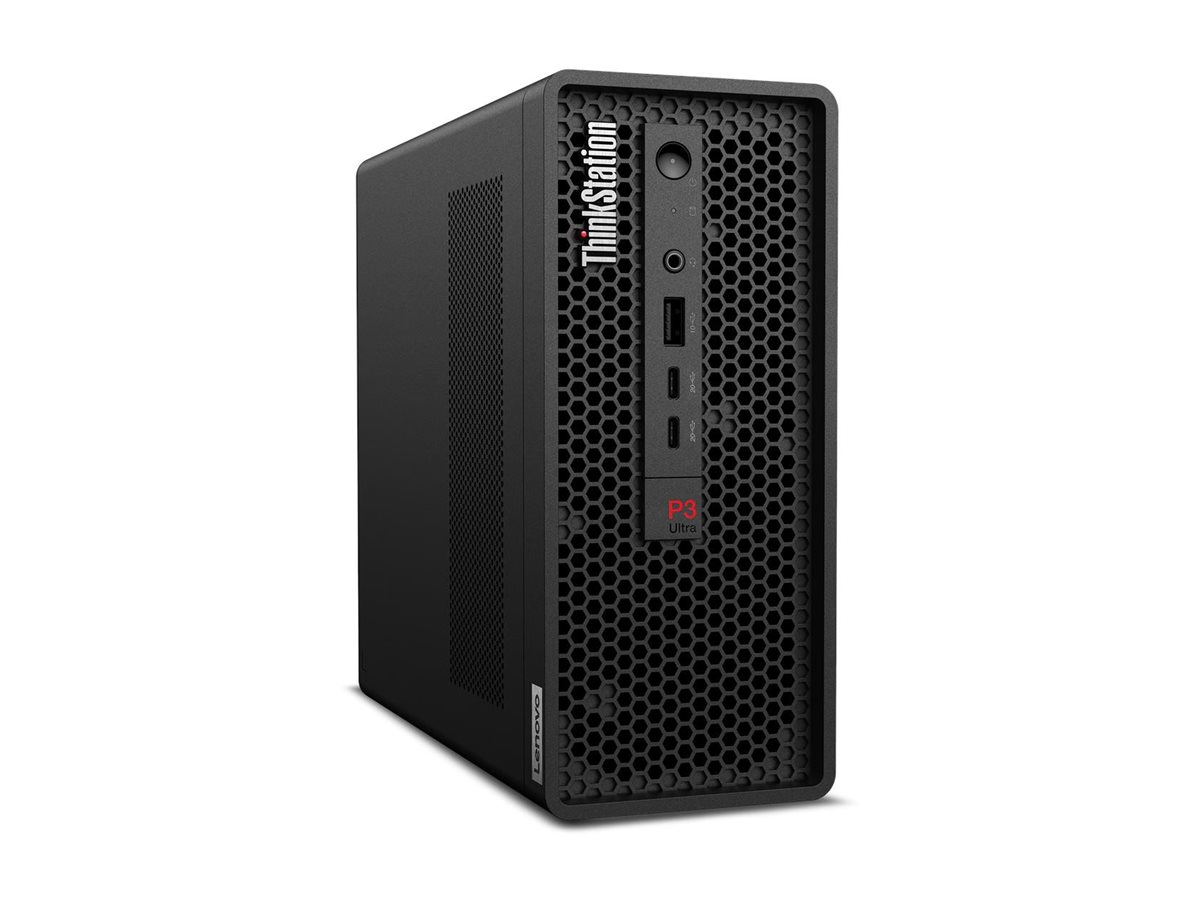

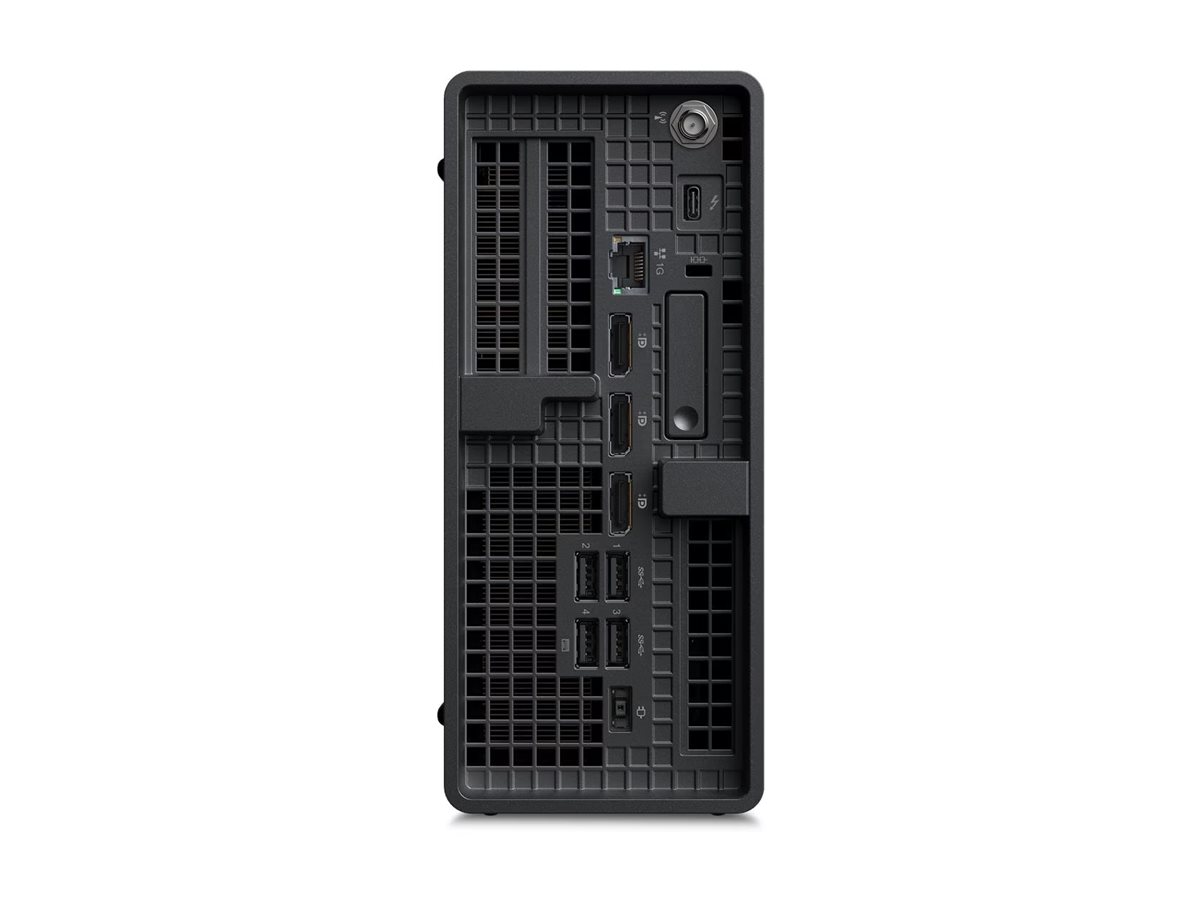

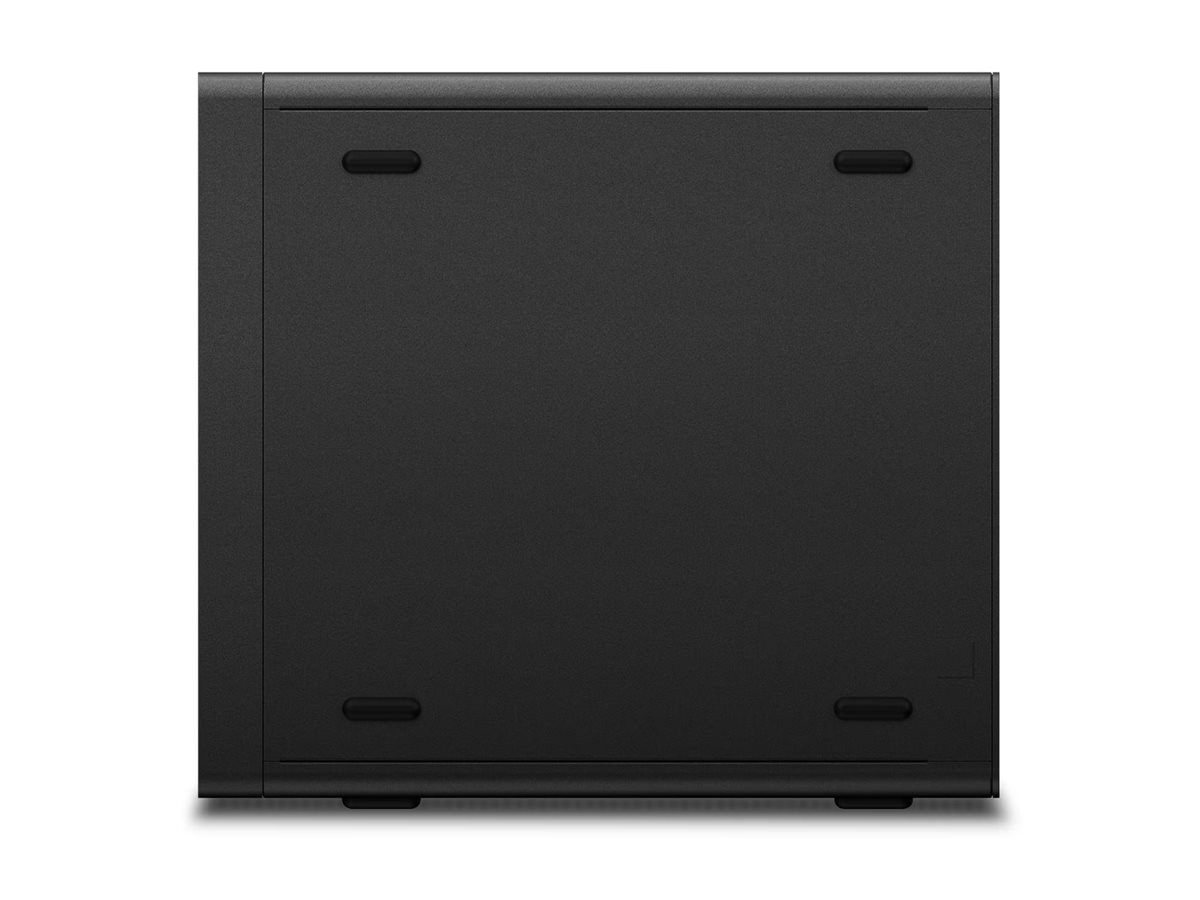

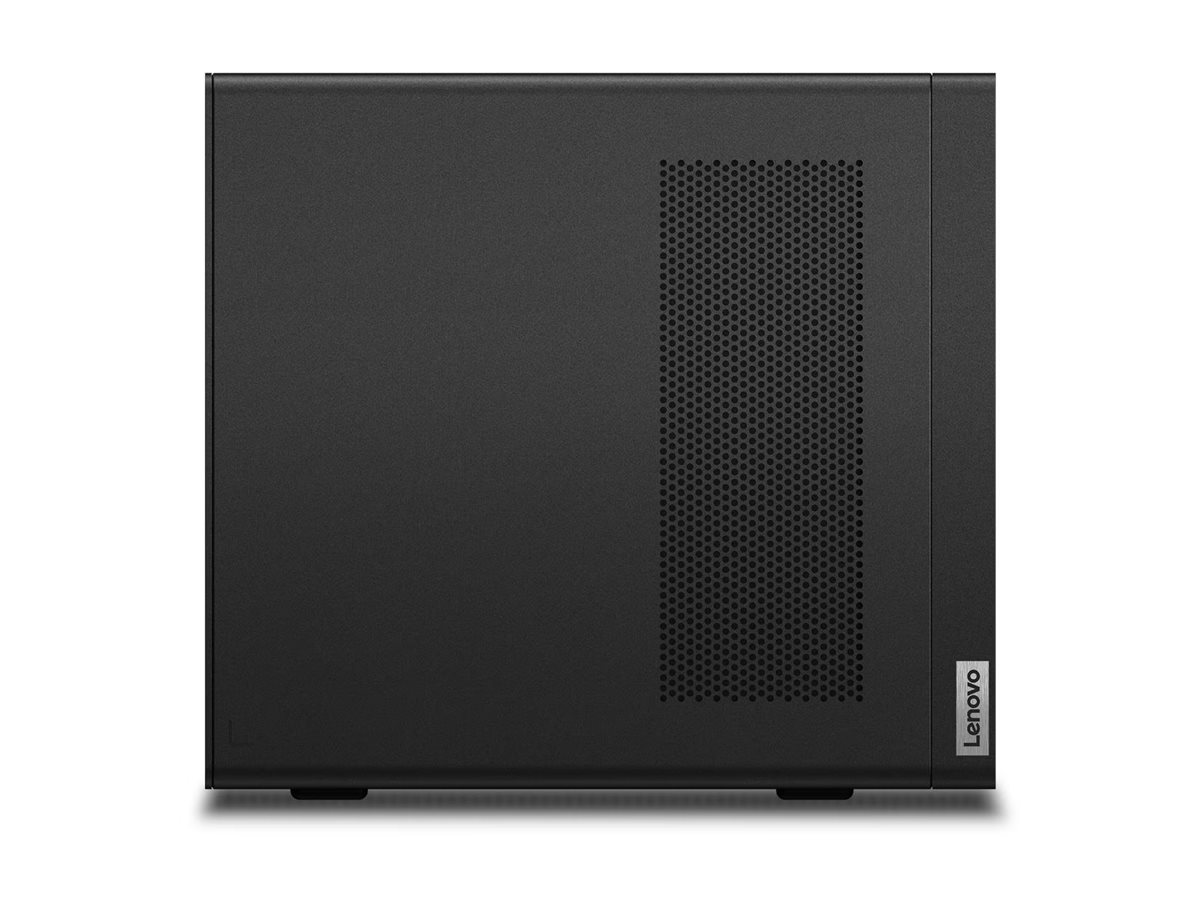

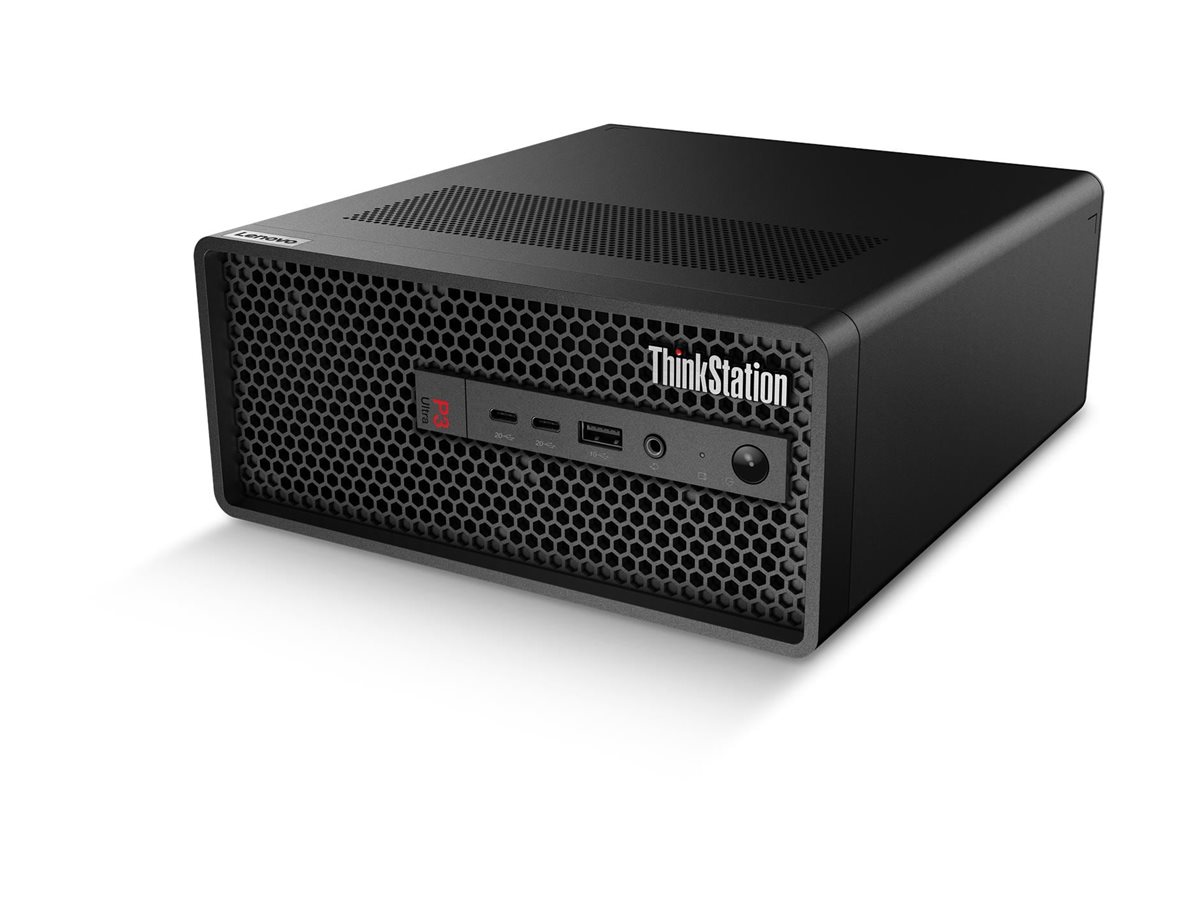

Lenovo ThinkStation P3 Ultra Gen 2 30J3
- MT 1 x Core Ultra 5 225 / up to 4.9 GHz
- RAM 16 GB
- SSD 1 TB
- TCG Opal Encryption, Performance
- Intel Graphics
- Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7)
- Win 11 IoT Enterprise LTSC
- monitor: none
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 30J3S03000 |
| SHI Part #: | 50603658 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | Lenovo ThinkStation P3 Ultra Gen 2 30J3 - MT 1 x Core Ultra 5 225 / up to 4.9 GHz - RAM 16 GB - SSD 1 TB - TCG Opal Encryption, Performance - Intel Graphics - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) - Win 11 IoT Enterprise LTSC - monitor: none |
| Manufacturer | Lenovo |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Small form factor |
| Dimensions & Weight / Depth | 22.3 cm |
| Dimensions & Weight / Height | 20.2 cm |
| Dimensions & Weight / Weight | 3.6 kg |
| Dimensions & Weight / Width | 8.7 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 1 TB |
| Hard Drive / Interface | PCI Express 4.0 x4 |
| Hard Drive / Interface Type | PCI Express 4.0 x4 |
| Header / Brand | Lenovo |
| Mainboard / Chipset Type |
|
| Mainboard / Processor Socket | FCLGA1851 Socket |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 IoT Enterprise LTSC |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3.3 GHz |
| Processor / Generation | Series 2 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 10-core |
| Processor / Processor Number | 225 |
| Processor / Type | Core Ultra 5 |
| RAM / Data Integrity Check | Non-ECC |
| RAM / Form Factor | CSO-DIMM 262-pin |
| RAM / Technology | DDR5 SDRAM |
| System / Hard Drive Capacity | 1 TB |
| System / Type | Workstation |
| Video Output / Graphics Processor | Intel Graphics |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Cache Memory | |
| Cache Per Processor | 20 MB |
| Installed Size | L3 cache - 20 MB |
| Dimensions & Weight | |
| Depth | 22.3 cm |
| Height | 20.2 cm |
| Weight | 3.6 kg |
| Width | 8.7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | Speaker |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Product Form Factor | MT |
| Type | Workstation |
| Graphics Controller | |
| Graphics Processor | Intel Graphics shared video memory (UMA) - up to 4 TOPS |
| Max Monitors Supported | 3 |
| Video Interfaces | DisplayPort |
| Hard Drive | |
| Capacity | 1 x 1 TB |
| Features | TCG Opal Encryption, Performance |
| Interface Type | PCI Express 4.0 x4 |
| Manufacturer | Western Digital |
| Type | SSD - M.2 2280 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Keyboard Name | Lenovo AI Keyboard |
| Miscellaneous | |
| Compliant Standards | RoHS, FIPS 140-2, FSC, TCG Certified |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion switch, tool-less chassis access |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Interface | USB |
| Mouse Name | Lenovo Calliope Mouse |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) |
| Ethernet Controller | Intel I219-LM |
| Features | Wake on LAN (WoL), dual stream (2x2) |
| Interface (Bus) Type | M.2 Card |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel WI-FI 7 BE200 |
| Neural Processor Unit (NPU) | |
| AI Datatype Support on NPU | INT8 |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 13 TOPS |
| Sparsity Support | Yes |
| Total Processor Performance Up To (TOPS) | 23 TOPS |
| Windows Studio Effects Support | Yes |
| Operating System / Software | |
| OS Provided | Windows 11 IoT Enterprise LTSC |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Efficiency | 90% |
| Power Provided | 170 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel W880 |
| Clock Speed | 3.3 GHz (P-core) / 2.7 GHz (E-core) |
| CPU | Intel Core Ultra 5 (Series 2) 225 |
| CPU Qty | 1 |
| CPU Socket | FCLGA1851 Socket |
| L2 cache | 22 MB |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.9 GHz (P-core) / 4.4 GHz (E-core) |
| Number of Cores | 10-core |
| Processor Main Features | Intel Smart Cache |
| RAM | |
| Configuration Features | 1 x 16 GB |
| Effective Memory Speed | 6400 MT/s |
| Features | Dual channel memory architecture |
| Form Factor | CSO-DIMM 262-pin |
| Installed Size | 16 GB (installed) / 128 GB (max) |
| Rated Memory Speed | 6400 MT/s |
| Slots | 2 (total) / 1 (empty) |
| Technology | DDR5 SDRAM - non-ECC |
| Storage Controller | |
| Controller Interface Type | PCI Express (NVMe) |
| RAID Level | RAID 0, RAID 1, RAID 5 |
| Type | 1 x NVMe |
| Sustainability Information | |
| Carbon Footprint | 512 kg carbon emissions (EU) |
| PAIA Version | 1.4.7 |
| TCO Certified | TCO Certified, generation 10, for desktops |
| Total CF/unit Standard Deviation (kg CO2e) | 207 |
