Hardware Cameras and Camcorders Security Cameras
Add to My Favorites
Security Cameras

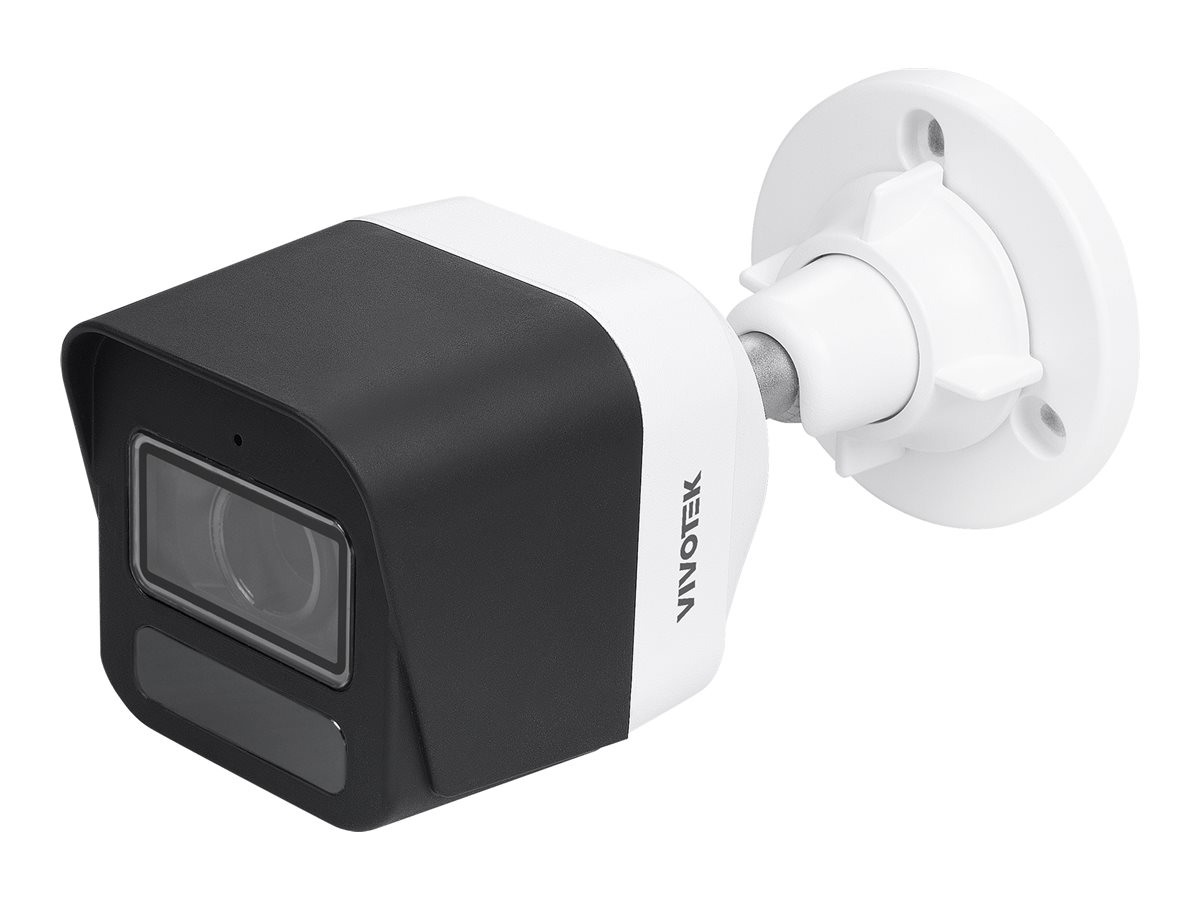

Vivotek C Series IB9380-HTV-V2

MSRP$337.00
$277.00
Vivotek C Series IB9380-HTV-V2
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Network surveillance camera
  • bullet
  • outdoor
  • vandal-proof
  • color (Day&Night)
Vivotek C Series IB9380-HTV-V2
  • Network surveillance camera
  • bullet
  • outdoor
  • vandal-proof
  • color (Day&Night)
  • 5 MP
  • 2880 x 1616
  • fixed iris
  • motorized
  • audio
  • LAN 10/100
  • MJPEG, H.264, H.265
  • DC 12 V / PoE Class 3
  Additional Details
Price: $277.00
MSRP: $337.00
Mfr Part #: IB9380-HTV-V2
SHI Part #: 50549736
Category: Security cameras
UNSPSC: 46171610
Manufacturer: Vivotek
Product Type: Hardware
General Information
CategorySecurity cameras
DescriptionVivotek C Series IB9380-HTV-V2 - Network surveillance camera - bullet - outdoor - vandal-proof - color (Day&Night) - 5 MP - 2880 x 1616 - fixed iris - motorized - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Class 3
ManufacturerVivotek
MSRP$337.00
UNSPSC46171610
Main Specifications
Dimensions & Weight / Depth19.5 cm
Dimensions & Weight / Height9.1 cm
Dimensions & Weight / Weight757 g
Dimensions & Weight / Width9.1 cm
Header / BrandVivotek
Miscellaneous / Product Color
  • Black
  • White
Packaged Quantity1
Service & Support / Type3-year warranty
Camera
Digital Video Capture Resolution2880 x 1616, 2688 x 1512, 2560 x 1440, 1920 x 1080, 1600 x 904, 1360 x 768, 1280 x 720, 640 x 360, 480 x 272
Digital Video FormatMJPEG, H.264, H.265
Exposure Range1/5 sec - 1/32000 sec
FeaturesEmbedded SOC processor, Wide Dynamic Range (WDR) Pro, Removable IR-Cut Filter, Smart IR, 180° rotation, NAS-Ready, Pixel Calculator, 3 video streams, 52 dB signal-to-noise ratio, Smart Stream III, white balance, brightness control, contrast control, saturation control, sharpness control, gamma control, Defog, 3D digital noise reduction (DNR), Electronic Image Stabilizer (EIS), Backlight Compensation (BLC), Highlight Compensation (HLC), exposure control, AE speed adjustment, Privacy Mask Function, CSRF protection, digest authentication, HTTPs encryption, password protection, secure boot, 5m microphone pickup range, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Trusted Platform Module (TPM), People Detection, Vehicle Detection, gender recognition, clothes color detection, deep learning function, Smart Motion Detection, Smart VCA, intrusion detection, loitering detection, Line Crossing Detection, unattended object detection, missing object detection, face detection, crowd detection
Flash Memory256 MB
Frame Rate (max)30 frames per second
Infrared Distance30 m
Infrared LEDs2
Max Digital Video Resolution2880 x 1616
Minimum Illumination
  • 0.04 lux - color - F1.6
  • 0.005 lux - B&W - F1.6
  • 0 lux - IR - infrared LEDs on
Motion DetectionYes
RAM512 MB
TypeColor - Day&Night - fixed - outdoor - vandal-proof
Environmental Parameters
Max Operating Temperature60 °C
Min Operating Temperature-30 °C
Relative Humidity (operating)90% RH (non-condensing)
Expansion / Connectivity
Encryption AlgorithmTLS 1.2, TLS 1.3
Ports
  • LAN/power - RJ-45
  • Audio line out
  • Audio line in
  • Digital input
  • Digital output
Supported Memory CardsmicroSD Card, microSDHC Card, microSDXC Card
General
Audio FormatsG.711, G.726, AAC-LC, MPEG 2 Audio
Audio SupportYes: two-way audio capability, built-in microphone
Connectivity TechnologyWired
Depth19.5 cm
Device TypeNetwork surveillance camera
Form FactorBullet
Height9.1 cm
Weight757 g
Width9.1 cm
Image Sensor
Type5 MP Progressive Scan CMOS 1/2.7"
Interfaces
Network InterfaceEthernet 10Base-T/100Base-TX
Network ProtocolsARP, Bonjour, CIFS, SMB, DDNS, DHCP, DNS, FTP, SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QOS, CoS, DSCP, RTSP, RTP, RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
Lens Construction
Diagonal Field of View (degree)37 - 136
Focal Length2.7 mm - 13.5 mm
Focus AdjustmentRemote
Horizontal Field of View (degree)32.2 - 111
Lens IrisF/1.6-3.1 fixed iris
Optical Zoom5 x
TypeMotorized zoom
Vertical Field of View (degree)18 - 57
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Compliant StandardsIEEE 802.1x, IEEE 802.3af, EN 55032, EN 55035 Class A, UKCA, FCC Part 15 Subpart B, AS/NZS CISPR32 Class A, VCCI-CISPR 32 Class A, ICES-003 issue 7 Class A, UL 62368-1, IEC/EN 62368-1, IEC/EN 62471, BS EN IEC 62368-1, NEMA 250 Type 4X, IK10, IP66, IS 13252, CNS 13438, CNS 14336-1, IEC 60529 IP67
Included AccessoriesScrew kit, alignment sticker, cable gland
Power
Power RequirementsDC 12 V / PoE Class 3
Software / System Requirements
Software IncludedTrend Micro IoT Security (1 year trial)
Tilting
Range (degree)90
