ATEN - Video/audio/infrared/USB/serial extender
MSRP$1,504.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

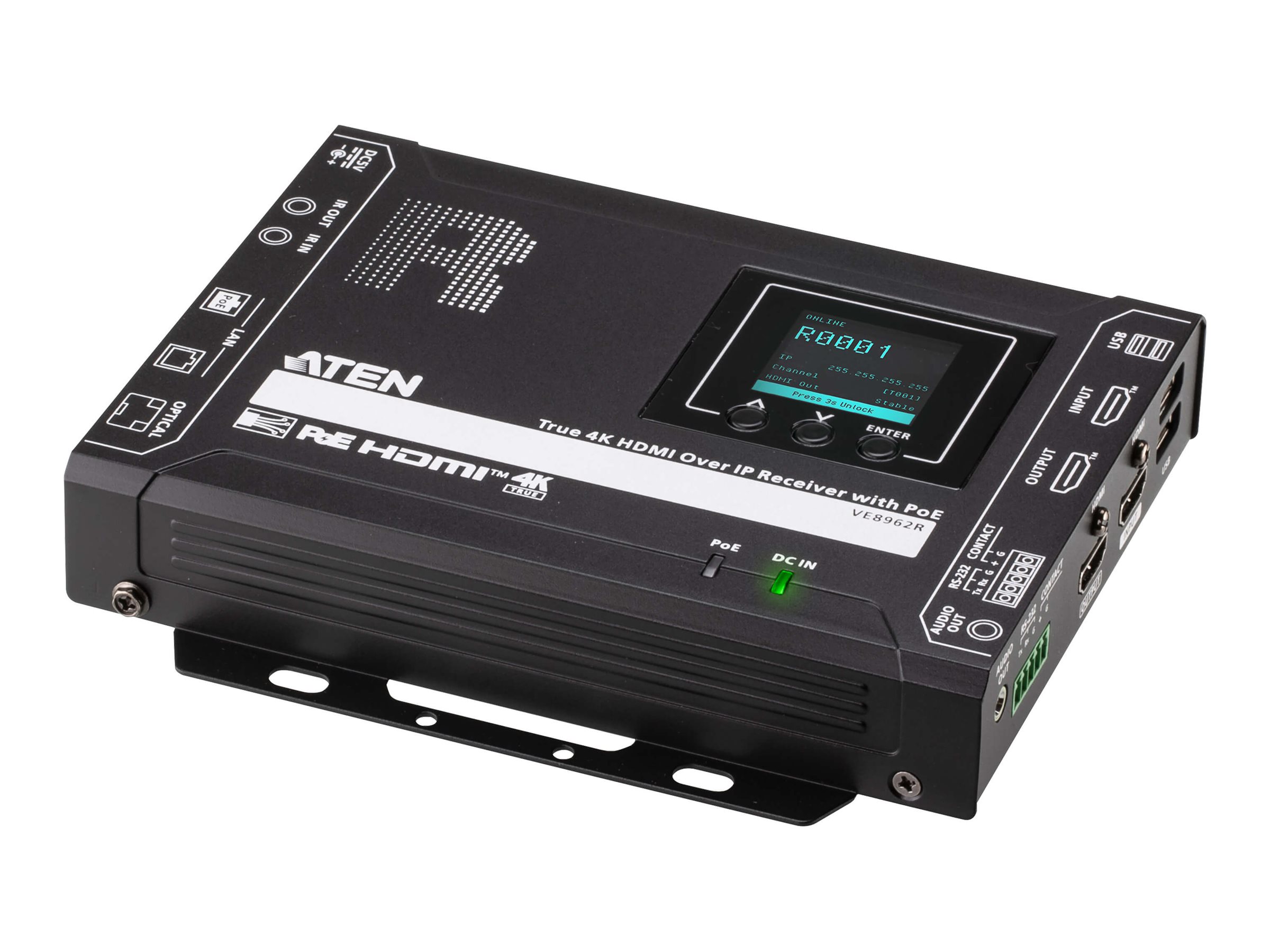

ATEN - Video/audio/infrared/USB/serial extender
- receiver
- HDMI
- over CAT 5e/6
- up to 10 km
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,504.00 |
| Mfr Part #: | VE8962R |
| SHI Part #: | 50548108 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | ATEN - Video/audio/infrared/USB/serial extender - receiver - HDMI - over CAT 5e/6 - up to 10 km |
| Manufacturer | ATEN |
| MSRP | $1,504.00 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.6 cm |
| Dimensions & Weight / Height | 2.9 cm |
| Dimensions & Weight / Weight | 740 g |
| Dimensions & Weight / Width | 12.49 cm |
| Header / Brand | ATEN |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | HDMI |
| Networking / Form Factor | Rack-mountable |
| Networking / Type | Video/audio/infrared/USB/serial extender |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 16.6 cm |
| Height | 2.9 cm |
| Weight | 740 g |
| Width | 12.49 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Built-in Devices | LCM display |
| Device Type | Video/audio/infrared/USB/serial extender (receiver) |
| Form Factor | Rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | AES-256 |
| Networking | |
| Compliant Standards | HDCP 2.3, HDCP 2.2, IEEE 802.3at |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Features | 4:4:4 chroma subsampling support, metal housing, bi-directional IR, LPCM 7.1 support, 8KV/15KV ESD Protector, Dolby Digital Plus support, Dolby TrueHD support, DTS-HD Master Audio support, EDID mode, video wall support |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 10 km |
| Remote Management Protocol | Telnet, CLI, SSH, HTTPS |
| Status Indicators | Power |
| Power | |
| Power Device | External power adapter / power injector |
| Power Over Ethernet (PoE) | PoE+ |
